WAC Lighting Charge 8010 10W H-Type LED Track Head 5CCT 45 Degree White
Available in stock (12941)
About this item
About this item
- Accent Lighting Output: 10W, 865 delivered lumens, fixed 45° beam, 1006 CBCP.
- Selectable White Light: Five settings from 2700K to 5000K, 90 CRI, 3-step MacAdam color consistency.
- Flexible Direction: 350° horizontal and 90° vertical aiming for artwork, shelving and displays.
- Dimmable Performance: ELV and TRIAC dimming from 100% to 10%, 50,000-hour rated life.
- White H-Type Design: Powder-coated die-cast aluminum, frosted TIR lens, concealed driver, Halo track, dry locations.
Description
Description

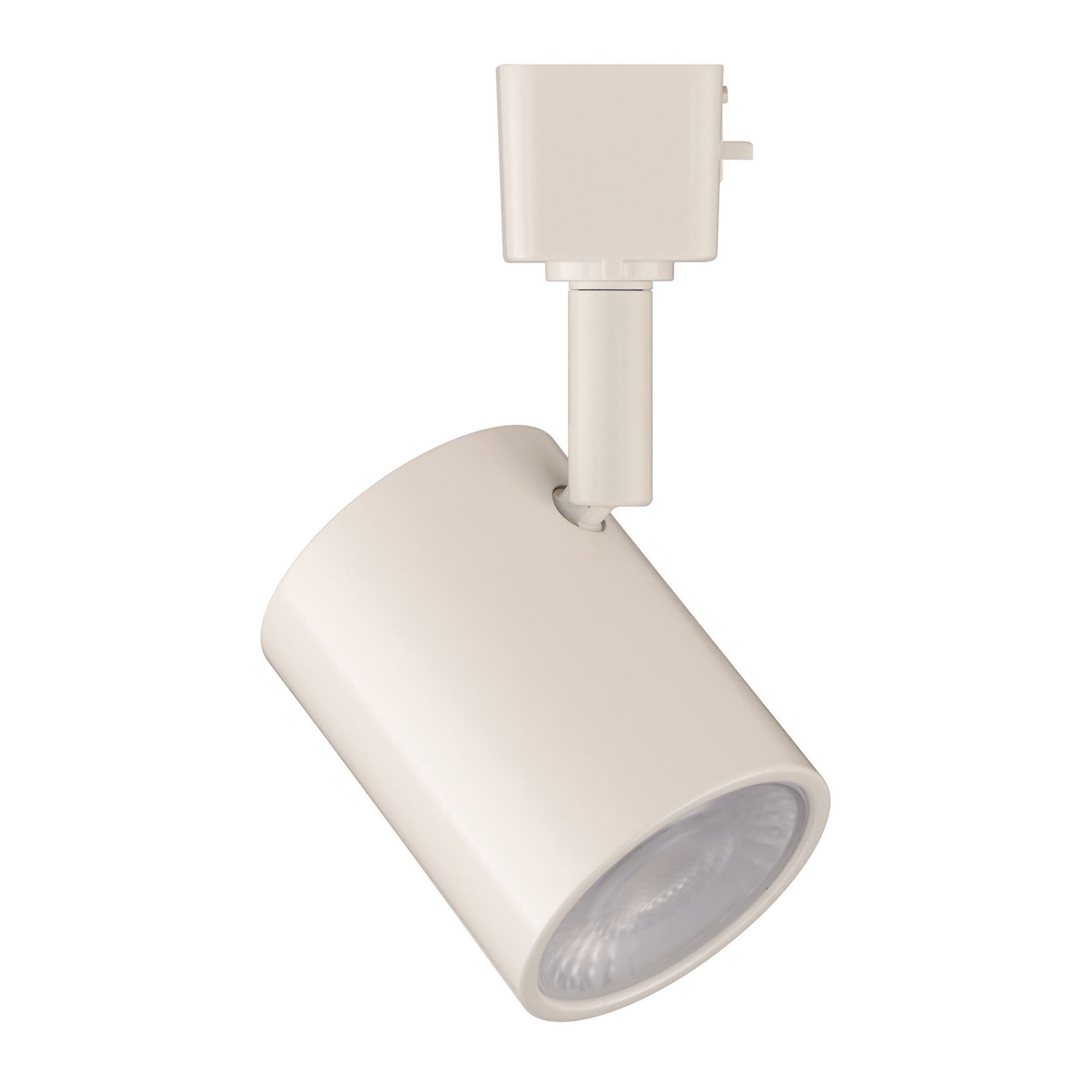

WAC Lighting Charge H-8010-CS-WT LED Track Head
The WAC Lighting Charge H-8010-CS-WT delivers 865 lumens at 10W in a compact White housing designed for residential spaces and lower-mounted commercial applications. Five selectable white-light settings help coordinate artwork, shelving and merchandise with the surrounding interior. Its fixed 45° beam combines with 350° horizontal and 90° vertical aiming for directional accent lighting. This version fits H-Type (Halo) track.
Key Features
- Track Type: H-Type (Halo).
- Output: 10W, 865 delivered lumens.
- Color Selection: 2700K, 3000K, 3500K, 4000K or 5000K.
- Color Quality: 90 CRI, 3-step MacAdam ellipse.
- Beam Angle: Fixed 45° spread.
- Aiming: 350° horizontal, 90° vertical.
- Center Beam Candlepower: 1006 CBCP.
- Construction: Die-cast aluminum, frosted TIR lens.
- Finish: Electrostatically powder-coated White.
- Dimming: ELV and TRIAC, 100% to 10% with a compatible dimmer.
- Electrical: 120V AC, 50/60Hz, concealed driver.
- Life & Location: 50,000 hours, dry locations, -4°F to 104°F.
Construction & Design

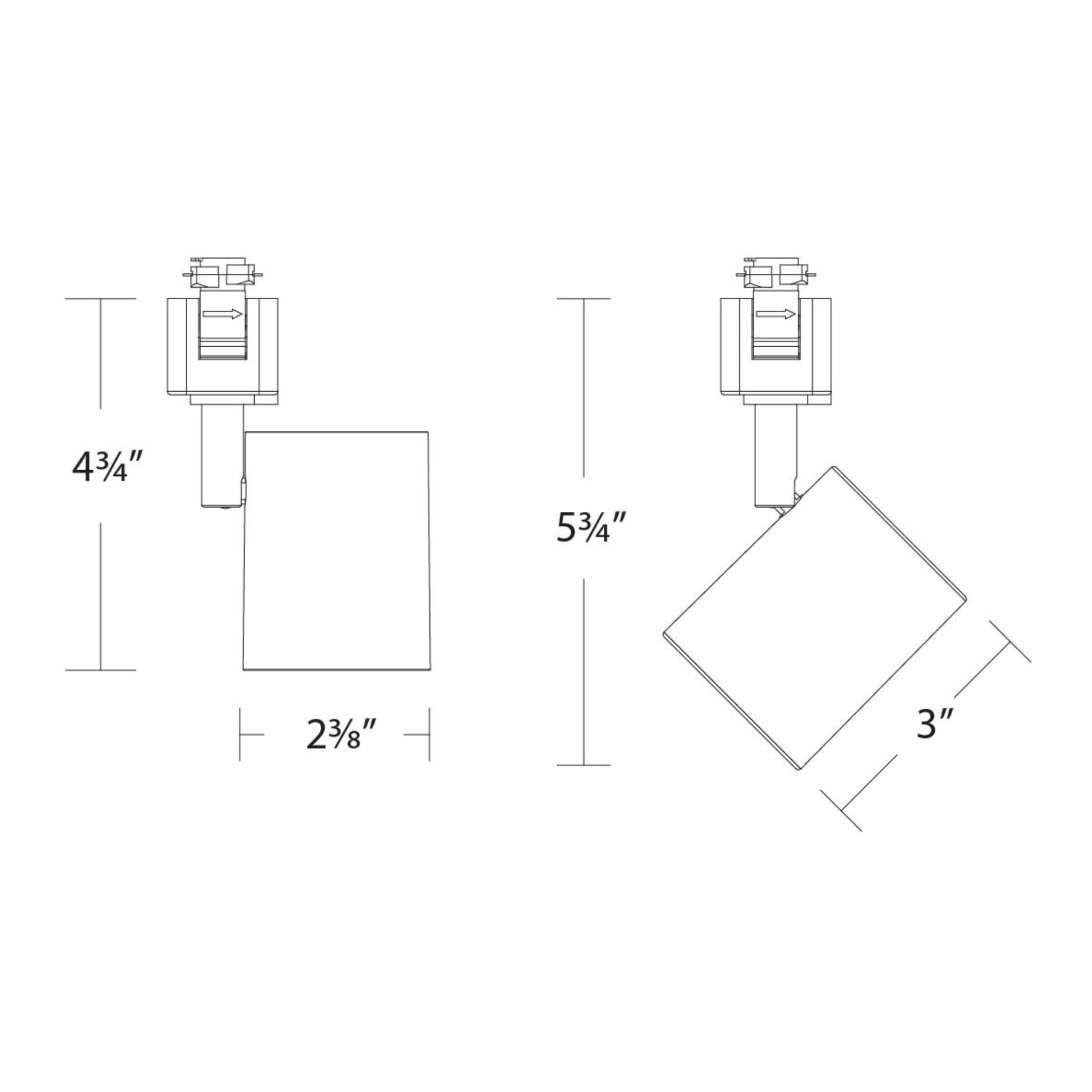

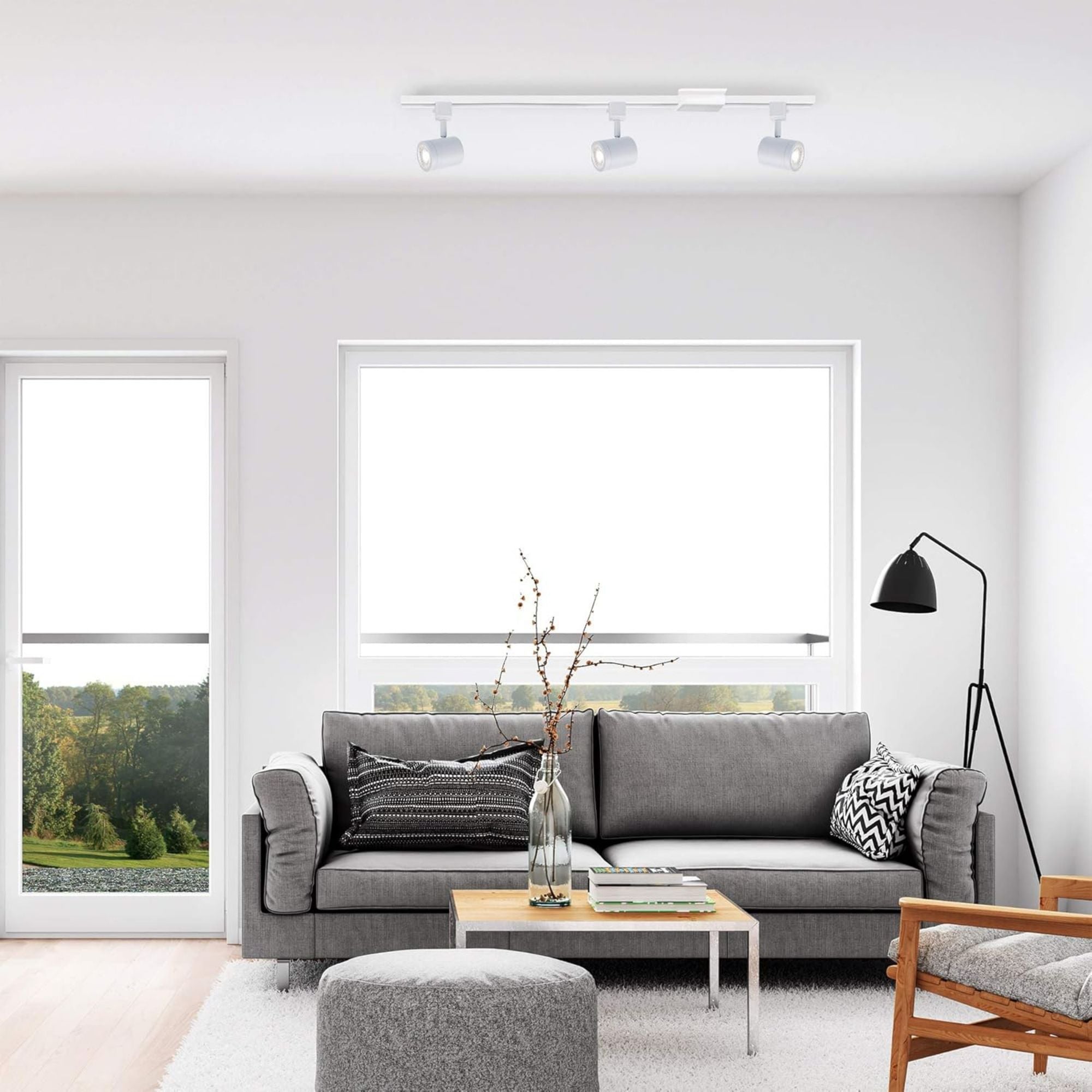

The die-cast aluminum housing has an electrostatically powder-coated White finish and a frosted TIR lens. A concealed driver keeps the fixture profile compact. The head measures 2.375 in across and 3 in body length. Overall height is 4.75 in in the illustrated horizontal position and 5.75 in in the illustrated angled position; installed height varies with aiming. The same Charge 8010 head is also available in a separately sold 3 Light Track Kit (H-8010/3-CS-WT), complete with three heads, a 4 ft H-Type track rail and a floating canopy power feed.
Light Output & Performance
The integrated LED provides 865 delivered lumens at 10W, 90 CRI, 3-step MacAdam color consistency and 1006 CBCP. Choose 2700K, 3000K, 3500K, 4000K or 5000K to suit the space. The 45° optical beam remains fixed as you reposition the head. Compatible ELV and TRIAC dimmers adjust brightness from 100% to 10%. Rated LED life is 50,000 hours.
Electrical & Installation
The WAC Lighting H-8010-CS-WT operates at 120V AC, 50/60Hz and fits H-Type (Halo) track. Match the head to the installed track system; this is the H-Type version rather than the J-Type or L-Type model. The driver is concealed within the fixture. Install in dry locations within the -4°F to 104°F operating range. The luminaire is ETL and cETL listed and Title 24 JA8 compliant.
Typical Applications
- Residential artwork and shelving.

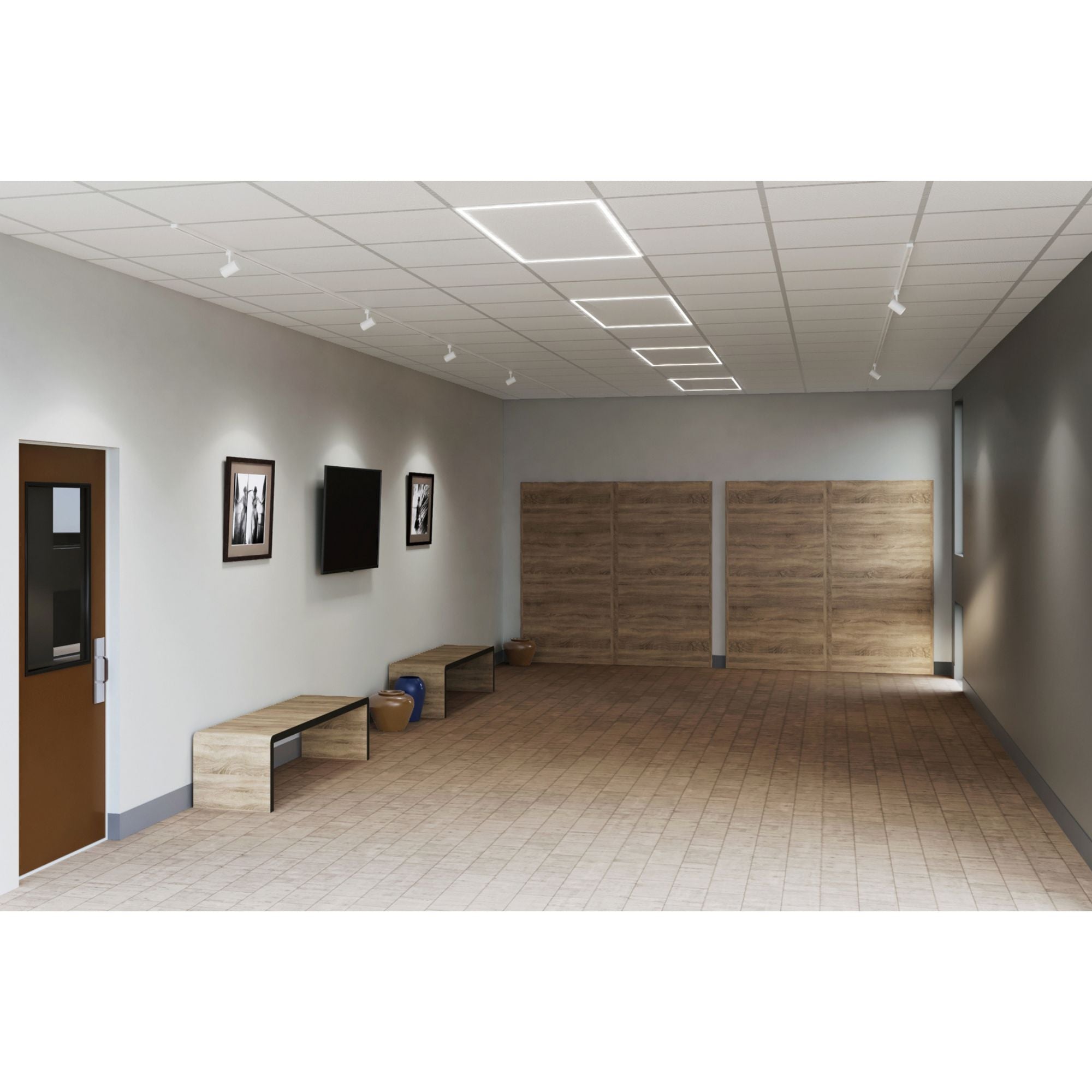

- Lower-mounted retail displays.
- Gallery accent lighting.
- Hospitality interior feature lighting.
What's Included
- One WAC Lighting Charge H-8010-CS-WT White track head with integrated LED, frosted TIR lens and concealed driver.
