Satco Nuvo TH225 Gimbal Ring H-Type PAR38 Track Head Black
Available in stock (4418)
About this item
About this item
- Replaceable PAR38 Lamp: One E26 medium-base bulb, sold separately.
- 150W Maximum: Actual power consumption depends on the installed lamp, 120V operation.
- Tailored Light Output: Select lamp brightness, color temperature and beam spread for your display.
- Lamp-Dependent Dimming: Use a dimmable bulb and compatible dimmer for brightness control.
- Open Gimbal Ring Design: Black finish, glass and metal construction, H-Type (Halo) track, dry indoor use.
Description
Description

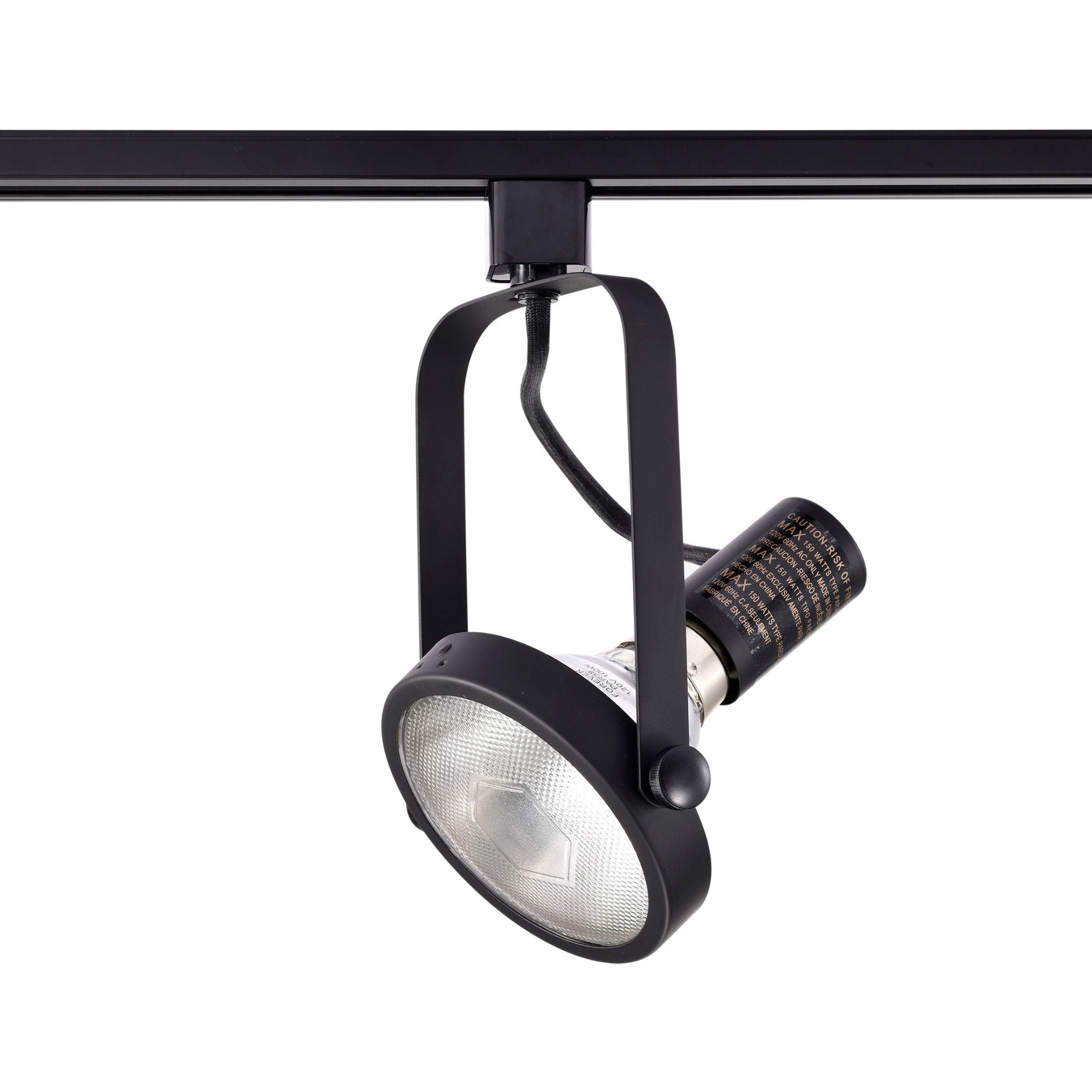

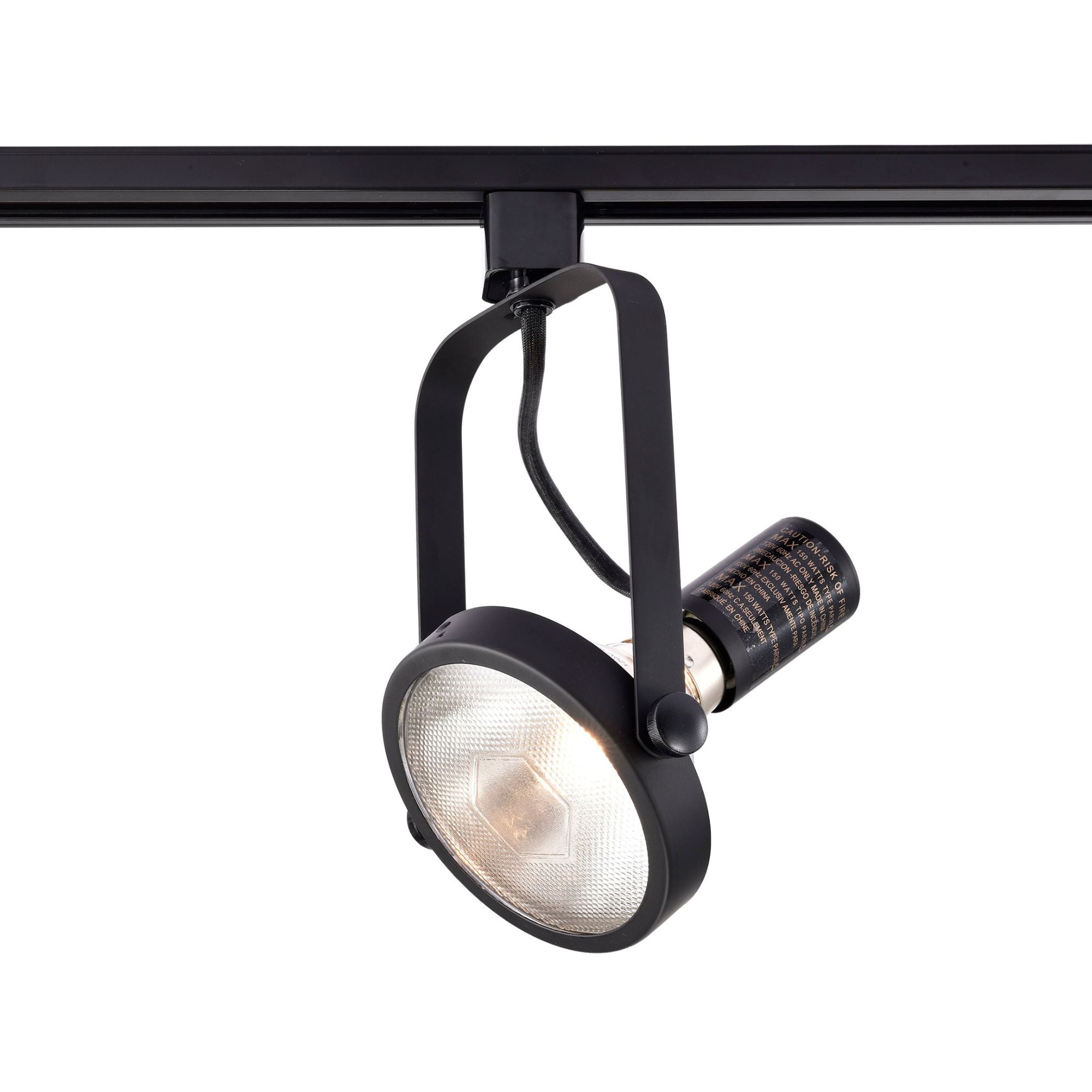

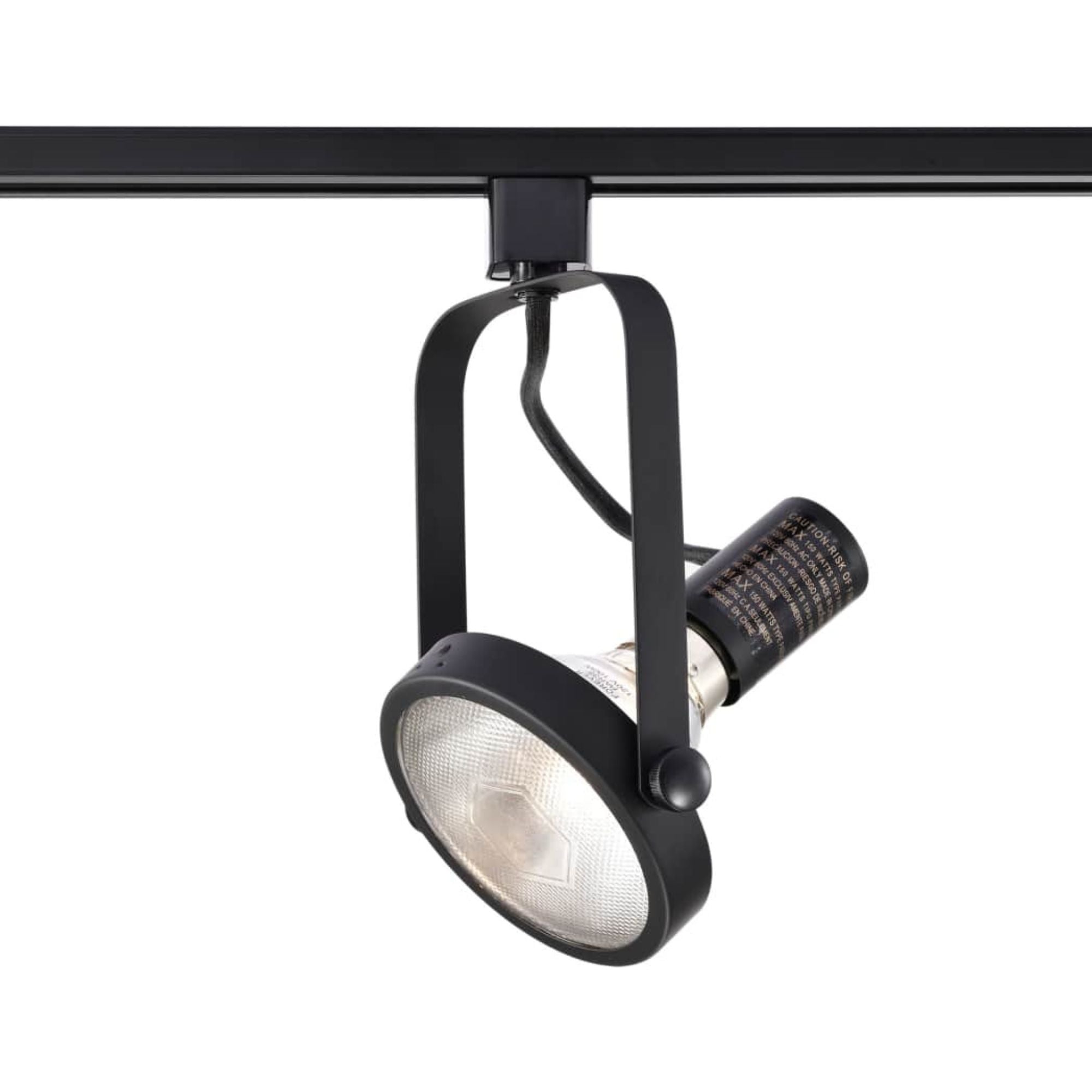

Satco Nuvo TH225 PAR38 Gimbal Ring Track Head
The Satco Nuvo TH225 combines a Black gimbal ring design with a replaceable PAR38 lamp for display and accent lighting. Designed for H-Type (Halo) track, this single-light head accepts an E26 medium-base bulb up to 150W, sold separately. Choose the lamp's brightness, color temperature and beam spread to suit your space, while the open ring profile keeps the light source visually prominent.
Key Features
- Track Compatibility: H-Type (Halo).
- Design: PAR38 gimbal ring.
- Finish: Black.
- Lamp Type: One PAR38 bulb.
- Socket: E26 medium base.
- Maximum Lamp Wattage: 150W.
- Light Source: Replaceable lamp, sold separately.
- Light Performance: Lumens, color temperature, CRI and beam spread depend on the selected lamp.
- Dimming: Lamp dependent, requires a dimmable lamp and compatible dimmer.
- Electrical: 120V.
- Construction: Glass and metal.
- Location: Dry indoor use.
Construction & Design
The Black gimbal ring coordinates with black track and dark interiors. An open ring and supporting frame give the head a lighter visual profile than an enclosed cylinder, making it a distinct choice for artwork and merchandise displays. Glass and metal construction supports a replaceable-lamp arrangement, allowing the bulb to be changed independently of the track head.
Light Output & Performance
The Satco Nuvo TH225 uses one E26 medium-base PAR38 lamp, 150W maximum. The 150W value is the maximum lamp rating, not a fixed power consumption. Lumens, color temperature, CRI, beam angle and rated life depend on the installed bulb. Dimming is lamp dependent; select a dimmable bulb and a compatible dimmer when brightness control is required. The bulb is sold separately.
Electrical & Installation
The Satco Nuvo TH225 operates at 120V and mounts on compatible H-Type (Halo) track for ceiling installations in dry indoor locations. Install a PAR38 E26 lamp without exceeding the 150W maximum. Track rails, feeds, connectors and the bulb are sold separately.
Compatible Accessories
Complete your replaceable-lamp lighting arrangement with coordinating black Satco Nuvo track components, sold separately. Select rails, power feeds and connectors to suit your layout.
- Track Rails: TR119 (2 ft), TR121 (4 ft), TR125 (6 ft) and TR123 (8 ft), single-circuit H-Type.
- Power Feeds: TP153 live end and canopy, TP155 floating canopy, TP157 live end cord kit, TP170 conduit live end and TP172 inline feed.
- Track Connectors: TP145 mini straight, TP147 L, TP149 T, TP151 X and TP168 flexible connector.
- Track Mounting: TP241 black aircraft cable suspension, TP185 silver T-bar clips (4 pack) and TP243 replacement mounting hardware (2 screws and 2 toggle bolts).
Typical Applications
- Retail merchandise and showroom displays.
- Gallery artwork accents.
- Residential shelving and feature walls.
- Hospitality interior accents.
What's Included
- One Satco Nuvo TH225 Black PAR38 gimbal ring track head.
PAR38 bulb sold separately.
