Satco Nuvo TH421 Angle Arm 12W H-Type LED Track Head 3000K 24 Degree White
Available in stock (215)
About this item
About this item
- Focused Accent Light: Fixed 24° beam, 1020 lumens from 12W, 85 lm/W.
- Warm Color Quality: Fixed 3000K warm white, 90+ CRI.
- Angle Arm Design: White finish, directional head and frosted glass optics.
- Brightness Control: Compatible 120V phase-cut dimmers, 60Hz operation.
- Indoor Track Lighting: H-Type adapter for H-Style track, dry rated, 30,000-hour life.
Description
Description

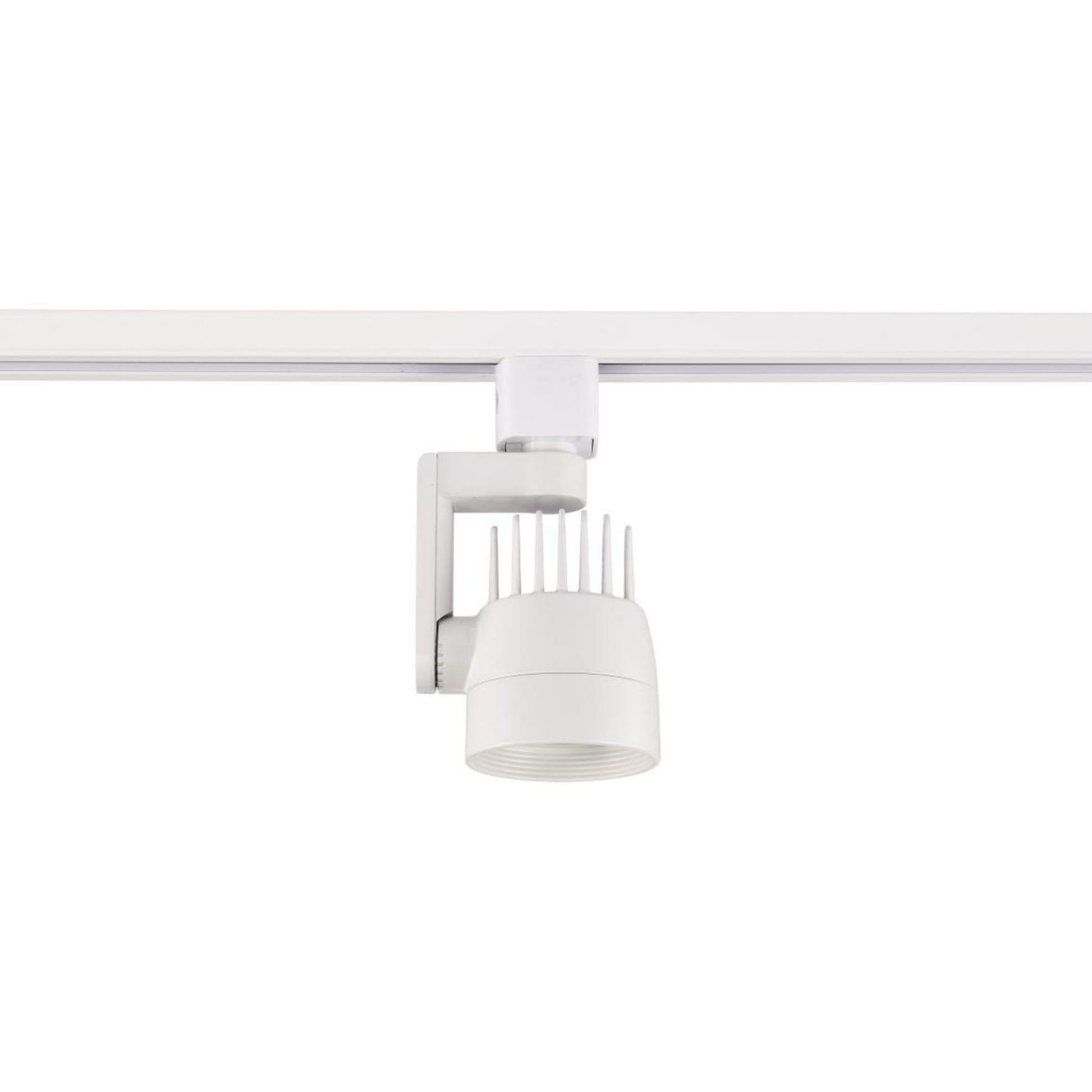

Satco Nuvo TH421 Angle Arm LED Track Head
The Satco Nuvo TH421 pairs a contemporary white Angle Arm design with a fixed 24° beam for focused interior accents. Its 12W integrated LED delivers 1020 lumens of 3000K warm white light, with 90+ CRI for detailed color rendering. Position the directional head toward artwork or merchandise and use 120V phase-cut dimming to adjust brightness.
Key Features
- Track System: H-Type adapter for H-Style track.
- Design: Angle Arm head, white finish.
- Light Source: 12W integrated LED.
- Light Output: 1020 lumens, 85 lm/W.
- Color Temperature: Fixed 3000K warm white.
- Color Rendering: 90+ CRI.
- Beam: Fixed 24° spread.
- Optics: Frosted glass.
- Electrical: 120V, 60Hz, 0.100A, 0.94 power factor.
- Dimming: Compatible 120V phase-cut dimmers.
- Rated Life: 30,000 hours.
- Location: Dry indoor use, cETLus Listed.
Construction & Design

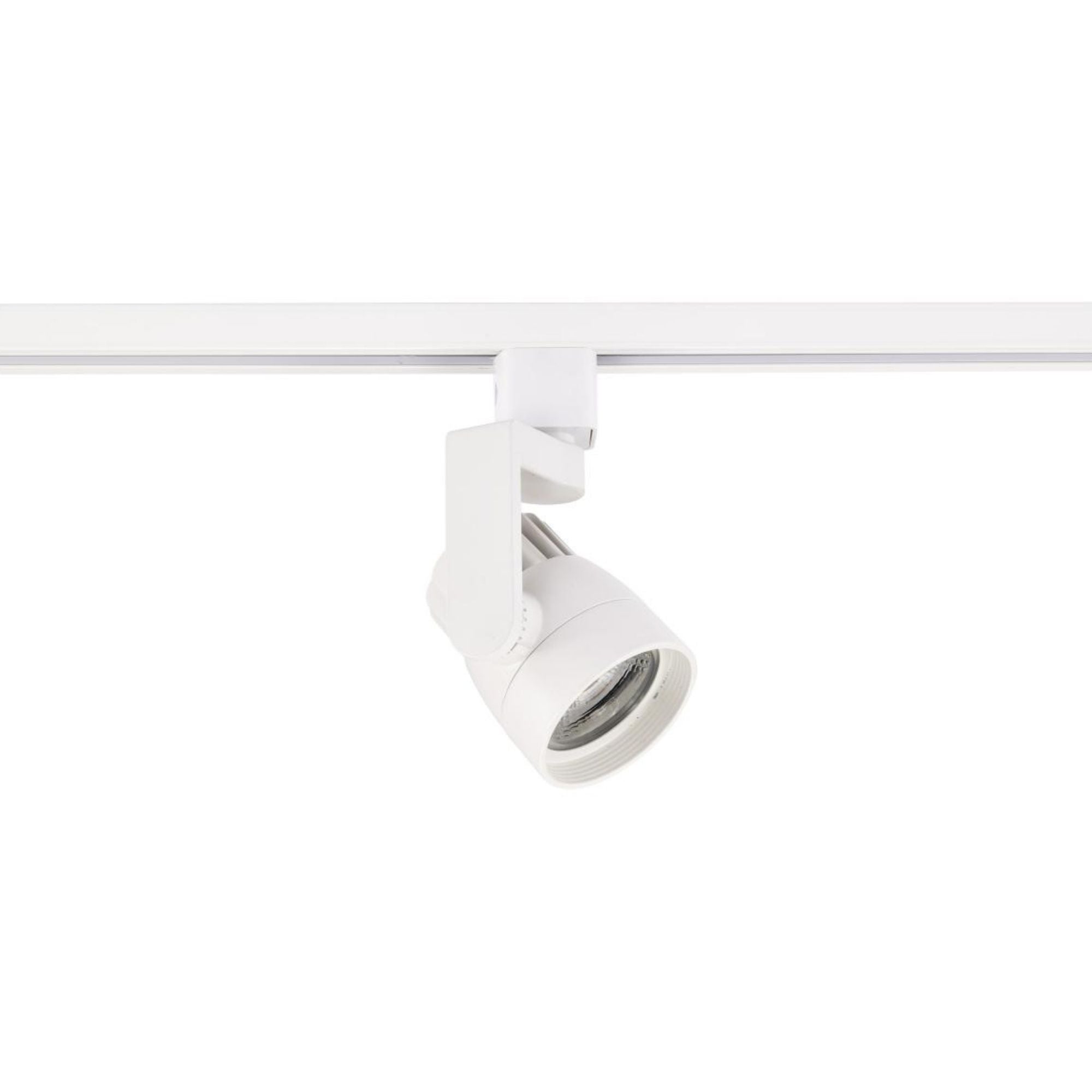

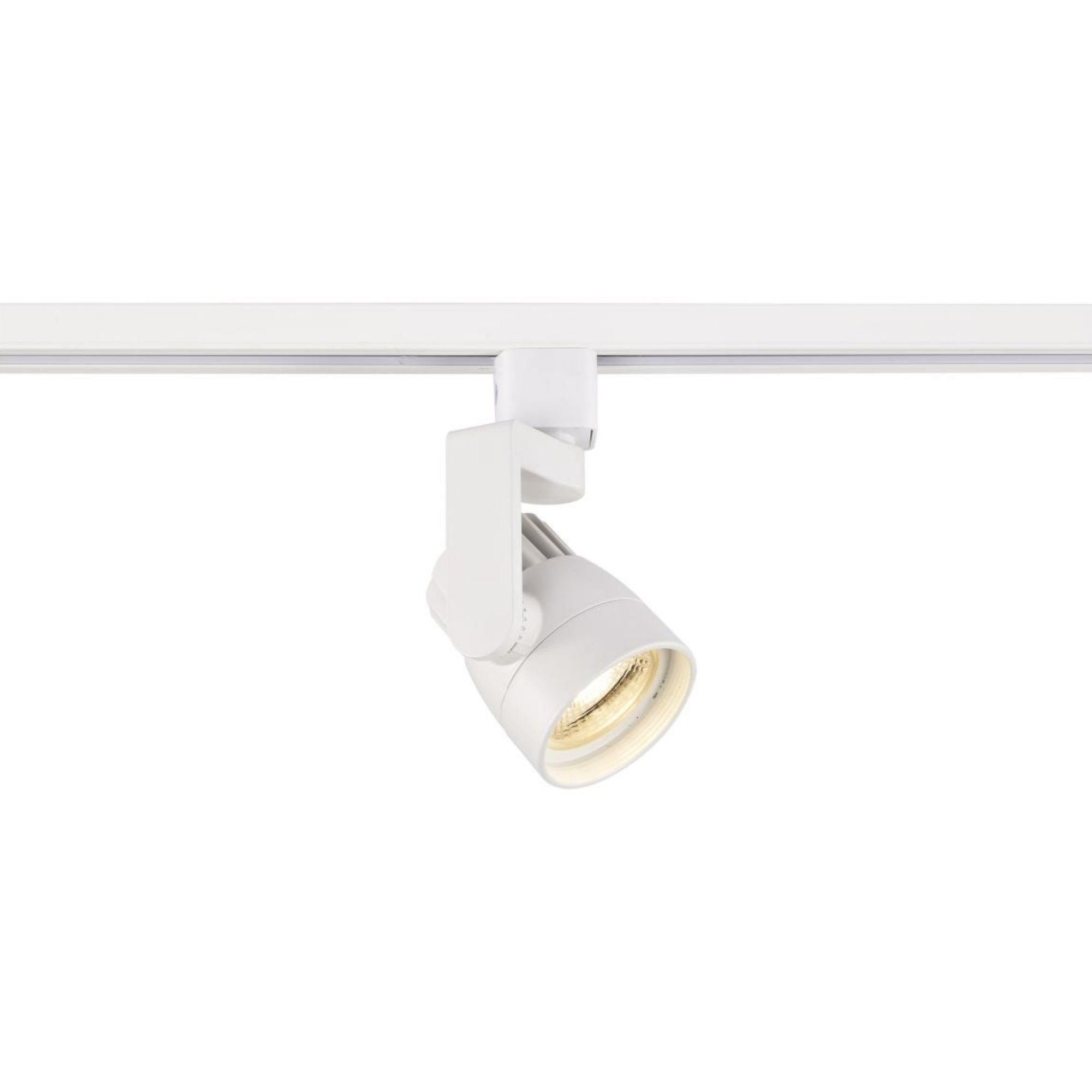

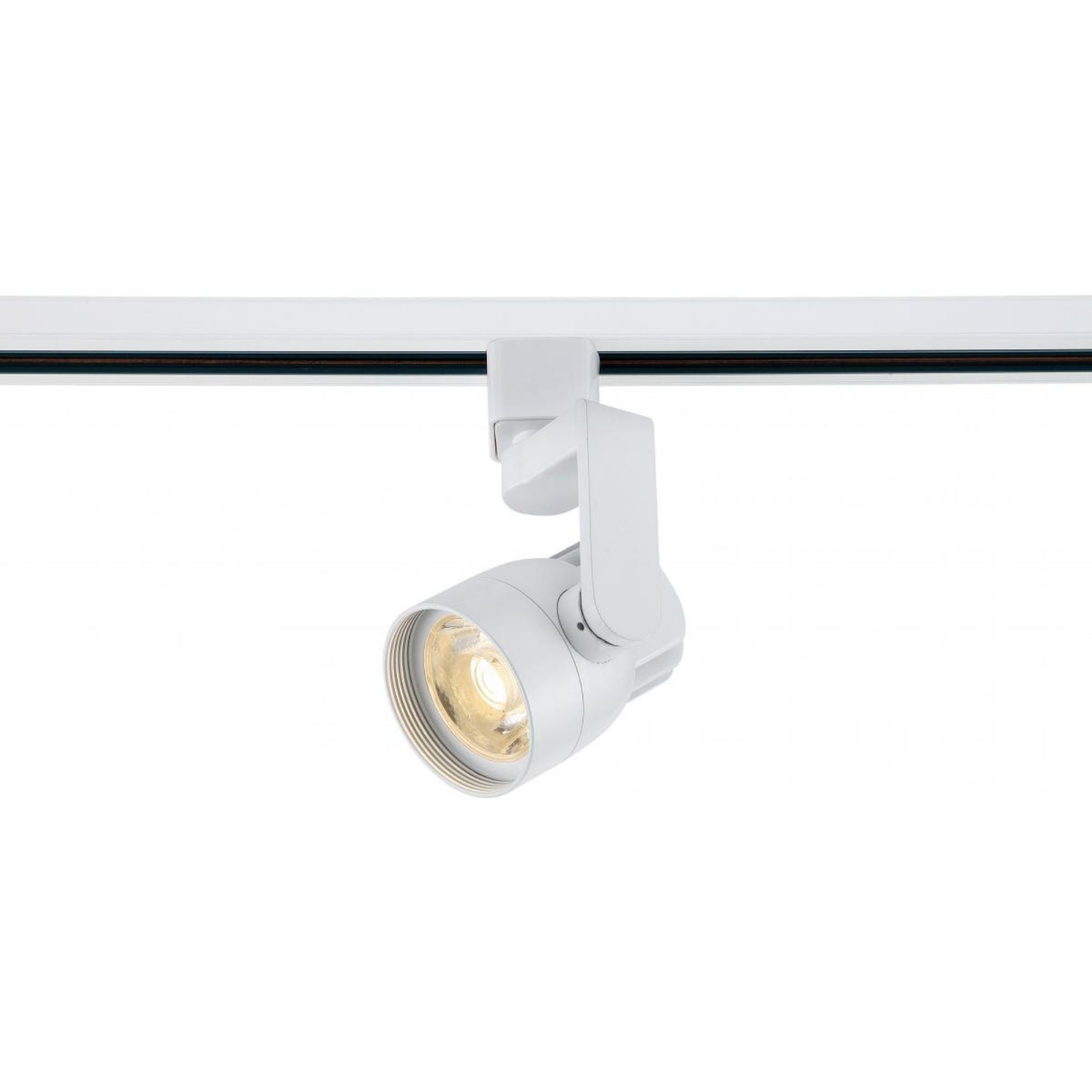

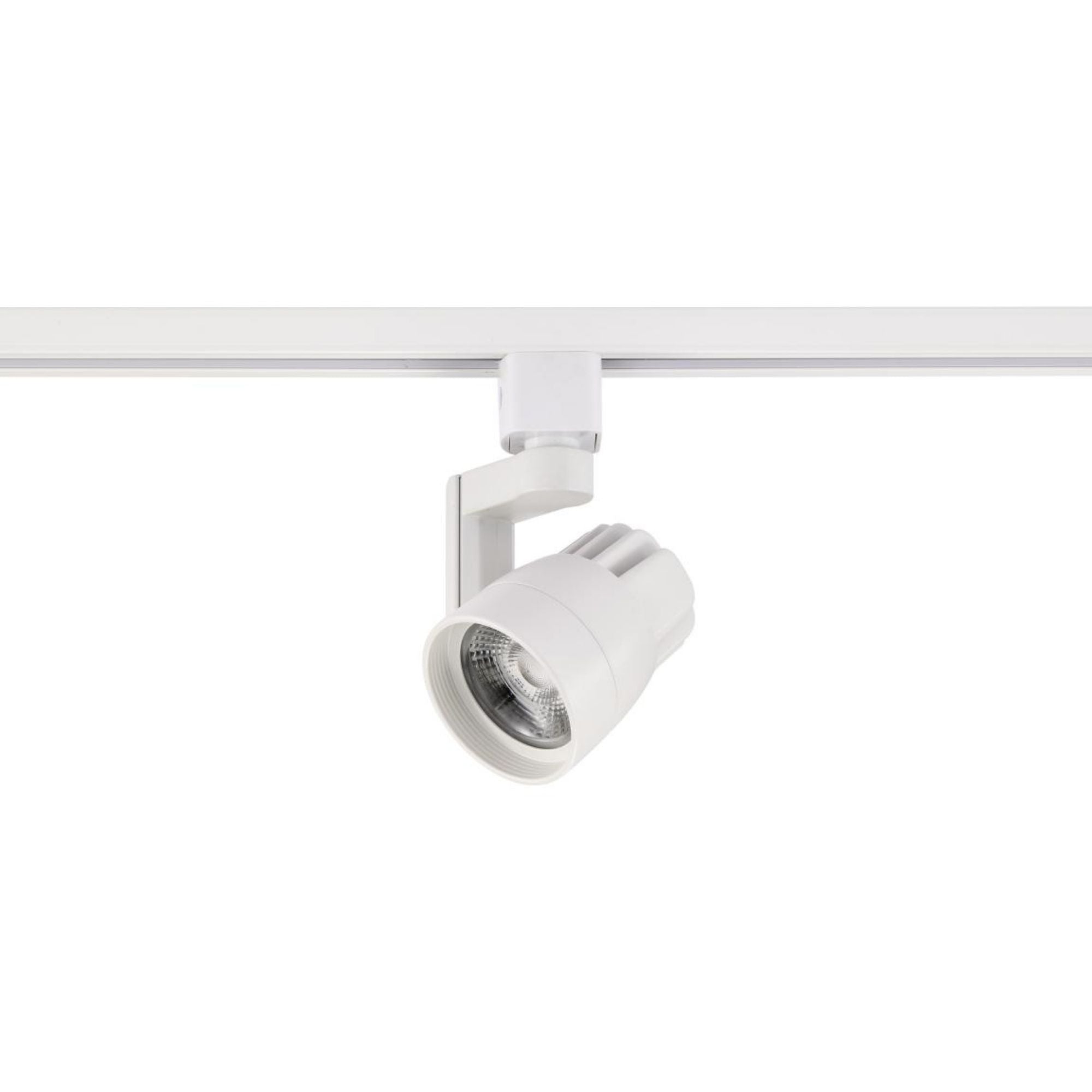

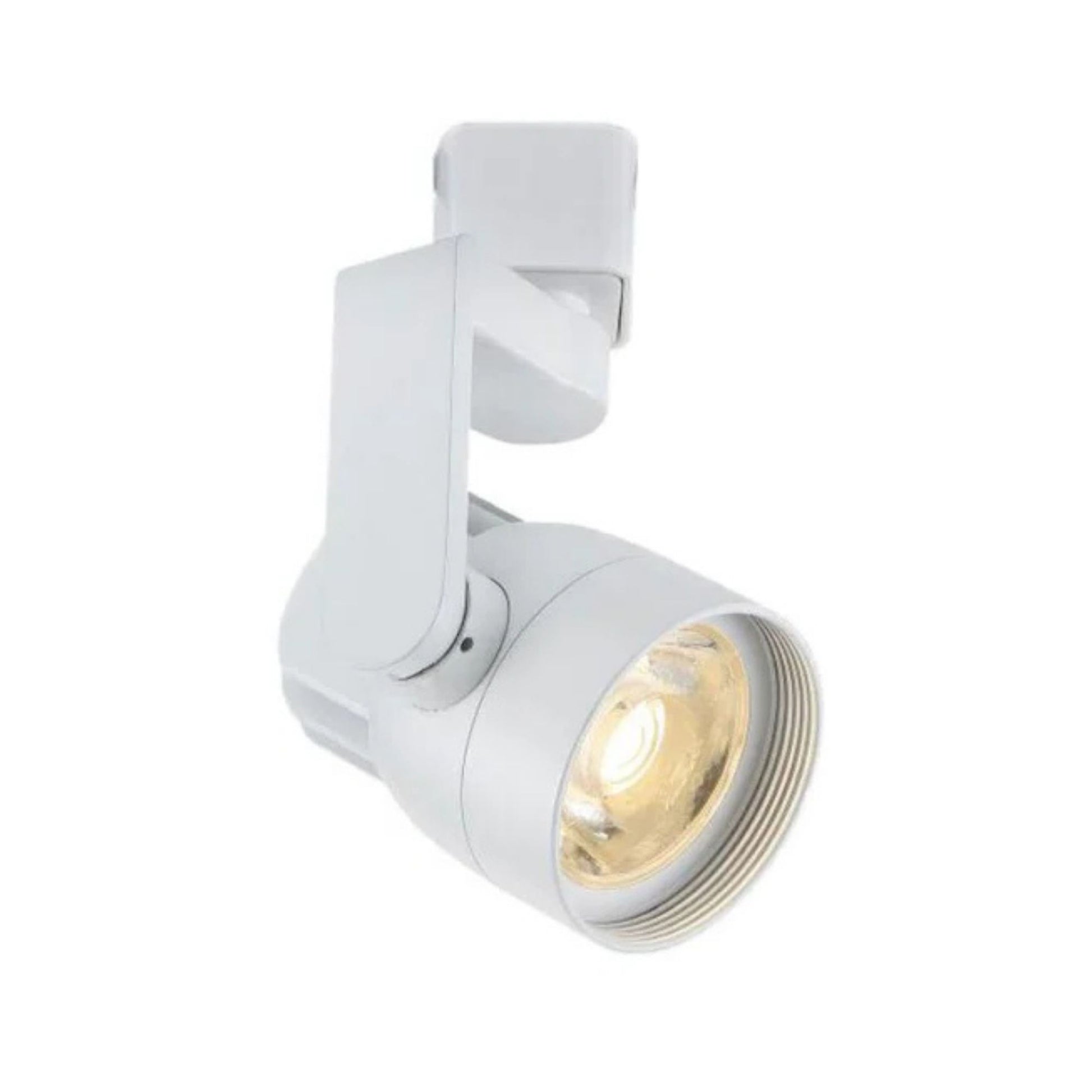

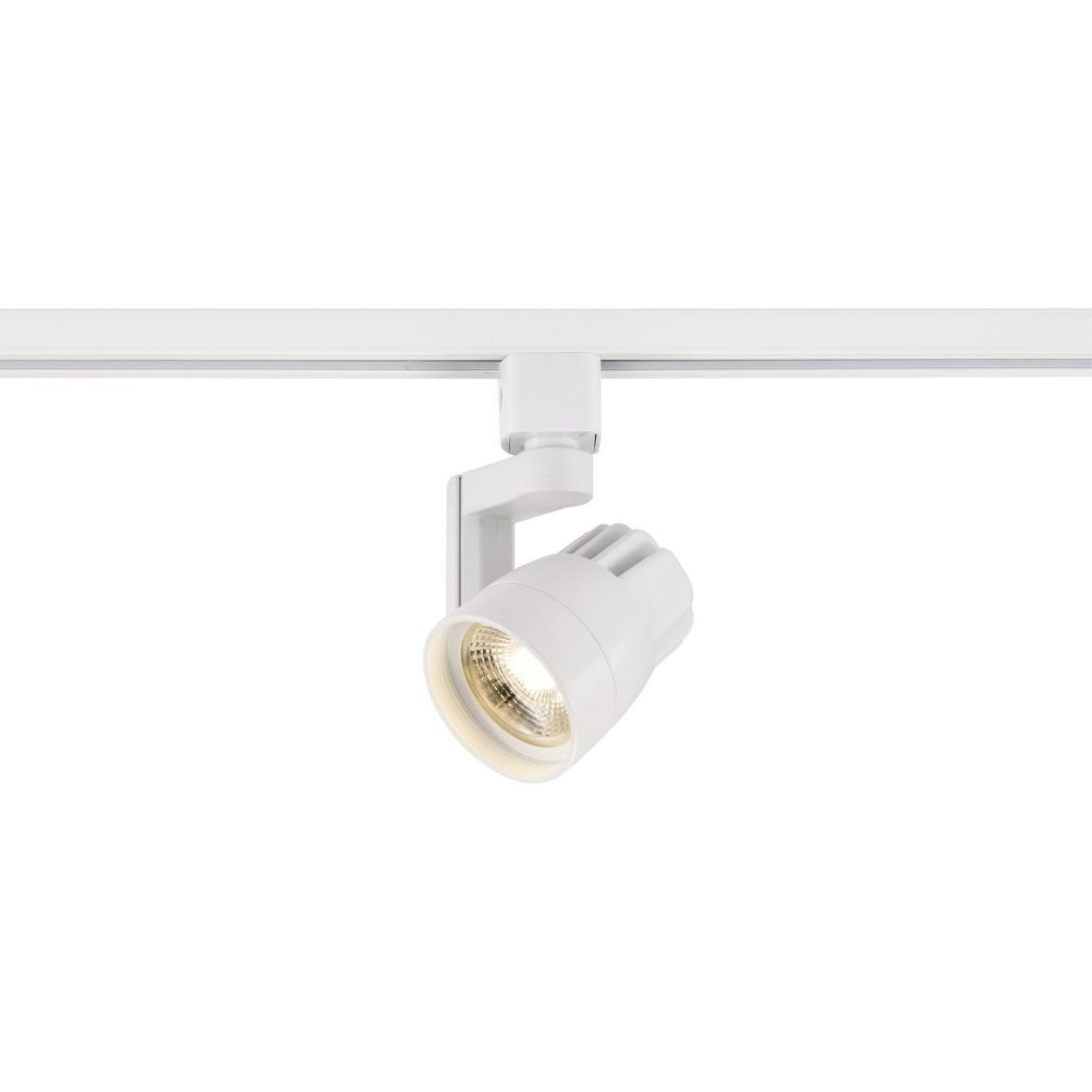

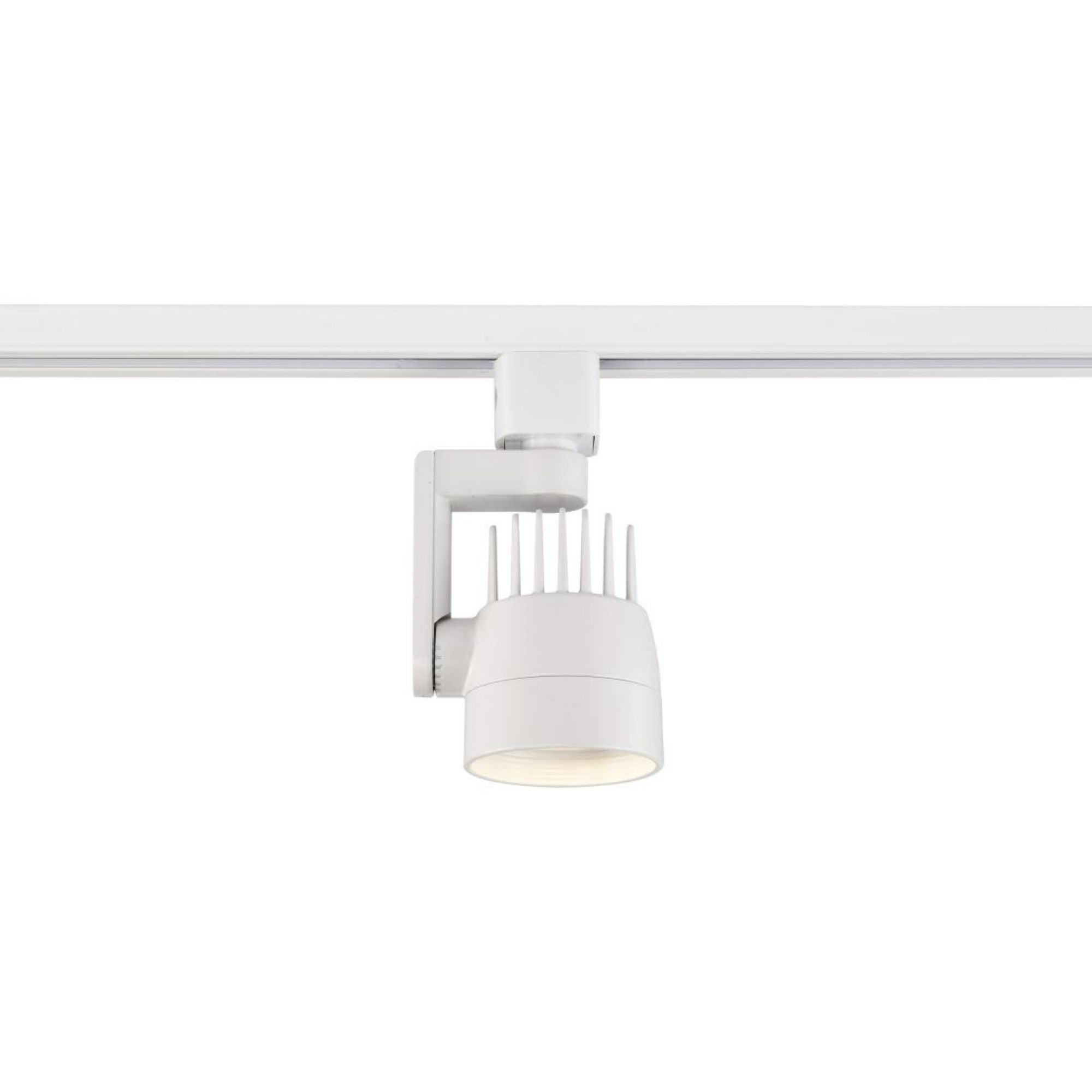

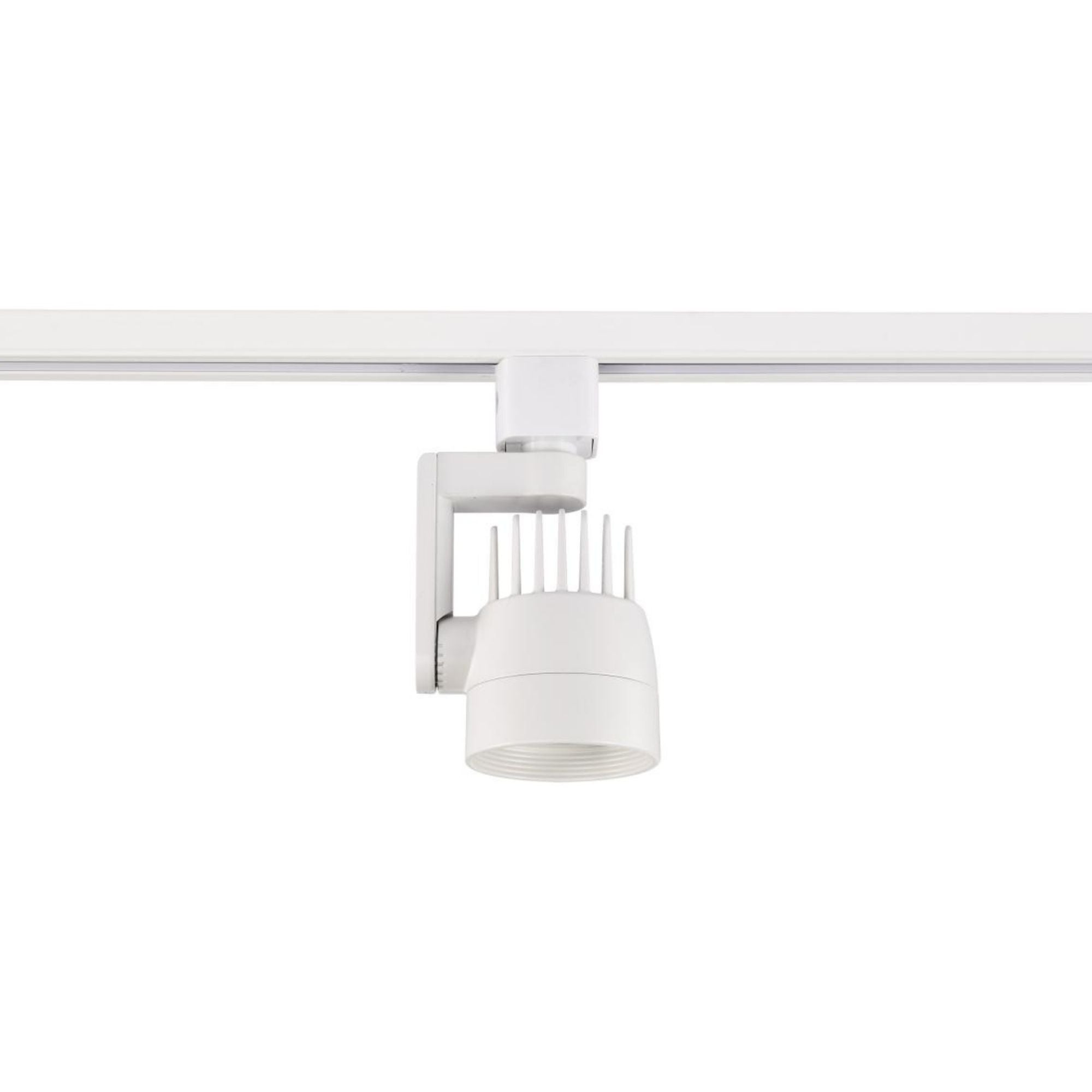

The white Angle Arm head features frosted glass optics and a contemporary directional profile. Its angled support arm positions the head below the track, bringing attention to displays and architectural features while coordinating with white track components.
Light Output & Performance
The Satco Nuvo TH421 produces 1020 lumens at 12W, equivalent to 85 lm/W. Fixed 3000K provides warm white illumination with 90+ CRI. Its 24° beam remains fixed when the head is repositioned. Wattage and color temperature are not selectable. Rated LED life is 30,000 hours.
Electrical & Installation
The Satco Nuvo TH421 operates at 120V, 60Hz, draws 0.100A and has a 0.94 power factor. Its H-Type adapter mounts to an H-Style track system. Use compatible 120V phase-cut dimmers and install in dry indoor locations. Track rails, power feeds and connectors are sold separately.
Compatible Accessories
Complete your Angle Arm setup with matching white Satco Nuvo track components, sold separately. Choose rails, a power feed and connectors to fit your layout.
- Track Rails: TR118 (2 ft), TR120 (4 ft), TR124 (6 ft) and TR122 (8 ft), single circuit H-Type.
- Power Feeds: TP152 live end and canopy, TP154 floating canopy, TP156 live end cord kit, TP169 conduit live end and TP171 inline feed.
- Track Connectors: TP144 mini straight, TP146 L, TP148 T, TP150 X and TP167 flexible connector.
- Track Mounting: TP240 white aircraft cable suspension, TP185 silver drop-ceiling T-bar clips (4 pack) and TP243 replacement mounting hardware (2 screws and 2 toggle bolts).

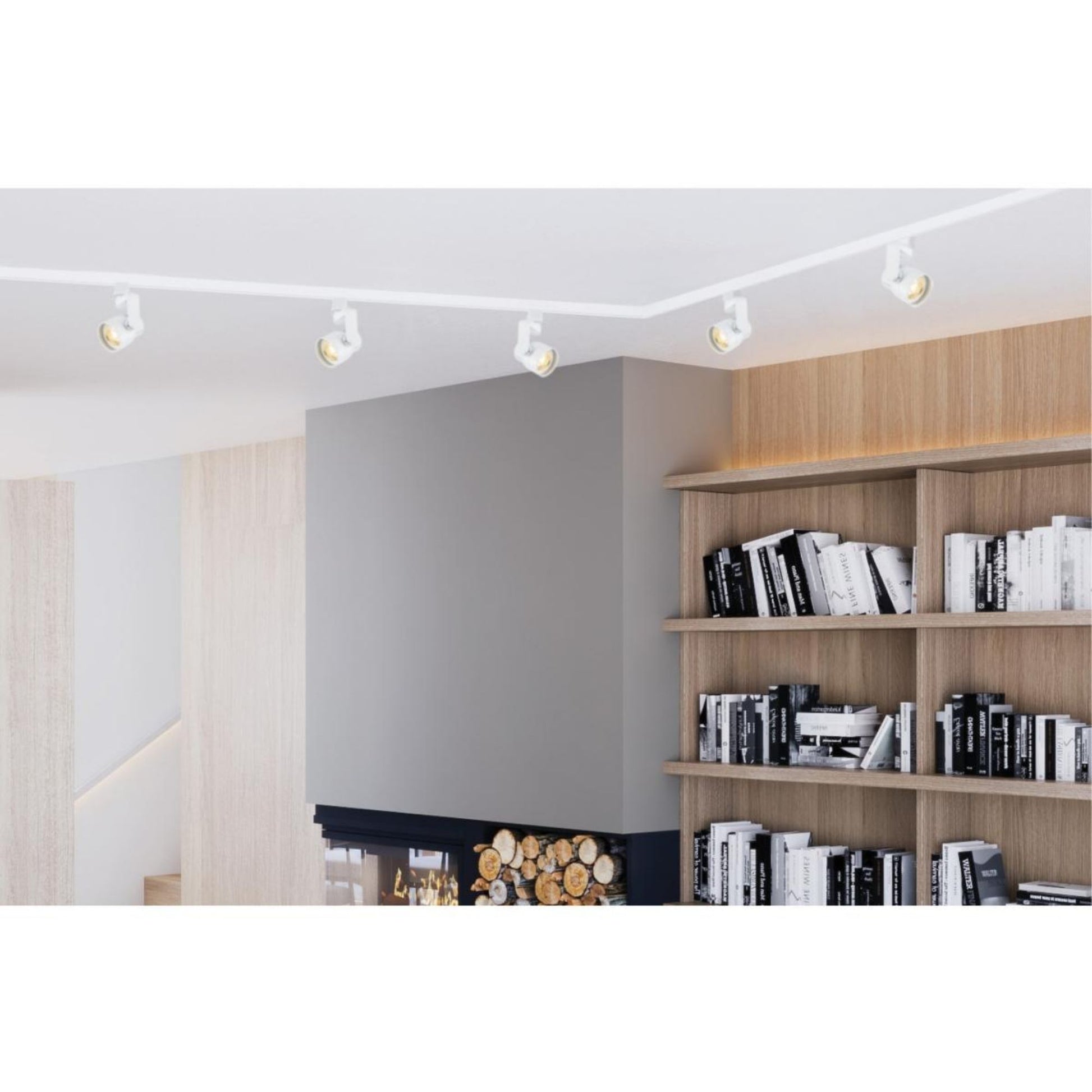

Typical Applications
- Residential artwork accents.
- Retail merchandise displays.
- Gallery spot lighting.
- Commercial interior architectural accents.
What's Included
- Satco Nuvo TH421 white Angle Arm track head with integrated LED and H-Type adapter.
