Collection: LED Area Lights

LED area lights are designed for pole-mounted, downward illumination over large open areas such as parking lots and roadways — they project a controlled, symmetrical light pattern to maximize ground coverage. Flood lights are aimed fixtures that can be mounted at various angles to project light directionally at a specific target, making them better suited for perimeter security, building facades, and accent applications. The key distinction is coverage pattern: area lights deliver broad, even downlighting while flood lights deliver directed, adjustable beams.

The three most common mounting options are slipfitter (slides over a round 2 3/8" tenon on a pole top), direct arm mount (bolts to a square pole arm for a fixed, streamlined installation), and trunnion/yoke mount (a U-bracket for flat surface or wall mounting). Slipfitter is the most common for standard commercial pole installations. Direct arm and trunnion mounts are used where pole-top tenons are unavailable or a lower-profile installation is preferred.

The IES recommends a minimum of 1–2 foot-candles for general parking lot illumination, with higher values (3–5 foot-candles) recommended for high-security or high-activity areas. At a standard 20-foot pole height, a 20,000–30,000 lumen fixture typically covers a 40×40’ area adequately. For larger lots, multiple fixtures on a pole grid pattern are used to achieve consistent, overlapping coverage without dark spots.

NEMA Type V (circular, 360° symmetric) is the standard for open parking lot applications where even coverage in all directions is needed. NEMA Type III or IV (forward-throw asymmetric) is used for roadway and perimeter applications where light needs to be directed along a linear path rather than radially. Confirm the fixture’s photometric data and IES file before specifying for large commercial installations to ensure the distribution matches the coverage area.

Yes — most commercial LED area lights include a NEMA photocell receptacle (twist-lock socket) on top of the fixture that accepts a plug-in photocell or wireless daylight sensor. This allows the fixture to operate automatically, turning on at dusk and off at dawn without manual switching. Some fixtures also support 0–10V dimming or networked lighting controls for additional energy management.

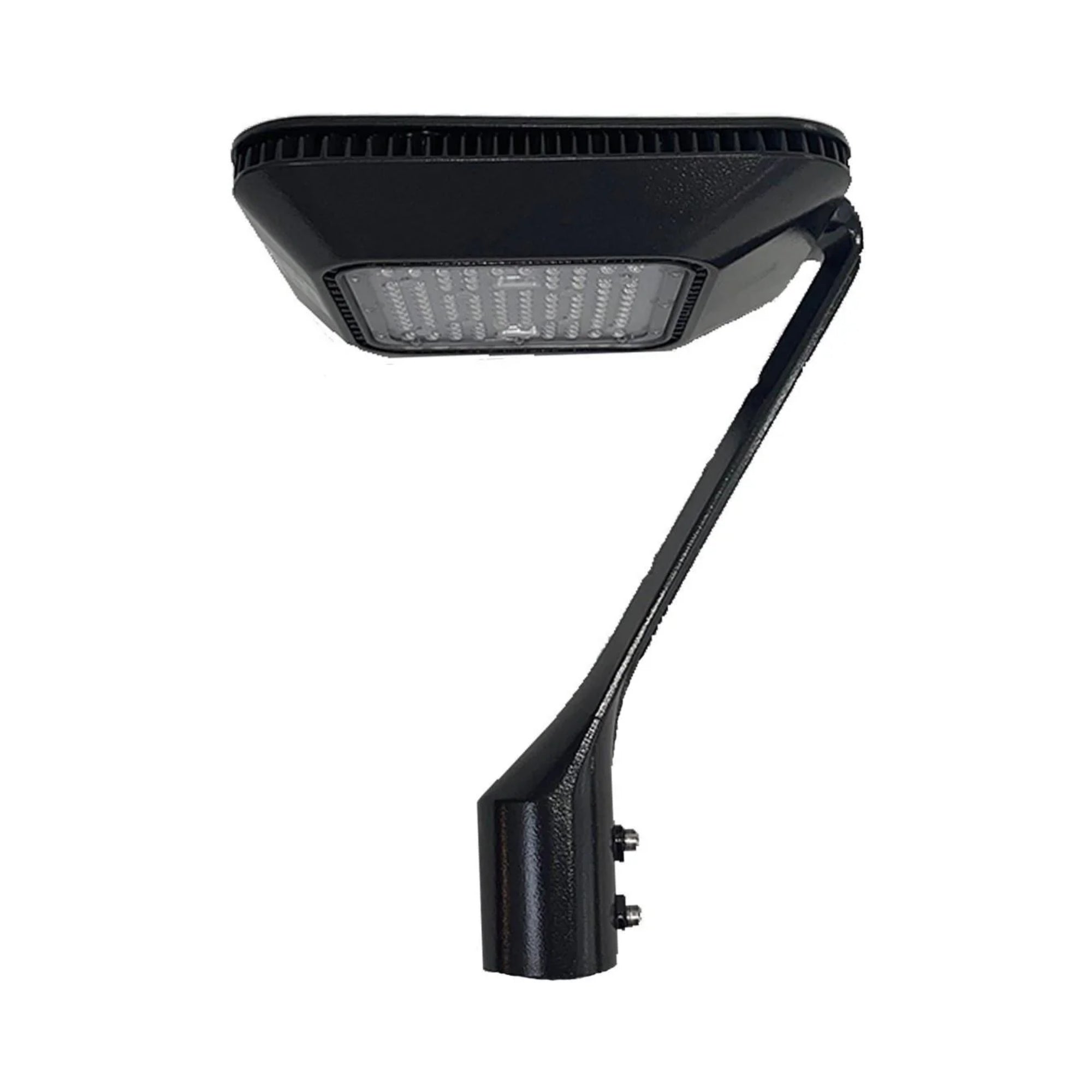

A shoebox light fixture is a style of LED area light named for its flat, rectangular housing that resembles an upside-down shoebox. The form factor allows for efficient heat dissipation and aerodynamic pole mounting, and it is the dominant style used in commercial parking lot and roadway lighting. Shoebox fixtures are available in a wide range of wattages — typically 40W to 480W — to suit everything from small surface lots to large commercial complexes.

Standard commercial pole heights for area lights range from 20 to 30 feet for parking lots, with 25 feet being the most common. Higher poles (30–40 feet) are used in large open areas such as stadiums, industrial yards, or highway interchanges where wider spacing between poles is required. Pole height directly affects the required lumen output — taller poles require higher lumen fixtures to maintain adequate ground-level foot-candle levels.

A minimum IP65 rating is required for any outdoor area light exposed to rain, dust, or humidity. IP65 means the fixture is fully dust-tight and protected against water jets from any direction, making it suitable for standard commercial outdoor environments. For coastal installations or areas subject to high-pressure wash-down, IP66 or IP67 rated fixtures provide additional protection.

Yes — LED area lights are a direct retrofit replacement for metal halide (MH) and high-pressure sodium (HPS) pole lights. A 150W LED area light typically replaces a 400W metal halide fixture while delivering equal or greater lumen output, consuming 60–70% less energy, and lasting 3–5× longer. Most LED area lights use the same pole and mounting hardware as legacy HID fixtures, making retrofits straightforward.

LED area lights are primarily engineered for commercial and municipal applications, but they can be used residentially for large properties such as farms, estates, or private parking areas. For typical residential driveways or backyards, a standard LED flood light or post-top fixture is more appropriately sized. Area lights are worth considering for residential applications only when pole-mounted, high-lumen output is required to cover a large open area.
