LEDVANCE Sylvania 67349 Area Light Dusk-to-Dawn — 52W Selectable Configuration

The LEDVANCE Sylvania 67349 is a high-performance B2B lighting solution engineered for reliable, automated outdoor security. This universal 120-277V luminaire features a selectable wattage design (21W, 31W, 52W), delivering a maximum output of 7,800 lumens. Designed for strict compliance and extreme durability, it holds an IP65 wet location rating and includes a pre-installed NEMA photosensor, providing facility managers and contractors with a low-maintenance, energy-saving fixture for open area and perimeter illumination.

Key Features

• Selectable Wattage: 3 power levels (52W, 31W, 21W)
• Selectable CCT: Field-adjustable color temperatures
• Maximum Output: Up to 7,800 lumens at peak wattage
• Voltage Range: Universal 120-277V operation
• Dimming Capability: Standard 0-10V dimming
• Optical Distribution: Type V wide light spread
• Automated Control: Integrated NEMA photosensor
• Color Accuracy: Minimum 80 CRI
• Environmental Rating: IP65 Wet Location listed
• LED Lifespan: 100,000-hour rated life (L70)
• Aesthetics: Cast aluminum housing with gray powder coat finish

Typical Applications

• General area and perimeter lighting
• Commercial and residential yards
• Loading docks and barns
• Service roads and pathways
• Rural security lighting

Performance & Light Output

The 67349 delivers up to 7,800 lumens with a peak efficacy of 150 LPW, ensuring high-intensity illumination while dramatically reducing energy consumption compared to traditional HID sources. The fixture utilizes a Type V optical distribution, which provides a broad, circular pattern of light perfectly suited for open areas requiring 360-degree coverage. With a CRI of >80, this luminaire maintains visual clarity and accurate color rendering for security cameras and pedestrian safety.

Electrical & Controls

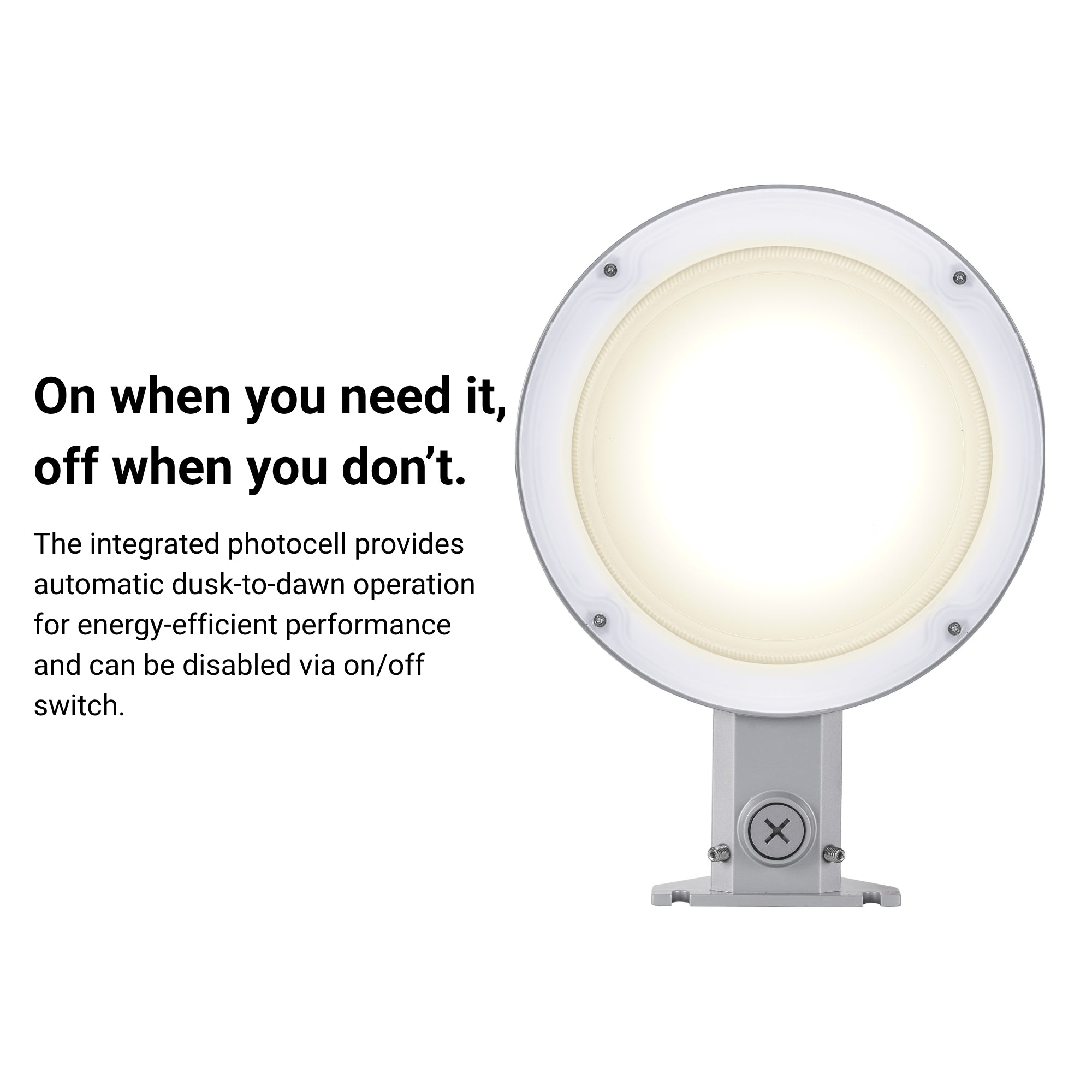

Designed for multi-volt applications, this fixture operates on a universal 120-277V AC range with a power factor exceeding 0.90 and total harmonic distortion (THD) below 20%. The internal driver features built-in 4kV surge suppression and thermal protection to safeguard against power anomalies. The unit is equipped with standard 0-10V dimming. Crucially, a factory-installed NEMA photocell provides instant dusk-to-dawn capabilities, automating the lighting cycle without the need for external timers or switches.

Construction & Durability

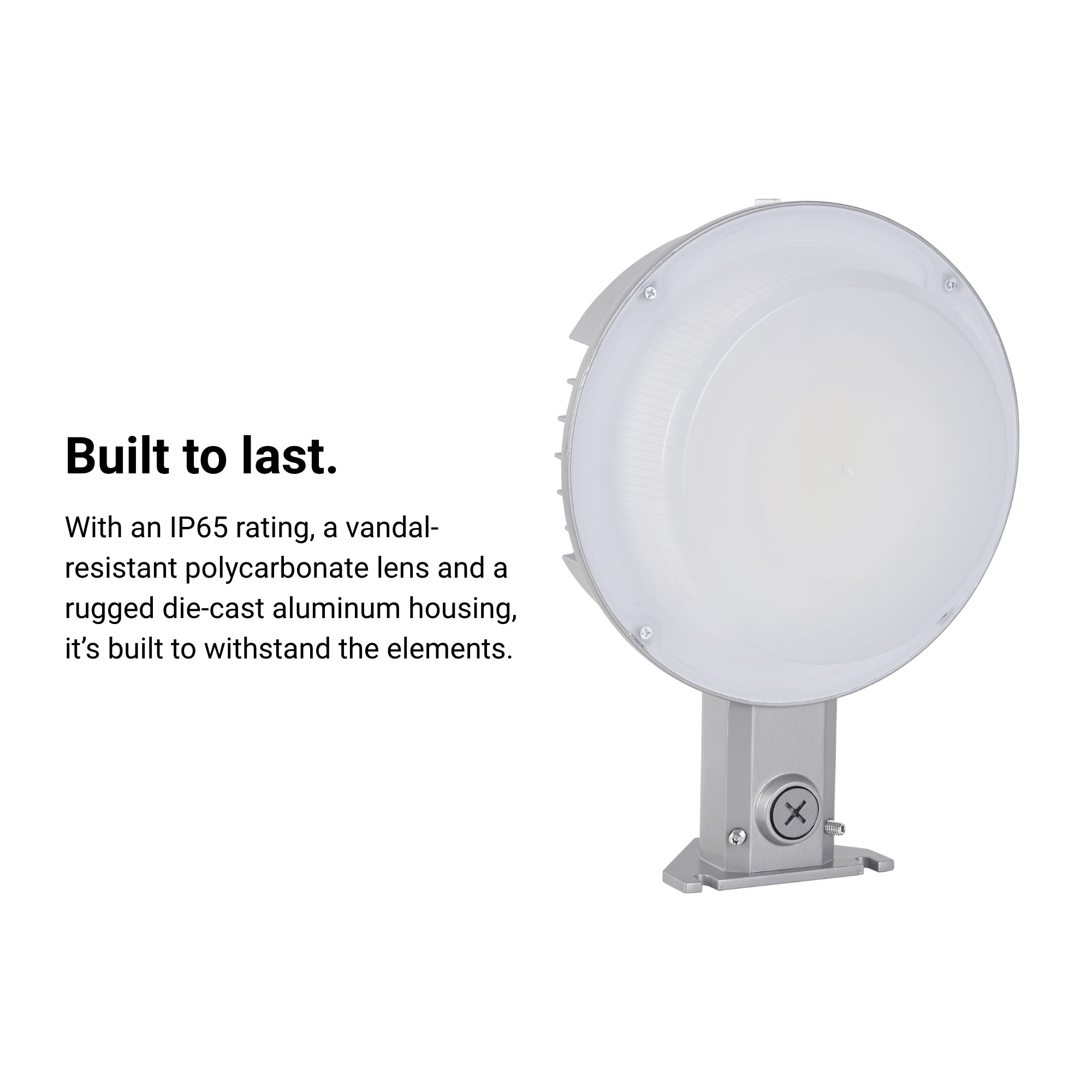

The 67349 features a rugged cast aluminum alloy housing built to withstand severe environmental conditions, evidenced by its IP65 wet location rating. The UV-stabilized gray powder coat finish resists fading and corrosion, while the impact-resistant polycarbonate lens protects the internal LED arrays from physical damage and moisture intrusion. This fixture is engineered to perform flawlessly in extreme climates, supporting an ambient operating range of -40°F to +104°F.

Installation & Mounting

This dusk-to-dawn fixture boasts a traditional, compact, and lightweight design that facilitates rapid installation. It is intended for direct mounting to building walls, wooden poles, or metal surfaces. The familiar form factor makes it an ideal choice for direct retrofit applications where existing high-pressure sodium (HPS) fixtures are being replaced. Optional mounting arm extensions (sold separately) are fully compatible for applications requiring a standoff from the mounting surface.

What's Included

• LEDVANCE Sylvania 67349 Dusk-to-Dawn Area Light
• Integrated NEMA Photosensor
