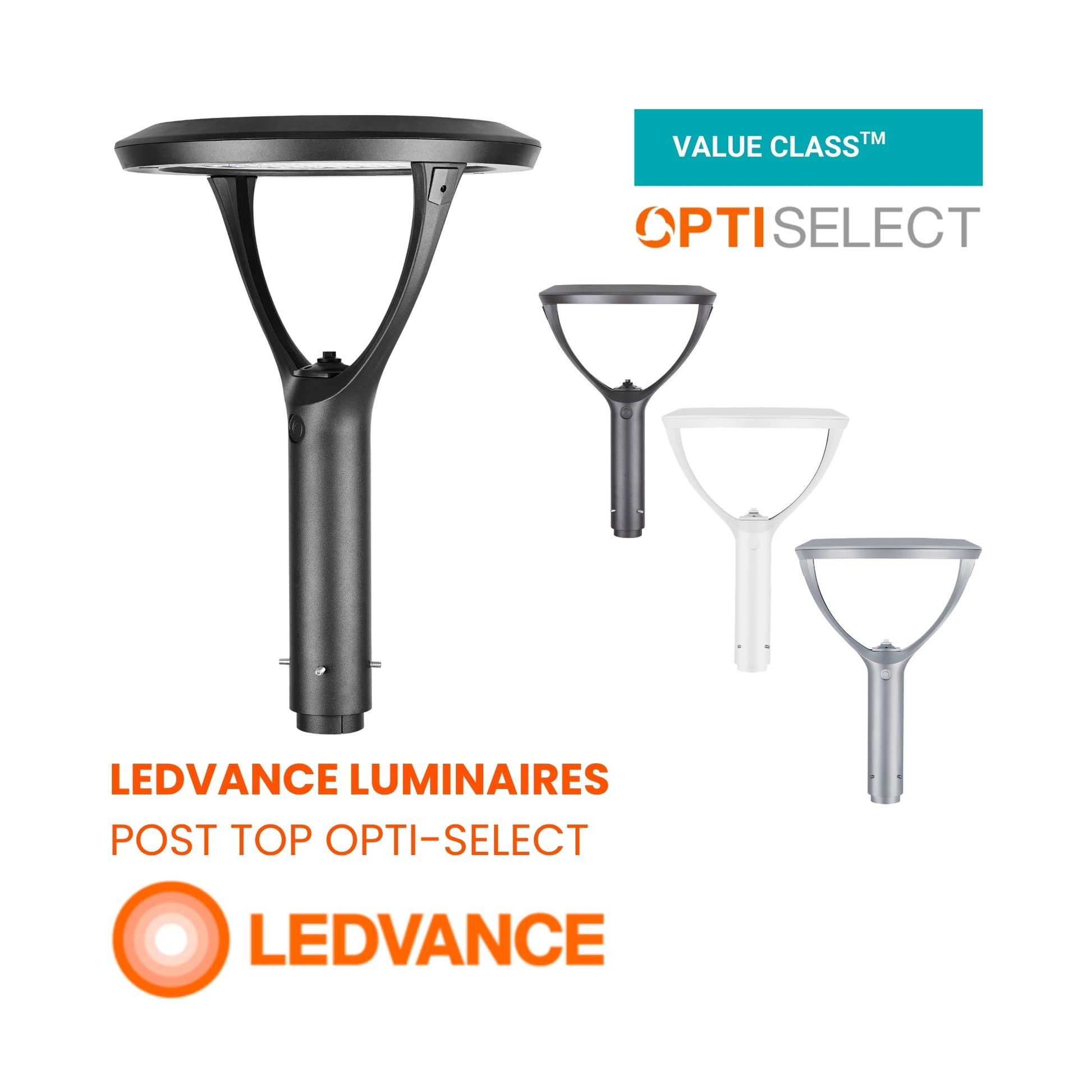

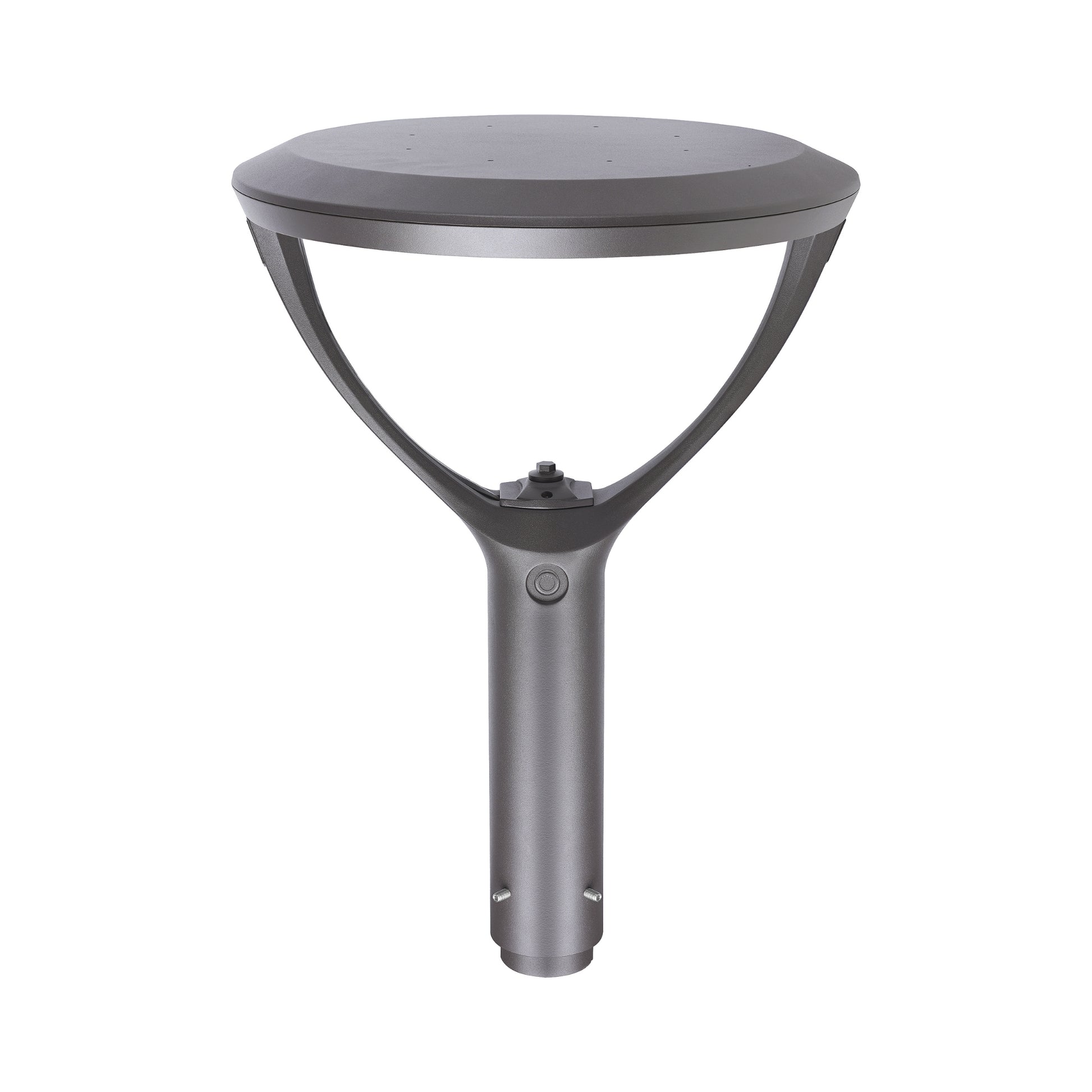

LEDVANCE Sylvania 66964 Post Top Opti-Select — 130W Selectable Configuration

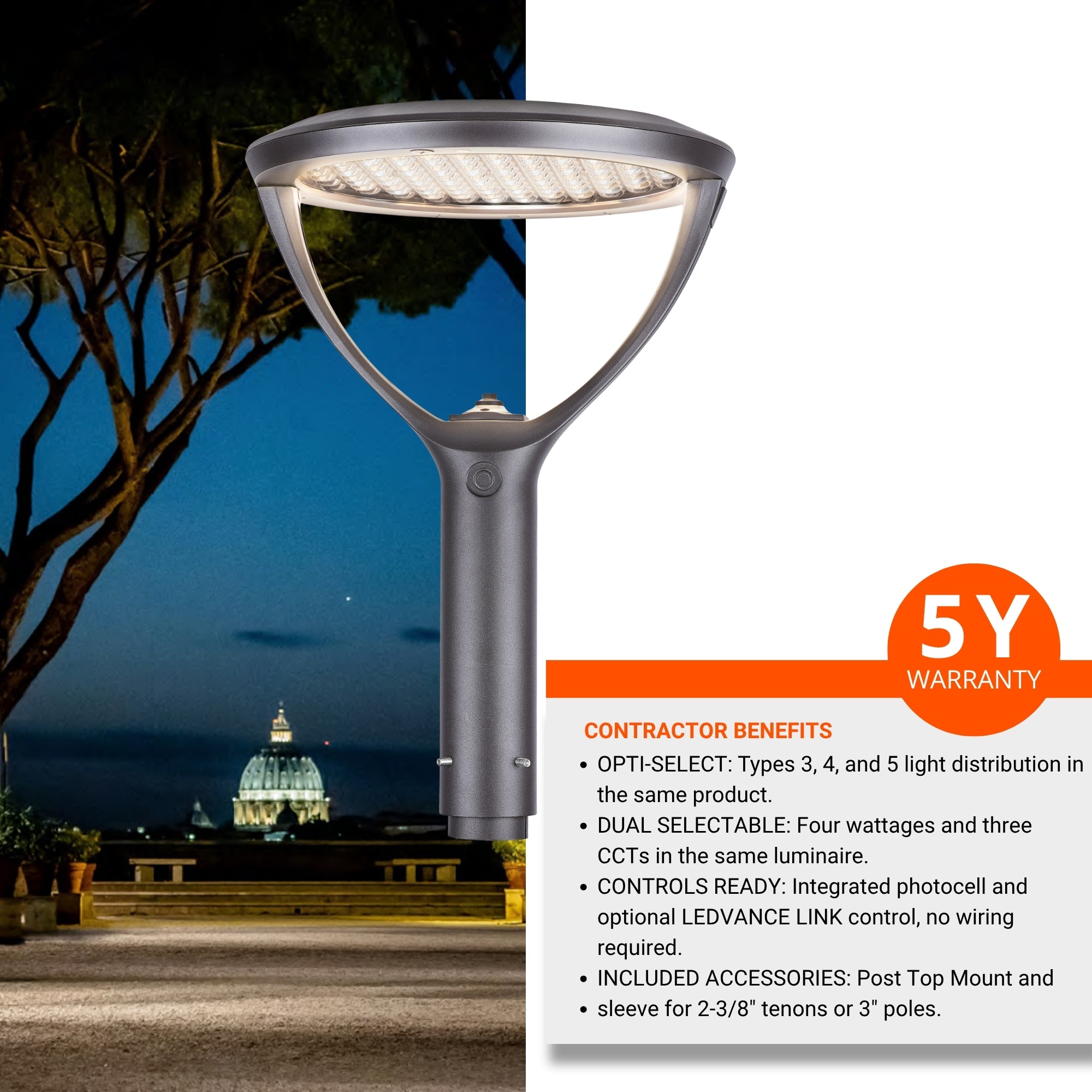

The LEDVANCE Sylvania 66964 is a versatile, high-performance post top area light engineered for pedestrian walkways, campuses, and municipal parks. This universal 120-347V luminaire features a 4-level selectable wattage design (up to 130W), delivering a powerful maximum output of 19,500 lumens. Utilizing innovative Opti-Select technology, this fixture provides contractors with an all-in-one, controls-ready solution capable of adjusting optical distribution and color temperature directly in the field.

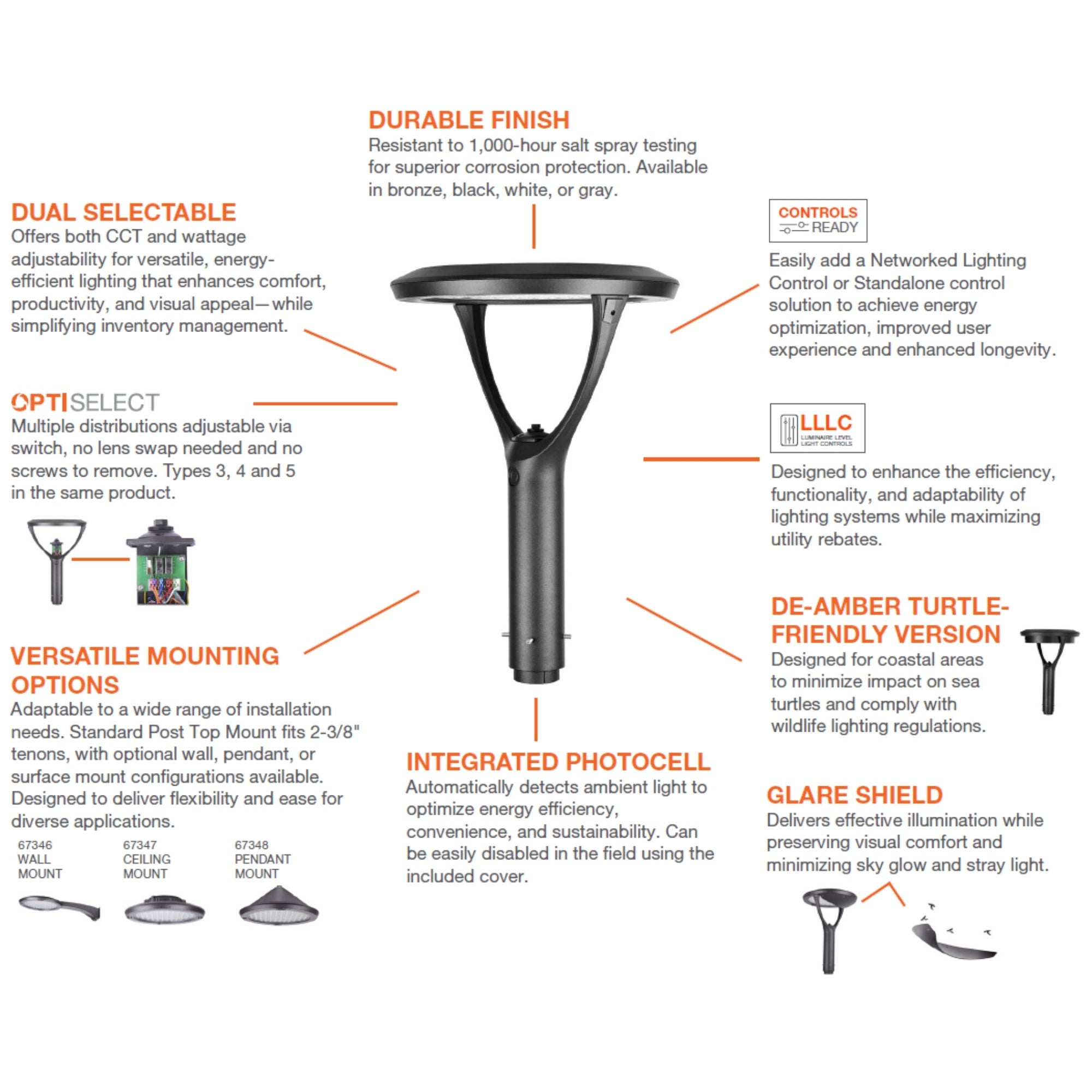

Key Features

• Selectable Wattage: 4 power levels (130W, 100W, 80W, 50W)
• Selectable CCT: 3 color temperatures (3000K, 4000K, 5000K)
• Maximum Output: Up to 19,500 lumens at peak wattage
• Voltage Range: Universal 120-347V operation
• Dimming Capability: Standard 0-10V dimming
• Optical Control: Field-adjustable light distribution
• Automated Control: Integrated photocell included
• Color Accuracy: Minimum 80 CRI
• LED Lifespan: 100,000-hour rated life (L70)
• Aesthetics: Die-cast aluminum housing with a bronze finish

Typical Applications

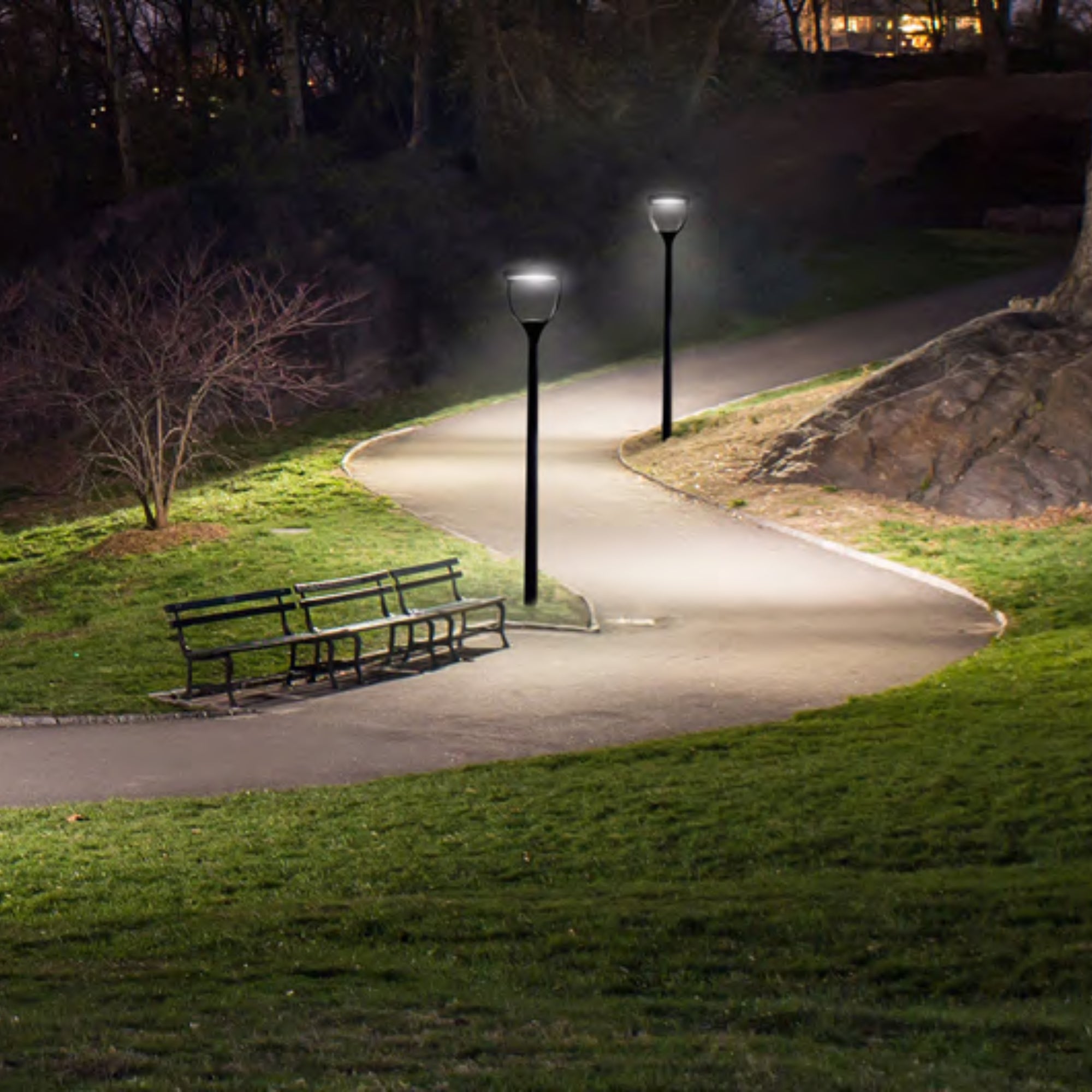

• Pedestrian walkways and pathways
• Corporate and academic campuses

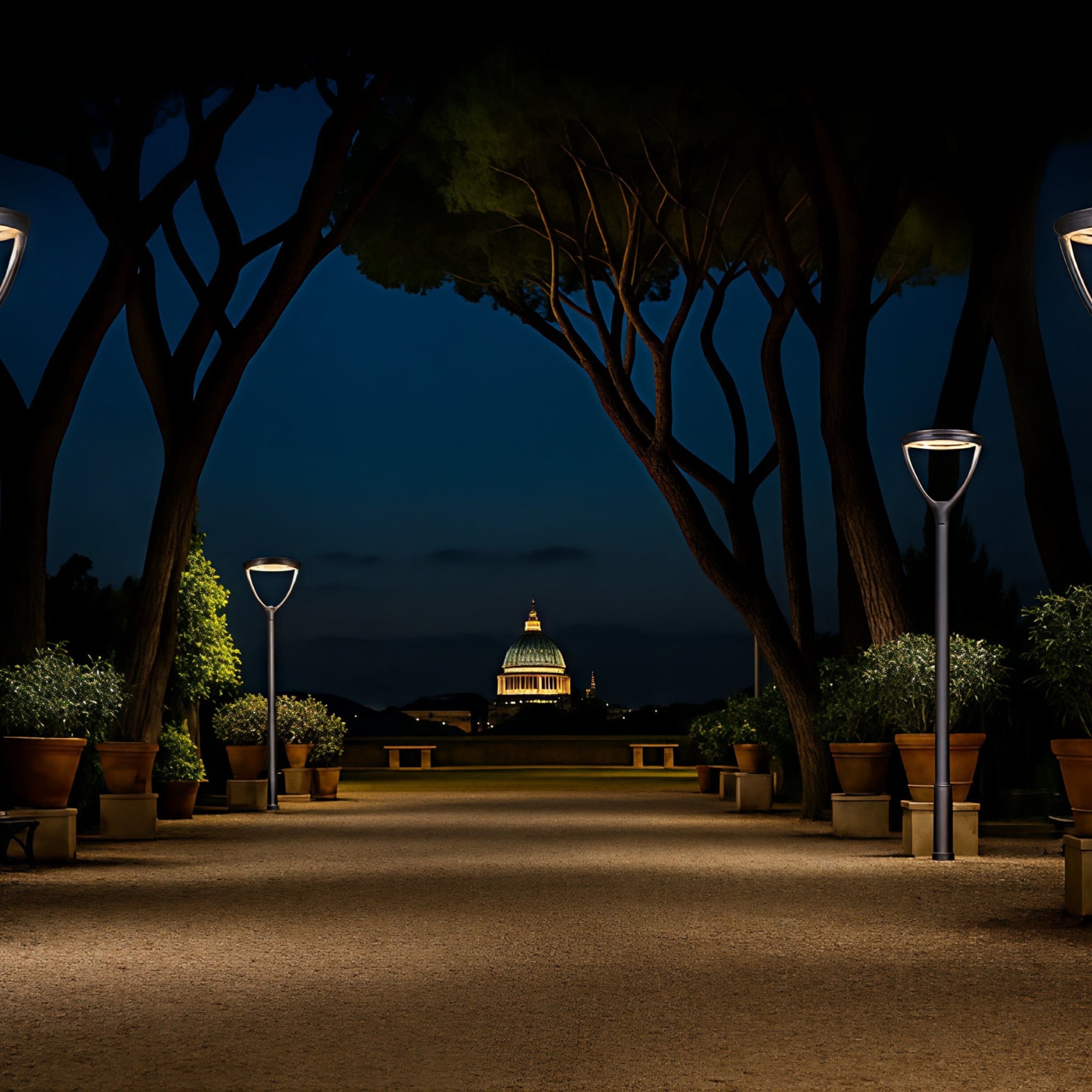

• Municipal parks and public squares
• Commercial outdoor plazas
• Streetscape and urban area lighting

Performance & Light Output

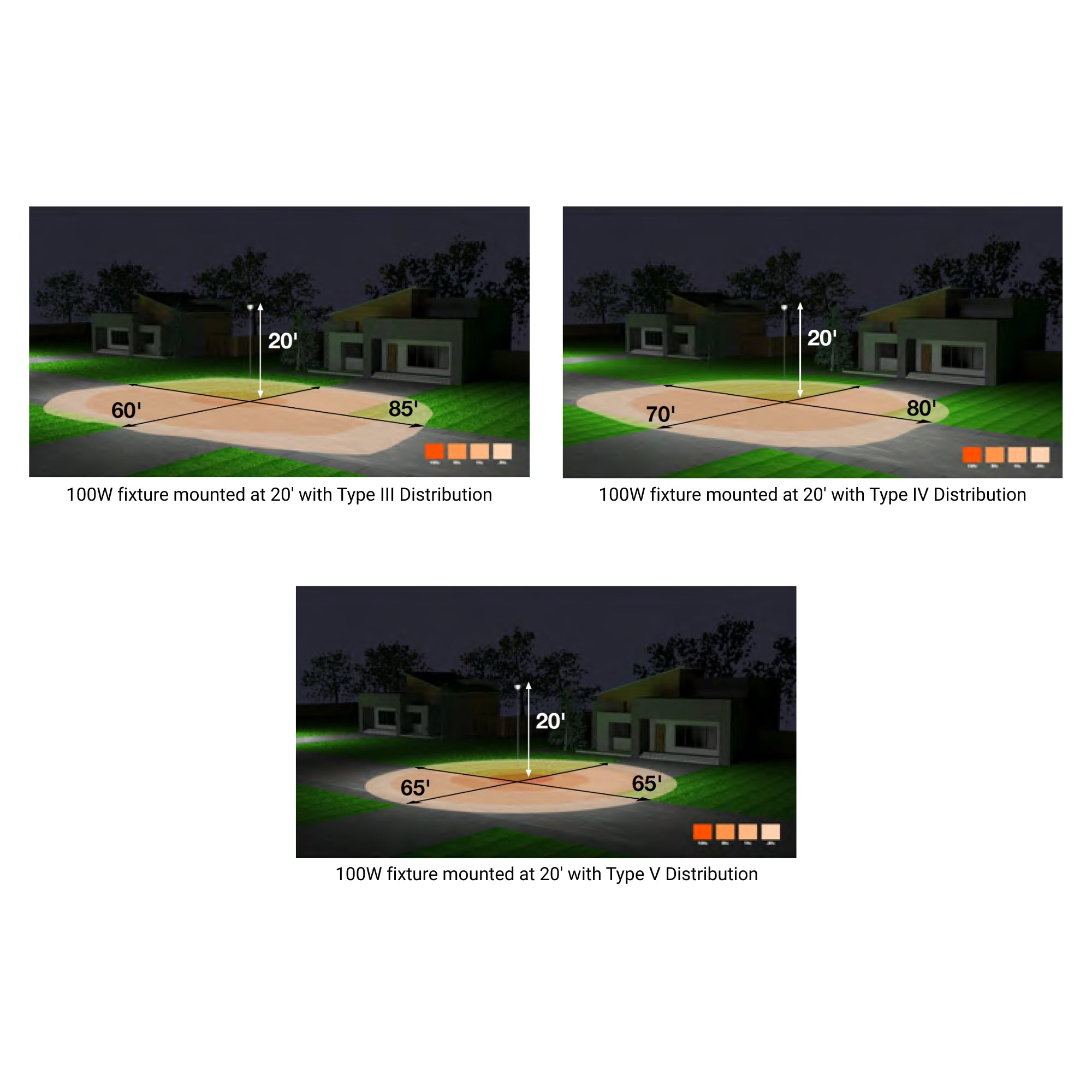

The 66964 delivers a powerful maximum output of 19,500 lumens, ensuring excellent visibility and safety for pedestrian areas. The defining feature of this fixture is its adjustable Opti-Select distribution, allowing installers to modify the optical pattern on-site without the need for physical lens changes. Paired with 3-CCT selectability and a minimum 80 CRI, it provides exceptional visual clarity and adaptability for a wide range of architectural lighting requirements.

Electrical & Controls

Engineered for maximum electrical flexibility, this post top luminaire operates on a multi-volt 120-347V AC range. It is fully controls-ready, featuring standard 0-10V dimming for integration with advanced site management systems. Additionally, an integrated photocell is included to enable immediate dusk-to-dawn automation, preventing unnecessary daytime energy consumption and reducing overhead operating costs right out of the box.

Construction & Durability

Built to endure harsh environmental conditions, the 66964 features a rugged die-cast aluminum housing that effectively dissipates heat to protect the internal LED components. The exterior is treated with a durable bronze finish designed to resist corrosion and weathering over its 100,000-hour rated lifespan. The tightly sealed optical chamber ensures long-term protection against moisture, dust, and debris in wet outdoor locations.

Installation & Mounting

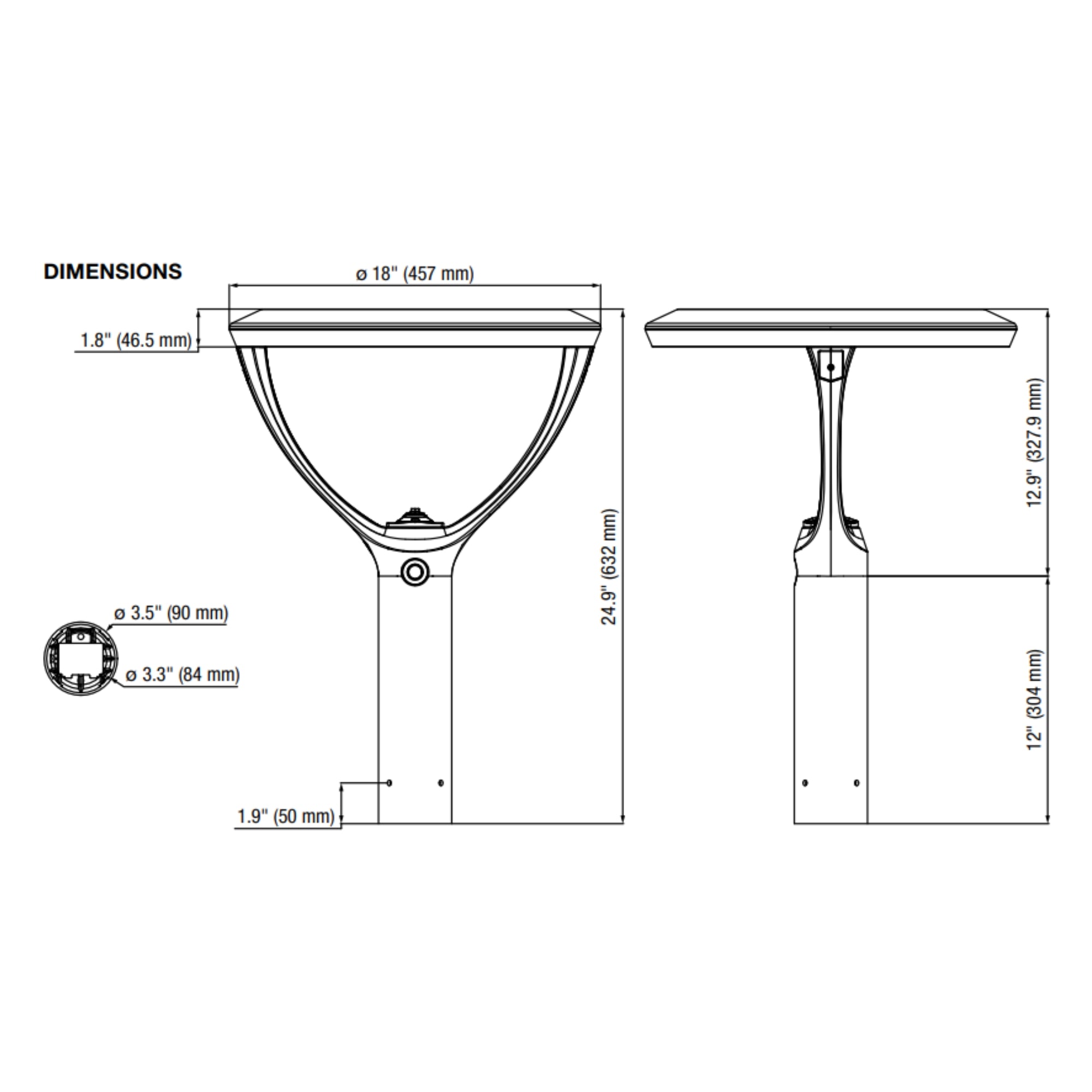

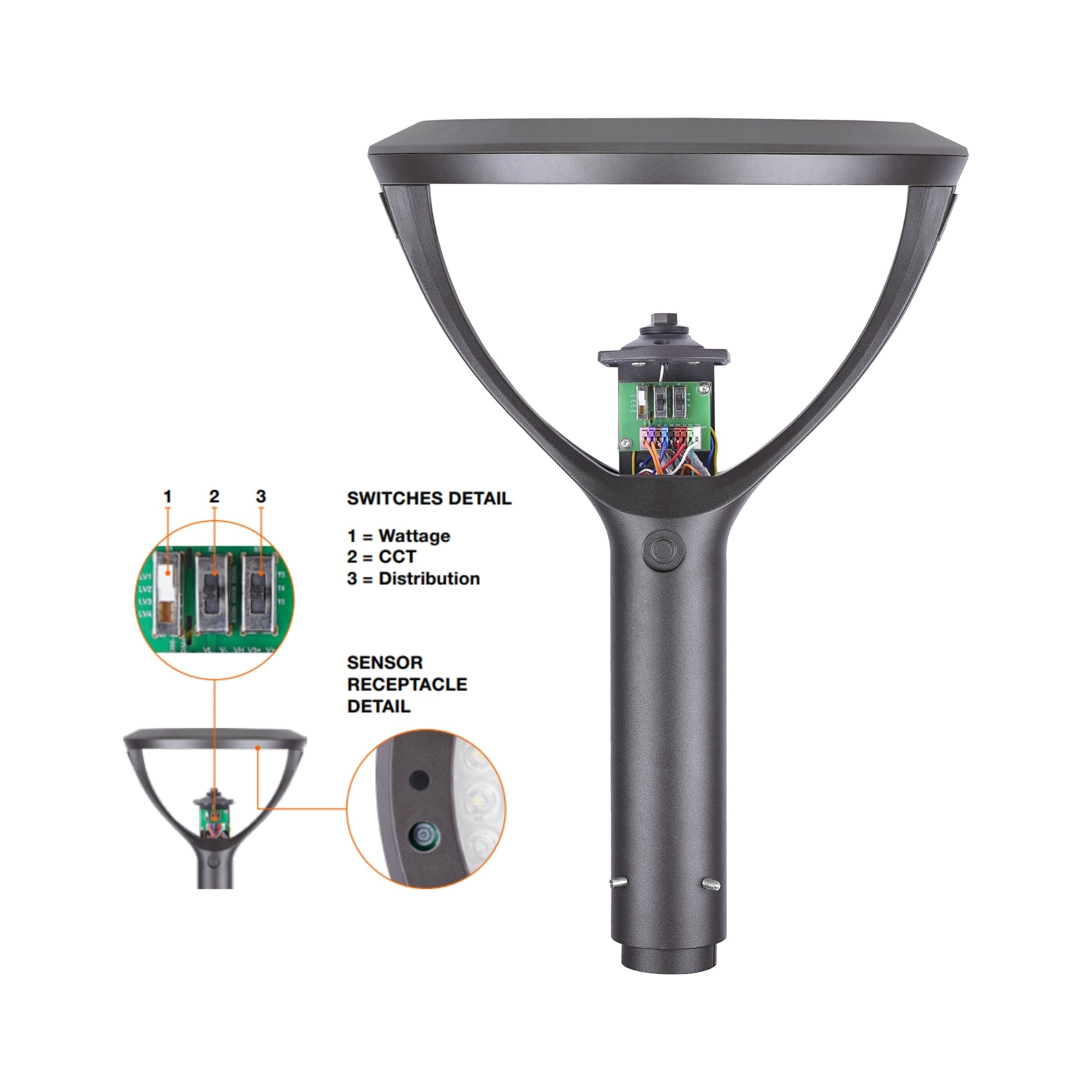

This luminaire is designed for standard post top mounting, sliding easily onto compatible decorative or structural outdoor poles. Its modern, low-profile design minimizes wind load while providing a clean architectural aesthetic. The field-adjustable switches for wattage, CCT, and optics are easily accessible, significantly streamlining the installation and commissioning process for electrical contractors.

What's Included

• LEDVANCE Sylvania 66964 Post Top Opti-Select Fixture
• Integrated Photocell
