Have you ever bought an "outdoor" light only to find it filled with condensation after the first heavy rain? Or maybe you’re a contractor trying to explain to a client why a standard strip light can’t go inside a walk-in freezer.
The difference between a long-lasting fixture and a dangerous failure often comes down to two little letters and two numbers: The IP Rating.
What is an IP Rating?
IP stands for Ingress Protection. It is an international standard (IEC 60529) that grades how effective an electrical enclosure is at sealing out foreign bodies.
Essentially, it tells you two things:
- How well the fixture keeps out Solids (dust, dirt, bugs, fingers).
- How well the fixture keeps out Liquids (rain, water jets, steam, immersion).
Decoding the Numbers: The 2-Digit System
An IP rating consists of two digits (e.g., IP65). Each number represents a specific level of protection.
The First Digit: Protection Against Solids (Dust)
This number ranges from 0 to 6. It measures protection against hazardous parts and solid foreign objects.
| Digit | Level | Description |
| 0 | None | No protection against contact or ingress of objects. |
| 1 | >50mm | Protected against large objects, like the back of a hand (but not deliberate contact). |
| 2 | >12.5mm | Protected against fingers or similar sized objects. |
| 3 | >2.5mm | Protected against thick wires, tools, and debris larger than 2.5mm. |
| 4 | >1mm | Protected against most wires, slender screws, and large ants. |
| 5 | Dust Protected | Limited dust may enter, but not enough to interfere with operation. |
| 6 | Dust Tight | No dust can enter the enclosure at all. This is the gold standard for outdoor lighting. |
The Second Digit: Protection Against Liquids (Water)
This number ranges from 0 to 9K. For lighting, levels 4 through 7 are the most common benchmarks.
| Digit | Level | Description |
| 0 | None | No protection against water. |
| 1 | Dripping (Vertical) | Protected against vertically falling water drops (condensation). |
| 2 | Dripping (Tilted) | Protected against water drops when tilted up to 15°. |
| 3 | Spraying | Protected against water spray at an angle up to 60°. |
| 4 | Splashing | Protected against water splashing from any direction (e.g., rain hitting a porch). |
| 5 | Water Jets | Protected against low-pressure water jets (6.3mm nozzle) from any direction. |
| 6 | Powerful Jets | Protected against high-pressure water jets (12.5mm nozzle), typical of heavy washdowns. |
| 7 | Immersion | Protected against temporary submersion (up to 1 meter depth for 30 minutes). |
| 8 | Submersion | Protected against continuous submersion beyond 1 meter (depth specified by manufacturer). |
| 9K | High-Temp Jets | Protected against high-pressure, high-temperature washdowns (steam cleaning). |
Common Ratings & Where to Use Them (The Cheat Sheet)
Choosing the wrong rating can lead to expensive replacements or safety hazards. Here is your quick guide to getting it right:
IP20: The Indoor Standard
- What it means: Protected against fingers, but no protection against water.
- Best Application: Indoor offices, retail stores, bedrooms, and living rooms where the air is dry and clean.
IP44: The "Splash" Zone
- What it means: Protected against solid objects over 1mm and water splashes from all directions.
- Best Application: Bathrooms (away from the shower), sheltered outdoor porches, or under eaves where rain won't hit directly.
IP65: The Outdoor Workhorse
- What it means: Completely dust-tight and protected against low-pressure water jets (rain, hoses).
- Best Application: This is the standard for most Outdoor Lighting, including Security Lights and wall packs. It handles heavy rain and snow with ease.
IP66: The Industrial Washdown
- What it means: Dust-tight and protected against high-pressure water jets.
- Best Application: Commercial kitchens, car washes, and food processing facilities. This is the target rating for high-quality Vapor Tight Fixtures that need to be cleaned with heavy-duty hoses.
IP67: The "Temporary" Submersible
- What it means: Dust-tight and can be submerged in water (1m depth) for up to 30 minutes.
- Best Application: Outdoor LED Strip Lights installed on decks or pathways where puddles might form during a storm. It offers insurance against temporary flooding but isn't meant for a swimming pool.
IP68: The Permanent Submersible
- What it means: Hermetically sealed for continuous immersion underwater.

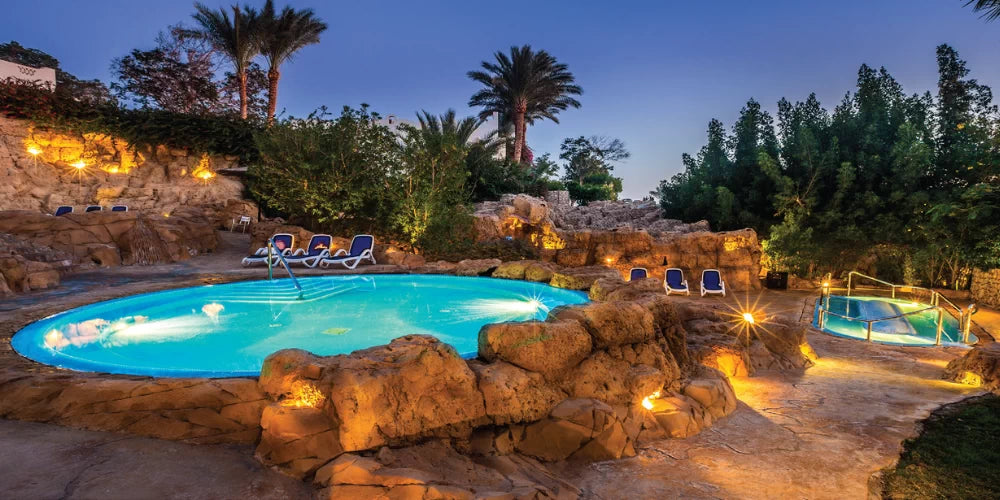

- Best Application: Swimming pool lights, fountains, and underwater features.
Waterproof vs. Weatherproof: What’s the Difference?
Manufacturers often use these terms interchangeably, but they mean different things in the world of IP ratings:
- Weatherproof (Typically IP65): Can handle wind, rain, and snow, but cannot be submerged. The air can pass through, but water cannot.
- Waterproof (Typically IP67/IP68): Can be submerged in water. These fixtures are sealed so tightly that not even air can get in or out.
Pro Tip: Never cut a waterproof IP67/IP68 strip light unless you plan to reseal it with specialized silicone end caps and glue. Cutting the strip breaks the seal and immediately voids the IP rating.
Don't Guess, Check the Rating
Whether you are lighting a warehouse, a parking lot, or a kitchen backsplash, the IP rating is your best indicator of durability. Matching the rating to the environment ensures your Security Lights won't fail during a storm and your Vapor Tights can handle the daily cleanup. When in doubt, go one step higher—it’s always better to be over-protected than left in the dark.
