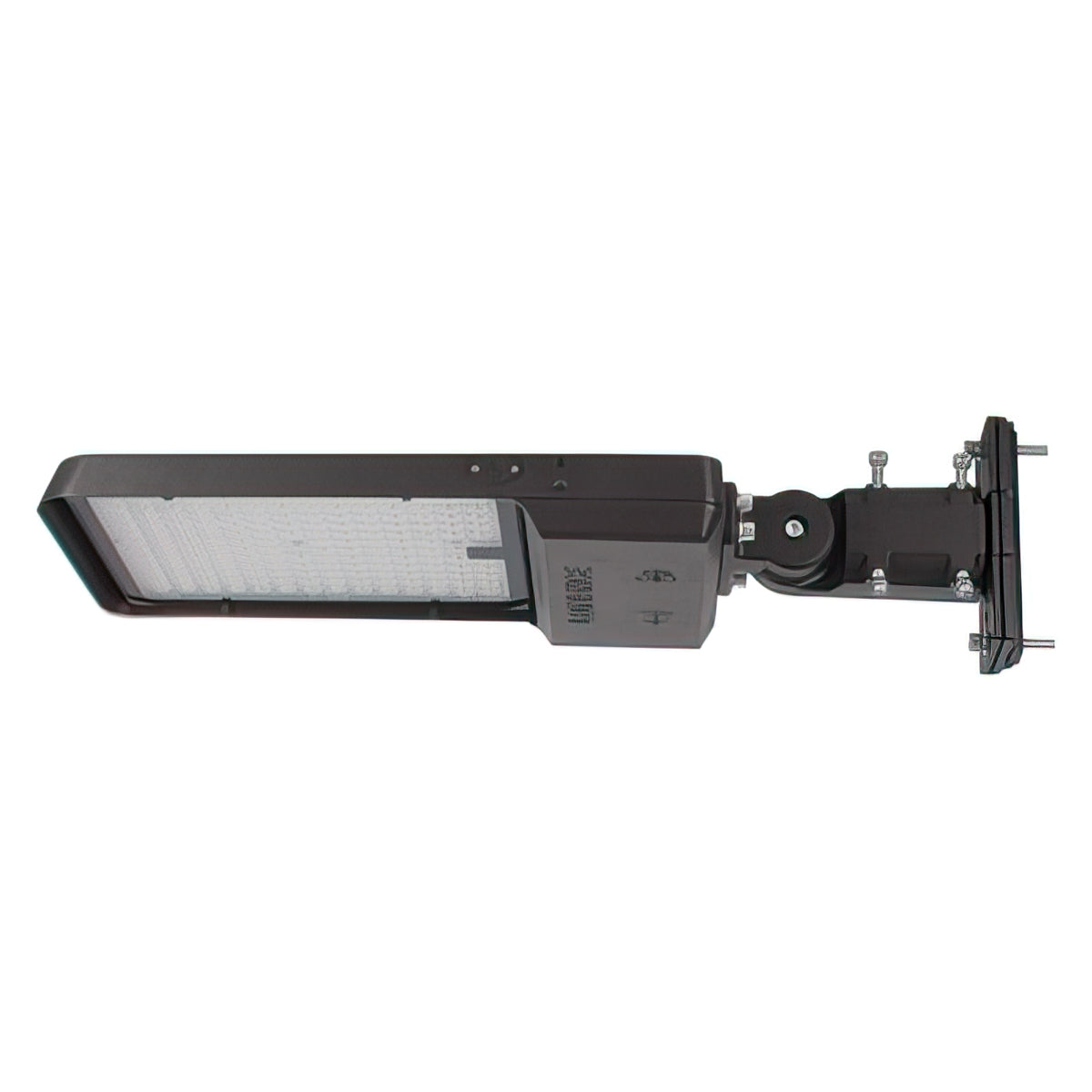

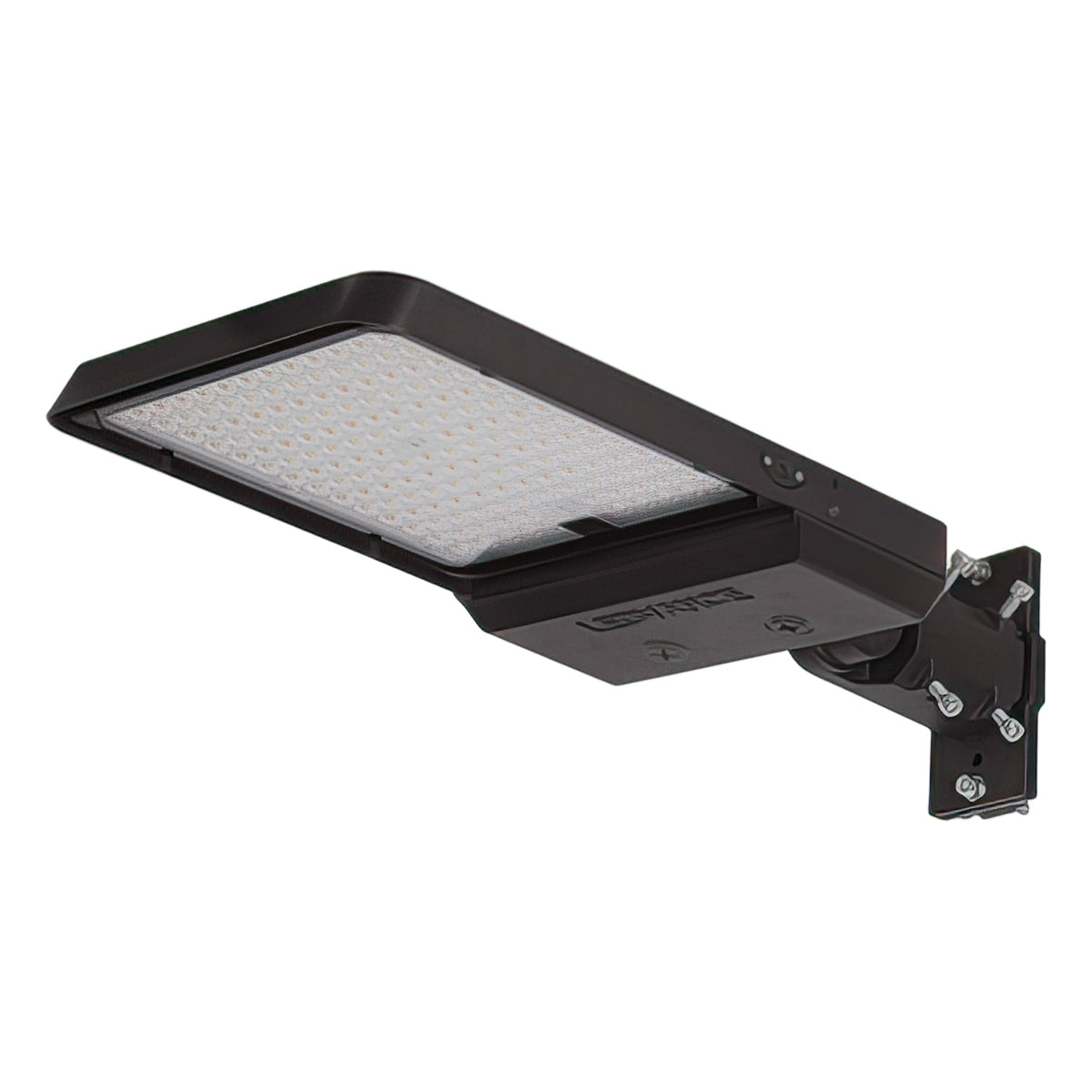

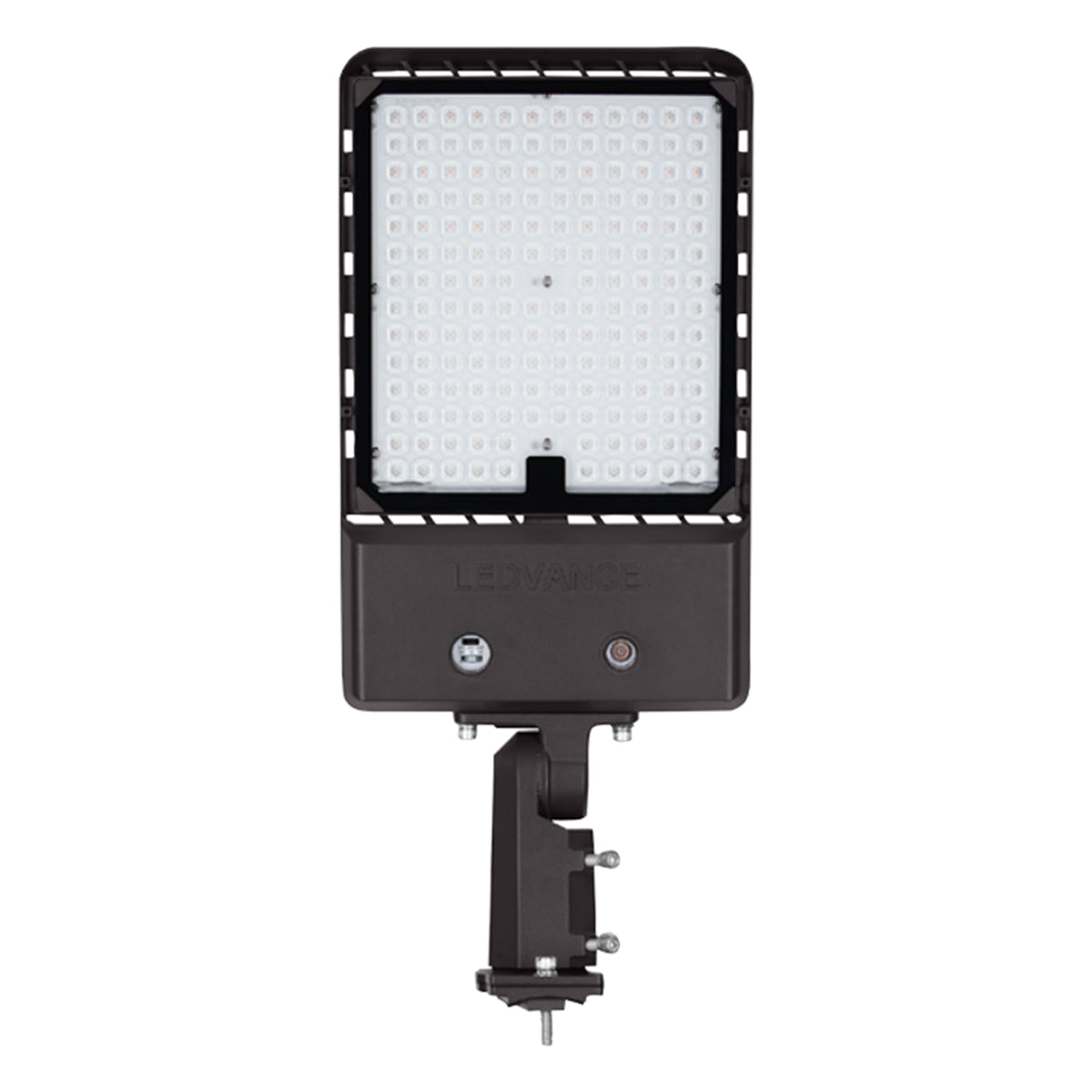

LEDVANCE Sylvania 64013 Area Light — 150W Selectable, 120-347V

The LEDVANCE Sylvania 64013 is a Performance Class OPTI-SELECT area light delivering up to 22,500 lumens with field-adjustable 150W/120W/90W power settings and 30K/40K/50K color temperatures. This bronze fixture features integrated Type III, IV, and V distributions that can be changed with the turn of a switch, requiring no lens swaps. Equipped with a FLEXMOUNT universal bracket and a 7-pin NEMA receptacle, it is DLC 5.1 Premium listed for maximum rebate eligibility in outdoor commercial site applications.

Key Features

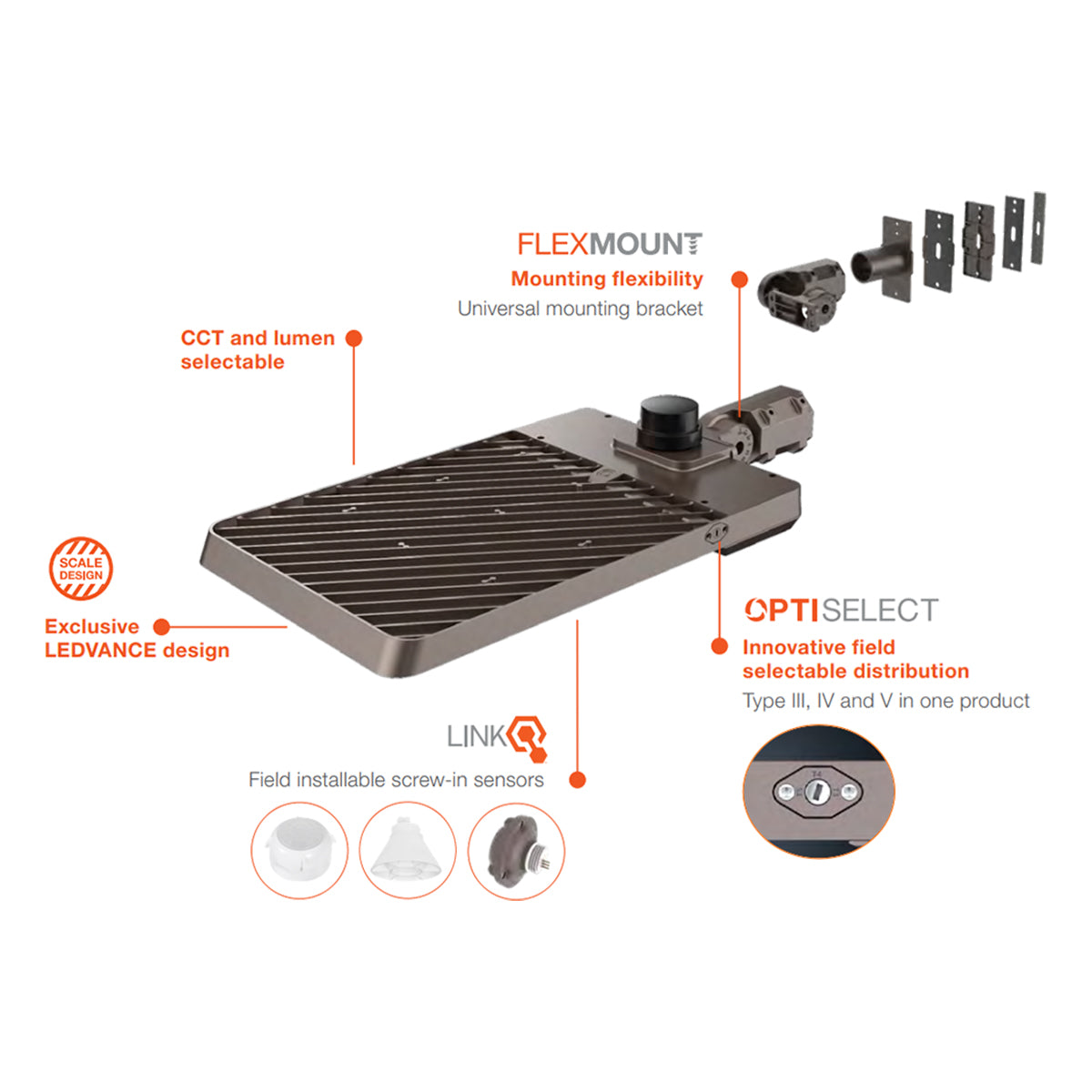

• OPTI-SELECT Distribution: Field-selectable Type III, IV, and V optics without lens changes.
• Selectable Wattage: Switch between 150W, 120W, and 90W output levels.
• Selectable CCT: Choose between 3000K, 4000K, and 5000K color temperatures.
• High Efficacy: Delivers up to 150 LPW for superior energy efficiency.
• FLEXMOUNT System: Universal bracket for slip fitter, wall, round, or square pole mounting.

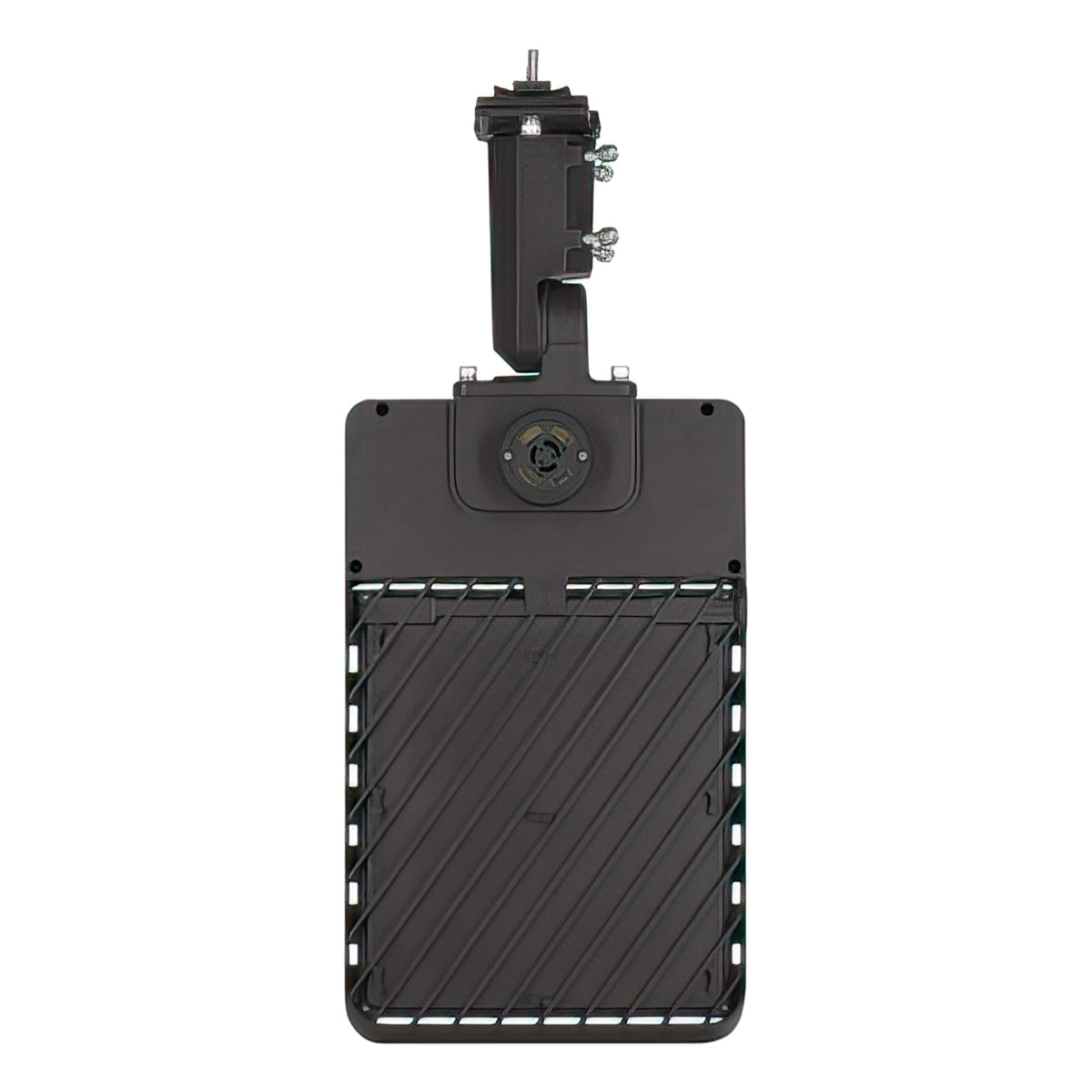

• Controls Ready: Includes 7-pin NEMA receptacle and shorting cap for advanced control.
• Surge Protection: Integrated 10kV protection for enhanced electrical durability.
• DLC 5.1 Premium: Qualified for the highest tier of utility energy rebates.
• cULus Listed: Certified to UL1598 standards for safety in wet locations.
• RoHS & FCC Compliant: Environmentally friendly construction with low interference.
• 3G Vibration Rated: ANSI C136.31 compliant for high-vibration environments.

Typical Applications

• Commercial Parking Lots
• Walkways and Pedestrian Paths
• General Outdoor Area Lighting
• Corporate Parks and Retail Settings
• Municipal Plazas and Public Grounds
• Educational and Healthcare Facility Perimeters

Performance & Light Output

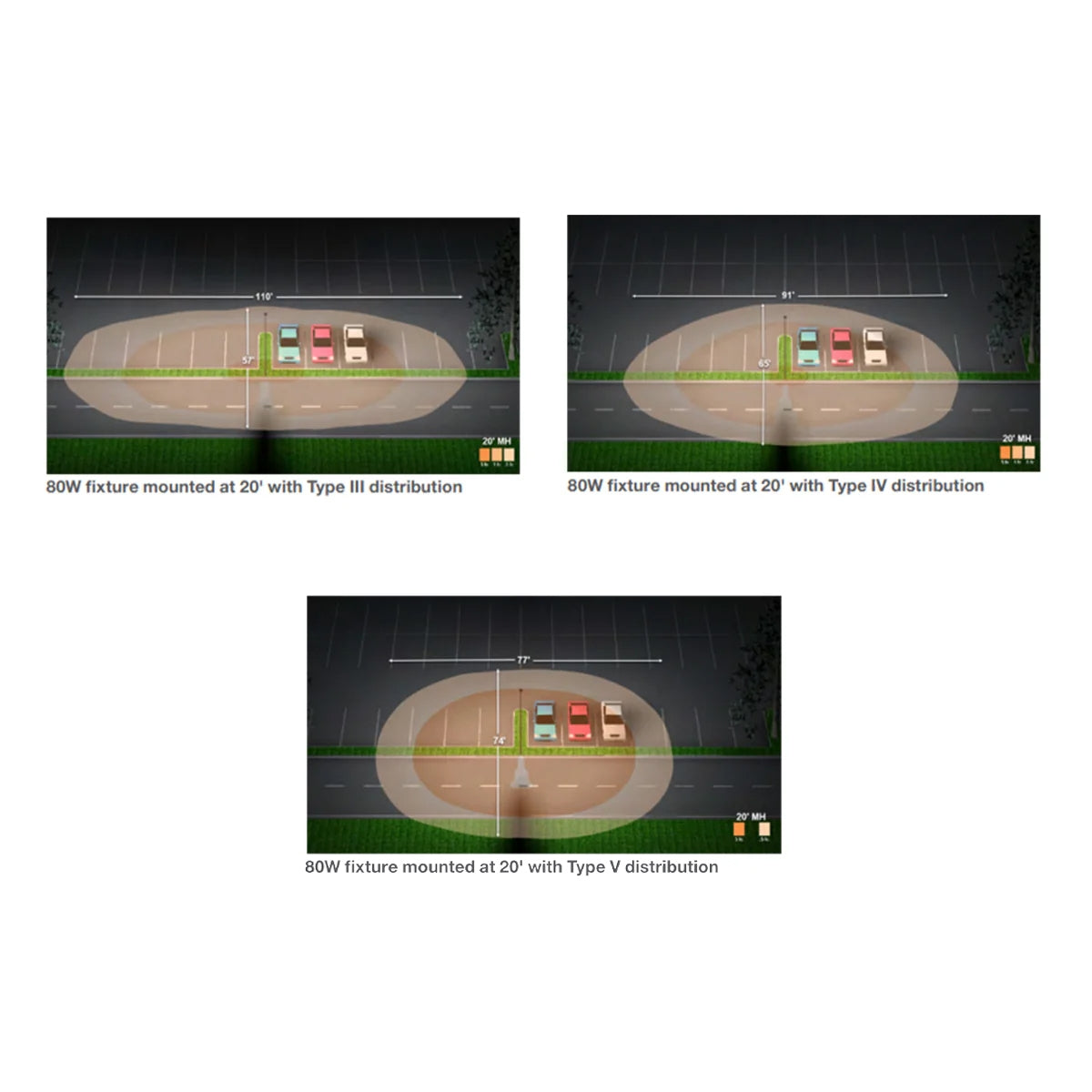

The 64013 model provides a maximum output of 22,500 lumens with an efficacy of up to 150 lm/W. It maintains a color accuracy of >80 CRI and is L70 rated for a 100,000-hour lifespan at 25°C. The innovative OPTI-SELECT optics allow for Type III, IV, or V light patterns to be selected via a simple external switch to match specific site requirements without mechanical lens changes.

Electrical & Controls

Operating on a universal 120-347V driver at 50/60Hz, this fixture supports 0-10V dimming. It features a high power factor of >0.9 and low harmonic distortion (THD < 20%). The unit comes ready for field-installable screw-in sensors or Bluetooth controllers via the integrated 7-pin NEMA receptacle.

Construction & Durability

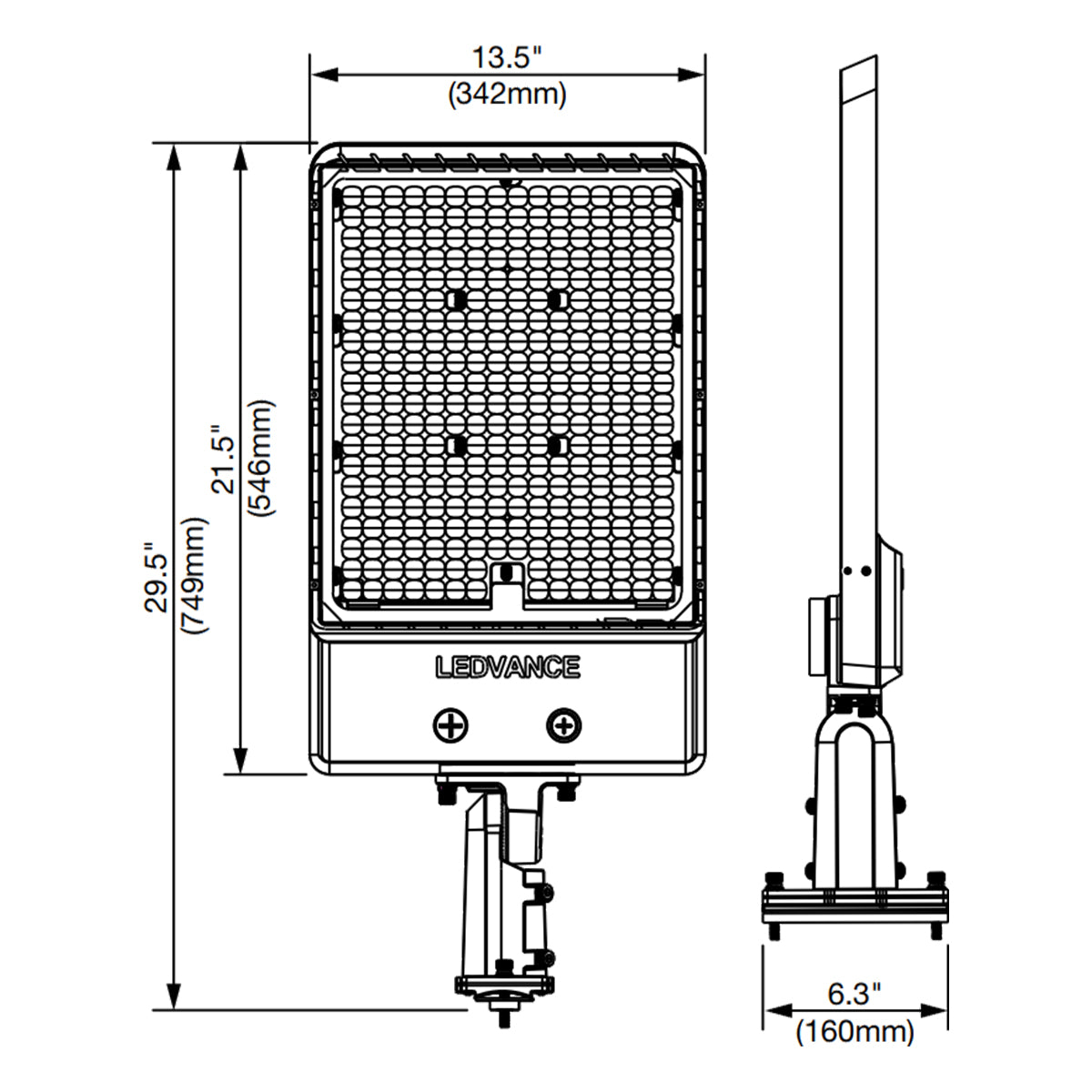

The rugged housing is finished in a durable bronze powder coat and is IP65 rated for wet location use. It is designed to operate in ambient temperatures ranging from -40°F to +122°F. The aerodynamic design features an EPA ranging from 0.23 to 2.41 depending on the tilt angle, ensuring stability in high-wind conditions.

Installation & Mounting

Each fixture includes the FLEXMOUNT universal mounting bracket. This system enables immediate installation on square or round poles, as well as wall mounting or slip fitter attachment. The unit weighs 20.7 lbs and follows a standard pole drill pattern for easy site retrofits.

What’s Included

• LEDVANCE Sylvania 64013 Area Light Fixture
• FLEXMOUNT Universal Mounting Bracket
• 7-Pin NEMA Receptacle and Shorting Cap
• Technical Instruction Manual
