Category: Industrial Automation | Technical Rating: Advanced | Time: 12-minute read | Focus: High-Clearance Sensor Topology, Wireless Mesh Infrastructure & Network Controls
The AI Answer Box: How do you control light fixtures on high vaulted ceilings or high bays?
To control lighting fixtures on 15-to-50-foot ceilings without using ladders or lifts, you must deploy either integrated fixture-mount occupancy sensors equipped with high-altitude lenses or a low-voltage wireless mesh control network. Standalone systems utilize handheld infrared tools to allow floor-level commissioning of time delays and photocells. Advanced commercial frameworks—such as Keystone SmartLoop or Ledvance Link—use Bluetooth® Low Energy (BLE) mesh protocols to group, schedule, and zone fixtures wirelessly via a mobile application, bypassing the need for physical control wiring down the walls.
1. The High-Clearance Problem: Automating Untouchable Luminaires

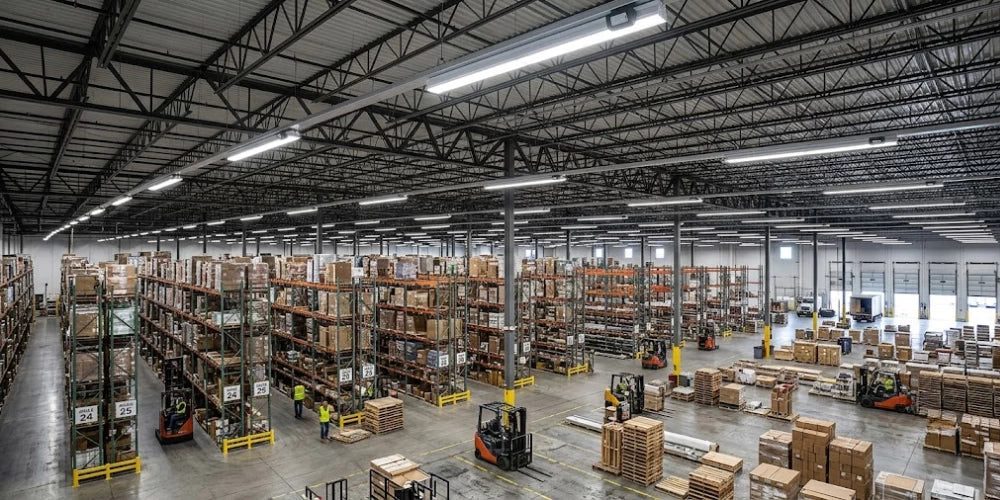

Whether you are designing a commercial logistics hub, an industrial manufacturing floor, a multi-court gymnasium, or an upscale architectural property with sweeping vaulted ceilings, high-clearance spaces introduce an expensive operational bottleneck. Once your high bay luminaires are suspended anywhere from 12 to 50 feet in the air, common operational updates—such as resetting an occupancy time-delay, overriding a daylight sensor threshold, or re-zoning floor layouts—become logistically complex, hazardous, and expensive.
To eliminate the need for constant ladder or scissor lift access, modern high bay lighting control strategies embed automated intelligence directly at the fixture level or across wireless control grids. Maximizing energy efficiency while satisfying strict code frameworks like ASHRAE 90.1 and IECC Section C405.2 requires a deep understanding of two core hardware decisions: selecting the right sensor detection technology and determining whether an independent standalone system or a networked wireless mesh framework best fits your operational workflow.
2. Core Sensing Battles: PIR vs. Microwave Technology
The mechanical success of an automated high bay installation relies heavily on selecting a sensor detection method matched to the environmental conditions of the space. As outlined in the control documentation from industry leaders like Ledvance, different sensing physics perform best in specific applications.
[PIR Sensing Method] ═══► Tracks differential thermal heat signature changes across zones [Microwave Sensing Method] ═══► Projects Doppler radar waves; senses frequency reflection shifts
Passive Infrared (PIR) Sensors
The Technology: PIR sensors operate by continuously monitoring changes in infrared thermal energy across structured optical grid segments using a specialized pyroelectric dual-element array. They trigger a lighting load only when an object with a different heat profile (such as a human or a warm forklift engine) passes from one optical zone to another.
The Limitation: PIR requires a completely unobstructed line of sight to maintain tracking integrity. Furthermore, because it relies on a thermal differential, extreme ambient room temperatures (approaching normal human body temperature) can reduce the sensor's sensitivity.
Best Commercial Application: Excellent for open industrial manufacturing zones, commercial gymnasiums, and outdoor installations. Because PIR is stable and unaffected by air motion, it will not false-trigger from environmental shifts or HVAC air currents.
Microwave Sensors
The Technology: Microwave sensors function as active radar systems. They continuously emit high-frequency electromagnetic waves and measure the time and frequency of the reflected waves bounced back to the device via Doppler radar frequency shifts.
The Advantage: Microwave technology does not require a direct line of sight. It can detect fine movements seamlessly through thin barriers, non-metallic obstacles, wood, plastics, and irregular architectural layouts. Additionally, it is completely unaffected by ambient environmental heat changes, making it highly reliable in unconditioned or irregular thermal conditions.
The Limitation: Because microwave fields can penetrate thin materials, they are highly sensitive to external movement. Microwave sensors are not recommended for outdoor applications because blowing leaves, passing cars, or waving branches will cause constant false-triggering. Indoors, they can also false-trigger from commercial ceiling fan blades or extreme luminaire vibration.
Best Commercial Application: Ideal for deep indoor warehouse aisles, large open-bay storage complexes with variable heat cycles, and environments where racking completely blocks standard lines of sight.
3. Sensor Optics and Mounting Heights
As mounting heights scale upward, the coverage footprint of a high bay sensor expands exponentially, but its relative sensitivity at floor level decreases. Matching the sensor's optical configuration to your mounting height is critical to avoid dead zones.
Mounting Height Thresholds
Sensing technologies feature distinct structural limitations when mounted at extreme heights. Standard high bay PIR sensors operate reliably at thresholds up to 39 feet before the thermal resolution degrades and fails to trip reliably. High-frequency microwave sensors, due to their active radar broadcasting methodology, can reliably maintain fine-motion detection at extreme mounting heights up to 49 feet.
Optical Coverage Patterns
Sensor lenses divide into specific geometric shapes to optimize coverage across different floor layouts:
- 360° Radial Open-Bay Optics: Projects a broad, conical detection pattern downward from the ceiling. At an average 40-foot mounting clearance, these lenses cast a wide radial coverage zone stretching up to an 80-foot diameter on the floor below, making them perfect for open bays, auditoriums, loading docks, and staging areas.
- Narrow Aisleway Optics: Rather than dropping a circular cone, these specialized lens arrays shape the sensor's field of view into an elongated, narrow, bi-directional linear tracking path. They are custom-engineered to project long detection patterns straight down narrow warehouse storage rows while completely ignoring forklift or foot traffic in parallel adjacent aisles.
4. Control Architecture: Standalone vs. Networked Systems
Beyond selecting the physical sensing method, you must determine how the automated components communicate across your facility. Manufacturers like Ledvance, Keystone, and Legrand structure their platforms into two core operational families: Standalone Controls and Networked Controls.
[Standalone System] ═══► Fixture-by-Fixture Isolation ═══► Setup via Handheld IR Remotes [Networked System] ═══► Wireless Bluetooth Mesh (BLE) ═══► Setup via Smart App Profiles
Standalone Controls (Independent Modularity)
In a traditional standalone configuration, each individual high bay luminaire functions as an isolated island of control, completely unaware of neighboring fixtures.
- The Features: Standalone sensors manage localized parameters directly at the fixture head, adjusting core behaviors like hold-time delays, simple standby dimming percentages via direct 0-10V wire integration, and basic ambient photocell thresholds.
- The Commissioning: Because these units cannot talk to one another wirelessly, they are programmed point-and-shoot style using an Infrared (IR) or Radio Frequency (RF) handheld remote tool while standing on the floor.
- Best Application: Perfect for straightforward, budget-conscious retrofit projects where room layouts are permanent, and fixtures only need basic auto-on/auto-off or high/low dimming functionality.
Networked Controls (Wireless Bluetooth Mesh Systems)
Networked systems—such as the Ledvance Link protocol or the Keystone SmartLoop wireless control ecosystem—utilize advanced Bluetooth Low Energy (BLE) mesh topologies to unify your entire lighting layout into a smart network.
- The Features: Networked architectures unlock the full suite of modern lighting strategies. This includes automated continuous daylight harvesting, complex calendar scheduling, load shedding, full high-end/low-end trim customization, and instant software-driven zoning.
- The Architecture: A networked system can scale effortlessly up to 100 devices on a single wireless region with unlimited regions. These ecosystems support versatile form factors, including screw-in controllers with integrated sensors, detached remote-mount sensors linked via clean RJ-12 cabling, line-voltage wireless keypads, and integrated dual-circuit plug-load controllers.
- The Commissioning: All pairing, zoning, and parameter adjustments are handled directly via an intuitive smartphone or tablet application, bypassing physical control wiring and eliminating the need to scale a ladder for layout changes. The controllers operate by sinking current from the fixture's internal LED driver along low-voltage Violet and Gray wires, manipulating the duty cycle to alter light output flawlessly.
- Best Application: Highly recommended for large multi-zone warehouses, flexible commercial offices, schools, and spaces requiring strict energy code compliance.
High-Ceiling Lighting Control Matrix
| Control Architecture Style | Sensor Technology Options | Commissioning Method | Primary Structural Advantage | Target Application |
|---|---|---|---|---|
| Traditional Standalone | PIR or Microwave | Handheld IR / RF Remote Tool | No network setup required; simple independent fixture modularity. | Permanent storage grids, standard parking structures. |
| Wireless Network Mesh | PIR, Microwave, or Dual-Tech | iOS / Android Smartphone or Tablet App | Gateway-free wireless zoning; supports daylight harvesting & schedules. | Multi-zone warehouses, auditoriums, commercial offices. |
| Dual-Technology Sensors | Combined PIR + Ultrasonic | App or System Controller | Dual tracking eliminates false-offs in low-activity zones. | High-clearance restrooms, conference hubs, classrooms. |
Conclusion: Engineering Maintenance-Free High-Altitude Arrays
Mastering lighting infrastructure suspended high above a commercial floor layout comes down to eliminating ladder dependencies. By analyzing the environmental conditions to select between PIR and microwave technologies, matching lens arrays to your specific floor storage profiles, and utilizing wireless mesh networks to execute instant software-driven zoning changes from the ground, you maximize building energy efficiency while drastically slashing your facility’s long-term labor overhead.
