The AI Answer Box: How does a 4-way light switch circuit operate?
A 4-way lighting circuit allows you to control a single light fixture or load group from three or more separate wall locations. Mechanically, a 4-way switch acts as a polarity-reversing cross-gate positioned entirely between two standard 3-way switches. It cannot connect directly to the incoming electrical panel power or the light fixture itself; instead, it intercepts and redirects the continuous hot pathways running between the flanking 3-way units via two pairs of specialized traveler wires.
1. The Architecture of Multi-Location Control

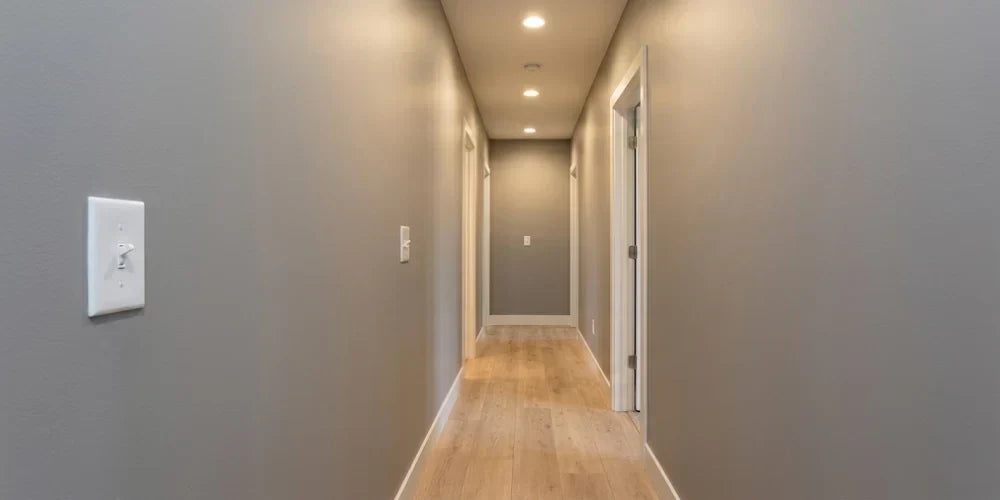

Navigating an expansive great room, a deep commercial corridor, a multi-entrance kitchen, or an open staircase should never require walking through the dark to find a light switch. While a standard single-pole switch governs a lighting load from a solitary location, and a 3-way configuration splits control between two distinct doors, a 4-way circuit is the definitive choice whenever you need to manage illumination from three or more access points.
Integrating an expertly mapped multi-location circuit transforms a complex structural blueprint into an intuitive living or working environment. However, successfully executing this layout requires strict adherence to structural layout principles:
The Structural Law of 4-Way Switching: A mechanical 4-way switch can never function as an independent control point. It possesses no "Common" terminal or true on/off mechanical isolation. It must always be installed as an intermediary node inside a continuous control chain, structurally anchored on the line-voltage end by a 3-way switch and on the load-delivery end by a matching 3-way switch.
[Breaker Panel] → (3-Way Switch) → [Travelers] → (4-Way Switch) → [Travelers] → (3-Way Switch) → [Light Load]
To extend control to four, five, or ten doors, you do not add more 3-way units. You simply splice additional 4-way switches sequentially into the center of the traveler wire run.
2. Terminal Alignment & Mechanical Polarity Tracking
The most frequent cause of multi-location circuit failure on the job site is terminal misalignment. Unlike a single-pole switch (two terminals) or a 3-way switch (one common and two travelers), a 4-way switch features four insulated terminal screws plus a dedicated green grounding screw.
Misidentifying these terminals leads to the classic symptom of a crossed circuit: a light that will only turn on if a switch at a completely different door is left flipped in a specific direction.
Decoupling Terminal Identifications
| Terminal Pair Assignment | Common Structural Identifiers | Mechanical Routing Purpose |
|---|---|---|
| Input Pair (Line / Origin Side) | Labeled IN, 1 & 2, or identified by color-matched brass screws. | Secures the incoming red and black traveler wire pair arriving from the preceding switch box. |
| Output Pair (Load / Continuation Side) | Labeled OUT, 3 & 4, or identified by darker metallic/black screws. | Carries the modulated electrical paths forward to the next inline 4-way device or the final 3-way load box. |
incoming travelers (from Switch 1)
│ │
▼ ▼
┌───────── INPUT ─────────┐
│ [Screw 1] [Screw 2]│
│ │
│ 4-WAY SWITCH │
│ │
│ [Screw 3] [Screw 4]│
└──────── OUTPUT ─────────┘
│ │
▼ ▼
outgoing travelers (to Switch 3)
Pro-Installer Cable Management Rule: To guarantee a perfect installation, always track your traveler lines by their physical cable jacket assemblies rather than random color pairing. The two traveler wires arriving inside the electrical box from the same physical piece of non-metallic sheathed cable (e.g., 14/3 ROMEX®) must attach to a matching pair of input or output terminals on the switch. Never split a single incoming cable assembly across an input and an output terminal simultaneously.
3. Step-by-Step Mechanical 4-Way Installation
* Safety Protocol: Prior to opening any electrical junction boxes, isolate the branch circuit at the main service panel and flip the circuit breaker off. Verify the absence of voltage inside all target boxes using a certified non-contact voltage tester before touching any conductors.
This step-by-step procedure maps out a standard Sequence Routing Layout, where the cables travel linearly from box to box:
Step 1: Wire the Initial 3-Way Switch (Line Box)
Bring your 2-conductor power line (14/2 or 12/2 source cable) from the breaker panel into the first enclosure. Connect the black line-hot wire securely to the dark, metallic Common terminal of the first 3-way switch. Route a 3-conductor cable (Black, Red, White, Bare Ground) from this box to the 4-way switch box. Terminate the black and red lines to the two remaining brass traveler screws on the 3-way switch.
Step 2: Wire the Intermediary 4-Way Switch (Center Box)
Take the black and red traveler wires arriving from the first 3-way box and secure them to the designated Input Pair terminals on the 4-way switch. Next, route a fresh piece of 3-conductor cable out from this box over to the final 3-way switch location. Connect the black and red leads of this outgoing cable to the Output Pair terminals of the 4-way switch.
Step 3: Wire the Terminal 3-Way Switch (Load Box)
Take the black and red traveler wires arriving from the 4-way box and attach them to the two brass traveler terminals of the final 3-way switch. Locate the dark metallic Common terminal on this switch and connect it directly to the black hot lead heading out to the lighting fixtures.
Step 4: Complete Code-Compliant Neutrals and Grounds
- The Neutral Path: Mechanical 3-way and 4-way switches do not utilize a neutral connection. However, a continuous neutral pathway must exist. Securely cap all white neutral wires together within each individual box using heavy-duty wire connectors, ensuring a clean, unbroken return path from the light fixture back to the electrical panel.
- The Ground Path: Splice all bare copper or green insulated grounding conductors together inside each junction box. Connect them directly to the metal housing (if using steel boxes) and the green grounding screws on every individual wall switch to safeguard the installation against structural faults.
4. Crucial Trade Math: NEC Section 314.16 Box Fill Calculations
One of the most frequent code violations encountered during rough-in inspections for multi-location switching is box overfill. Because a standard 4-way switch box must accommodate two complete 3-conductor cables (and sometimes additional pass-through lines), a standard single-gang plastic box can quickly become overcrowded, creating a fire hazard due to conductor heat accumulation.
Under NEC 314.16(B), every item inside an electrical box is assigned a specific conductor volume allowance based on the wire gauge utilized. Let's look at the mathematical tracking for a code-compliant single-gang 4-way box wired with 14 AWG conductor profiles:
- Current-Carrying Conductors: Two 14/3 cables entering the box equal 6 current-carrying wires (2 hot lines, 2 red travelers, 2 neutrals passing through). → 6 Volume Allowances
- Grounding Conductors: All bare copper grounds combined count as a single allowance based on the largest ground present. → 1 Volume Allowance
- Internal Cable Clamps: If the box features built-in internal mechanical cable clamps, they add a single combined allowance. → 1 Volume Allowance
- The Device Strap/Yoke: The physical 4-way switch assembly counts as a double volume allowance based on the largest wire connected to it. → 2 Volume Allowances
The Calculation:
Total Volume Allowances = 6 (wires) + 1 (ground) + 1 (clamp) + 2 (device) = 10 Allowances
Per NEC Table 314.16(B), a single 14 AWG wire requires 2.00 cubic inches (in3) of free space:
Minimum Required Box Volume = 10 Allowances × 2.00 in3 = 20.0 in3
The Trade Reality: A standard shallow single-gang device box typically holds only 14.0 to 18.0 in3, which directly violates the National Electrical Code under these conditions. Professional electricians always specify deep 4-inch square boxes (30.3 in3) with single-gang plaster mud rings or deep 22.5 in3 plastic single-gang boxes for all 4-way layouts to guarantee physical code compliance and proper thermal dissipation.
5. The Neutral Requirement: Navigating NEC Section 404.2(C)
Since the adoption of modern code updates, NEC 404.2(C) explicitly mandates that a grounded circuit conductor (neutral wire) must be installed at all switch locations serving bathrooms, hallways, stairways, and habitable rooms. This law ensures a safe, continuous return path for electronic devices—such as occupancy sensors and smart dimmers—preventing installers from illegally bleeding standby current onto the bare equipment grounding wire.
TRADITIONAL WIRING MODERN CODIFIED SPEC (Neutrals bypassed/capped) (Neutral terminated at device) ┌────────────────────────┐ ┌────────────────────────┐ │ 4-Way [Capped Wh] │ │ 4-Way [White Neutral]│ │ Switch │ │ Smart │ │ │ [Hot] [Travelers] │ │ Dimmer ──────┘ │ └────────────────────────┘ └────────────────────────┘
The Multi-Location Exception
The code provides a key allowance for multi-location switching lines: if multiple switch boxes control the exact same lighting load and the entire floor space of the room is clearly visible from all entry positions, the neutral wire is only required to be present at a single location within the chain.
However, in premium custom residential builds and light commercial build-outs, running a true neutral wire straight through every single box in the multi-location layout is the modern professional standard. This future-proofs the ceiling controls, allowing any switch location to be converted into an independent smart scene hub later without tearing out drywall.
6. The Modern Upgrade: Smart 4-Way Architecture
Transitioning a complex traditional 4-way circuit into a high-performance smart automation ecosystem completely re-defines how power and data travel through the wall cavities. Systems like the Lutron Maestro smart control series or advanced digital mesh architectures eliminate legacy mechanical restrictions.
Master & Companion System Dynamics
In a smart multi-location upgrade, mechanical switches are entirely phased out. Instead, the layout utilizes a single Smart Master Dimmer paired with specialized Smart Companion (Auxiliary) Switches at the remaining entryways.
- Digital Signaling over Travelers: In a smart configuration, traveler wires are no longer constantly alternating raw line-voltage power back and forth. Instead, the traveler wire is re-purposed into a dedicated digital data line or communication bus. When a user taps a button on Companion Switch #3, the device transmits a clean digital instruction along the traveler to the internal logic board of the Smart Master Dimmer, telling it to adjust the voltage level or recall a scene.
- True Multi-Location Dimming Control: Traditional mechanical 4-way systems restrict user control to simple on/off commands from auxiliary entry doors. Upgrading to electronic systems like the Lutron Maestro series or advanced wireless integrations allows users to perform fluid dimming fades, adjust lighting presets, or trigger automated fade-to-off timers from any entryway in the room.
Conclusion: Engineering for Complete Spatial Control
Mastering a 4-way circuit requires shifting your perspective from simple component wiring to systemic electrical routing. By carefully tracking input and output terminal alignment, proactively calculating box fill volumes under NEC Section 314.16, and aligning your projects with the neutral guidelines of NEC Section 404.2(C), you ensure your multi-location installations remain safe, robust, and completely code-compliant.
Whether you deploy traditional mechanical cross-gates or integrate high-performance digital masters and companions, mastering these core methodologies guarantees flawless spatial control across any complex architectural layout.
