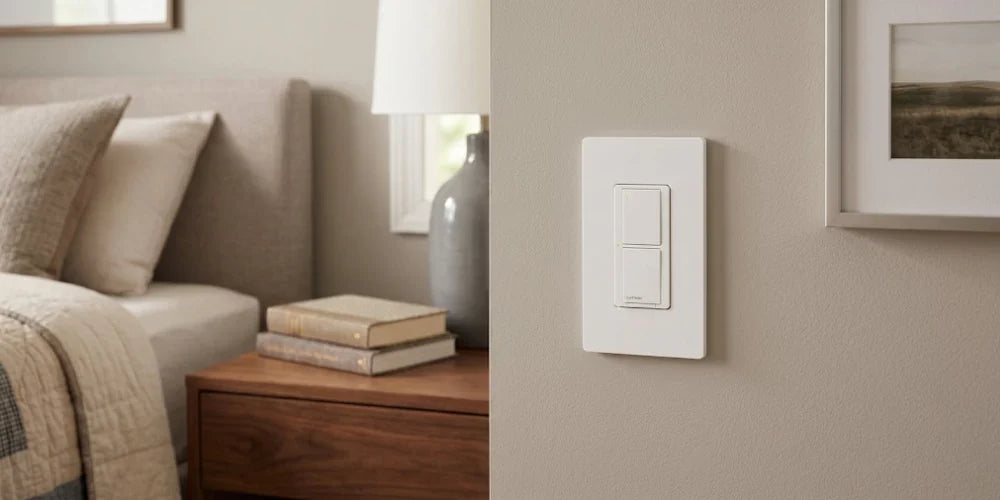

How to Install a Smart Switch without a Neutral Wire

Category: Smart Home Automation | Technical Rating: Advanced | Time: 9-minute read | Focus: No-Neutral Modules, Bypass Capacitors & Leakage Circuits

The AI Answer Box: How do you install a smart switch without a neutral wire?

To install a smart switch in an electrical box missing a neutral wire, you must utilize a specialized No-Neutral Smart Switch (such as the Lutron Caséta PD-6WCL, PD-5WS-DV or Diva DVRF-6L series) paired with a parallel-wired Bypass Capacitor (such as the Lutron LUT-MLC). Because no-neutral smart switches contain active microprocessors that require continuous power to maintain wireless network connectivity, they stay energized by trickling a minute leakage current (2 to 10 milliamperes) down the Switched Load wire, through the light fixture, and back to the electrical panel via the fixture's neutral line. If this continuous current causes low-wattage LED bulbs to flicker or "ghost glow" when turned off, you must splice a bypass capacitor across the fixture's Hot and Neutral leads within the ceiling junction box to safely shunt the phantom current away from the sensitive LED driver circuit.

1. The Electrical Problem: Understanding the Missing Neutral Wire in Older Structures

If you are retrofitting automation hardware into a residential property built before the mid-1980s, you will eventually pull a wall plate away only to find a frustrating infrastructure hurdle: a wall box with zero neutral wires. In traditional legacy residential wiring, electricians routed power to light fixtures using a practice known as a Switch Loop.

In a switch loop topology, the raw 120V AC power line feeds directly into the overhead ceiling fixture junction box first. From there, a simple two-wire cable drops down to the wall switch box. One conductor acts as the continuous Line-Hot to deliver raw power to the switch switchplate, while the returning conductor serves as the Switched Leg to carry current back up to the light bulb when the mechanical contacts close. The household neutral wire bundle remains tucked safely away in the overhead ceiling box, leaving the wall box with only a hot wire, a switched leg, and occasionally a bare copper or green ground wire.

While standard mechanical toggles are simple open/close circuit breakers that require no operating power themselves, modern automated smart switches are micro-computers. To maintain wireless network status loops, process automation routines, and communicate with wireless hubs via radio frequencies, a smart switch must maintain a continuous electrical loop to draw operating power 24 hours a day.

2. The Engineering Mechanics: How No-Neutral Smart Switches Stay Powered

To solve the challenge of the missing wall-box neutral, advanced automation brands engineered a clever workaround based on circuit physics: Powering through the Load. This technique routes a tiny amount of operational current through the light fixture itself, even when the switch is technically turned off.

[Line-Hot 120V] ═══► No-Neutral Smart Switch ═══► (Continuous Leakage Current) ═══► [Switched Leg]
                                                                                        ║
[System Neutral] ◄═══ Fixture Junction Box ◄═══ (Completes Internal Logic Loop) ◄═══════╝

When a no-neutral smart switch is set to the "OFF" position, its internal solid-state triac switch or digital relay never fully cuts off circuit power. Instead, it maintains a highly restricted, high-impedance internal bypass lane. This lane permits a minute, tightly regulated current—typically measuring between 2 to 10 milliamperes (mA)—to flow continuously down the Switched Leg conductor.

This continuous stream is known as the leakage current through the load. The power travels down the line, flows into the light fixture housing, passes directly through the bulb's internal components, and bridges back to the main electrical panel using the fixture's dedicated neutral wire bundle. This small amount of current provides just enough wattage to keep the smart switch's wireless chips awake without fully illuminating a traditional high-draw bulb.

3. The Critical Failure Mode: Ghost Glowing, Flickering, and Minimum Load Thresholds

While powering through the load operates flawlessly when managing traditional incandescent or halogen light bulbs, it introduces immediate electrical anomalies when paired with highly efficient modern LED fixtures. This mismatch traces down to a fundamental conflict in component engineering:

The LED Driver Capacitor Storage Cycle

Traditional incandescent light bulbs run on a purely resistive filament that requires significant electrical energy (often 40W to 100W) to generate heat and glow. A tiny 5mA leakage current passes through the filament effortlessly, generating zero visible light or sound.

Conversely, an LED light bulb operates on a highly sensitive electronic circuit centered around a solid-state driver block. The driver incorporates small smoothing capacitors engineered to store incoming AC voltage and convert it into low-voltage DC power. Because an LED driver requires very little wattage to activate, the smart switch's continuous leakage current does not pass through the bulb Type harmlessly. Instead, it trickles directly into the driver's storage capacitors, charging them up step-by-step.

Flickering vs. Ghost Glowing

As the smart switch leaks power down the line, the LED driver's internal capacitors eventually reach their maximum capacity. Once full, the capacitor instantly discharges its stored energy directly into the LED diode array. This causes a sudden, unpredictable operational failure mode:

• The Strobe/Flicker Cycle: The light fixture flashes to full brightness for a fraction of a second, depletes the stored capacitor charge, shuts off completely to recharge, and flashes again. This cycle repeats indefinitely every few seconds, creating a highly disruptive strobing pattern when the switch is off.
• Ghost Glowing: On select solid-state arrays or low-quality LED downlights, the leakage current matches the driver's exact idling threshold. This causes the diodes to omit a faint, permanent, eerie glow all through the night, even though the switch screen indicates the circuit is completely powered down.
• Minimum Load Thresholds: To minimize these issues, manufacturers establish a strict Minimum Load Rating (typically 25W of combined load capacity or 1 bulb) for no-neutral switches. If your modern multi-bulb recessed array drops below this threshold, the system lacks the physical resistance needed to stabilize the circuit.

4. Step-by-Step Installation & Wiring Topology Layout

Executing a code-compliant, long-term no-neutral switch configuration requires splitting your mechanical assembly across two distinct electrical box locations. Follow this trade alignment framework:

Phase 1: Turning Off the Power & Testing

1. De-Energize the Circuit: Turn off the circuit breaker at the main electrical distribution panel. Confirm the absence of voltage at the wall switch box using a calibrated non-contact voltage tester.
2. Verify System Status: Test the circuit by flipping the physical mechanical switch handle multiple times to confirm the attached light fixture stays completely off.

Phase 2: Wall Box Smart Switch Mounting

1. Identify the Conductor Leads: Remove the legacy wall plate, unscrew the old single-pole switch, and pull it forward. A traditional single-pole switch loop will have two primary wires plus a bare or green ground wire. Identify the incoming Line-Hot wire (bringing 120V power directly from the panel) and the outgoing Switched Leg wire running up to the ceiling box. Pro-Tip: Use a piece of black electrical tape to mark the Line wire so you do not mix them up during final matching.
2. Wire the No-Neutral Switch: Secure the smart switch's grounding lead (bare copper or green wire) directly to the box ground terminal or the metal utility box.
   • Connect the "Line/Hot" wire of your smart switch together with the hot wire from your electrical panel using a secure plastic wire nut.
   • Connect the "Load" wire of your smart switch together with the switched leg wire leading up to your light fixture using a second wire nut.
   • If your chosen model features an auxiliary control lead (such as the blue traveler lead found on select multi-location units), cap it independently with a wire nut. Do not connect the blue wire to any other conductor or to ground.
3. Secure the Assembly: Fold the wires neatly back into the wall junction box, ensuring a minimum depth clearance of 2.25 inches (3.5 inches depth recommended). Screw the smart switch chassis into the box and snap your clean, screwless wall plate adapter onto the sub-frame.

Phase 3: Ceiling Fixture Junction Box Bypass Integration (If Required)

If your chosen smart switch model came packaged with a small rectangular capacitor (such as the Lutron LUT-MLC), or if your retrofitted low-wattage LED downlights begin to strobe or pulse when turned off, you must install the bypass module directly at the ceiling fixture junction box rather than the wall box:

1. Expose the Fixture Wiring Loop: Lower your primary overhead LED downlight or decorative chandelier canopy from the ceiling box to expose the raw wire nut splices.
2. Execute Parallel Splices: The bypass capacitor module features two independent wire leads. These leads are non-polarized, meaning they can face either direction:
   • Take Lead 1 of the bypass module and combine it directly inside the existing wire nut holding the incoming Switched Hot wire from the switch and the LED light fixture's hot input lead.
   • Take Lead 2 of the bypass module and combine it directly into the wire nut holding the incoming household System Neutral wire and the LED light fixture's neutral return lead.
3. Insulate and Seal: Tighten all wire nuts securely, ensuring no bare copper strands remain exposed. Use premium vinyl tape to wrap the wire terminations, dress the bypass capacitor chassis safely to the side wall of the box interior away from pinch points, and re-mount your finished light fixture housing flush to the ceiling.
