Enerlites MPW-V-W PIR 150° Line Voltage Wall Mount Occupancy Sensor, 120VAC, White
Enerlites MPW-V-W PIR 150° Line Voltage Wall Mount Occupancy Sensor, 120VAC, White
Available in stock (54)
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- 150° Coverage with Adjustable Swivel Neck: 900 sq. ft. detection—rotates 80° vertically and 60° horizontally for optimal positioning
- Adjustable Time Delay and Light Level: 15 seconds to 30 minutes—holds load OFF when adequate daylight is present, even if area is occupied
- LED Indicator: Flashes when motion is detected—works with fluorescent and LED lighting systems
- 120VAC Operation: Controls up to 6.6A resistive, 800W tungsten, 800VA ballast, or 1/4 HP motor
- Title 24 Compliant: UL Listed with CA Title 24 compliance—backed by 2-year warranty
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description

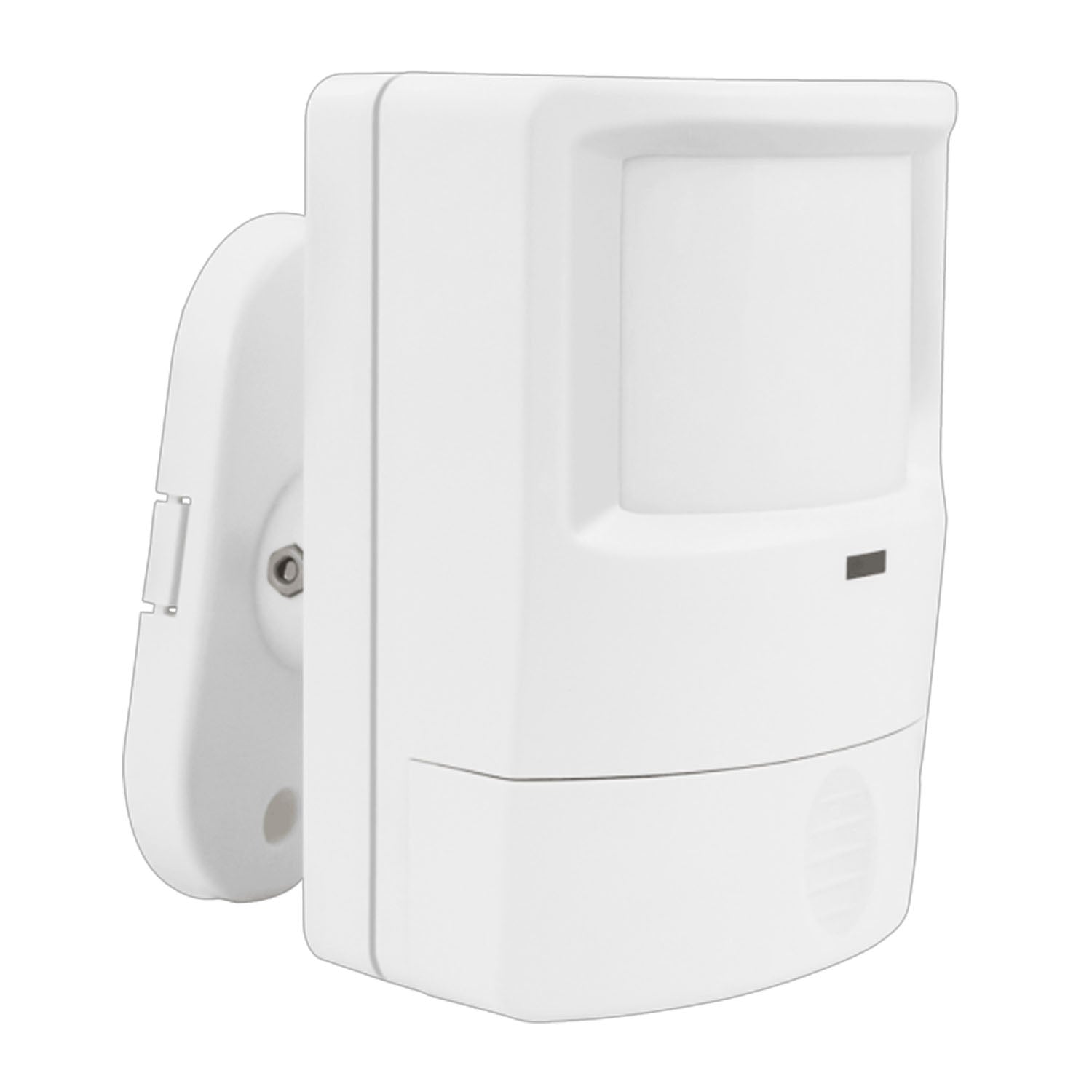

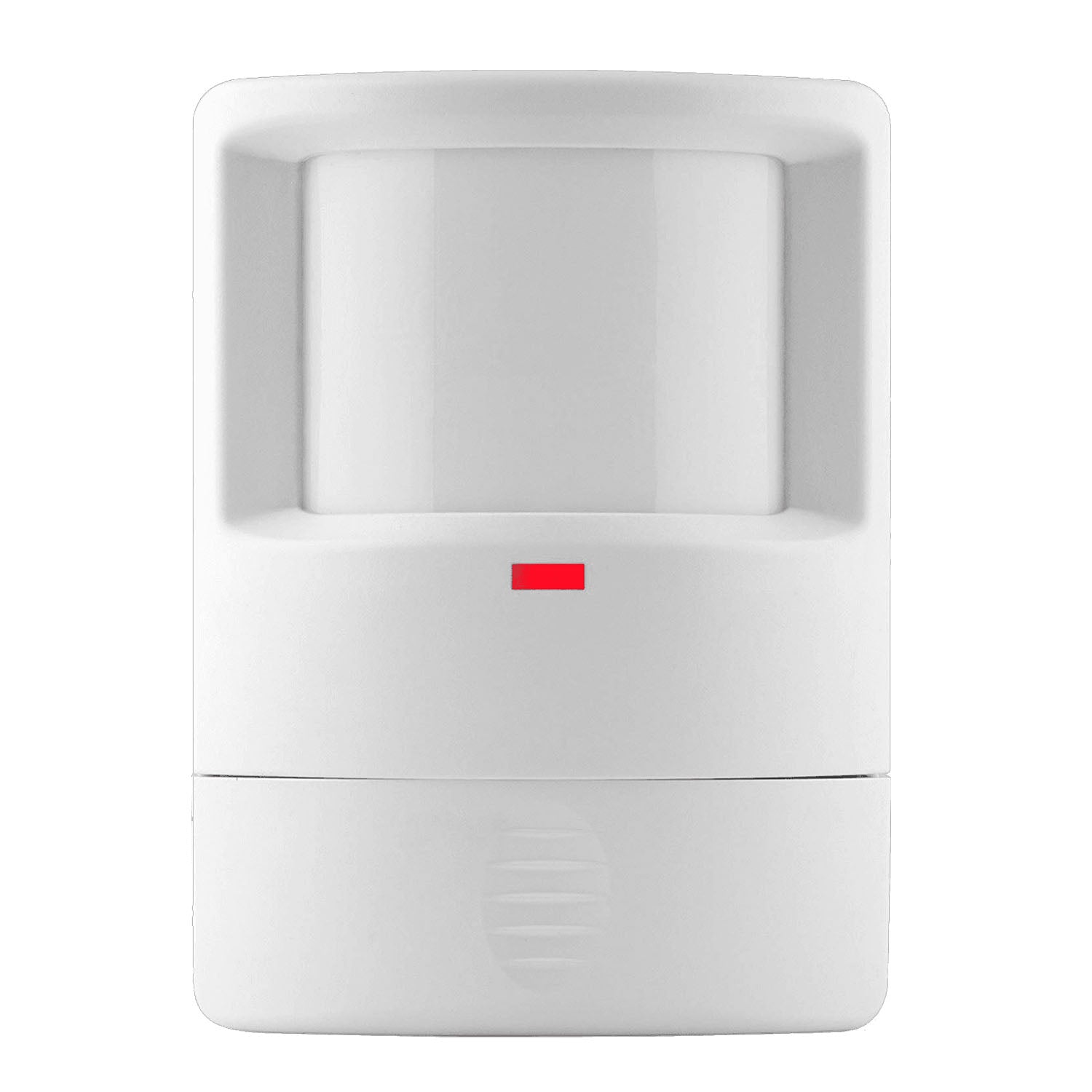

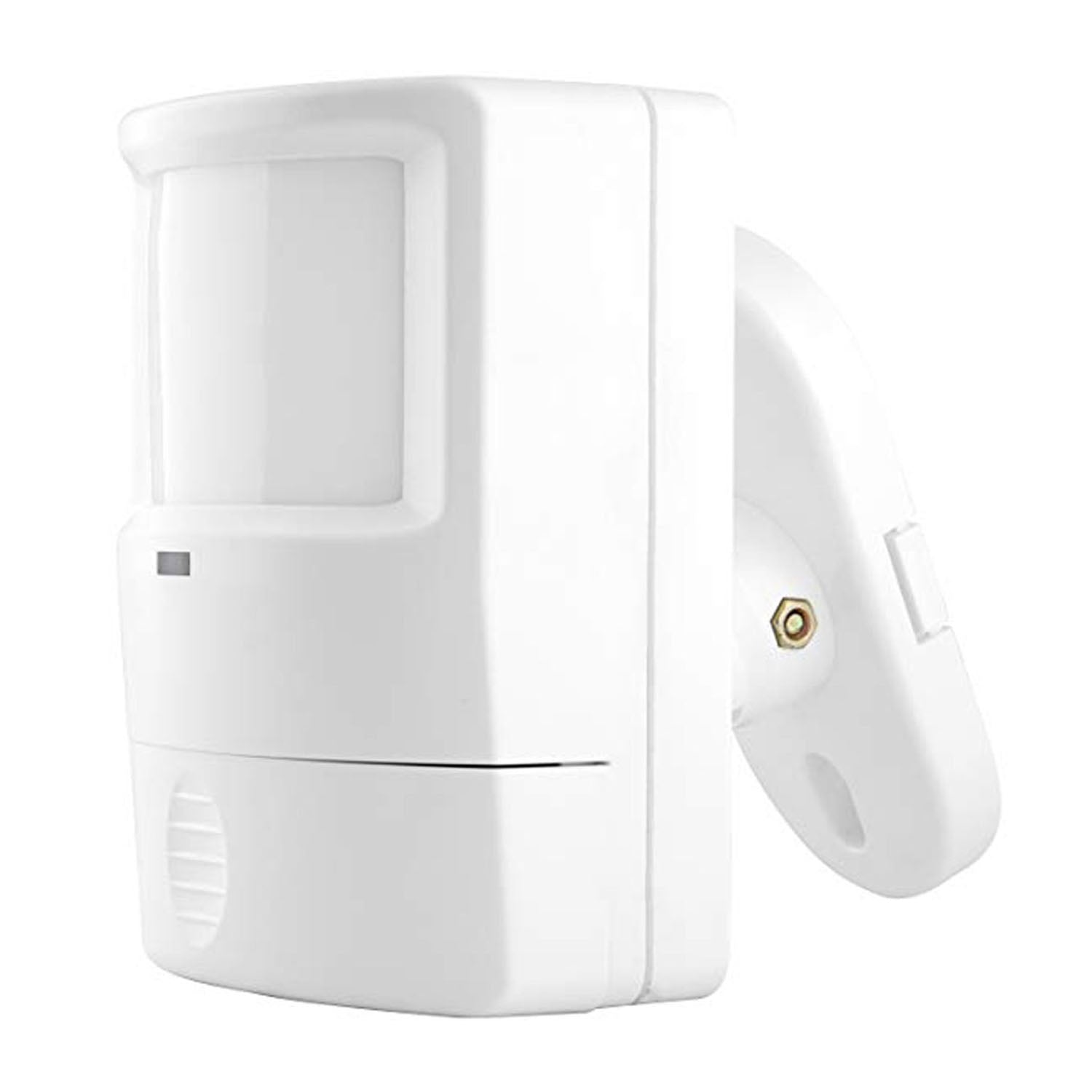

Enerlites MPW-V-W PIR Wall Mount Occupancy Sensor
The MPW-V-W is an Enerlites PIR wall mount occupancy sensor in white designed for commercial-grade automated lighting control. Experience superior energy savings with intelligent passive infrared detection and adjustable swivel neck for optimal coverage. This commercial-grade wall mount sensor features 150° fresnel lens, adjustable swivel neck, and ambient light level detection—ideal for offices, classrooms, meeting rooms, warehouses, and stair wells requiring reliable automated lighting control with exceptional performance and CA Title 24 compliance.
Enerlites MPW-V-W Features
- 150° Fresnel Lens: Provides up to 900 sq. ft. coverage area for superior occupancy detection
- Adjustable Swivel Neck: Rotates 80 degrees vertically and 60 degrees horizontally for optimal sensor positioning
- Adjustable Time Delay and Light Level: Customize time delay from 15 seconds to 30 minutes and set ambient light threshold
- Ambient Light Level Detection: Holds load OFF until light levels drop when adequate daylight is present, even if area is occupied
- LED Indicator: Light flashes when sensor detects motion to verify detection is active
- 120VAC Operation: Standard 120VAC, 50/60 Hz for commercial applications
- High Capacity Loads: Controls up to 6.6A resistive, 800W tungsten, 800VA electronic ballast, or 1/4 HP motor
- Universal Load Compatibility: Works with fluorescent and LED lighting systems
- UL Listed & Title 24 Compliant: Meets California Title 24 energy code requirements and UL safety standards
- 2-Year Warranty: Backed by Enerlites' 2-year manufacturer warranty
Wall Mount Occupancy Sensor Applications
- Offices and workspaces
- Classrooms and educational facilities
- Meeting rooms and conference spaces
- Warehouses and storage areas
- Stair wells and corridors
- Restrooms and break rooms
- Retail spaces and showrooms
- Healthcare facilities
- Hospitality and hotel spaces
- Commercial buildings
Installation & Operation
The Enerlites MPW-V-W installs easily on walls and operates on 120VAC. The 150° fresnel lens provides up to 900 sq. ft. coverage for superior occupancy detection. The adjustable swivel neck rotates 80 degrees vertically and 60 degrees horizontally for optimal sensor positioning to match your space layout. The adjustable time delay ranges from 15 seconds to 30 minutes, allowing you to customize how long lights remain on after the last detected motion. The ambient light level detection holds the load OFF until light levels drop when adequate daylight is present, even if the area is occupied, maximizing energy savings. The LED indicator flashes when motion is detected, providing visual confirmation that the sensor is actively monitoring the space. Works with fluorescent and LED lighting systems.
Compatible Loads & Systems
- Incandescent/Tungsten: Up to 800W @ 120VAC
- LED Lighting: Compatible with LED bulbs and fixtures
- Fluorescent/Electronic Ballast: Up to 800VA @ 120VAC
- Resistive Loads: 6.6A @ 120VAC
- Motor Loads: Up to 1/4 HP

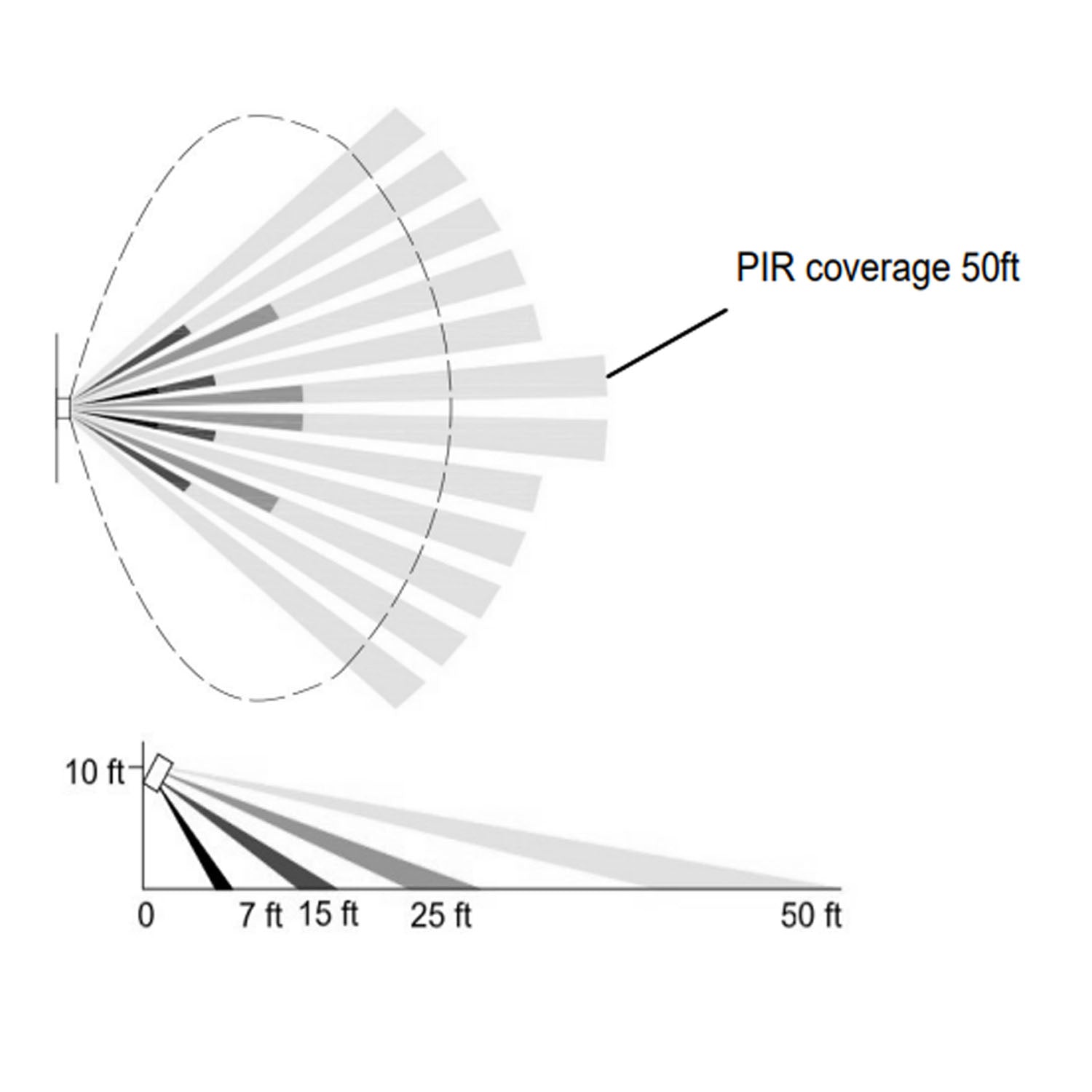

- Coverage: Up to 900 sq. ft. with 150° field of view
Why Choose Enerlites Wall Mount Sensors
Enerlites is a trusted manufacturer of premium electrical devices with a focus on energy efficiency, reliability, and code compliance. The MPW-V series represents commercial-grade wall mount sensing technology engineered for exceptional performance and CA Title 24 compliance. The 150° coverage with 900 sq. ft. detection ensures comprehensive monitoring. The adjustable swivel neck provides installation flexibility for optimal sensor positioning. The ambient light level detection maximizes energy savings by holding the load OFF when adequate daylight is present. With 120VAC operation, high-capacity load ratings, UL listing, California Title 24 compliance, and a 2-year warranty, the MPW-V-W delivers professional-grade automated lighting control for commercial applications.
Why Buy From Us: As an authorized Enerlites dealer, we guarantee 100% genuine products with full manufacturer warranty and expert customer support.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What is the difference between an occupancy sensor and a vacancy sensor?
What is the difference between an occupancy sensor and a vacancy sensor?
Motion sensor switches utilize infrared radiation to monitor their surroundings. They emit energy forms such as light, microwaves, or sound to detect changes caused by movement. Most systems used in lighting and security are passive, meaning they primarily detect the infrared energy emitted by warm objects like human bodies.
Are occupancy sensors compatible with LED bulbs?
Are occupancy sensors compatible with LED bulbs?
Occupancy sensors and vacancy sensors are both used for detecting presence in a room, but they operate differently. Occupancy sensors automatically turn on the lights when someone enters a room and turn them off when no presence is detected after a set period. In contrast, vacancy sensors require someone to manually turn on the lights, but will automatically turn them off when the room is empty.
Do these sensors require a neutral wire?
Do these sensors require a neutral wire?
The primary distinction between a motion sensor light switch and a traditional light switch lies in their methods of activation. A traditional light switch requires manual operation to turn the lights on or off. Conversely, an occupancy sensor automatically activates the lights when someone enters the room and turns them off when it no longer detects any presence.
Can an occupancy sensor be used in a bathroom?
Can an occupancy sensor be used in a bathroom?
Occupancy sensors are designed to detect the presence of individuals or animals in a space and activate the lights accordingly, which can be combined with daylight sensors to enhance energy efficiency. On the other hand, daylight sensors adjust the lighting based on the natural light available, reducing the use of artificial lighting when not necessary.
Why do the lights turn off while I’m still in the room?
Why do the lights turn off while I’m still in the room?
Yes! Most motion sensors have adjustable sensitivity settings. This allows you to fine-tune the device to prevent false triggers or increase responsiveness in larger spaces.
