Have you ever walked up to a building at night and had the lights flick on as if by magic? Or waved your hand under a faucet and been rewarded with a stream of water? These moments of everyday convenience aren't magic—they're the work of motion sensors. These small but powerful devices are the invisible eyes of our modern world, quietly working in the background to make our lives safer, more efficient, and more automated. From the security system guarding your home to the automatic doors at your local grocery store, motion sensors are everywhere. But how exactly do they detect our presence? This guide will pull back the curtain on these clever gadgets, exploring the fundamental principles that allow them to "see" movement and introducing the various technologies that power our increasingly responsive world.
Occupancy vs. Vacancy Sensors: What's the Difference?
Before diving deeper into the technology itself, it's important to understand a key distinction in how motion sensors are used, especially for lighting control: the difference between an occupancy sensor and a vacancy sensor. While they often use the exact same detection technology, their function and purpose are designed around different philosophies of automation and energy savings.
Occupancy Sensors
An occupancy sensor is designed for maximum convenience. It operates on a simple principle: when you enter a room, the sensor detects your presence and automatically turns the lights on. When it no longer detects any motion after a set period, it automatically turns the lights off.
- How it works: Auto-on, auto-off.

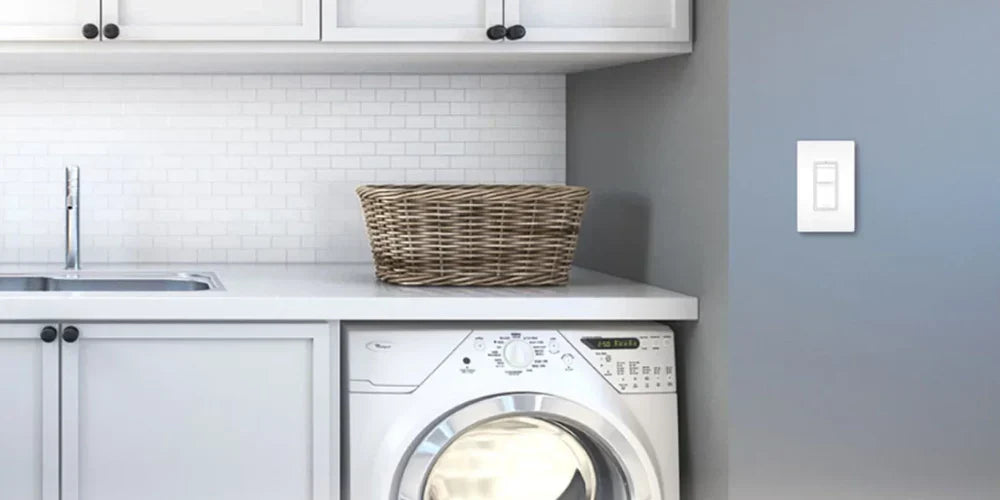

- Best for: Spaces where you might enter with your hands full, like a laundry room, garage, or a supply closet. They are also ideal for common areas like hallways, stairwells, and public restrooms where you want to ensure the lights are always on when someone is present.
Vacancy Sensors
A vacancy sensor, on the other hand, prioritizes energy savings by adding a manual step to the process. With a vacancy sensor, you must manually turn the lights on yourself using a wall switch. The sensor’s job is to then detect when the room is empty and automatically turn the lights off.
- How it works: Manual-on, auto-off.
- Best for: Rooms where lighting isn't always needed upon entry. Think of bedrooms, living rooms, or offices where you might just be passing through or where there is sufficient natural daylight. Because they prevent lights from turning on unnecessarily, they are often preferred, and sometimes required, by modern energy efficiency building codes.
PIR vs. Ultrasonic vs. Dual Technology Sensors
Motion sensors don't "see" in the way we do. Instead, they use clever technologies to detect changes in an environment. Understanding how these core technologies work is key to choosing the right sensor for the job. Let's break down the three most common types: Passive Infrared (PIR), Ultrasonic, and Dual Technology.
1. Passive Infrared (PIR) Sensors
The most common and affordable type of motion sensor is Passive Infrared, or PIR. It doesn't send out any signals of its own—hence the name "passive." Instead, it's designed to detect the invisible infrared energy (i.e., body heat) that all warm-blooded creatures, including humans, naturally emit.
- How They Work: A PIR sensor is equipped with pyroelectric elements that are sensitive to thermal radiation. When you walk into the sensor's field of view, your body heat creates a temperature differential compared to the background. The sensor detects this sudden change in infrared energy and triggers an alert.
-
Strengths:
- Energy Efficient: Since they are passive, they consume very little power.
- Cost-Effective: PIR sensors are inexpensive to manufacture, making them ideal for a wide range of applications.
- No Interference: They are not affected by inanimate moving objects like a rolling chair or blowing curtains.
- Durable: They have a long lifespan with no moving parts.
-
Weaknesses:
- Line-of-Sight Required: They need a clear line of sight to detect motion and cannot "see" around corners or through obstacles like bathroom stalls.
- Temperature Sensitivity: Their effectiveness can decrease in very warm environments where the ambient temperature is close to body temperature.
- Limited to "Hot" Objects: They won't detect the motion of an object that doesn't emit heat.
-
Best For:
- Standard Offices & Classrooms: Perfect for detecting people walking in and out of clearly defined spaces.
- Hallways & Walk-in Closets: Their line-of-sight detection is ideal for these straightforward applications.
- Home Security: The most common sensor type found in residential alarm systems.
2. Ultrasonic Sensors
Unlike their passive cousins, ultrasonic sensors are active devices. They work much like a submarine's sonar, emitting high-frequency, inaudible sound waves that fill an entire space.
- How They Work: The sensor sends out ultrasonic pulses and then measures the time it takes for the "echo" of those waves to bounce back. When a person or object moves within the room, it disturbs the sound waves and changes the echo's return time. This change, known as the Doppler shift, signals the sensor to activate.
-
Strengths:
- High Sensitivity: They are excellent at picking up very fine or minor movements, such as typing at a desk.
- No Line-of-Sight Needed: Because sound waves fill a room and can bounce off surfaces, they can detect motion around obstacles, making them great for irregularly shaped rooms.
-
Weaknesses:
- Prone to False Alarms: Their high sensitivity means they can sometimes be triggered by non-human movement, like vibrations from HVAC systems, fans, or even rustling blinds near a window.
- Struggles with Soft Surfaces: Rooms with heavy carpeting, curtains, or other sound-absorbing materials can reduce their effectiveness.
-
Best For:
- Restrooms with Stalls: Their ability to detect motion without a direct line of sight makes them the perfect choice for bathrooms.
- Large, Open Areas with Obstructions: Think of large warehouses, libraries, or spaces with lots of shelving where a clear view is impossible.
- Applications Requiring High Sensitivity: Useful in labs or workshops where even small movements need to keep lights on.

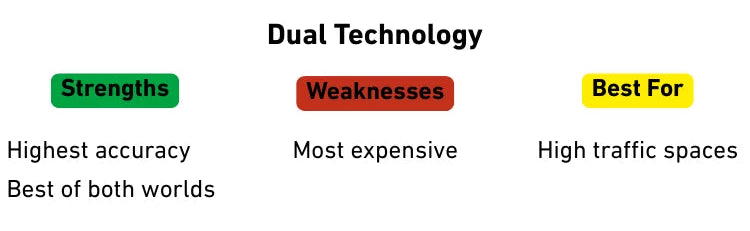

3. Dual Technology Sensors
To create a more reliable and "false-alarm-proof" sensor, manufacturers often combine two different technologies into a single unit. The most common pairing is PIR and Ultrasonic.
- How They Work: For a dual-technology sensor to trigger, both technologies must detect motion. The PIR sensor first detects a change in heat (a person entering the room), and then the ultrasonic sensor must confirm there is continued movement. This two-step verification process drastically reduces the chance of a false trigger.
-
Strengths:
- Highest Accuracy: By requiring two confirmations, false alarms from environmental factors are virtually eliminated.
- Maximum Reliability: They provide the benefits of both technologies while mitigating their individual weaknesses.
-
Weaknesses:
- Most Expensive: Combining two technologies into one unit increases the cost.
- Potential for "False Offs": In rare cases, if one of the two technologies fails to detect, the lights could turn off even if someone is in the room. This is uncommon with well-designed units.
-
Best For:
- Critical or High-Traffic Spaces: Ideal for commercial buildings, hospitals, large conference rooms, and any application where accuracy is paramount.
- Classrooms and Auditoriums: These spaces benefit from the reliability of dual-tech to avoid mistakenly plunging a full room into darkness.
- Any Area Prone to False Alarms: If you have a room with significant airflow, high ceilings, or other challenging environmental factors, dual technology is the most robust solution.
Smart, Simple, and All Around Us
From lights that greet you to faucets that anticipate your needs, motion sensors are the invisible helpers making our world smarter and more convenient. They are the simple but clever technology behind so many automated moments in our day.
Whether they are used for hands-free convenience (occupancy sensors) or for maximizing energy savings (vacancy sensors), the goal is the same: to make our spaces work better for us. By using heat, sound waves, or a combination of both, these devices can reliably detect our presence and take action.
So the next time a light flicks on as you enter a room, you'll know it's not magic. It's just a small, smart sensor doing its job—saving energy, adding convenience, and quietly making our lives a little bit easier.
