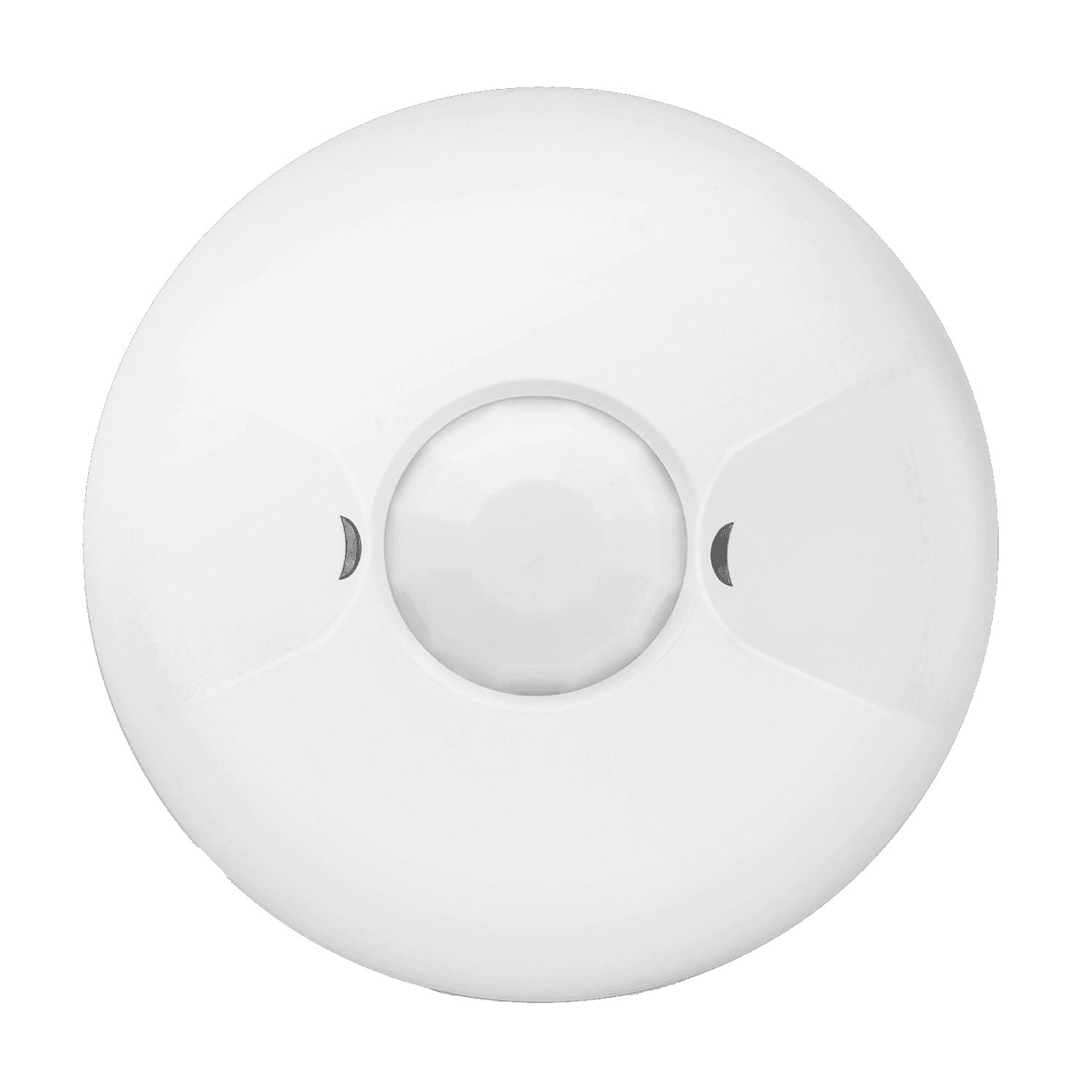

Enerlites MPC-50VD 120-277VAC PIR Ceiling Occupancy Sensor – 360° Detection, 0-10V Dimming, 1200 sq ft, White
Enerlites MPC-50VD 120-277VAC PIR Ceiling Occupancy Sensor – 360° Detection, 0-10V Dimming, 1200 sq ft, White
Available in stock (59)
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- 360° Coverage with 0-10V Dimming: 1200 sq. ft. detection—bi-level and multi-level dimming compliant with Title 24 and ASHRAE 90.1
- Four Occupancy Logic Options: Customize control modes—adjustable time delay from 15 seconds to 30 minutes
- Adjustable PIR and Light Settings: Fine-tune sensitivity and ambient light threshold—LED indicator verifies motion detection
- Dual Voltage 120-277VAC: Controls up to 10A resistive, 800VA/1385VA ballast/LED, 1/4 HP motor—2mA to 50mA dimming load
- Title 24 & ASHRAE 90.1 Compliant: UL Listed with zero-crossing function—backed by 2-year warranty
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
Enerlites MPC-50VD-W PIR Occupancy Ceiling Sensor with 0-10V Dimming
The MPC-50VD-W is an Enerlites PIR occupancy ceiling sensor with 0-10V dimming in white designed for commercial-grade automated lighting control. Experience superior energy savings with intelligent passive infrared detection combined with 0-10V dimming capability. This commercial-grade ceiling sensor features 360° coverage, four occupancy logic modes, and dimmable 0-10V bi-level and multi-level operation—ideal for open office spaces, classrooms, common areas, parking garages, and commercial applications requiring comprehensive automated lighting control with dimming for maximum energy efficiency and Title 24/ASHRAE 90.1 compliance.
Enerlites MPC-50VD-W Features

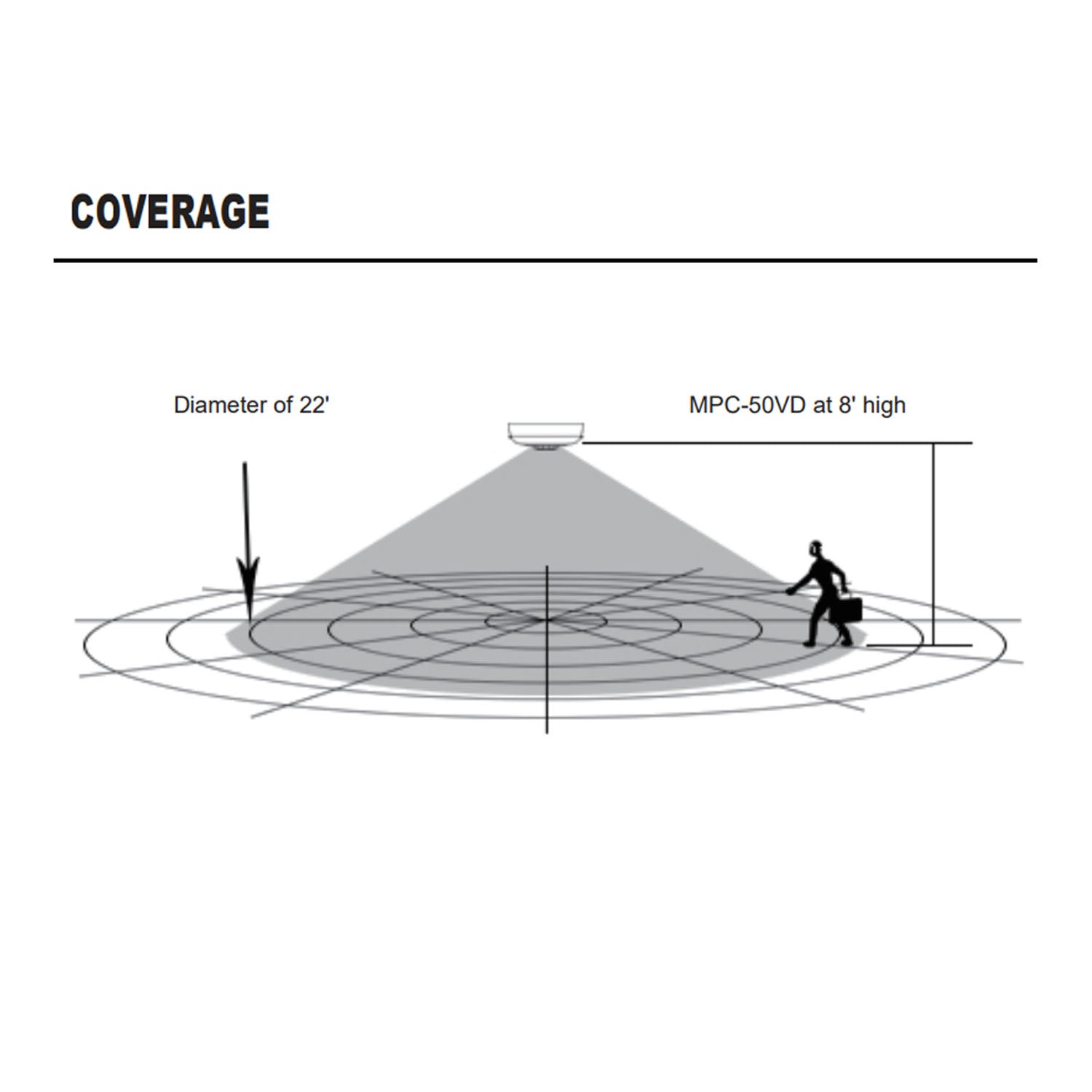

- 360° Field of View: Provides up to 1200 sq. ft. coverage area for comprehensive space monitoring
- Dimmable 0-10V Bi-Level and Multi-Level: Dimming compliant with Title 24 and ASHRAE 90.1 for maximum energy savings
- Four Occupancy Logic Options: Customize control to meet specific needs with four distinct occupancy modes

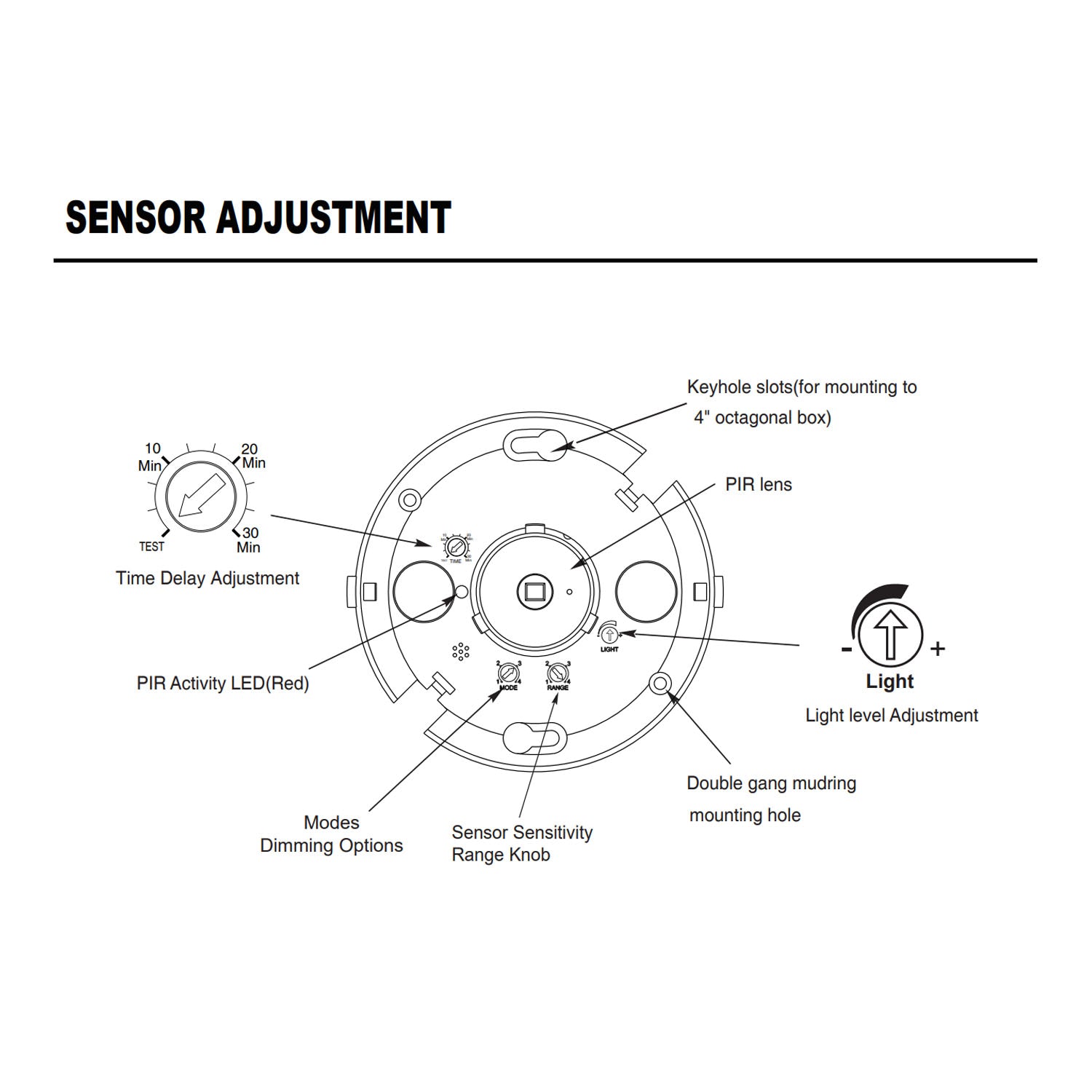

- Adjustable Time Delay: Customize time delay from 15 seconds to 30 minutes to match your specific application needs
- Adjustable PIR Sensitivity Setting: Fine-tune detection sensitivity for optimal performance in various environments
- Adjustable Ambient Light Level: Set the light level threshold to keep load off when sufficient natural light is available
- LED Indicator: Light flashes when sensor detects motion to verify detection is active
- Zero-Crossing Function: Extends relay life and reduces electrical noise for improved performance
- Dual Voltage Operation: 120VAC / 277VAC, 50/60 Hz for flexible installation in commercial applications
- High Capacity Loads: Controls up to 10A resistive, 800VA @ 120VAC / 1385VA @ 277VAC electronic ballast/LED, or 1/4 HP motor
- Load Rating: 2mA - 50mA for 0-10V dimming control
- UL Listed & Title 24 Compliant: Meets California Title 24 and ASHRAE 90.1 energy code requirements and UL safety standards
- 2-Year Warranty: Backed by Enerlites' 2-year manufacturer warranty
Ceiling Occupancy Sensor with Dimming Applications
- Open office spaces and workstations
- Classrooms and educational facilities
- Common areas and lobbies
- Parking garages and structures
- Corridors and hallways
- Conference rooms and meeting spaces
- Healthcare facilities and patient rooms
- Hospitality and hotel spaces
- Retail spaces and showrooms
- Commercial office buildings
Installation & Operation

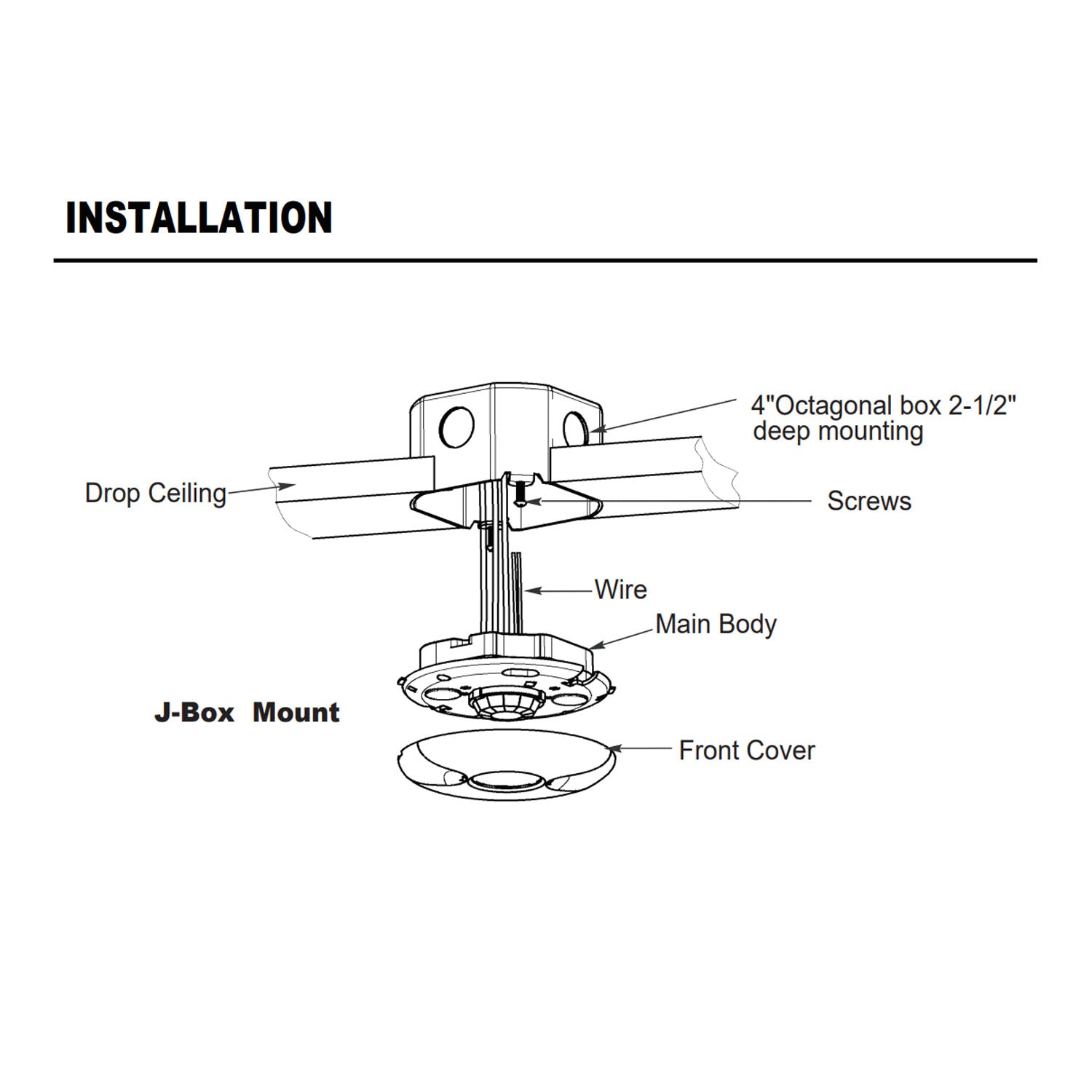

The Enerlites MPC-50VD-W installs easily on ceilings and operates on 120-277VAC. The 360° field of view provides up to 1200 sq. ft. coverage for comprehensive space monitoring. Choose between four occupancy logic options to customize control to meet specific needs. The dimmable 0-10V bi-level and multi-level operation complies with Title 24 and ASHRAE 90.1 for maximum energy savings. The adjustable time delay ranges from 15 seconds to 30 minutes. The adjustable PIR sensitivity setting allows fine-tuning for optimal performance, while the adjustable ambient light level prevents the sensor from turning lights ON when sufficient natural light is available. The LED indicator flashes when motion is detected. The zero-crossing function extends relay life and reduces electrical noise.
Compatible Loads & Systems
- LED Lighting: Compatible with 0-10V dimmable LED fixtures
- Fluorescent/Electronic Ballast: Up to 800VA @ 120VAC / 1385VA @ 277VAC
- Resistive Loads: 10A @ 120-277VAC
- Motor Loads: Up to 1/4 HP
- Dimming Control: 0-10V bi-level and multi-level, 2mA - 50mA load rating
- Coverage: Up to 1200 sq. ft. with 360° field of view
Why Choose Enerlites Ceiling Sensors with Dimming
Enerlites is a trusted manufacturer of premium electrical devices with a focus on energy efficiency, reliability, and code compliance. The MPC-50VD series represents commercial-grade ceiling sensing technology engineered for exceptional performance and energy savings with 0-10V dimming capability. The 360° coverage with 1200 sq. ft. detection ensures comprehensive monitoring. The dimmable 0-10V bi-level and multi-level operation complies with Title 24 and ASHRAE 90.1 for maximum energy savings. The four occupancy logic options provide maximum flexibility. With dual voltage capability (120-277VAC), high-capacity load ratings, zero-crossing function, UL listing, Title 24/ASHRAE 90.1 compliance, and a 2-year warranty, the MPC-50VD-W delivers professional-grade automated lighting control with dimming for commercial applications.
Why Buy From Us: As an authorized Enerlites dealer, we guarantee 100% genuine products with full manufacturer warranty and expert customer support.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What is the difference between an occupancy sensor and a vacancy sensor?
What is the difference between an occupancy sensor and a vacancy sensor?
Motion sensor switches utilize infrared radiation to monitor their surroundings. They emit energy forms such as light, microwaves, or sound to detect changes caused by movement. Most systems used in lighting and security are passive, meaning they primarily detect the infrared energy emitted by warm objects like human bodies.
Are occupancy sensors compatible with LED bulbs?
Are occupancy sensors compatible with LED bulbs?
Occupancy sensors and vacancy sensors are both used for detecting presence in a room, but they operate differently. Occupancy sensors automatically turn on the lights when someone enters a room and turn them off when no presence is detected after a set period. In contrast, vacancy sensors require someone to manually turn on the lights, but will automatically turn them off when the room is empty.
Do these sensors require a neutral wire?
Do these sensors require a neutral wire?
The primary distinction between a motion sensor light switch and a traditional light switch lies in their methods of activation. A traditional light switch requires manual operation to turn the lights on or off. Conversely, an occupancy sensor automatically activates the lights when someone enters the room and turns them off when it no longer detects any presence.
Can an occupancy sensor be used in a bathroom?
Can an occupancy sensor be used in a bathroom?
Occupancy sensors are designed to detect the presence of individuals or animals in a space and activate the lights accordingly, which can be combined with daylight sensors to enhance energy efficiency. On the other hand, daylight sensors adjust the lighting based on the natural light available, reducing the use of artificial lighting when not necessary.
Why do the lights turn off while I’m still in the room?
Why do the lights turn off while I’m still in the room?
Yes! Most motion sensors have adjustable sensitivity settings. This allows you to fine-tune the device to prevent false triggers or increase responsiveness in larger spaces.
