Enerlites MPC-50V-W Sensor Switch, PIR Occupancy/Vacancy, 120-277V, 360° Coverage, Indoor
Available in stock (79)
About this item
About this item
- Sensor Type: Utilizes PIR technology for occupancy and vacancy detection.
- Voltage Compatibility: Operates at 120VAC/277VAC, 60Hz for versatile installation.
- Coverage Area: Provides a 360° field of view with up to 1200 sq. ft. coverage.
- Adjustable Settings: Features adjustable time delay from 15 seconds to 30 minutes and PIR sensitivity.
- Neutral Wire: Requires a neutral wire for operation; wallplate sold separately.
We process payments securely and do not store credit card information.
Description
Description

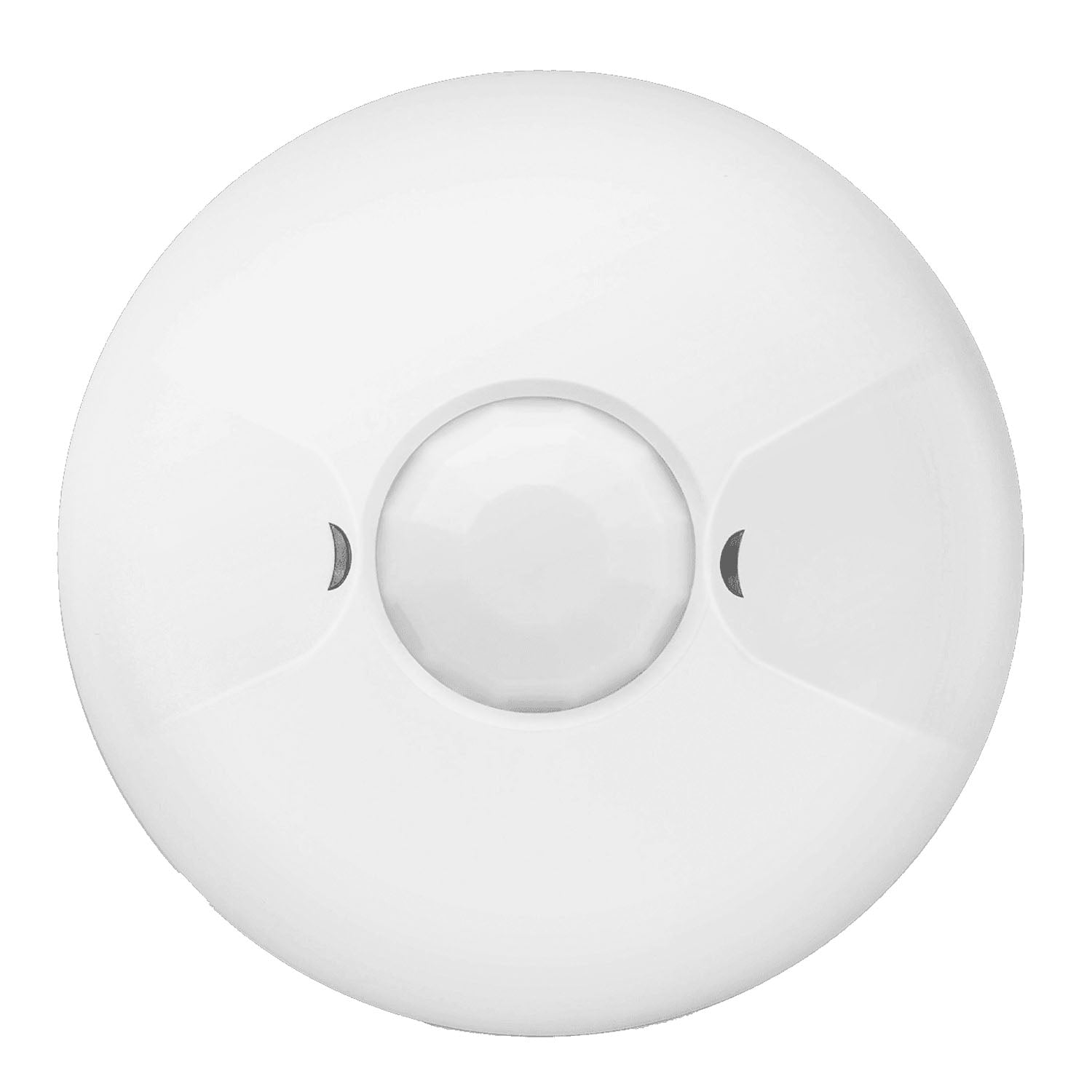

Enerlites MPC Sensor Switch — Indoor & PIR Occupancy/Vacancy
The Enerlites MPC-50V-W is an indoor sensor switch designed for efficient lighting control using PIR technology. This sensor switch, finished in a neutral color, operates at 120-277V and is suitable for commercial applications. It features a 360° field of view, providing up to 1200 sq. ft. of coverage, and is compatible with LED and fluorescent lights.
Key Features
- Voltage: Compatible with 120VAC/277VAC, 60Hz for broad application use.
- Load Ratings: Supports 800W resistive, 800VA at 120VAC, and 1600VA at 277VAC.

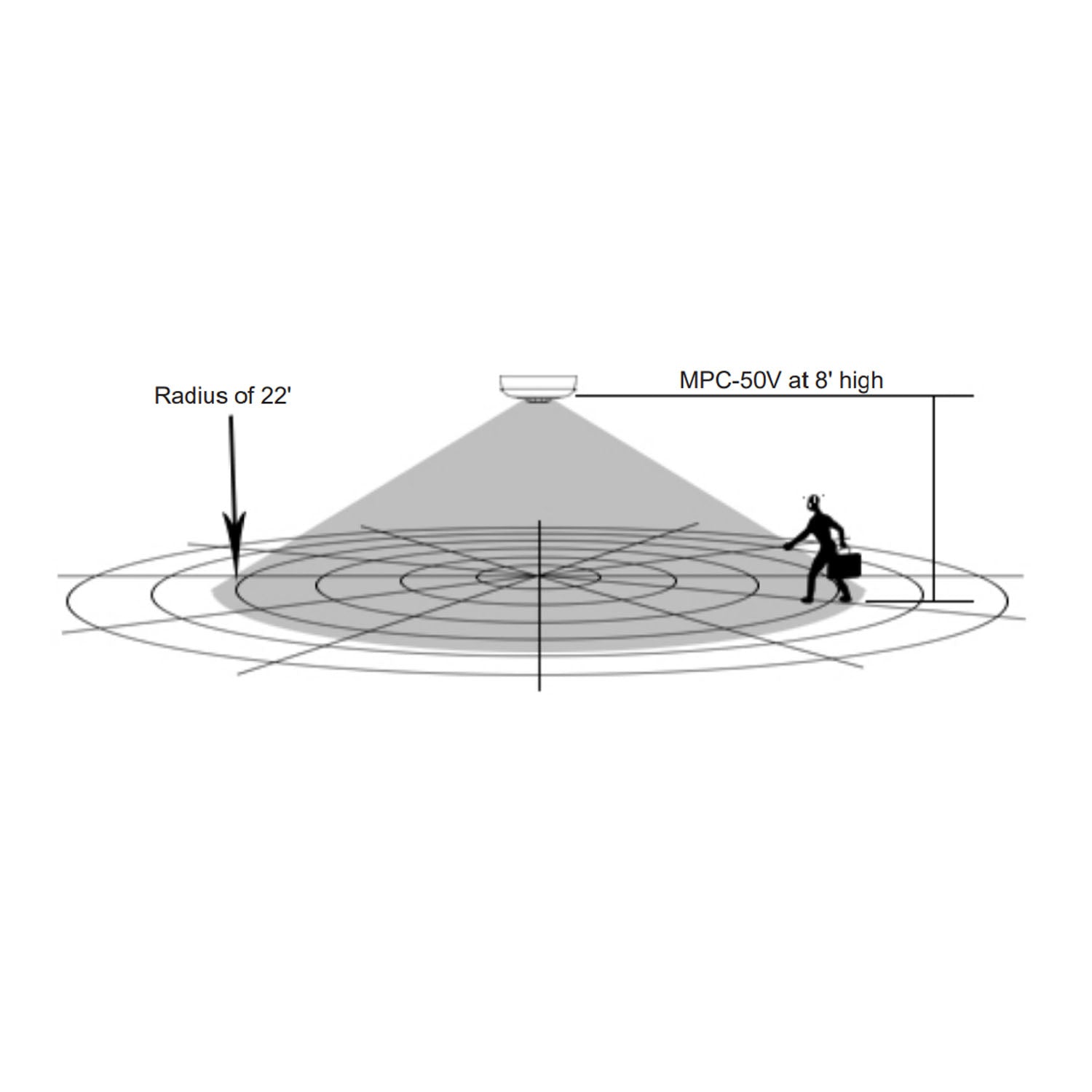

- Coverage: Offers a 360° field of view with a 1200 sq. ft. coverage area.
- Sensor Technology: PIR occupancy/vacancy detection with adjustable sensitivity.
- Time Delay: Adjustable from 15 seconds to 30 minutes for customized operation.
- Neutral Wire Requirement: Requires a neutral wire for installation.
- Compliance: Vacancy mode compliant with CA Title 24.
- Indicator Light: LED indicator flashes to verify motion detection.
- Relay Life: Zero-crossing technology for extended relay life.
- Mounting Height: Optimal performance at 8-12 feet mounting height.
- Dimensions: Measures 4.50 in. x 4.50 in. x 2.00 in.
- Warranty: Backed by a 2-year warranty.
Construction & Interface

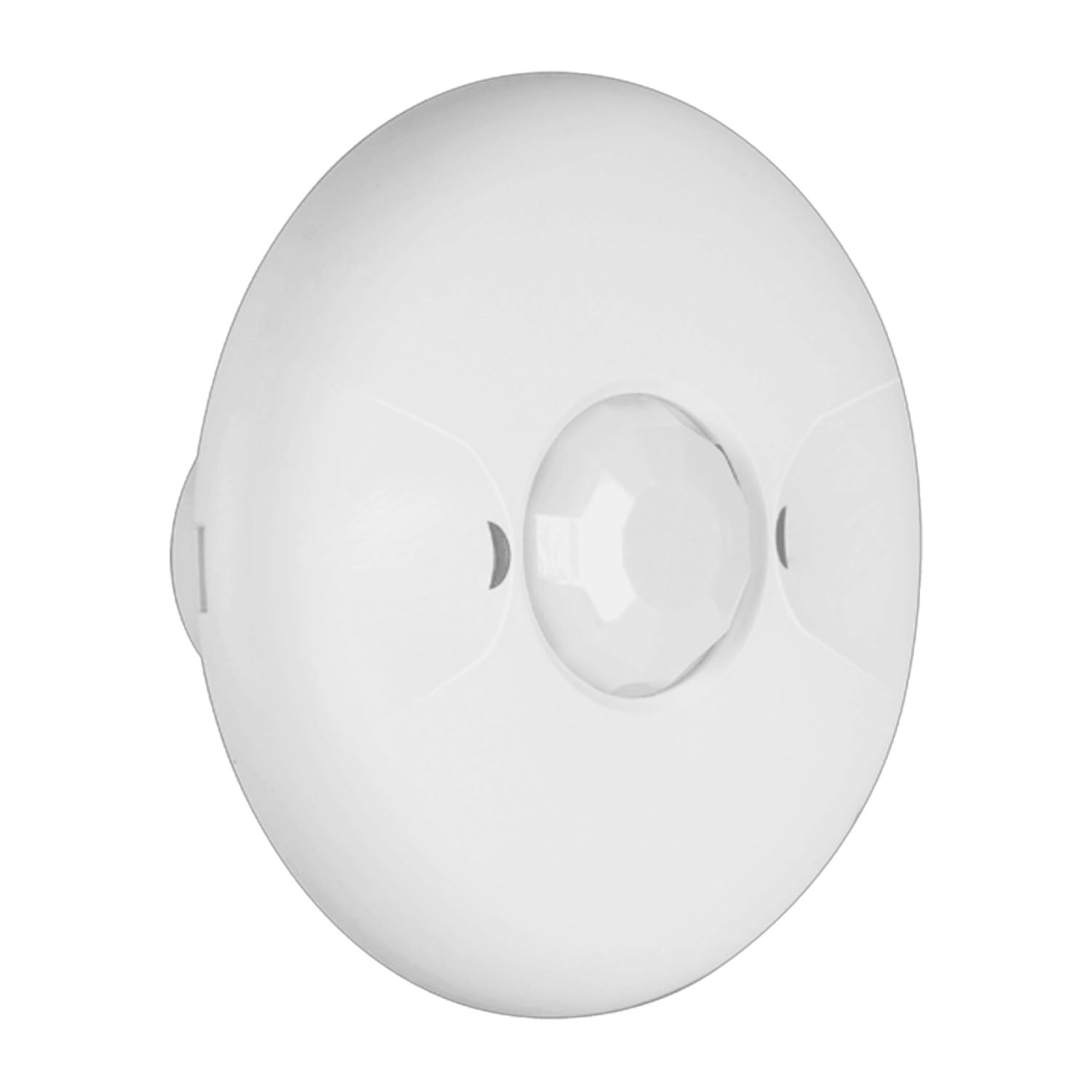

This sensor switch features a compact design with a 360° fresnel lens for comprehensive coverage. It includes an LED indicator for motion detection verification. The unit is designed for indoor use, and the wallplate is sold separately.
Sensor, Smart & Timer Capabilities
The Enerlites MPC-50V-W offers advanced PIR occupancy and vacancy detection with adjustable sensitivity and time delay settings. It supports manual ON/OFF operation when paired with the Enerlites 91245 momentary switch for vacancy mode.
Wiring & Installation

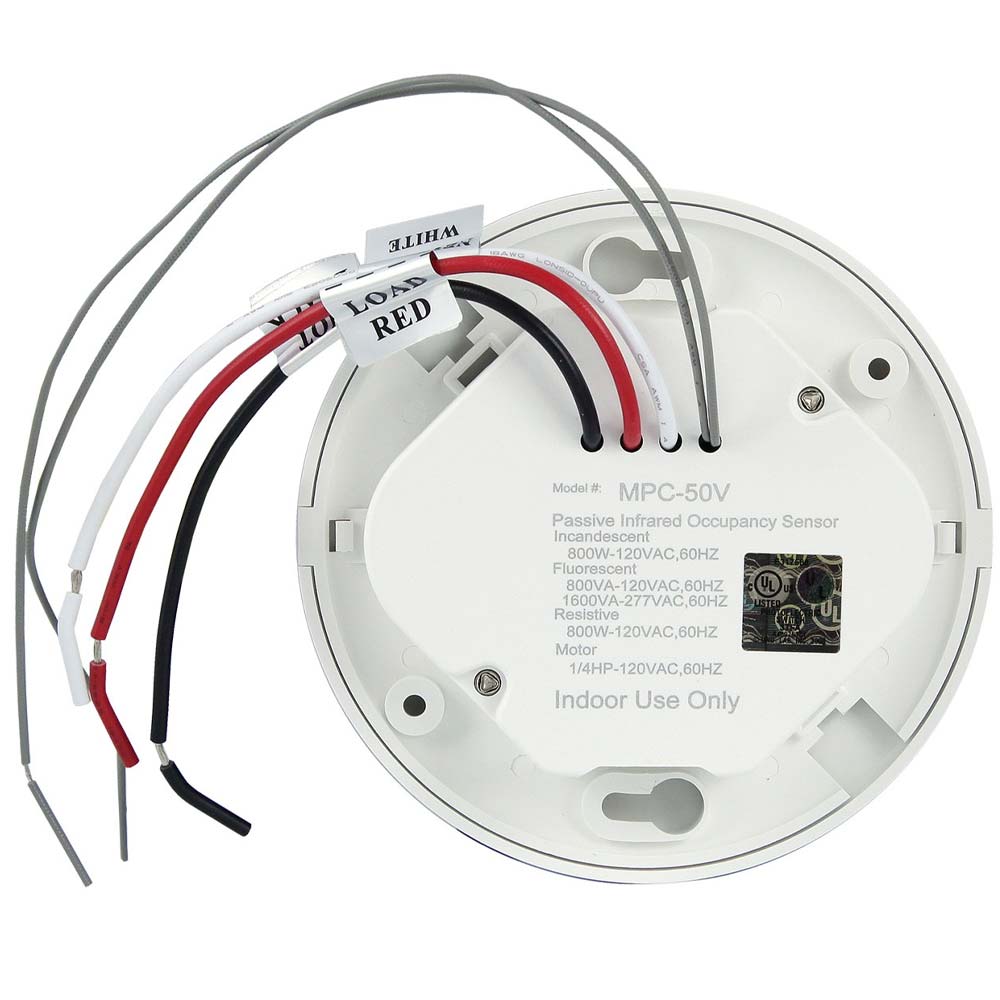

The MPC-50V-W requires a neutral wire for installation. It supports single-pole configurations and can be wired in parallel with other sensors, maintaining the same load ratings. The sensor uses wire leads for connection.
