Enerlites MPC Sensor Switch — Indoor & PIR Occupancy/Vacancy

The Enerlites MPC-50L-W is an indoor sensor switch designed for efficient lighting control using PIR technology. This model, MPC-50L-W, features a 360° field of view and covers up to 1200 sq. ft., making it ideal for commercial applications. It operates at 24 VDC and is compatible with both LED and fluorescent lighting systems. The sensor supports occupancy and vacancy modes, with the latter requiring the ENERLITES 91245 momentary switch for manual operation.

Key Features

• Voltage: Operates at 24 VDC, requiring an MPP-24 power pack.

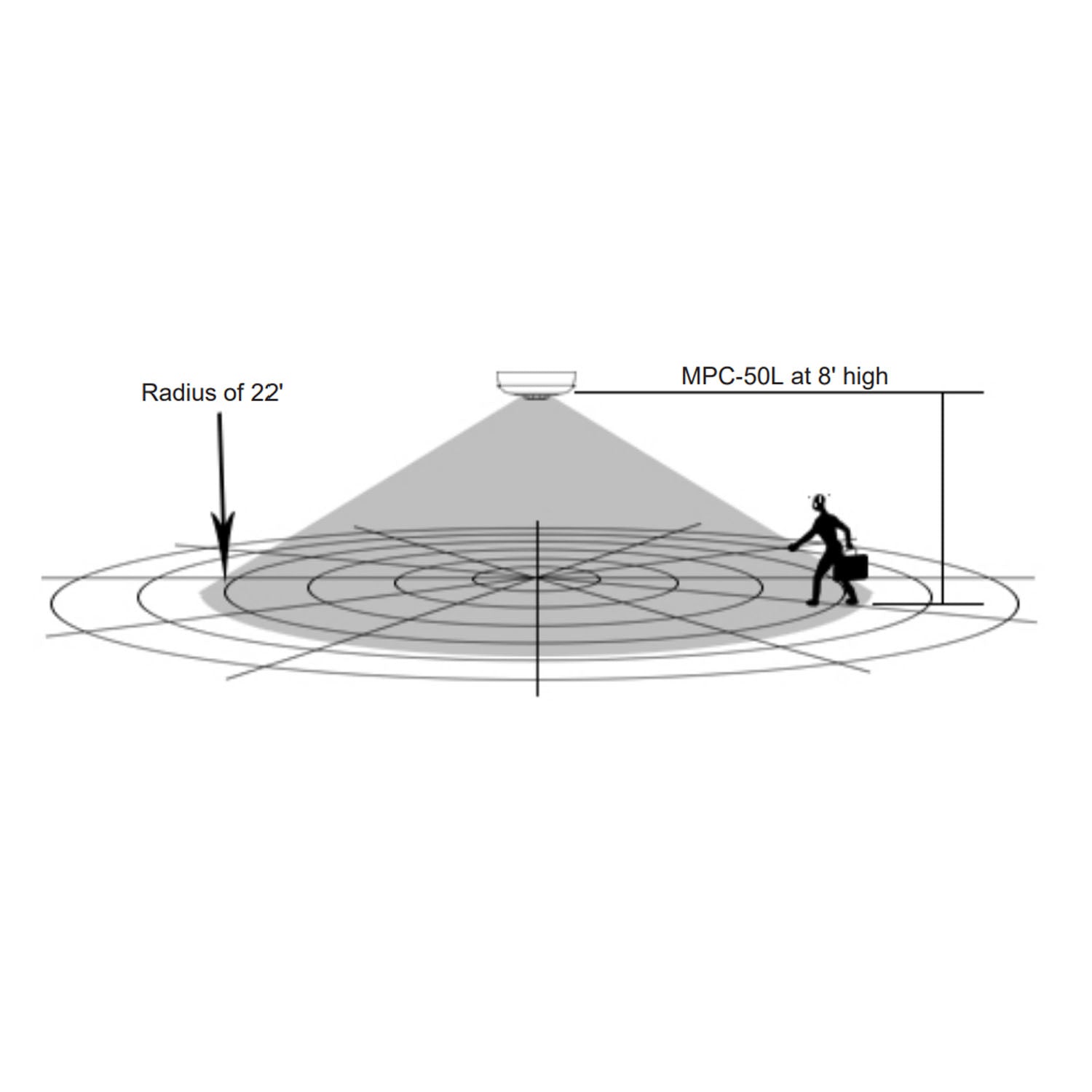

• Coverage Area: 360° field of view with up to 1200 sq. ft. coverage.
• Sensor Technology: PIR technology for occupancy and vacancy detection.
• Adjustable Settings: Time delay adjustable from 30 seconds to 30 minutes.
• Ambient Light Adjustment: Keeps load off based on ambient light levels.
• Compliance: Vacancy mode compliant with CA Title 24.
• Indicator: LED indicator light for motion detection verification.
• Relay Life: Zero-crossing for extended relay life.
• Dimensions: 4.50 in. height, 1.20 in. width, 4.50 in. length.
• Warranty: Backed by a 2-year warranty.

Construction & Interface

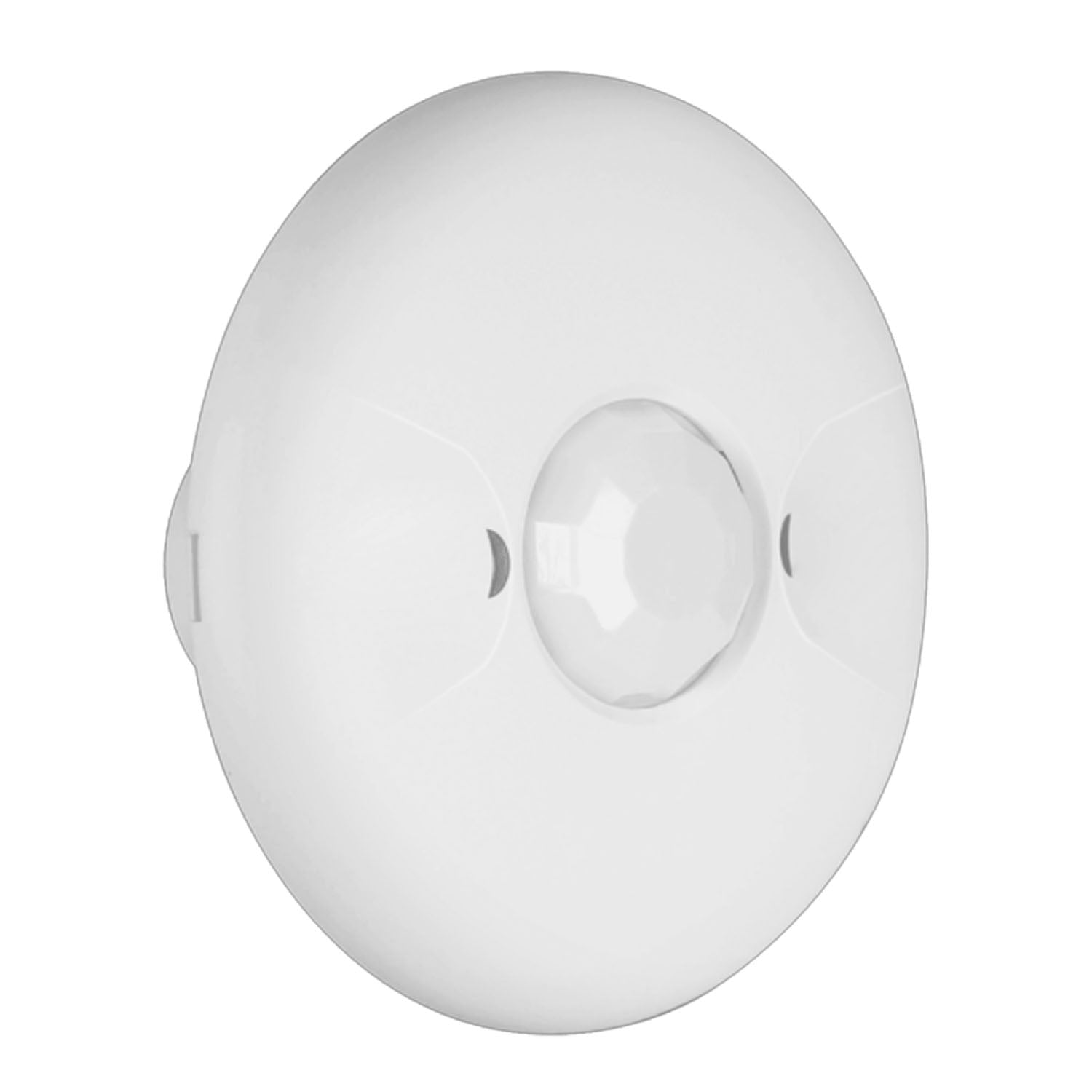

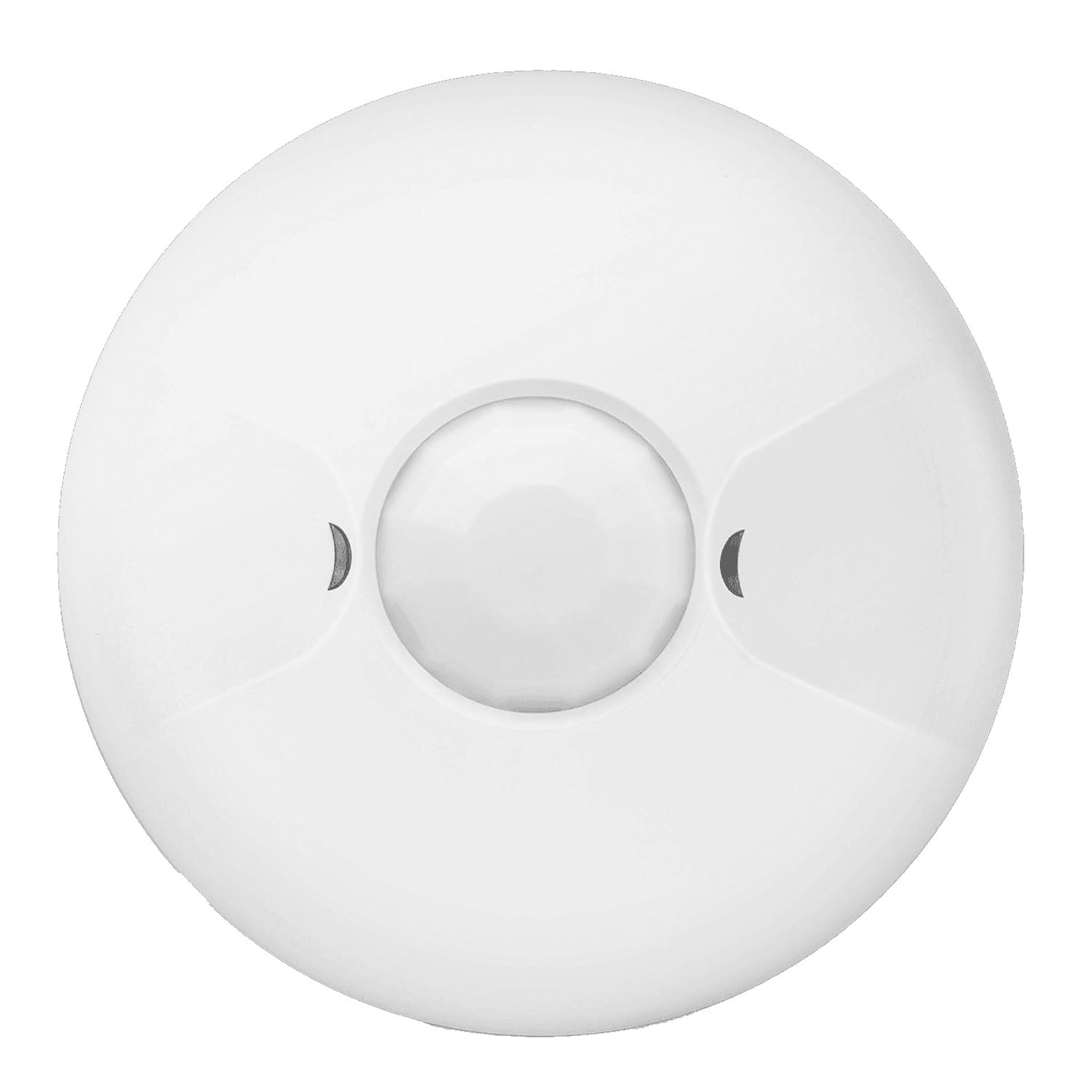

The sensor features a compact design suitable for ceiling mounting, with a visible LED indicator to confirm motion detection. It is designed for indoor use, and the wallplate is sold separately.

Sensor, Smart & Timer Capabilities

This sensor switch offers advanced PIR occupancy and vacancy detection, with adjustable settings for time delay and sensitivity. It supports a 360° coverage pattern, ensuring efficient lighting control in various commercial spaces.

Wiring & Installation

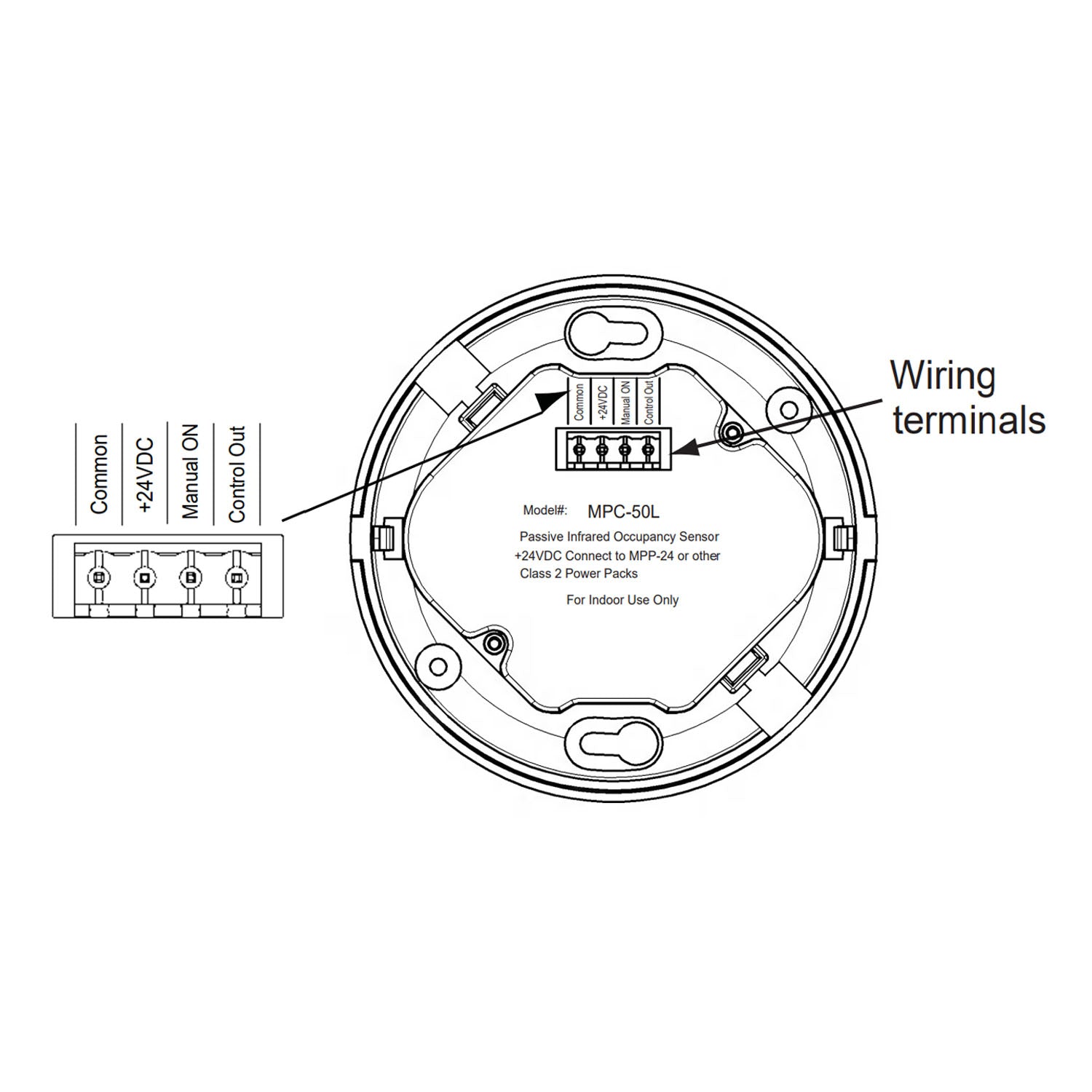

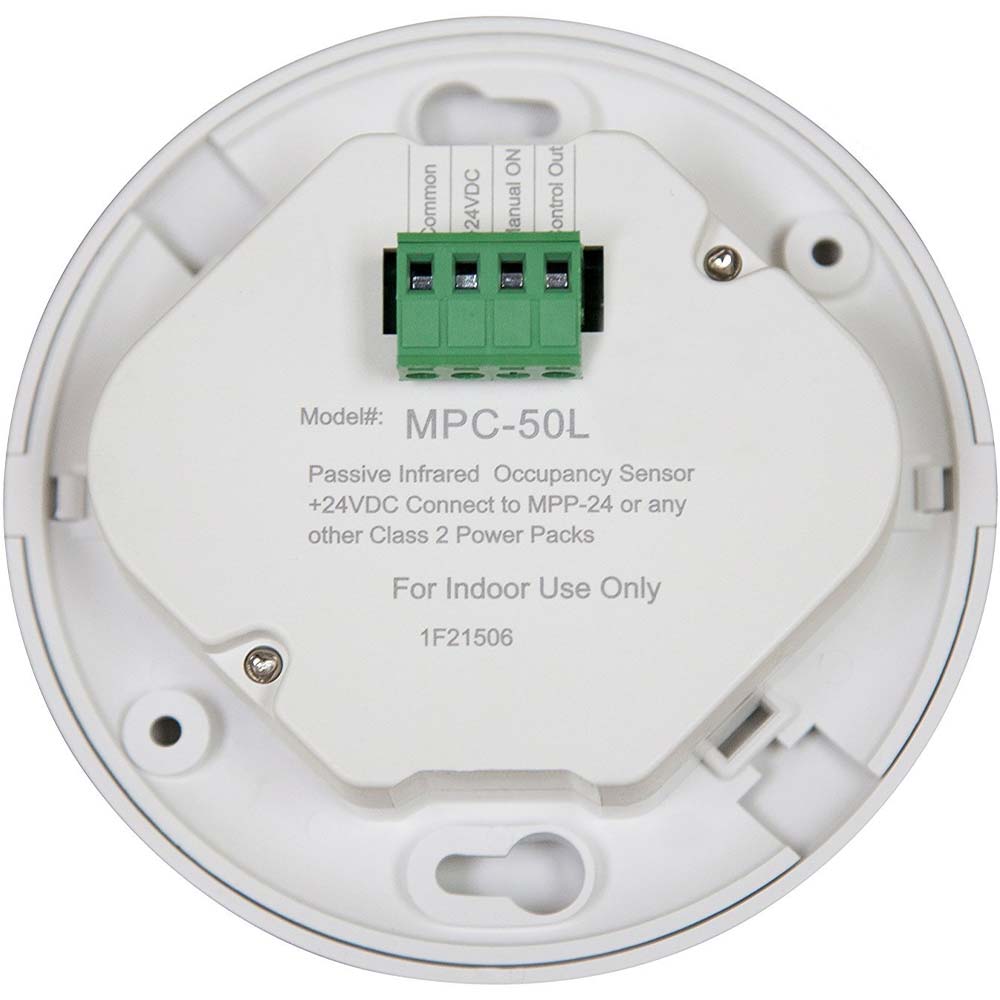

The MPC-50L-W requires a 24 VDC power supply and is compatible with the ENERLITES MPP-24 power pack. It includes wiring leads for power input, common, and control connections. The sensor supports both occupancy and vacancy modes, with optional manual control using the ENERLITES 91245 momentary switch.
