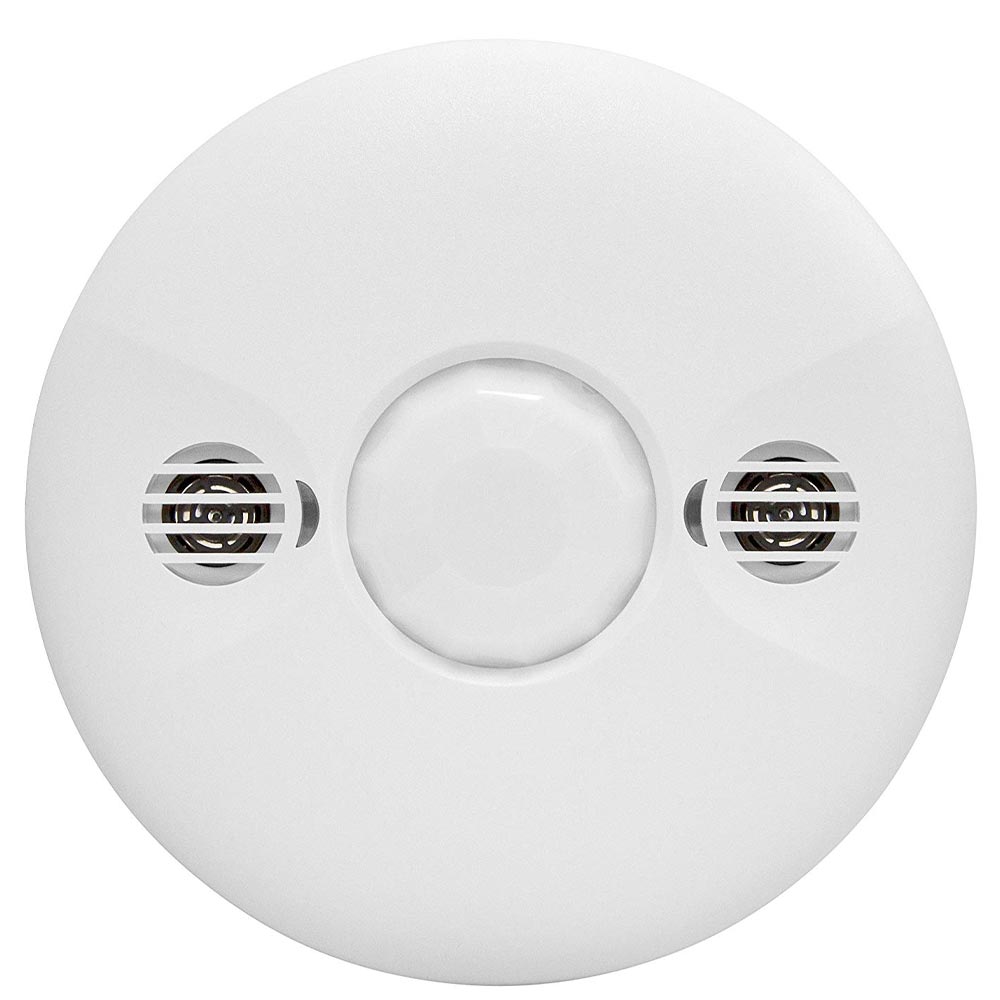

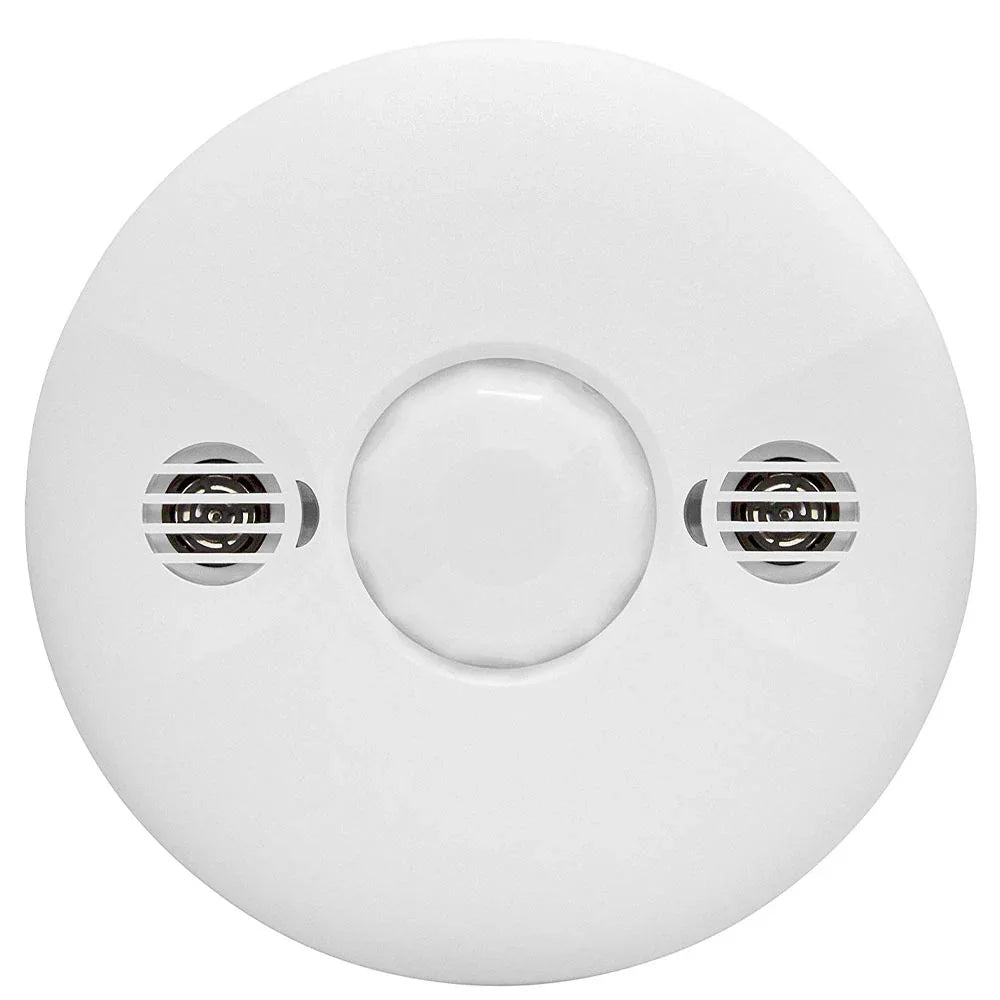

Enerlites MDC-50V-W 360° Line Voltage Dual-Technology Occupancy Ceiling Sensor, PIR + Ultrasonic, 120-277V, White
Enerlites MDC-50V-W 360° Line Voltage Dual-Technology Occupancy Ceiling Sensor, PIR + Ultrasonic, 120-277V, White
Available in stock (52)
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Dual-Technology Detection: Combines PIR and ultrasonic technologies with 360° coverage—1200 sq. ft. PIR and 1000 sq. ft. ultrasonic for superior detection accuracy
- Six Trigger Logic Modes: Switch between PIR and ultrasonic modes with adjustable sensitivity settings—Autoset time delay automatically adjusts based on occupancy pattern
- Ambient Light Level Detection: Prevents lights from turning ON when sufficient natural light is available—adjustable light level threshold for maximum energy savings
- Dual Voltage Line Operation: 120-277VAC controls up to 6.6A resistive, 800W tungsten, 800VA/1600VA electronic ballast, or 1/4 HP motor
- Title 24 Compliant: UL Listed and California Title 24 compliant—zero-crossing function extends relay life, backed by 2-year warranty
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
Enerlites MDC-50V-W Dual-Technology Occupancy Ceiling Sensor
The MDC-50V-W is an Enerlites dual-technology occupancy ceiling sensor in white designed for commercial-grade line-voltage automated lighting control. Experience superior energy savings and reliability with intelligent passive infrared and ultrasonic detection combined. This commercial-grade ceiling sensor combines 360° PIR and ultrasonic technology with ambient light level detection, six trigger logic modes, and adjustable sensitivity settings—ideal for open office spaces, classrooms, common areas, and commercial applications requiring comprehensive automated lighting control with exceptional performance.
Enerlites MDC-50V-W Features
- Dual-Technology Detection: Combines passive infrared (PIR) and ultrasonic technologies for superior detection accuracy and reliability
- 360° Field of View: Comprehensive coverage with 1200 sq. ft. PIR coverage and 1000 sq. ft. ultrasonic coverage for complete space monitoring
- Ambient Light Level Detection: Prevents occupancy sensor from turning lights ON when ambient light levels are sufficient
- Six Trigger Logic Modes: Switch between PIR and ultrasonic modes for optimal detection based on application requirements
- Adjustable Time Delay: Customize time delay from 30 seconds to 30 minutes to match your specific application needs
- Autoset Time Delay: Intelligent time delay automatically adjusts based on occupancy pattern for maximum energy savings
- Adjustable PIR/US Sensitivity Settings: Fine-tune detection sensitivity for both PIR and ultrasonic sensors to optimize performance
- Adjustable Ambient Light Level: Set the light level threshold to keep load off when sufficient natural light is available
- DIP Switch Configuration: Simplified sensor adjustments via DIP switch for easy setup and configuration
- LED Indicators: Light flashes when sensor detects motion via PIR/US to verify detection is active
- Zero-Crossing Function: Extends relay life and reduces electrical noise for improved performance
- Dual Voltage Line Operation: 120VAC / 277VAC, 50/60 Hz for flexible installation in commercial applications
- High Capacity Loads: Controls up to 6.6A resistive, 800W tungsten, 800VA @ 120VAC / 1600VA @ 277VAC electronic ballast, or 1/4 HP motor
- UL Listed & Title 24 Compliant: Meets California Title 24 energy code requirements and UL safety standards
- 2-Year Warranty: Backed by Enerlites' 2-year manufacturer warranty
Dual-Technology Ceiling Sensor Applications
- Open office spaces and workstations
- Classrooms and educational facilities
- Common areas and lobbies
- Conference rooms and meeting spaces
- Warehouses and storage facilities
- Retail spaces and showrooms
- Healthcare facilities and patient rooms
- Hospitality and hotel spaces
- Laboratories and research facilities
- Multi-purpose rooms and auditoriums
Installation & Operation
The Enerlites MDC-50V-W installs easily on ceilings and operates on 120-277VAC line voltage. The dual-technology sensor combines PIR and ultrasonic detection for superior accuracy—PIR detects heat signatures from moving occupants while ultrasonic detects motion through sound waves, providing comprehensive coverage even in challenging environments. The 360° field of view provides 1200 sq. ft. PIR coverage and 1000 sq. ft. ultrasonic coverage for complete space monitoring. Choose between six trigger logic modes to optimize detection based on your application. The adjustable time delay ranges from 30 seconds to 30 minutes, or select Autoset mode for intelligent adaptive timing. The ambient light level detection prevents the sensor from turning lights ON when sufficient natural light is available, maximizing energy savings. Adjustable PIR/US sensitivity settings allow fine-tuning for optimal performance. The DIP switch simplifies configuration, while LED indicators provide visual confirmation of detection activity. The zero-crossing function extends relay life and reduces electrical noise.
Compatible Loads & Systems
- Incandescent/Tungsten: Up to 800W @ 120VAC
- LED Lighting: Compatible with LED bulbs and fixtures
- Fluorescent/Electronic Ballast: Up to 800VA @ 120VAC / 1600VA @ 277VAC
- Resistive Loads: 6.6A @ 120-277VAC
- Motor Loads: Up to 1/4 HP
- PIR Coverage: 1200 sq. ft. with 360° field of view
- Ultrasonic Coverage: 1000 sq. ft. with 360° field of view
Why Choose Enerlites Dual-Technology Ceiling Sensors
Enerlites is a trusted manufacturer of premium electrical devices with a focus on energy efficiency, reliability, and code compliance. The MDC-50V series represents commercial-grade dual-technology sensing specifically engineered to provide exceptional performance and energy savings in demanding commercial environments. The combination of PIR and ultrasonic technologies ensures reliable detection in all conditions—PIR excels at detecting large movements while ultrasonic captures fine motions, providing comprehensive coverage. The 360° field of view with 1200 sq. ft. PIR and 1000 sq. ft. ultrasonic coverage ensures complete space monitoring. The six trigger logic modes, adjustable sensitivity settings, and ambient light level detection provide maximum flexibility and energy savings. The Autoset time delay feature adds intelligent adaptive timing. With dual voltage line operation (120-277VAC), high-capacity load ratings, zero-crossing function, UL listing, California Title 24 compliance, and a 2-year warranty, the MDC-50V-W delivers professional-grade automated lighting control for demanding commercial applications.
Why Buy From Us: As an authorized Enerlites dealer, we guarantee 100% genuine products with full manufacturer warranty and expert customer support.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What is the difference between an occupancy sensor and a vacancy sensor?
What is the difference between an occupancy sensor and a vacancy sensor?
Motion sensor switches utilize infrared radiation to monitor their surroundings. They emit energy forms such as light, microwaves, or sound to detect changes caused by movement. Most systems used in lighting and security are passive, meaning they primarily detect the infrared energy emitted by warm objects like human bodies.
Are occupancy sensors compatible with LED bulbs?
Are occupancy sensors compatible with LED bulbs?
Occupancy sensors and vacancy sensors are both used for detecting presence in a room, but they operate differently. Occupancy sensors automatically turn on the lights when someone enters a room and turn them off when no presence is detected after a set period. In contrast, vacancy sensors require someone to manually turn on the lights, but will automatically turn them off when the room is empty.
Do these sensors require a neutral wire?
Do these sensors require a neutral wire?
The primary distinction between a motion sensor light switch and a traditional light switch lies in their methods of activation. A traditional light switch requires manual operation to turn the lights on or off. Conversely, an occupancy sensor automatically activates the lights when someone enters the room and turns them off when it no longer detects any presence.
Can an occupancy sensor be used in a bathroom?
Can an occupancy sensor be used in a bathroom?
Occupancy sensors are designed to detect the presence of individuals or animals in a space and activate the lights accordingly, which can be combined with daylight sensors to enhance energy efficiency. On the other hand, daylight sensors adjust the lighting based on the natural light available, reducing the use of artificial lighting when not necessary.
Why do the lights turn off while I’m still in the room?
Why do the lights turn off while I’m still in the room?
Yes! Most motion sensors have adjustable sensitivity settings. This allows you to fine-tune the device to prevent false triggers or increase responsiveness in larger spaces.
