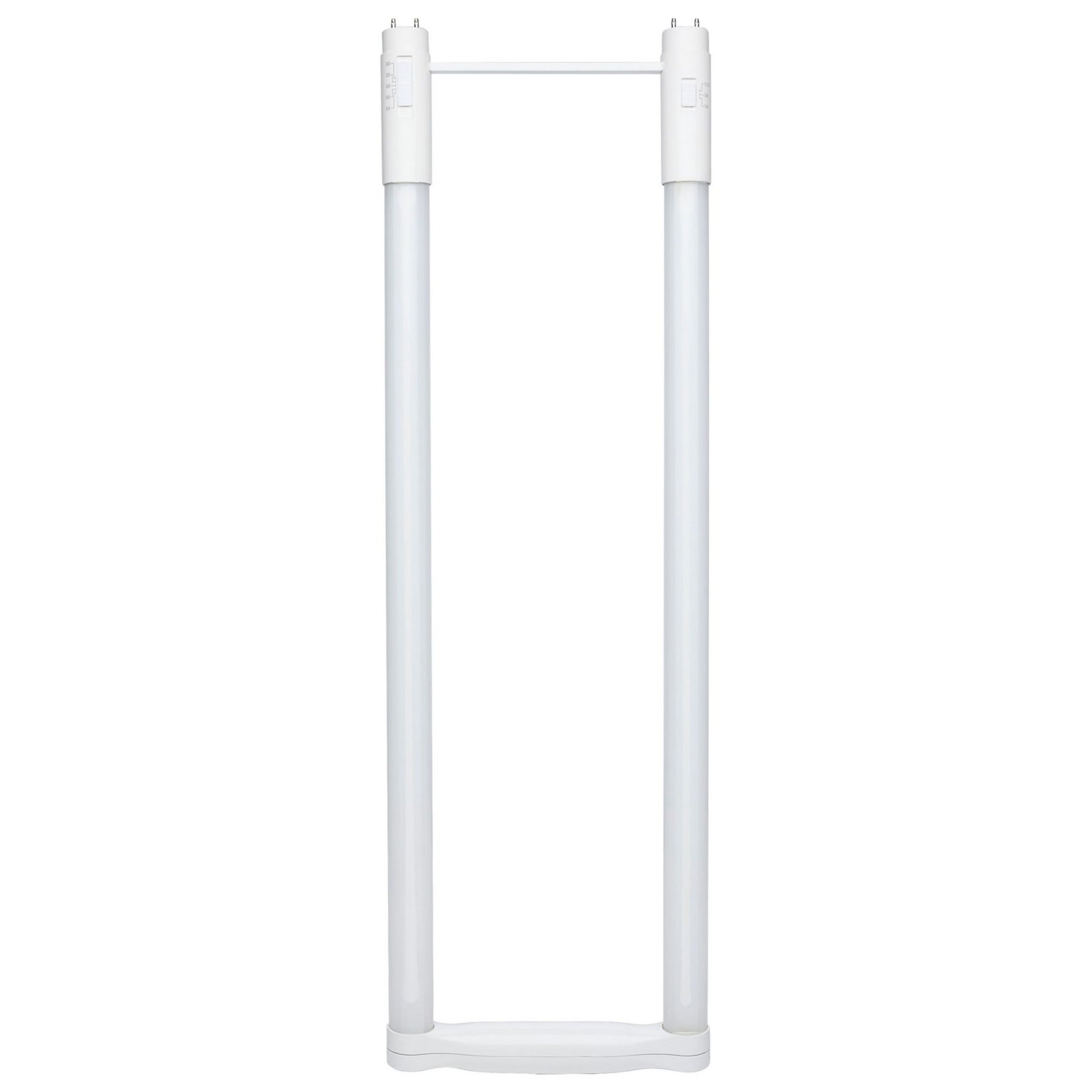

T8 U Bend LED Bulb U6, 12W|13W|15W, 2200lm, 3000K to 6500K, Type A+B, Single|Dual End
Available in stock (4092)
About this item
About this item
- Adjustable Power & CCT: Three selectable wattages (12W/13W/15W) and five color temperatures (3000K, 3500K, 4000K, 5000K, 6500K) for complete lighting control

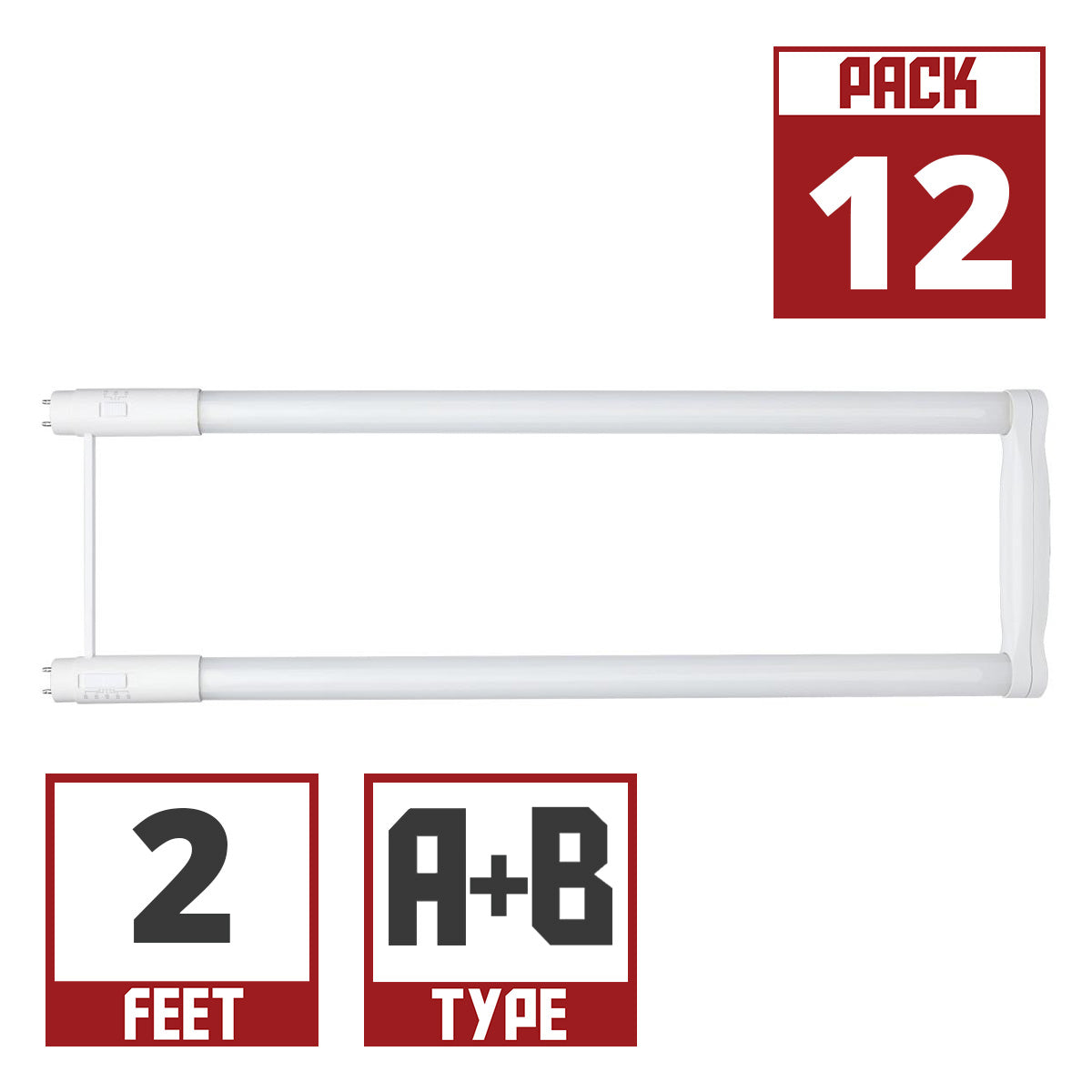

- Hybrid Type A+B Technology: Works with compatible ballasts or ballast bypass for maximum installation flexibility

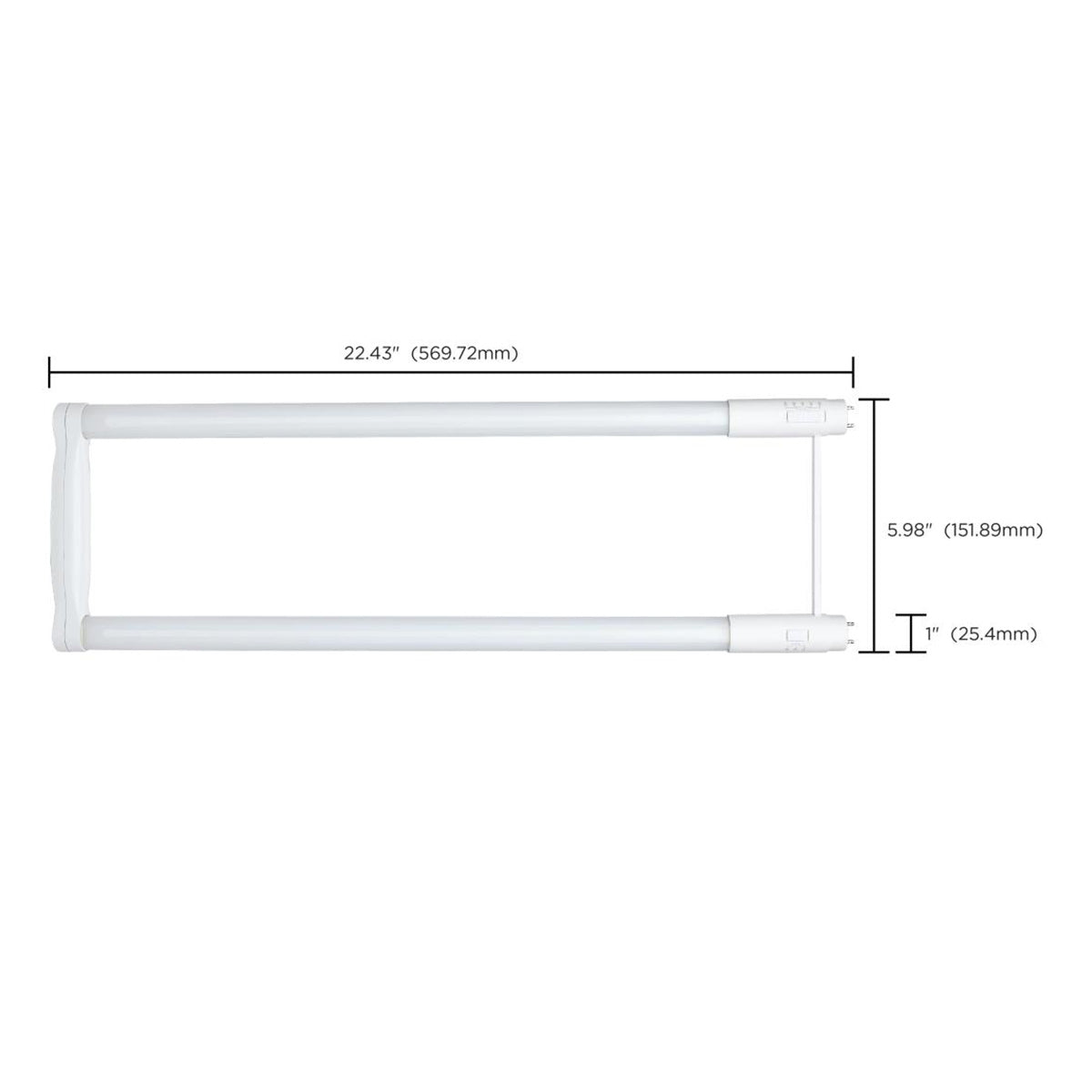

- U6 Configuration: 2-foot U-bend design with 6" diameter, direct replacement for F32T8 fluorescent U-bend lamps

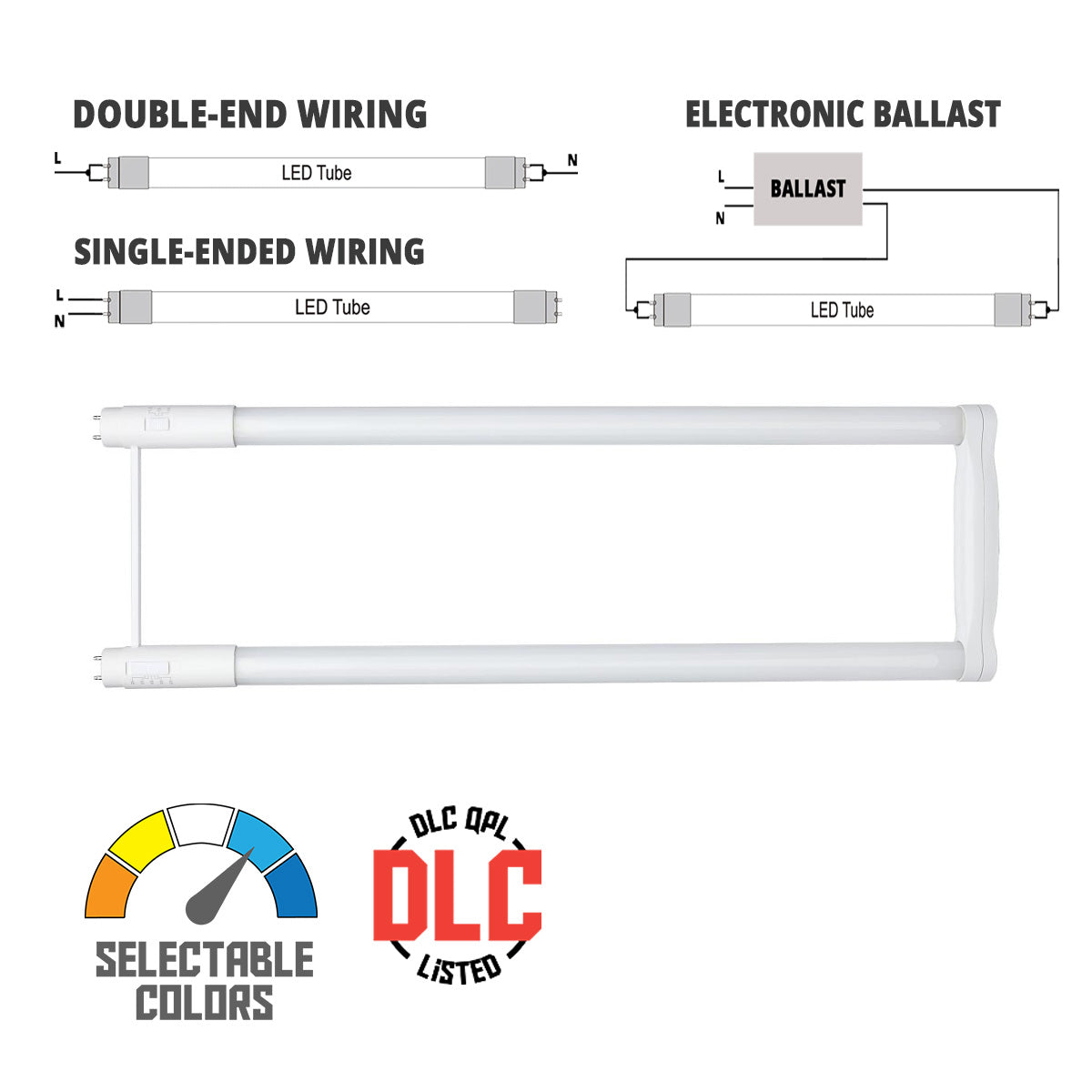

- Flexible Installation: Single or double-end wiring options, suitable for dry, damp, and enclosed fixtures

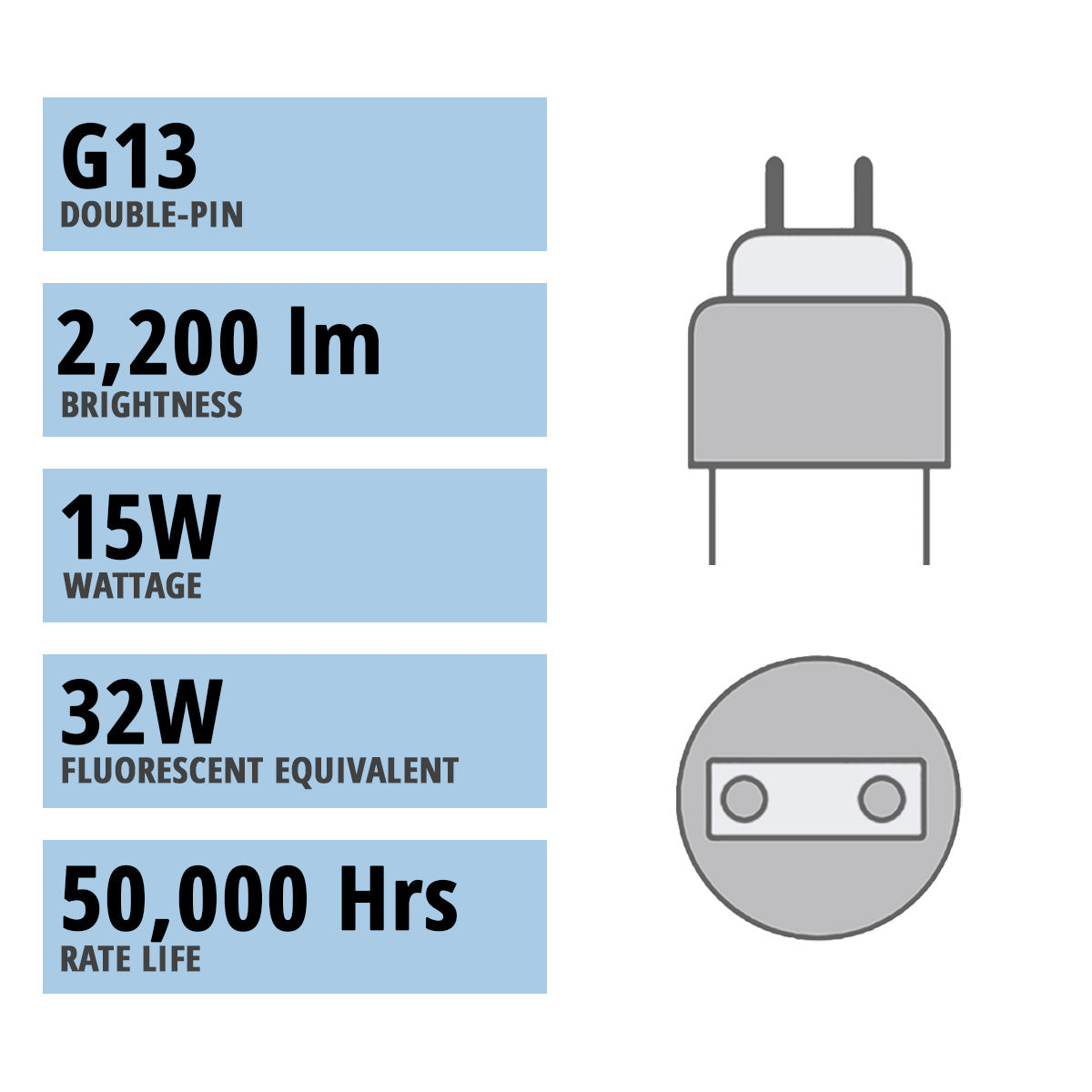

- Commercial-Grade Quality: 2200 lumens with 80+ CRI, 50,000-hour lifespan, 5-year warranty for reliable performance
We process payments securely and do not store credit card information.
Description
Description

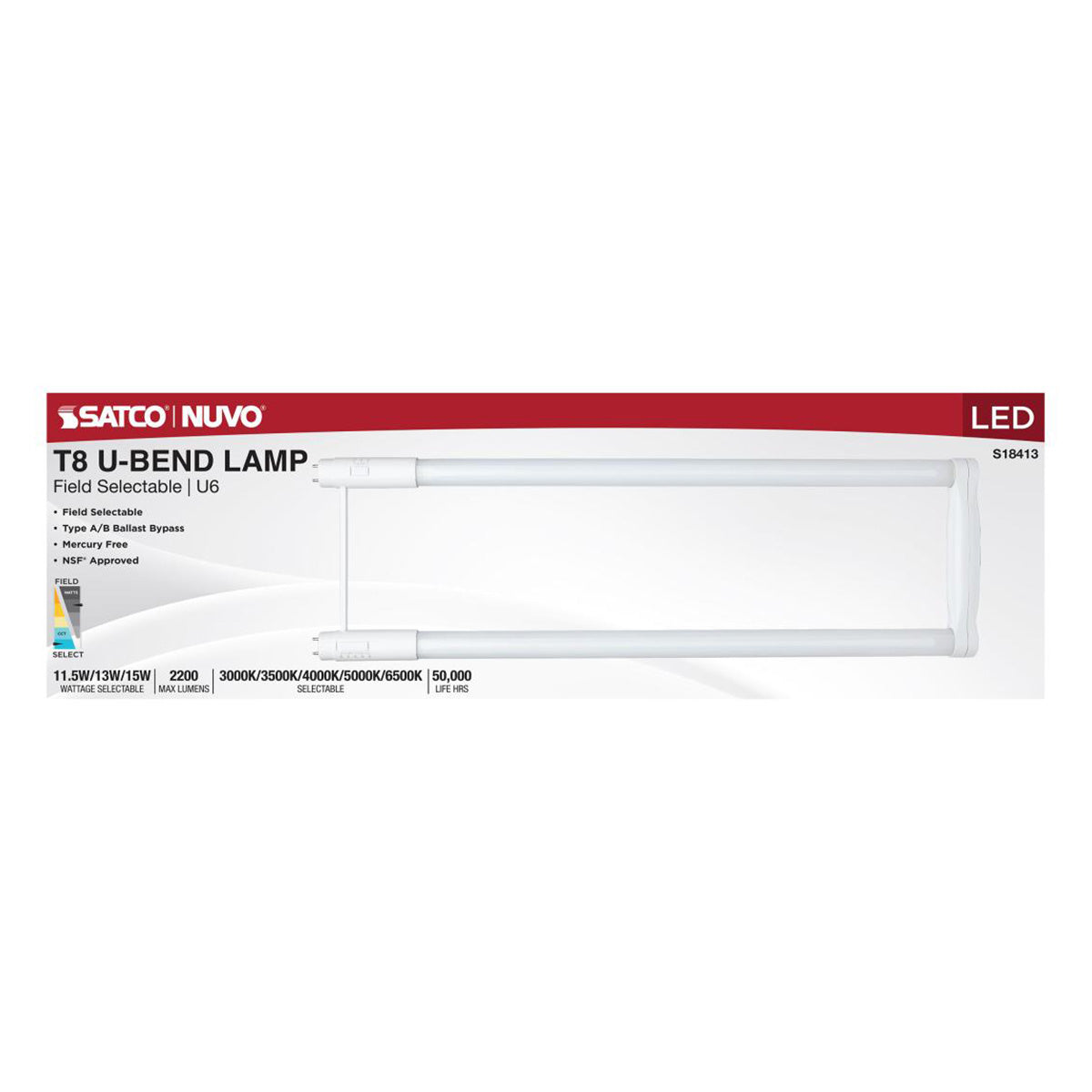

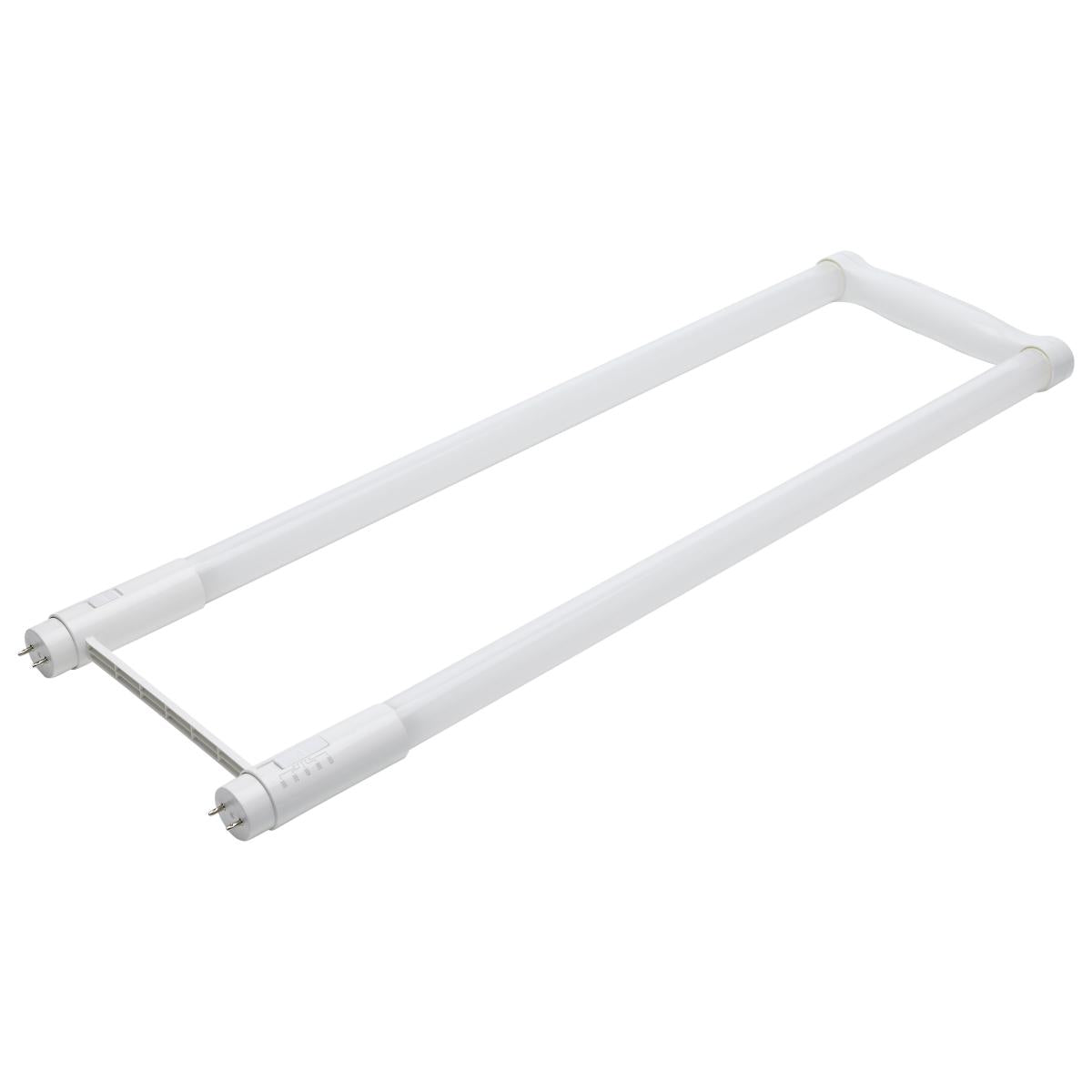

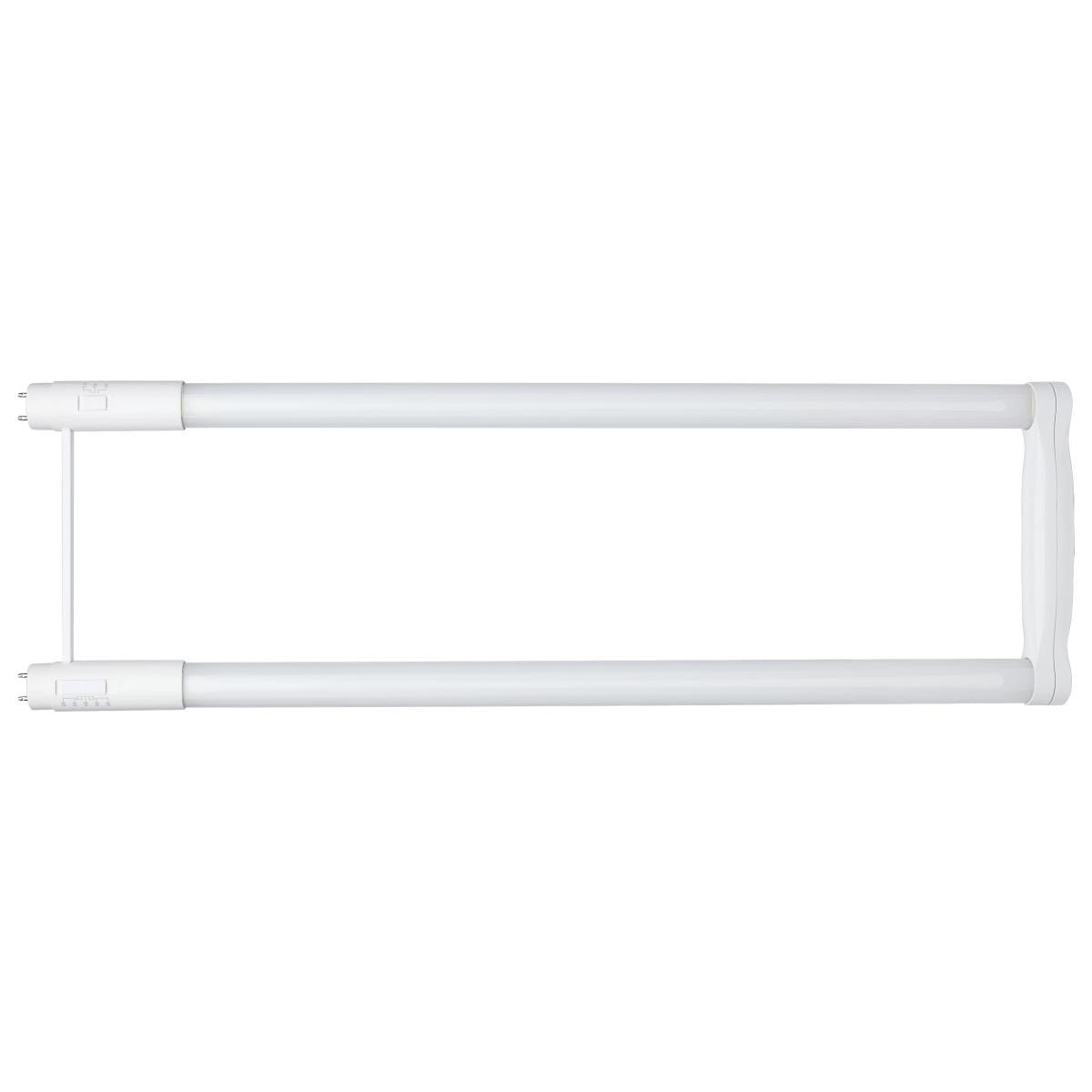

Upgrade your lighting with the Satco|Nuvo S18413 T8 U-bend LED bulb. This versatile U6 configuration bulb with a 6-inch diameter is a direct replacement for F32T8 fluorescent lamps, offering superior energy efficiency and exceptional performance with up to 2200 lumens of bright, quality illumination.
Key Features:
- Customizable brightness: Choose from 12W, 13W, or 15W options to suit your lighting needs
- Adjustable color temperature: Select from 3000K, 3500K, 4000K, 5000K, to 6500K for the perfect ambiance
- Flexible installation: Type A+B hybrid compatibility works with electronic ballast or single/double end wiring
- Smooth dimming: 0-10V dimmable functionality to create the ideal atmosphere
- High CRI of 80+ for superior color rendering and visual clarity
- Frosted finish ensures soft, diffused glow for comfortable illumination
- Suitable for damp locations and enclosed fixtures
- 50,000 hours rated life for long-lasting, maintenance-free performance
- 5 year limited manufacturer warranty for peace of mind
- UL, FCC, NSF, RoHS, and DLC certified for quality and compliance

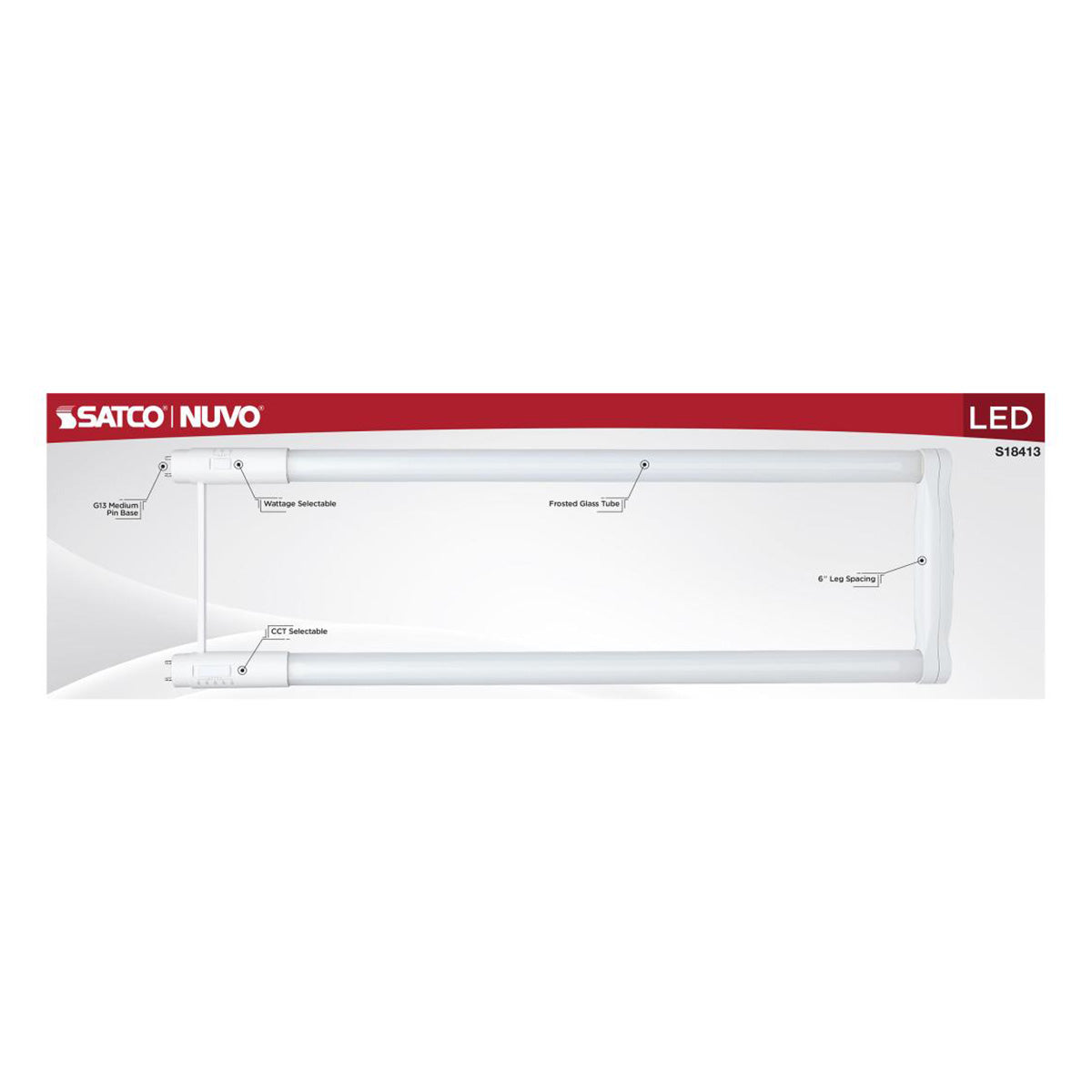

The convenient dip switch allows for easy field adjustment of both wattage and color temperature, making this U-bend LED bulb perfect for retrofitting existing fixtures or new installations. California compliant and designed for 120-277V line voltage, this versatile bulb adapts to your changing lighting needs.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What does the "T" and the number (T8, T5, T12) mean?
What does the "T" and the number (T8, T5, T12) mean?
The "T" stands for Tubular. The number indicates the diameter of the tube in eighths of an inch. For example, a T8 tube is 8/8ths (1 inch) in diameter, and a T5 tube is 5/8ths of an inch.
Can I mix Plug-and-Play and Ballast Bypass tubes in the same fixture?
Can I mix Plug-and-Play and Ballast Bypass tubes in the same fixture?
No. You must use only one type of LED tube light per fixture. Plug-and-Play tubes require the ballast to be connected; Ballast Bypass tubes require the ballast to be removed. Mixing them will damage the bulbs and potentially the fixture.
Will an LED tube work with my old magnetic ballast?
Will an LED tube work with my old magnetic ballast?
Some LED tubes are designed to be compatible with magnetic ballasts, but most modern LED tube lights are optimized for electronic ballasts. It is safest to check the specifications or opt for the Ballast Bypass method.
What is the typical light lifespan of an LED tube?
What is the typical light lifespan of an LED tube?
LED fluorescent replacement lamps are typically rated for 50,000 hours of life, which is significantly longer than the 20,000 to 30,000 hours of traditional fluorescent lamps.
What are the advantages of an LED tube over an LED PL plug-in lamp?
What are the advantages of an LED tube over an LED PL plug-in lamp?
LED tubes provide light linearly and are designed for large troffer fixtures to ensure wide, even light distribution across a large ceiling area. PL lamps are compact and designed for small, recessed downlights.
