Acuity Brands LSXR 650 HVOLT SS LSXR Sensor Switch, 2400W, High Mount 360º & Aisleway, Indoor
Made to Order
About this item
About this item
- Sensor Type: Utilizes passive infrared (PIR) detection for reliable occupancy sensing.
- Voltage Compatibility: Operates at 347-480 VAC, suitable for high voltage applications.
- Load Capacity: Supports up to 2400W, accommodating various lighting loads.

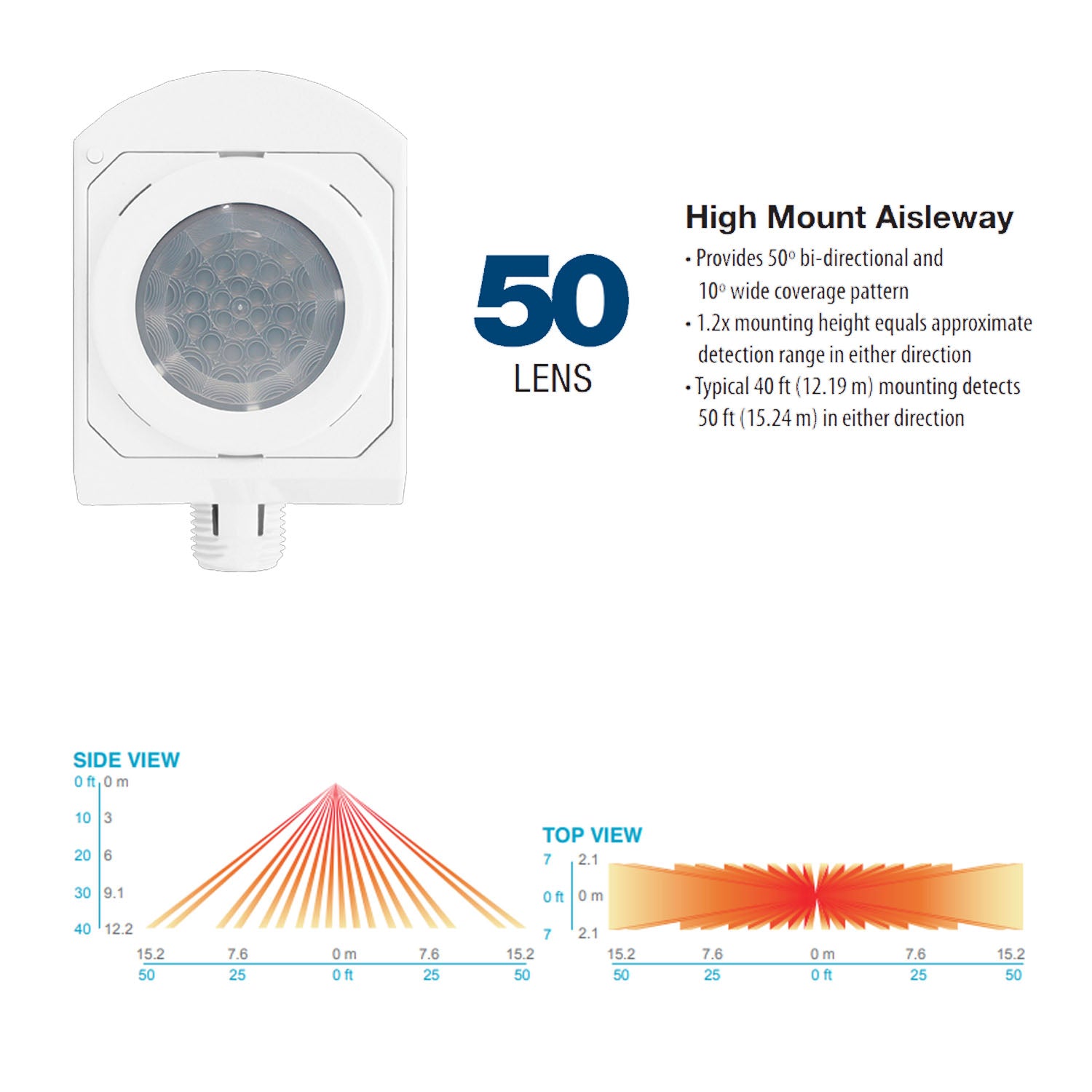

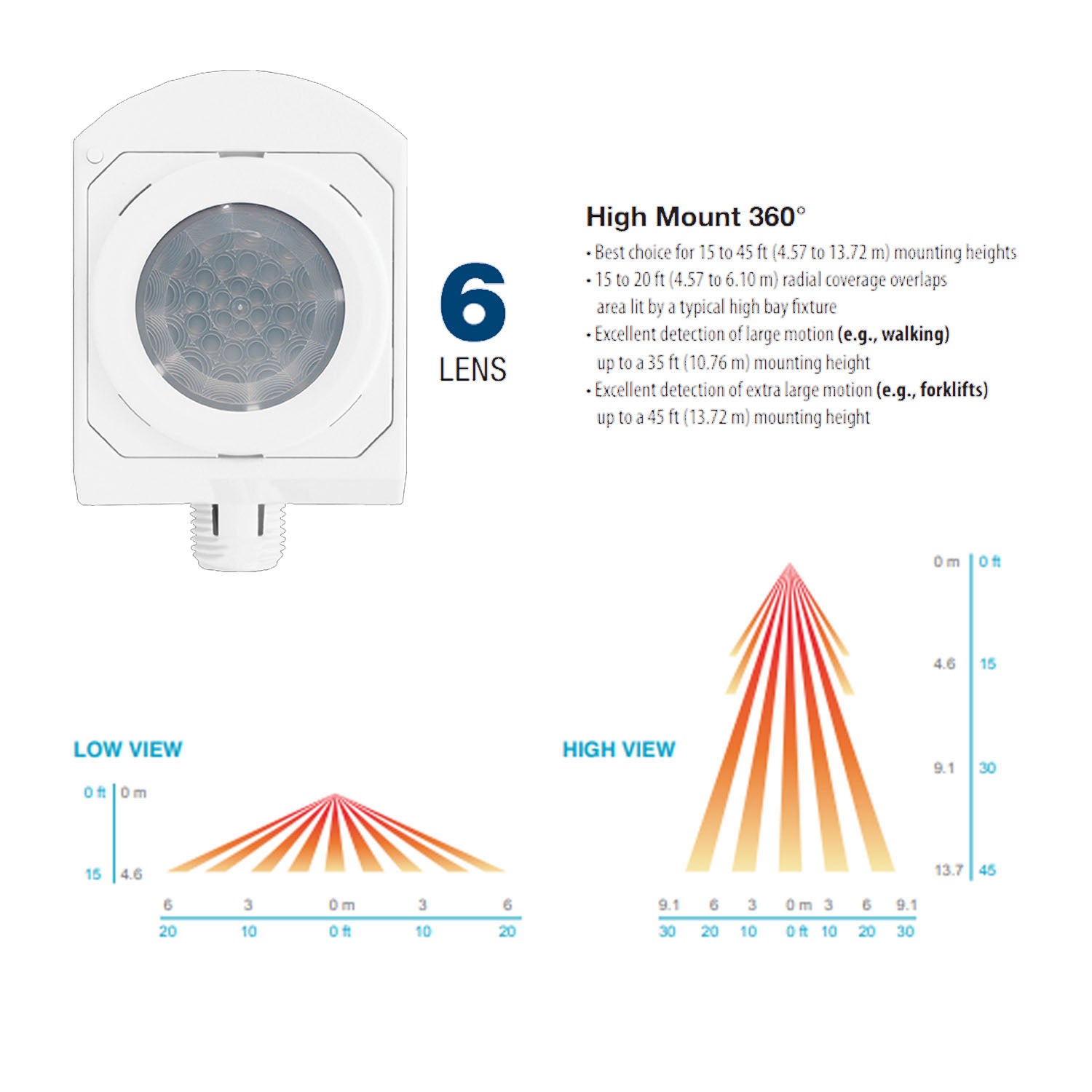

- Coverage Pattern: High mount 360º and aisleway lens options for versatile detection.
- Installation: Fixture mount with interchangeable lenses for flexible application.
We process payments securely and do not store credit card information.
Description
Description
Acuity Brands SS LSXR Sensor Switch — Indoor & High Mount 360º & Aisleway
The Acuity Brands LSXR 650 HVOLT sensor switch, finished in indoor white, is a high-performance occupancy sensor designed for commercial and industrial lighting control. This sensor switch operates at 347-480 VAC and supports a load capacity of 2400W. It features a high mount 360º and aisleway coverage pattern, making it ideal for large spaces.
Key Features
- Voltage: Compatible with 347-480 VAC for high voltage environments.
- Load Rating: Supports up to 2400W for various lighting applications.
- Sensor Technology: Utilizes passive infrared (PIR) detection for accurate occupancy sensing.
- Coverage Pattern: High mount 360º and aisleway lens options for flexible detection.
- Neutral Wire: Not explicitly required, simplifying installation.
- Installation: Fixture mount with interchangeable lenses for versatile application.
- Programming: Digital push-button programming for easy setup.
- Dimensions: 3.75'H x 2.50'W x 4.00'D for compact installation.
- Certifications: Complies with UL916 and NEMA WD 7-2011 standards.
- Special Features: Integrated photocell and dimming options available.
Construction & Interface
This sensor switch features a robust construction with a white finish, suitable for indoor environments. It includes a green LED indicator for operational status. Note that the wallplate is sold separately.
Sensor, Smart & Timer Capabilities
The LSXR 650 HVOLT sensor switch offers advanced occupancy sensing with passive infrared technology. It provides high mount 360º and aisleway coverage, ideal for detecting large motion in industrial settings. The sensor includes integrated photocell and dimming options for enhanced energy management.
Wiring & Installation
The sensor switch operates at 347-480 VAC and does not explicitly require a neutral wire, simplifying installation. It is designed for fixture mounting with interchangeable lenses, providing flexibility for various applications. The sensor connects via low-voltage and line-voltage leads.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What type of detection technology does the LSXR 650 HVOLT use?
What type of detection technology does the LSXR 650 HVOLT use?
What is the voltage compatibility of the LSXR 650 HVOLT sensor switch?
What is the voltage compatibility of the LSXR 650 HVOLT sensor switch?
What is the load capacity of the LSXR 650 HVOLT sensor switch?
What is the load capacity of the LSXR 650 HVOLT sensor switch?
Does the LSXR 650 HVOLT require a neutral wire for installation?
Does the LSXR 650 HVOLT require a neutral wire for installation?
What are the coverage patterns available for the LSXR 650 HVOLT?
What are the coverage patterns available for the LSXR 650 HVOLT?
