Acuity Brands SS HM Sensor Switch — Indoor & PIR Occupancy

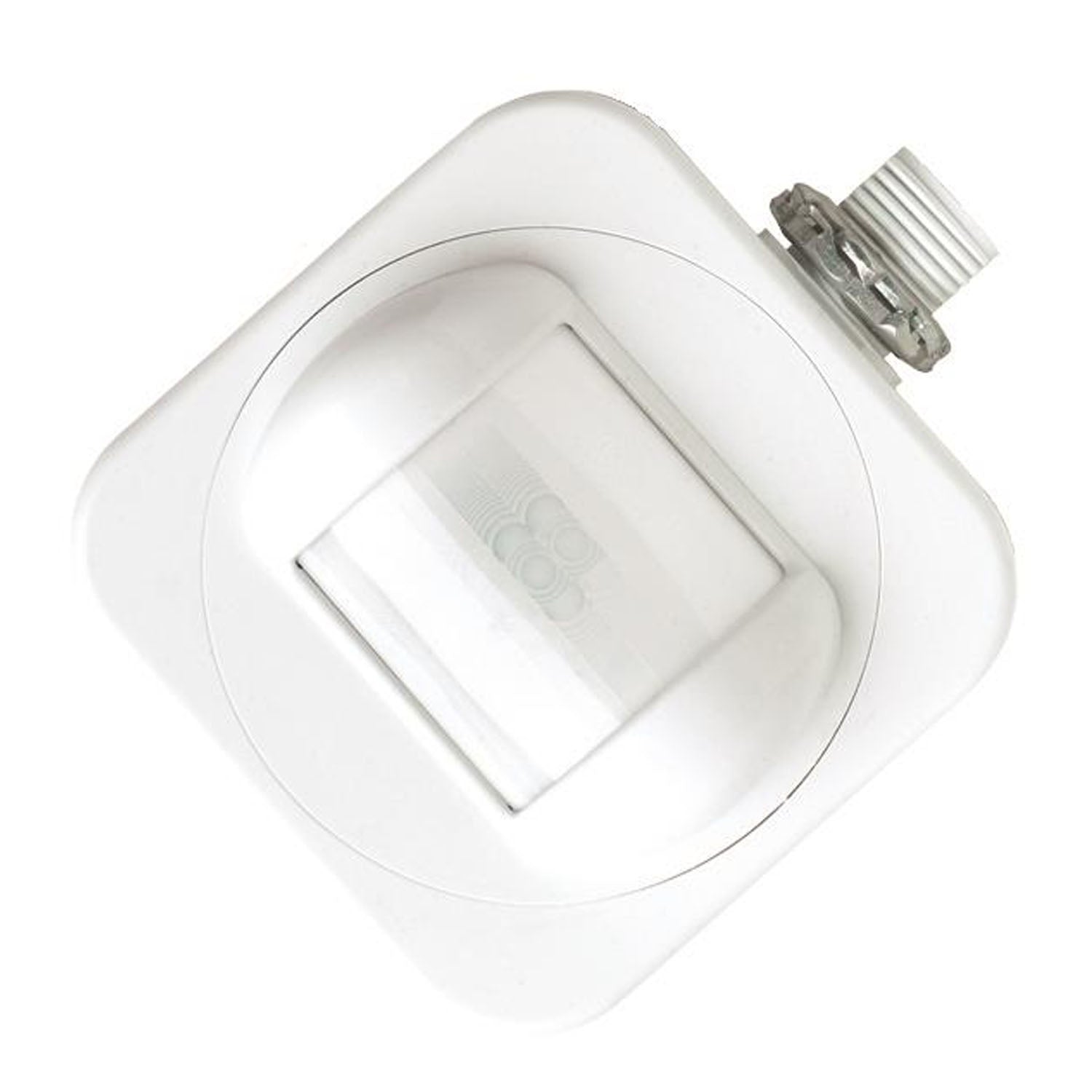

The Acuity Brands HMRB 10 sensor switch, finished in white, is a high bay end-of-aisle sensor designed for indoor use. This sensor utilizes Passive Infrared (PIR) technology to detect occupancy, making it ideal for controlling lighting in large aisle spaces. It operates at 120-277 VAC and supports a maximum load of 800W at 120 VAC, 1200W at 277 VAC, and 1500W at 347 VAC.

Key Features

• Voltage Compatibility: Operates at 120-277 VAC, suitable for various electrical systems.
• Load Ratings: Supports 800W at 120 VAC, 1200W at 277 VAC, and 1500W at 347 VAC.
• Mounting: Designed for 30 to 45 ft high installations, optimizing sensor coverage.

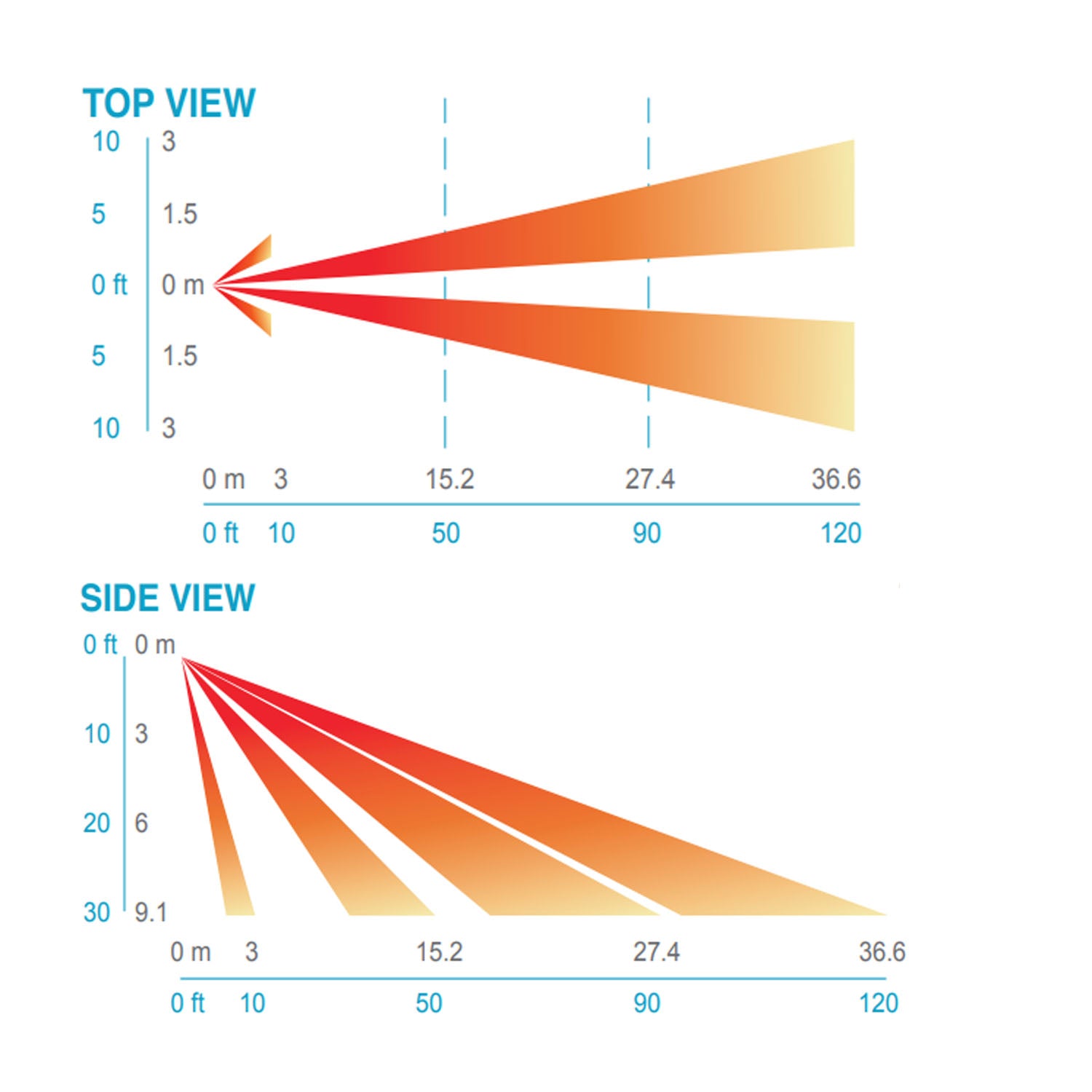

• Coverage: Detects motion up to 110 linear ft, ideal for long aisle applications.
• Relay: Self-contained relay eliminates the need for an external power pack.
• Programming: Push-button programmable with user-adjustable time delays.
• Test Mode: Includes a convenient test mode for easy setup and verification.
• Construction: White finish, mounts through a 1/2 inch knockout.
• Compliance: ROHS compliant, ensuring environmental safety.
• Warranty: Backed by a five-year limited warranty.

Construction & Interface

The HMRB 10 sensor switch features a durable white finish and is designed for indoor use. It mounts through a 1/2 inch knockout, making installation straightforward. Note that the wallplate is sold separately.

Sensor, Smart & Timer Capabilities

This sensor switch employs PIR technology to detect occupancy, providing reliable control of lighting in high bay aisle applications. It is designed to be installed in pairs for optimal coverage, with no need for field calibration or sensitivity adjustments.

Wiring & Installation

The HMRB 10 does not require a neutral wire, simplifying installation. It features black line input and load output wires, with a white neutral wire for standard installations. The sensor is designed for single-pole applications and is compatible with 120-277 VAC systems.
