RAB STL360 Super Stealth Sensor Switch, 1000W, 180°/360° Detection, Outdoor, Bronze
Available in stock (200)
About this item
About this item
- Detection Coverage: Provides 180° out and 360° down detection for comprehensive area coverage.
- Switching Capacity: Handles up to 1000W incandescent load at 120 volts, suitable for high-demand applications.
- Surge Protection: Equipped with 6000-volt surge protection to ensure durability and reliability.
- Environmental Rating: UL listed for wet locations, making it ideal for outdoor installations.
- Evening Timer: Features an evening timer that keeps lights on for 1-8 hours after dusk, then motion-activated until dawn.
We process payments securely and do not store credit card information.
Description
Description
RAB STL Super Stealth Sensor Switch — Bronze & 180°/360° Detection
The RAB STL360 sensor switch in bronze offers advanced detection capabilities with 180° and 360° coverage, making it ideal for outdoor applications. This sensor switch, identified by MPN STL360, supports up to 1000W incandescent loads and operates at 120V. It is designed for wet locations, ensuring reliable performance in various environmental conditions.
Key Features
- Voltage: Operates at 120V AC 60Hz for standard residential and commercial applications.
- Switching Capacity: Supports up to 1000W incandescent load, suitable for high-demand lighting.
- Detection Coverage: Offers 180° out and 360° down detection for comprehensive area monitoring.
- Surge Protection: Withstands up to 6000 volts, providing robust protection against power surges.
- Evening Timer: Programmable to keep lights on for 1-8 hours after dusk, then motion-activated until dawn.
- Manual Override: Two-flip logic prevents activation by momentary power outages, with auto reset at dawn.
- RF Immunity: Circuits are fully shielded to maximize radio frequency immunity.

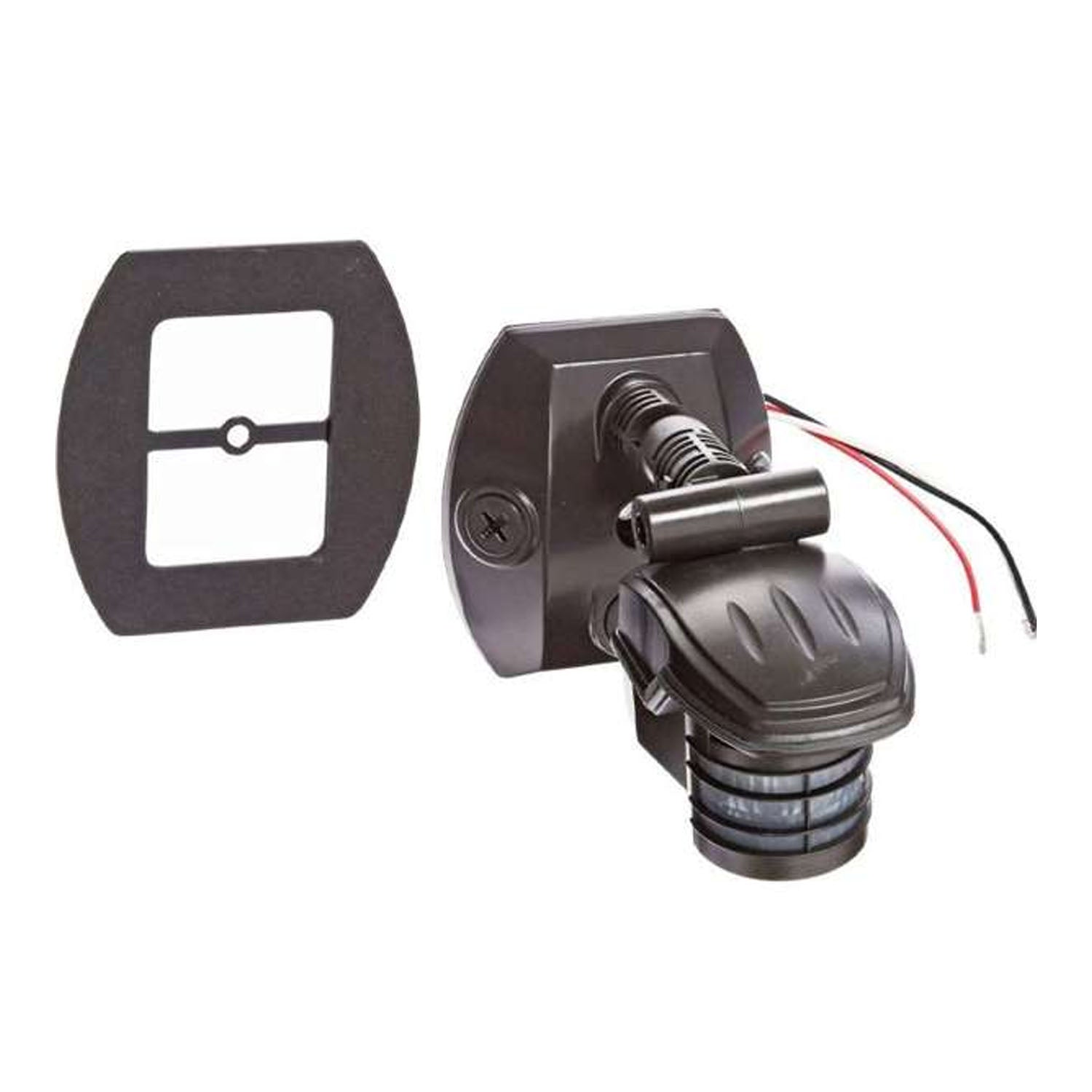

- Construction: Pre-wired and pre-assembled on CU4 universal EZ plate for easy installation.
- Temperature Compensation: Automatically adjusts sensitivity for consistent detection in varying temperatures.
- Warranty: Backed by a 10-year sensor warranty for peace of mind.
Construction & Interface
The sensor switch features a bronze finish with a color-matched lens, ensuring a cohesive aesthetic. It includes a vandal-resistant design and is pre-wired on a CU4 universal EZ plate for straightforward installation. Note that the wallplate is sold separately.
Sensor, Smart & Timer Capabilities
This sensor switch offers advanced detection logic to minimize false triggers and features an adjustable photoelectric control for daylight deactivation. The evening timer and wide sensitivity control enhance its adaptability for various applications.
Wiring & Installation
The RAB STL360 does not require a neutral wire, simplifying installation. It can be wired in parallel and includes a protected manual override with auto reset, ensuring ease of use and reliability.
Specifications
Specifications

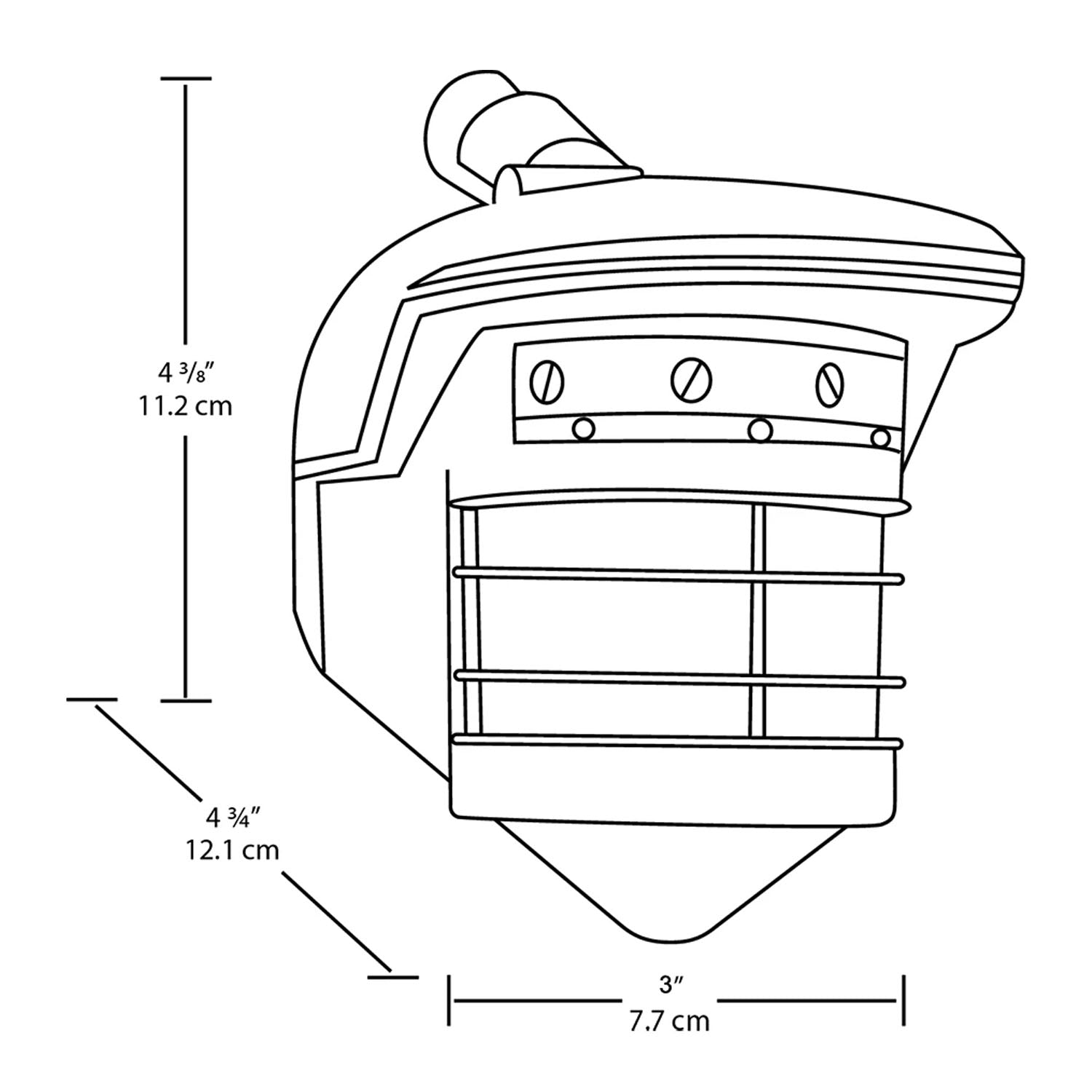

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the detection coverage of the RAB STL360 sensor switch?
What is the detection coverage of the RAB STL360 sensor switch?
Does the RAB STL360 require a neutral wire for installation?
Does the RAB STL360 require a neutral wire for installation?
What is the switching capacity of the RAB STL360 sensor switch?
What is the switching capacity of the RAB STL360 sensor switch?
Is the RAB STL360 suitable for outdoor use?
Is the RAB STL360 suitable for outdoor use?
What kind of surge protection does the RAB STL360 offer?
What kind of surge protection does the RAB STL360 offer?
