RAB STL STEALTH 110 Sensor Switch — Bronze & 110 Degree Detection

The RAB STL12LV is a sensor switch designed for 12V AC/DC systems, offering a 96W switching capacity. This bronze-finished sensor switch is ideal for controlling low voltage lighting or security systems. It features a wide 110-degree detection angle and is wet rated for outdoor use.

Key Features

• Voltage: Operates on 12V AC/DC systems, suitable for low voltage applications.
• Load Capacity: Supports up to 96 watts, accommodating various lighting setups.
• Detection Angle: Offers a 110-degree view for broad coverage.
• Time Adjustment: Adjustable from 5 seconds to 12 minutes for customized operation.
• Sensitivity Control: Adjustable from 100% to 30% to minimize false triggers.
• Photoelectric Control: Deactivates lights during daylight, adjustable for 24-hour operation.
• Surge Protection: Withstands up to 6000 volts for enhanced durability.
• RF Immunity: Fully shielded circuits for maximum radio frequency immunity.
• Temperature Compensation: Automatically adjusts sensitivity for consistent detection.
• LED Indicator: Shows detection status and glows red at night for deterrence.

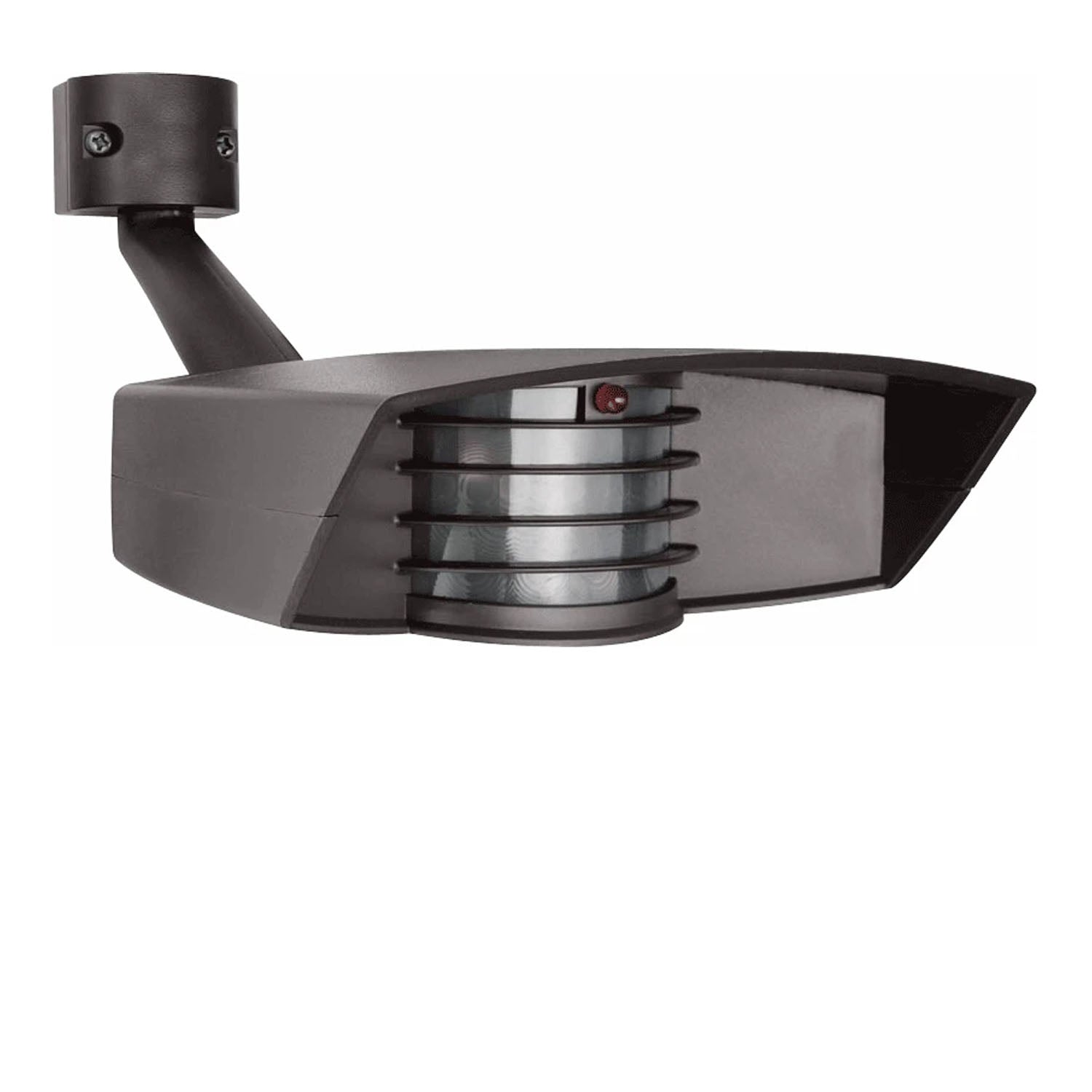

• Construction: Precision die-cast aluminum with a color-matched lens.
• Warranty: Comes with a 10-year warranty for peace of mind.

Construction & Interface

The sensor switch features a precision die-cast aluminum construction with a bronze finish, ensuring durability and aesthetic appeal. It includes a color-matched lens and is designed for easy installation with horizontal lock and no-tool joints. The wallplate is sold separately.

Sensor, Smart & Timer Capabilities

This sensor switch offers advanced detection logic to minimize false triggers and features a photoelectric control to deactivate lights during daylight. It includes a manual override with auto reset and can be wired in parallel for expanded control.

Wiring & Installation

The RAB STL12LV does not require a neutral wire, simplifying installation. It is suitable for use in single-pole configurations and can be wired in parallel. The sensor switch is designed for easy installation with no-tool joints and a horizontal lock for maintaining the sensing pattern level.
