Description

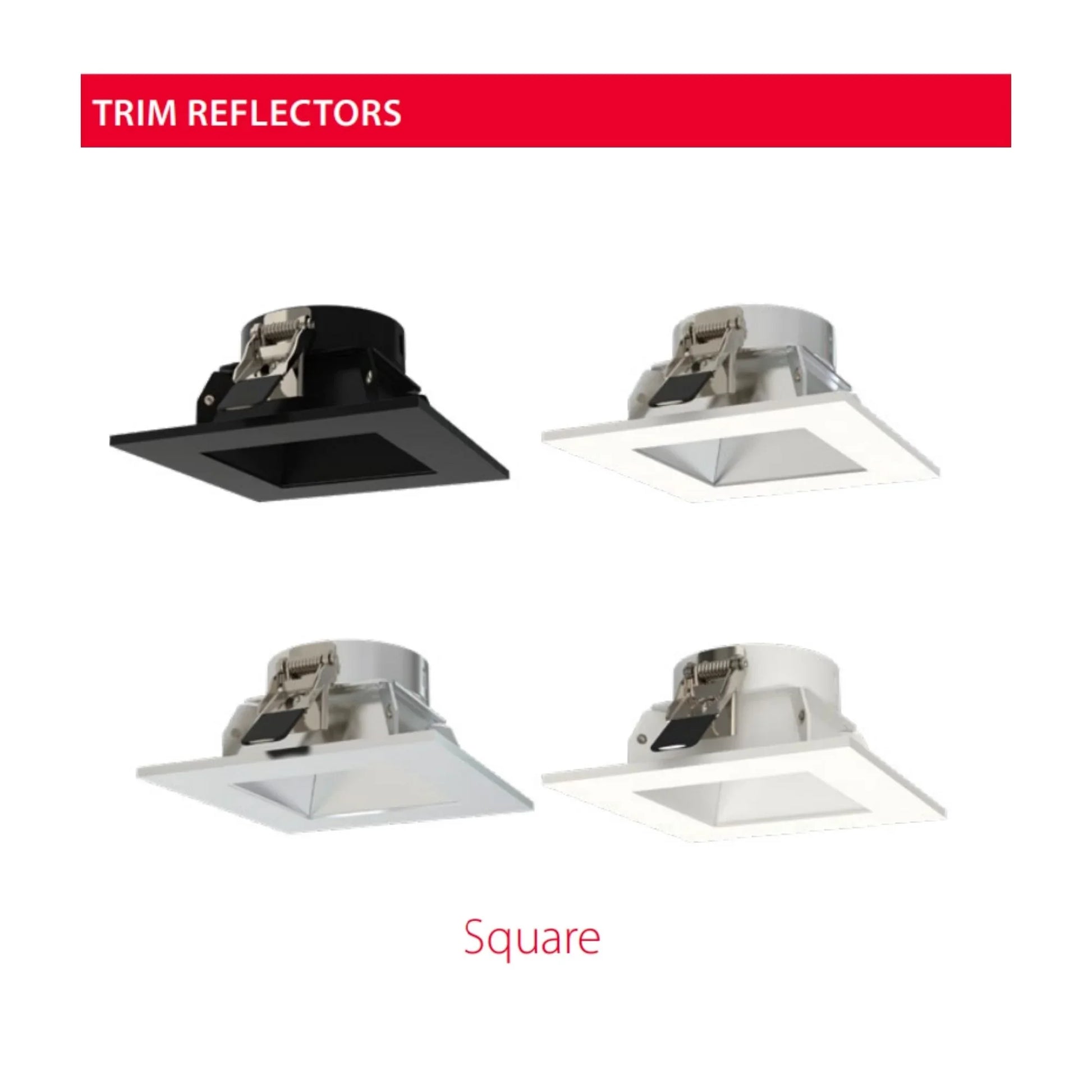

Unified 8" Haze Square Trim for Superior High-Output Glare Control

The RAB Lighting ND22T-8SHZ features a refined haze reflector with matching flange in an expansive 8" square aperture, specifically designed for ND22-20, ND22-30, and ND22-50 modules. This larger square trim delivers exceptional glare reduction with a cohesive, sophisticated appearance while providing 1,850 to 4,700 lumens of adjustable illumination, making it ideal for commercial spaces requiring high output with superior visual comfort. The monochromatic haze finish creates visual consistency while maintaining optimal light output. RAB's commercial-grade engineering ensures consistent high-output performance while the square aperture provides clean, modern architectural lines perfect for contemporary grid ceilings and commercial interiors.

Cohesive Haze Aesthetic with High-Output Modular Performance

Part of RAB's innovative ND22 platform, the ND22T-8SHZ (SKU: ND22T-8SHZ) combines unified haze aesthetics with high-output field-adjustable flexibility. The matching haze reflector and flange in an 8" square format create a seamless, refined appearance while the twist-lock mechanism enables effortless installation and on-site changes. Compatible with ND22-20, ND22-30, and ND22-50 modules, this trim provides substantial customizable illumination with adjustable color temperature, brightness, and beam angle. This RAB Lighting solution delivers visual comfort and modern architectural precision without compromising on output or flexibility.

Premium High-Output Glare Control with Modern Square Design

  • 8" square haze reflector and flange for unified high-output glare control
  • Compatible with ND22-20 (1,850lm), ND22-30 (2,800lm), and ND22-50 (4,700lm) modules
  • Contemporary large-format square aperture for modern commercial integration
  • Adjustable 25° to 45° (20/30W) or 30° to 50° (50W) beam angle
  • Tool-free twist-lock installation for field adaptability

Specifications

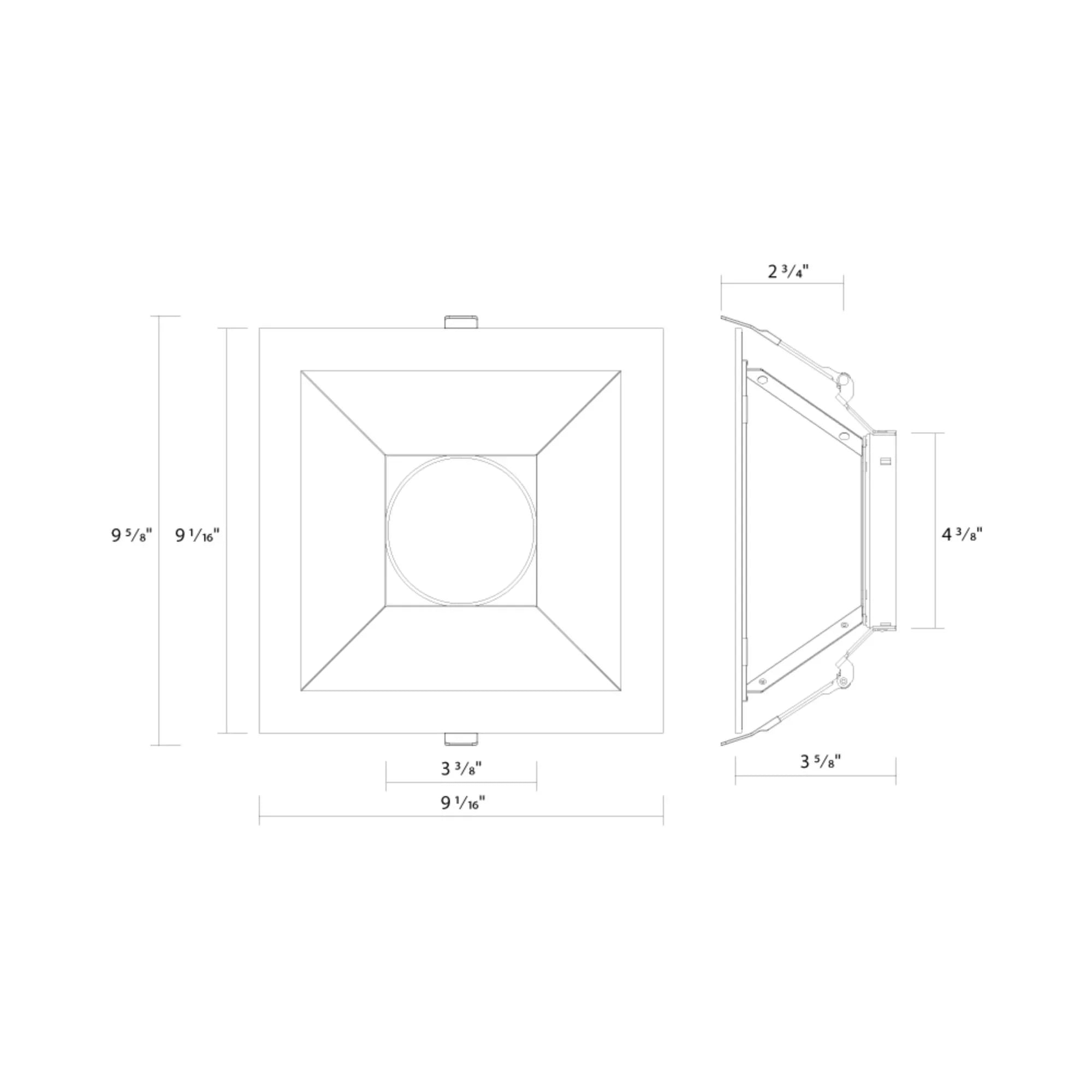

Dimensions

Length/Depth
9.06 in
Width/Diameter
9.06 in
Height
9.6 in
Weight
0.7 lb

Style & Materials

Finish
Haze
Material
Aluminum
Shape
Square

Characteristics & Features

Trim
Open
Reflector
Reflector

Item Details

MPN
ND22T-8SHZ
Brand
RAB Lighting
Family
ND22 Commercial Downlights
UPC
192552049269

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
50,000 Hours
Product Rating
Wet Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

What is the difference between Lumens and Watts?

Watts measure the amount of electrical energy a fixture consumes, while lumens measure the actual brightness (the amount of visible light produced). In the LED era, wattage is no longer a reliable indicator of brightness. When replacing old fixtures or comparing new ones, always look at the lumen output to determine how bright the light will be.

What is Color Rendering Index (CRI) and why does it matter?

CRI is a scale from 0 to 100 that measures how accurately a light source reveals the true colors of objects compared to natural sunlight. A higher CRI (90+) ensures colors look vibrant and accurate, which is critical for retail displays, kitchen countertops, and bathroom vanities. A lower CRI (under 80) can make colors look washed out or dull, regardless of the color temperature.

How do I know if my light fixture is dimmable?

For traditional incandescent fixtures, dimmability depended purely on the bulb. For modern LED lighting, dimmability depends on the internal LED driver or the specific LED bulb used. A fixture is only dimmable if its driver is explicitly rated for it. Furthermore, the fixture must be paired with a compatible dimmer switch (such as a standard TRIAC/Phase-cut dimmer or a 0-10V commercial dimmer) to prevent flickering and buzzing.

What does "Integrated LED" mean compared to a standard fixture?

An integrated LED fixture has the LED diodes and driver built directly into the housing, meaning there are no traditional bulbs to screw in or replace. This allows for sleeker, lower-profile designs and better heat dissipation. However, if an integrated fixture fails after its warranty period, you typically have to replace the entire unit or the internal driver, rather than just swapping out a bulb.

What does the "L70" lifespan rating mean on LED fixtures?

Unlike traditional bulbs that simply burn out and go dark, LEDs gradually lose their brightness over time (lumen depreciation). The L70 rating indicates the number of operating hours it takes for the LED fixture to degrade to 70% of its original brightness. For example, a fixture rated for "50,000 hours L70" will still work after 50,000 hours, but it will be noticeably dimmer than when it was first installed.
