ND22 6" Square Trim White Reflector and Flange for ND22-20, ND22-30 and ND22-50
Available in stock (200)
About this item
About this item
- Maximum Reflectance White Finish: The bright white reflector optimizes light output and efficiency, delivering superior illumination levels for commercial spaces where brightness and energy performance are essential project requirements.
- High-Lumen Module Support: Designed for ND22's most powerful modules (20W, 30W, 50W), this trim handles output from 1,850 to 4,700 lumens with field-adjustable color temperature and beam angle capabilities.
- Seamless Ceiling Integration: The white flange and reflector blend invisibly with standard ceiling tiles and drywall, creating a cohesive, professional appearance across office, healthcare, and educational environments.
- Field-Adaptable Installation: RAB's twist-lock system enables on-site trim swaps without tools or module removal, giving contractors the flexibility to respond to design changes during construction without project delays.
- Proven RAB Reliability: Backed by RAB Lighting's decades of commercial lighting expertise, the ND22T-6HSW delivers consistent performance and durability for demanding professional applications.
We process payments securely and do not store credit card information.
Description
Description

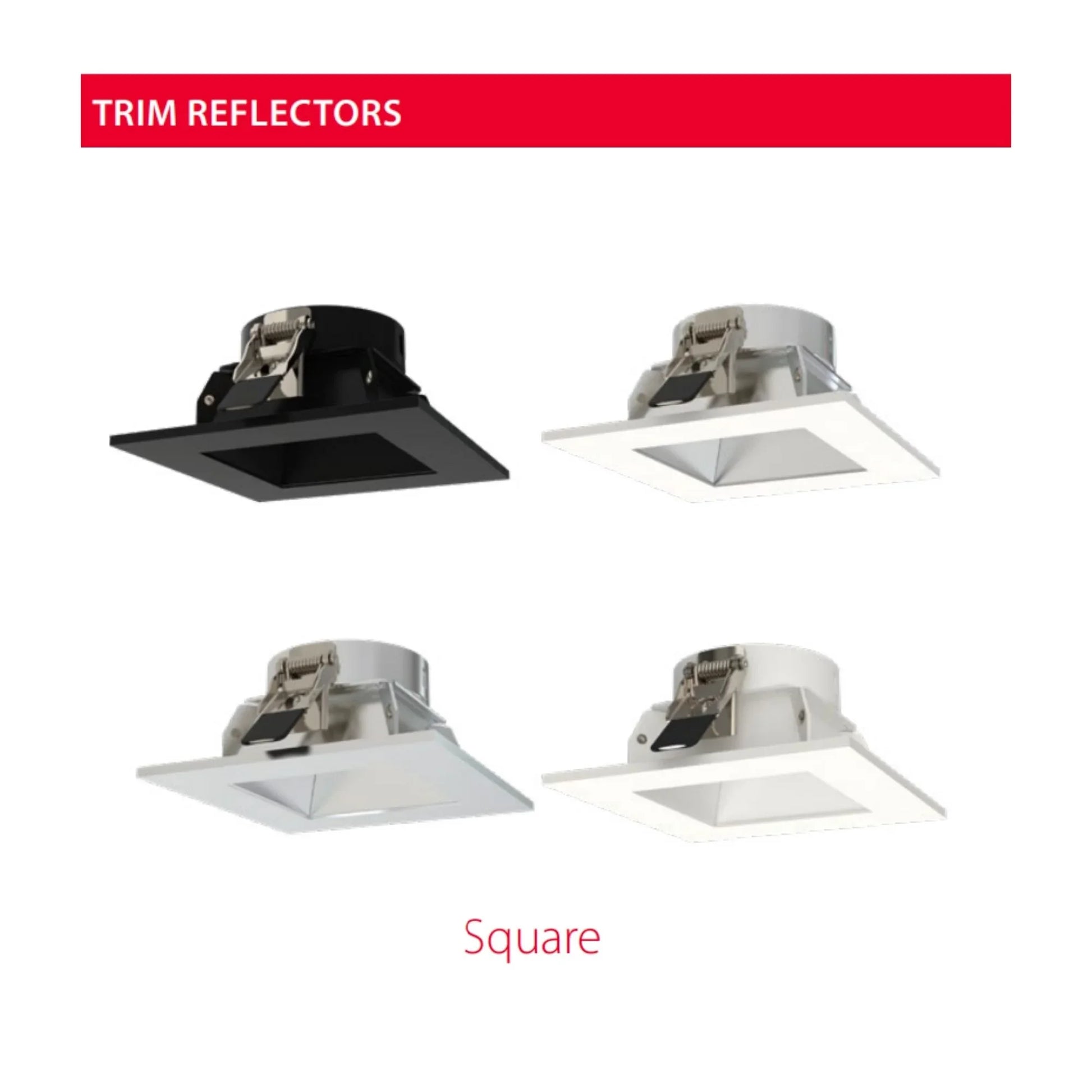

Clean White Square Trim for Professional Lighting Projects
The RAB Lighting ND22T-6HSW features a crisp white reflector with matching flange, engineered for ND22-20, ND22-30, and ND22-50 high-output modules. This 6" square trim delivers maximum reflectance and brightness, making it the ideal choice for applications where light levels and ceiling integration are critical. The white finish seamlessly blends with standard ceiling materials while the RAB brand ensures commercial-grade performance that specifiers and contractors trust.
Modular Design for Maximum Project Flexibility
Part of RAB's innovative ND22 modular platform, the ND22T-6HSW (SKU: ND22T-6HSW) empowers design teams with the freedom to specify once and customize on site. The twist-lock installation system allows for effortless trim changes, accommodating evolving aesthetic requirements without costly reorders. This square trim works with RAB's most powerful ND22 modules, supporting diverse commercial applications from conference rooms to retail showrooms.
Optimized Performance for Commercial Spaces
- 6" square white reflector and flange for maximum light output
- Compatible with ND22-20 (1,850lm), ND22-30 (2,800lm), and ND22-50 (4,700lm) modules
- Quick twist-lock mechanism for tool-free installation and changes
- Bright white finish integrates seamlessly with ceiling systems
- RAB Lighting commercial warranty and technical support included
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the difference between Lumens and Watts?
What is the difference between Lumens and Watts?
Watts measure the amount of electrical energy a fixture consumes, while lumens measure the actual brightness (the amount of visible light produced). In the LED era, wattage is no longer a reliable indicator of brightness. When replacing old fixtures or comparing new ones, always look at the lumen output to determine how bright the light will be.
What is Color Rendering Index (CRI) and why does it matter?
What is Color Rendering Index (CRI) and why does it matter?
CRI is a scale from 0 to 100 that measures how accurately a light source reveals the true colors of objects compared to natural sunlight. A higher CRI (90+) ensures colors look vibrant and accurate, which is critical for retail displays, kitchen countertops, and bathroom vanities. A lower CRI (under 80) can make colors look washed out or dull, regardless of the color temperature.
How do I know if my light fixture is dimmable?
How do I know if my light fixture is dimmable?
For traditional incandescent fixtures, dimmability depended purely on the bulb. For modern LED lighting, dimmability depends on the internal LED driver or the specific LED bulb used. A fixture is only dimmable if its driver is explicitly rated for it. Furthermore, the fixture must be paired with a compatible dimmer switch (such as a standard TRIAC/Phase-cut dimmer or a 0-10V commercial dimmer) to prevent flickering and buzzing.
What does "Integrated LED" mean compared to a standard fixture?
What does "Integrated LED" mean compared to a standard fixture?
An integrated LED fixture has the LED diodes and driver built directly into the housing, meaning there are no traditional bulbs to screw in or replace. This allows for sleeker, lower-profile designs and better heat dissipation. However, if an integrated fixture fails after its warranty period, you typically have to replace the entire unit or the internal driver, rather than just swapping out a bulb.
What does the "L70" lifespan rating mean on LED fixtures?
What does the "L70" lifespan rating mean on LED fixtures?
Unlike traditional bulbs that simply burn out and go dark, LEDs gradually lose their brightness over time (lumen depreciation). The L70 rating indicates the number of operating hours it takes for the LED fixture to degrade to 70% of its original brightness. For example, a fixture rated for "50,000 hours L70" will still work after 50,000 hours, but it will be noticeably dimmer than when it was first installed.
