ND22 6" Square Trim Black Reflector and Flange for ND22-20, ND22-30 and ND22-50
Available in stock (200)
About this item
About this item
- Dramatic Square Geometry:The ND22T-6HSB's 6" square black reflector creates bold architectural presence with contemporary geometry, transforming high-output functional lighting into an intentional design element.
- Superior High-Output Glare Control:Deep black finish absorbs stray light from modules up to 4,700 lumens, reducing ceiling brightness and directing viewer attention to illuminated areas in hospitality and retail environments.
- Contemporary Architectural Form:Modern square profile aligns with current design trends while the 6" aperture provides the coverage needed for high ceilings and large commercial spaces.
- High-Output Modular Platform:Full compatibility with ND22-20, ND22-30, and ND22-50 modules provides power range from 1,850 to 4,700 lumens with field-adjustable wattage, CCT, and beam angle.
- Boutique-Grade Design:Ideal for high-end retail, galleries, upscale hospitality, and design-conscious commercial spaces where fixture appearance and high-output performance are equally critical.
We process payments securely and do not store credit card information.
Description
Description

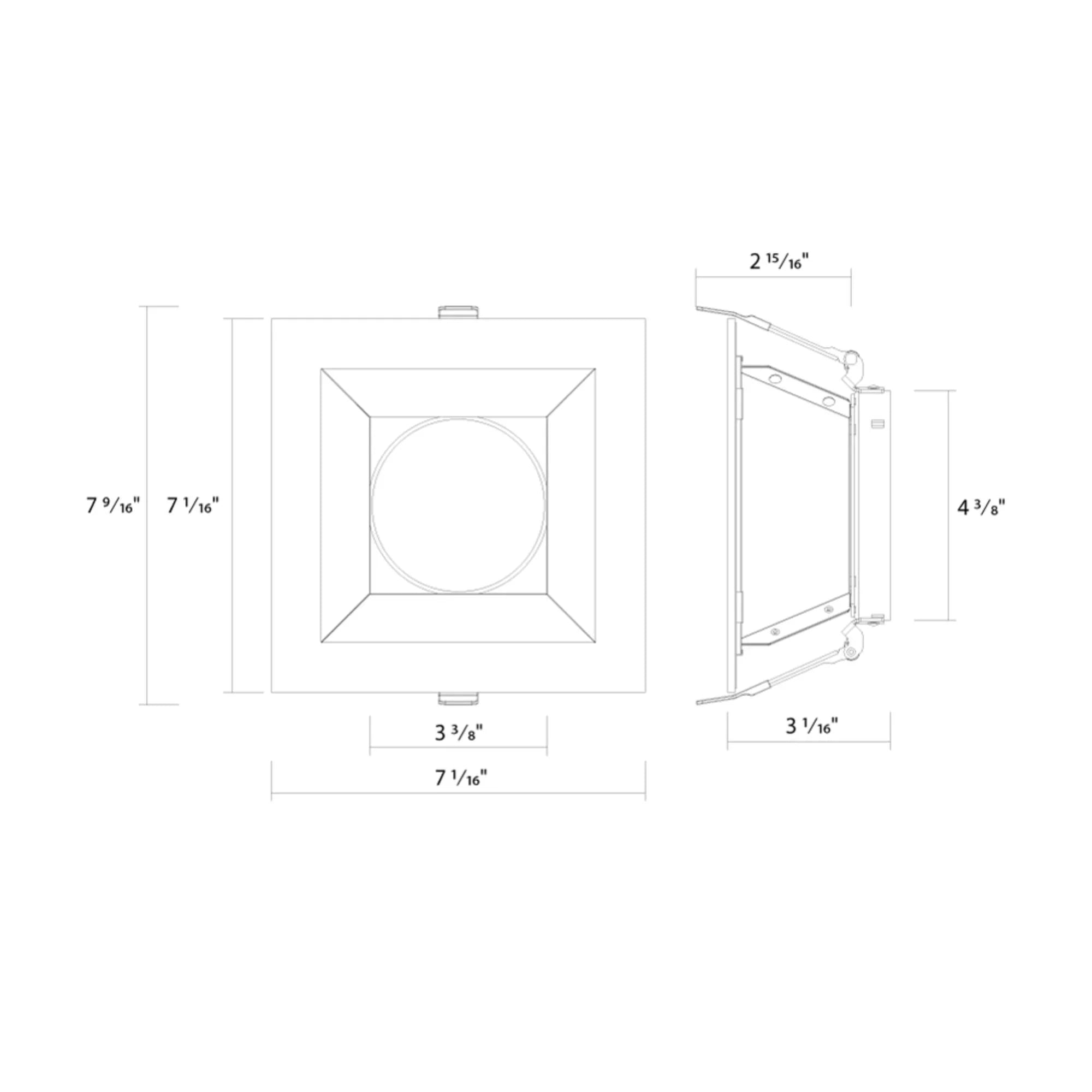

Bold 6" Square Black Trim
The RAB Lighting ND22T-6HSB makes a striking architectural statement with its 6" square black reflector and flange, engineered for ND22-20, ND22-30, and ND22-50 modular downlight systems. SKU ND22T-6HSB delivers dramatic visual contrast and enhanced glare control with high-output capability, making it the preferred choice for contemporary commercial interiors where lighting becomes a bold design element that enhances architectural character in large spaces and high-ceiling applications.
Sophisticated Black Square Design
This 6" square trim from RAB Lighting features a deep black reflector that creates visual depth, minimizes ceiling brightness from high-wattage modules, and directs attention to illuminated surfaces. The contemporary square geometry aligns with modern architectural trends while the modular platform provides complete field adjustability across wattage (20W-50W), color temperature, and beam spread without fixture replacement.
Contemporary High-Output Solution
- 6" square black reflector and flange for bold modern architectural aesthetics
- Enhanced glare control through light-absorbing black finish
- Compatible with ND22-20 (1,850lm), ND22-30 (2,800lm), and ND22-50 (4,700lm) modules
- Contemporary square geometry with twist-lock installation
- Perfect for boutiques, galleries, restaurants, hospitality, and design-forward commercial spaces
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the difference between Lumens and Watts?
What is the difference between Lumens and Watts?
Watts measure the amount of electrical energy a fixture consumes, while lumens measure the actual brightness (the amount of visible light produced). In the LED era, wattage is no longer a reliable indicator of brightness. When replacing old fixtures or comparing new ones, always look at the lumen output to determine how bright the light will be.
What is Color Rendering Index (CRI) and why does it matter?
What is Color Rendering Index (CRI) and why does it matter?
CRI is a scale from 0 to 100 that measures how accurately a light source reveals the true colors of objects compared to natural sunlight. A higher CRI (90+) ensures colors look vibrant and accurate, which is critical for retail displays, kitchen countertops, and bathroom vanities. A lower CRI (under 80) can make colors look washed out or dull, regardless of the color temperature.
How do I know if my light fixture is dimmable?
How do I know if my light fixture is dimmable?
For traditional incandescent fixtures, dimmability depended purely on the bulb. For modern LED lighting, dimmability depends on the internal LED driver or the specific LED bulb used. A fixture is only dimmable if its driver is explicitly rated for it. Furthermore, the fixture must be paired with a compatible dimmer switch (such as a standard TRIAC/Phase-cut dimmer or a 0-10V commercial dimmer) to prevent flickering and buzzing.
What does "Integrated LED" mean compared to a standard fixture?
What does "Integrated LED" mean compared to a standard fixture?
An integrated LED fixture has the LED diodes and driver built directly into the housing, meaning there are no traditional bulbs to screw in or replace. This allows for sleeker, lower-profile designs and better heat dissipation. However, if an integrated fixture fails after its warranty period, you typically have to replace the entire unit or the internal driver, rather than just swapping out a bulb.
What does the "L70" lifespan rating mean on LED fixtures?
What does the "L70" lifespan rating mean on LED fixtures?
Unlike traditional bulbs that simply burn out and go dark, LEDs gradually lose their brightness over time (lumen depreciation). The L70 rating indicates the number of operating hours it takes for the LED fixture to degrade to 70% of its original brightness. For example, a fixture rated for "50,000 hours L70" will still work after 50,000 hours, but it will be noticeably dimmer than when it was first installed.
