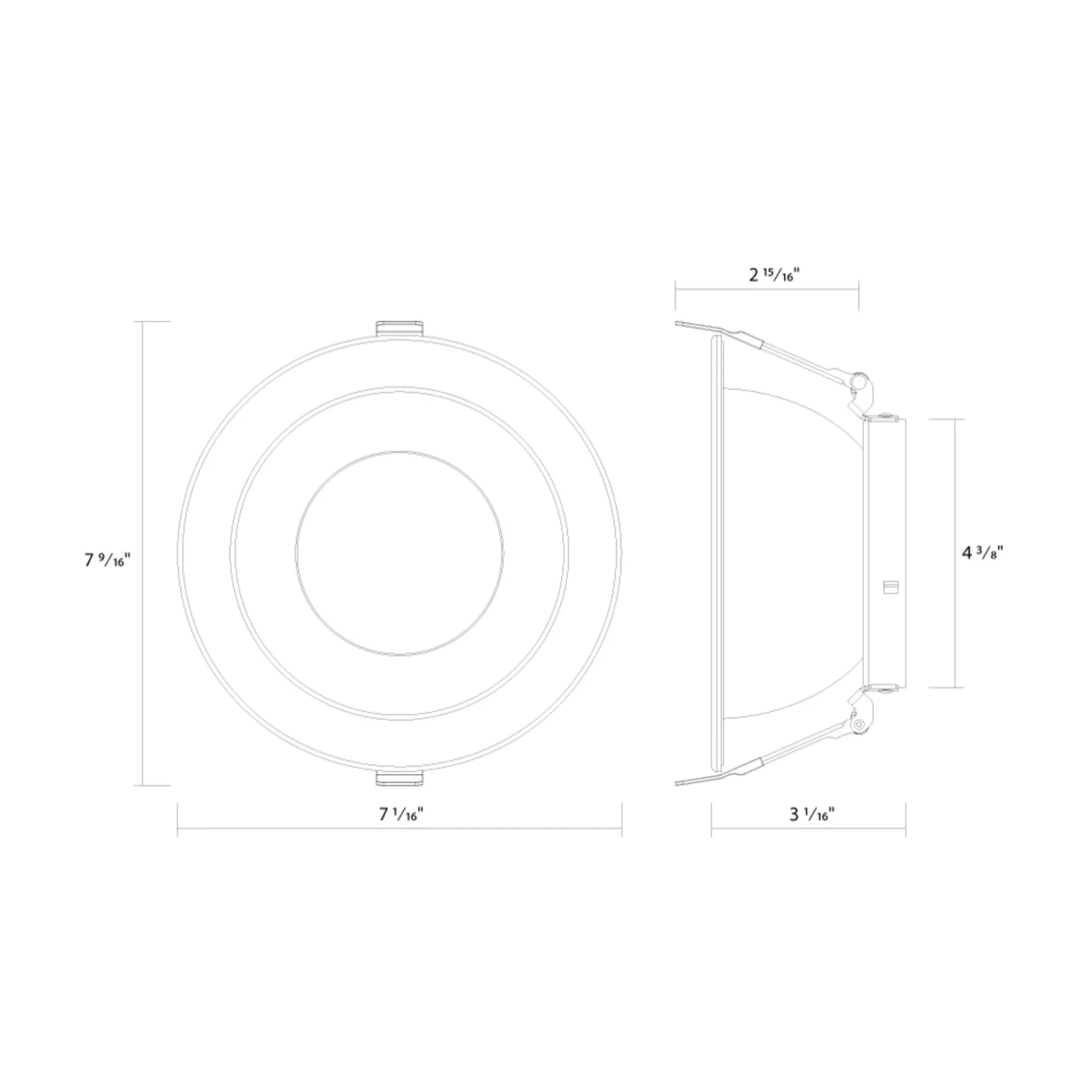

ND22 6" Round Trim White Reflector and Flange for ND22-20, ND22-30 and ND22-50
Available in stock (200)
About this item
About this item
- Maximum Light Efficiency:The ND22T-6HRW's bright white reflector maximizes light output from high-wattage modules (up to 4,700 lumens), delivering superior performance for energy-conscious commercial projects.
- Timeless White Aesthetic:Clean white finish integrates seamlessly with standard ceiling finishes, providing an unobtrusive high-output lighting solution that complements any interior design palette.
- High-Output Capability:Compatible with ND22-20, ND22-30, and ND22-50 modules, providing the power needed for large spaces, high ceilings, warehouses, and applications requiring significant illumination.
- Universal Compatibility:Works seamlessly across the entire high-output ND22 module range, allowing single-trim specification across projects with varying performance needs from 1,850 to 4,700 lumens.
- Field-Adjustable Freedom:Twist-lock system enables instant customization of wattage, color temperature (2700K-5000K), and beam angle (25°-50°) during installation, eliminating specification guesswork.
We process payments securely and do not store credit card information.
Description
Description
Classic 6" White Trim
The RAB Lighting ND22T-6HRW combines timeless white aesthetics with high-output performance, featuring a 6" round white reflector and flange designed for ND22-20, ND22-30, and ND22-50 modular downlight systems. SKU ND22T-6HRW delivers maximum light efficiency and clean appearance, making it the versatile choice for commercial projects requiring powerful illumination with neutral aesthetics that blend seamlessly with standard ceiling finishes.
Efficient White Performance
This 6" round trim from RAB Lighting features a bright white reflector that maximizes light output from high-wattage modules while blending effortlessly with white ceilings. The modular ND22 platform provides contractors with complete field control over wattage (20W-50W), color temperature, and beam spread, enabling on-site customization that adapts to changing project requirements without delays or reorders.
Universal High-Output Application
- 6" round white reflector and flange for classic commercial aesthetics
- High-reflectance white finish maximizes lighting efficiency
- Compatible with ND22-20 (1,850lm), ND22-30 (2,800lm), and ND22-50 (4,700lm) modules
- Twist-lock installation supports field adjustment of brightness, CCT, and beam angle
- Ideal for offices, retail, education, healthcare, warehouses, and general commercial spaces
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the difference between Lumens and Watts?
What is the difference between Lumens and Watts?
Watts measure the amount of electrical energy a fixture consumes, while lumens measure the actual brightness (the amount of visible light produced). In the LED era, wattage is no longer a reliable indicator of brightness. When replacing old fixtures or comparing new ones, always look at the lumen output to determine how bright the light will be.
What is Color Rendering Index (CRI) and why does it matter?
What is Color Rendering Index (CRI) and why does it matter?
CRI is a scale from 0 to 100 that measures how accurately a light source reveals the true colors of objects compared to natural sunlight. A higher CRI (90+) ensures colors look vibrant and accurate, which is critical for retail displays, kitchen countertops, and bathroom vanities. A lower CRI (under 80) can make colors look washed out or dull, regardless of the color temperature.
How do I know if my light fixture is dimmable?
How do I know if my light fixture is dimmable?
For traditional incandescent fixtures, dimmability depended purely on the bulb. For modern LED lighting, dimmability depends on the internal LED driver or the specific LED bulb used. A fixture is only dimmable if its driver is explicitly rated for it. Furthermore, the fixture must be paired with a compatible dimmer switch (such as a standard TRIAC/Phase-cut dimmer or a 0-10V commercial dimmer) to prevent flickering and buzzing.
What does "Integrated LED" mean compared to a standard fixture?
What does "Integrated LED" mean compared to a standard fixture?
An integrated LED fixture has the LED diodes and driver built directly into the housing, meaning there are no traditional bulbs to screw in or replace. This allows for sleeker, lower-profile designs and better heat dissipation. However, if an integrated fixture fails after its warranty period, you typically have to replace the entire unit or the internal driver, rather than just swapping out a bulb.
What does the "L70" lifespan rating mean on LED fixtures?
What does the "L70" lifespan rating mean on LED fixtures?
Unlike traditional bulbs that simply burn out and go dark, LEDs gradually lose their brightness over time (lumen depreciation). The L70 rating indicates the number of operating hours it takes for the LED fixture to degrade to 70% of its original brightness. For example, a fixture rated for "50,000 hours L70" will still work after 50,000 hours, but it will be noticeably dimmer than when it was first installed.
