ND22 6" Round Wall Wash Trim Haze Reflector and Flange for ND22-20, ND22-30 and ND22-50
Available in stock (200)
About this item
About this item
- Glare-Controlled Wall Washing:The ND22T-6HRHZ-WW's unified haze finish and asymmetric optics deliver powerful vertical surface illumination with comprehensive glare management, even at outputs up to 4,700 lumens.
- Cohesive Haze Aesthetics:Matching haze reflector and flange create a sophisticated, low-contrast appearance that keeps attention focused on illuminated walls rather than the fixture itself.
- High-Output Vertical Illumination:6" aperture and compatibility with 20W-50W modules provide the coverage and power needed for large feature walls and high-ceiling architectural applications.
- Comfortable Visual Experience:Comprehensive haze finish diffuses high-output illumination, creating comfortable viewing angles in retail and hospitality environments where visual comfort drives customer experience.
- Field-Adjustable Platform:Twist-lock integration with ND22 modules enables on-site customization of wattage, color temperature (2700K-5000K), and beam angle (25°-50°) for optimized wall washing.
We process payments securely and do not store credit card information.
Description
Description
Unified Haze Wall Wash

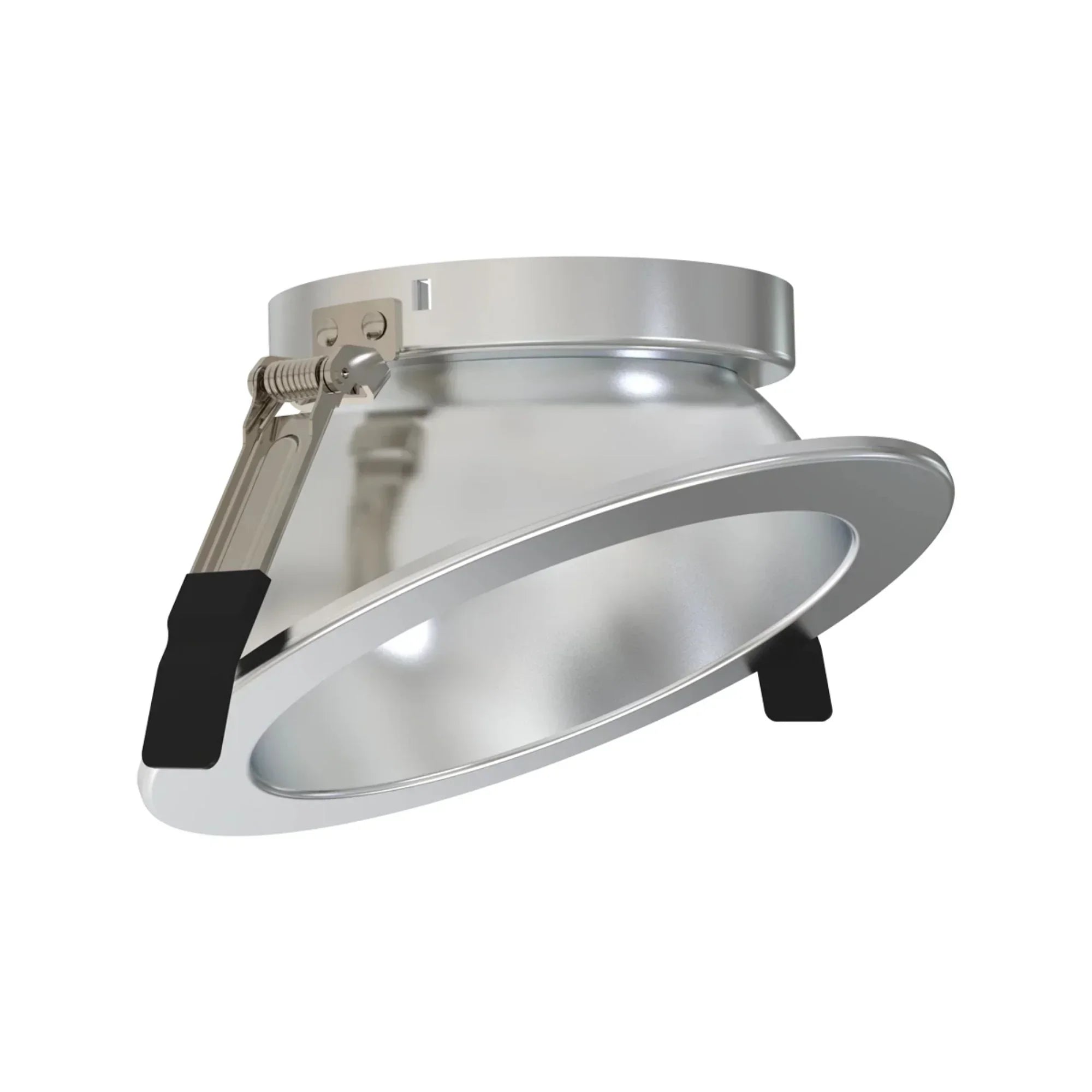

The RAB Lighting ND22T-6HRHZ-WW combines comprehensive glare control with specialized wall wash optics in a 6" round trim featuring unified haze finish across reflector and flange. Designed for ND22-20, ND22-30, and ND22-50 modules, SKU ND22T-6HRHZ-WW delivers powerful asymmetric beam control for vertical surface illumination while maintaining the sophisticated, low-contrast appearance that minimizes fixture visibility in professional commercial environments.
Glare-Controlled Wall Illumination
This 6" round wall wash trim from RAB Lighting transforms high-output downlights into comfortable accent fixtures, perfect for applications requiring powerful vertical surface illumination without harsh brightness. The unified haze finish reduces glare from modules up to 4,700 lumens while specialized optics distribute light evenly across walls, creating smooth, professional results in retail, hospitality, and architectural settings.
High-Output Wall Wash Solution

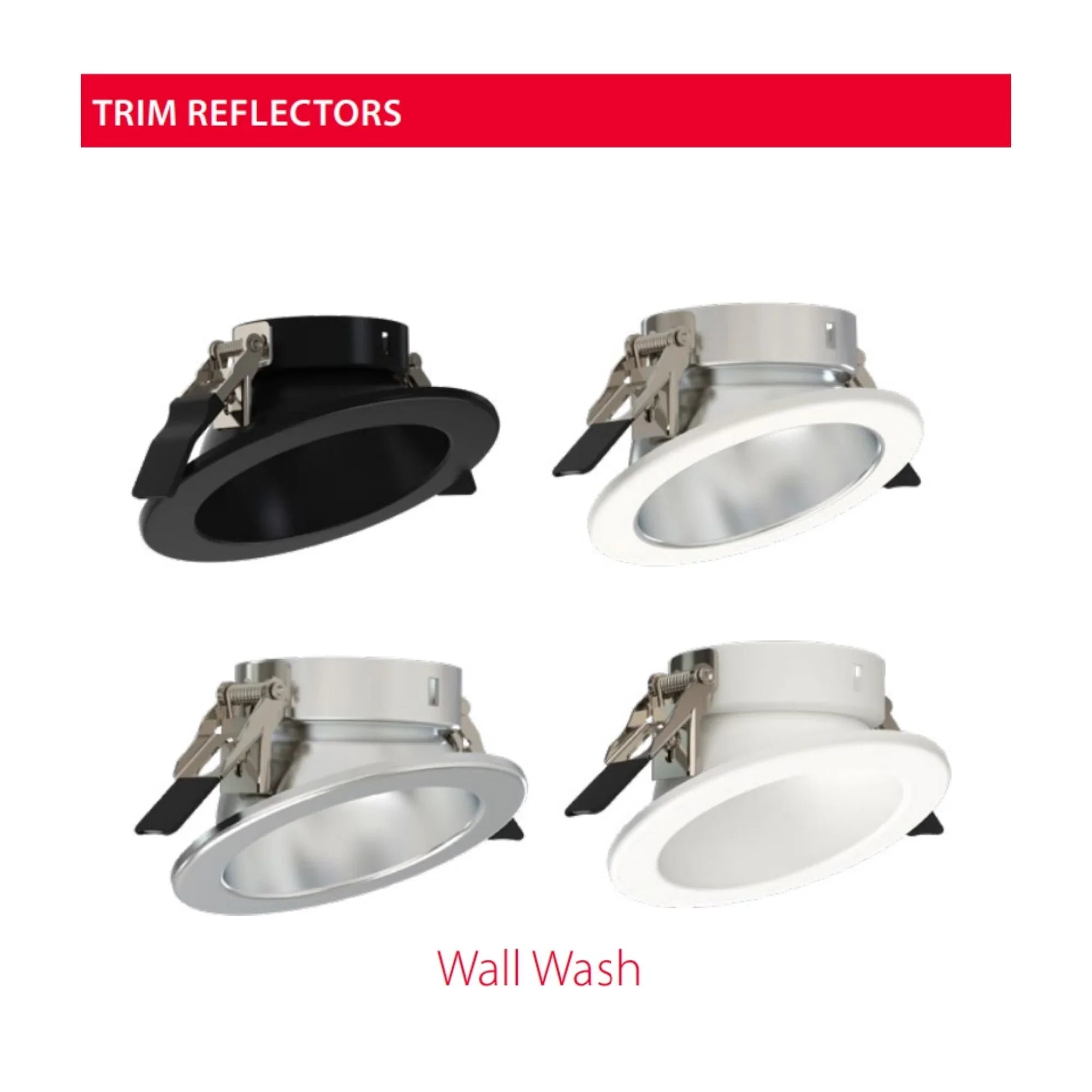

- 6" round wall wash trim with unified haze reflector and flange
- Asymmetric optics with comprehensive glare control for vertical surfaces
- Compatible with ND22-20 (1,850lm), ND22-30 (2,800lm), and ND22-50 (4,700lm) modules
- Coordinated haze finish minimizes brightness while maximizing wall coverage
- Ideal for retail displays, feature walls, galleries, and hospitality accent applications
Specifications
Specifications

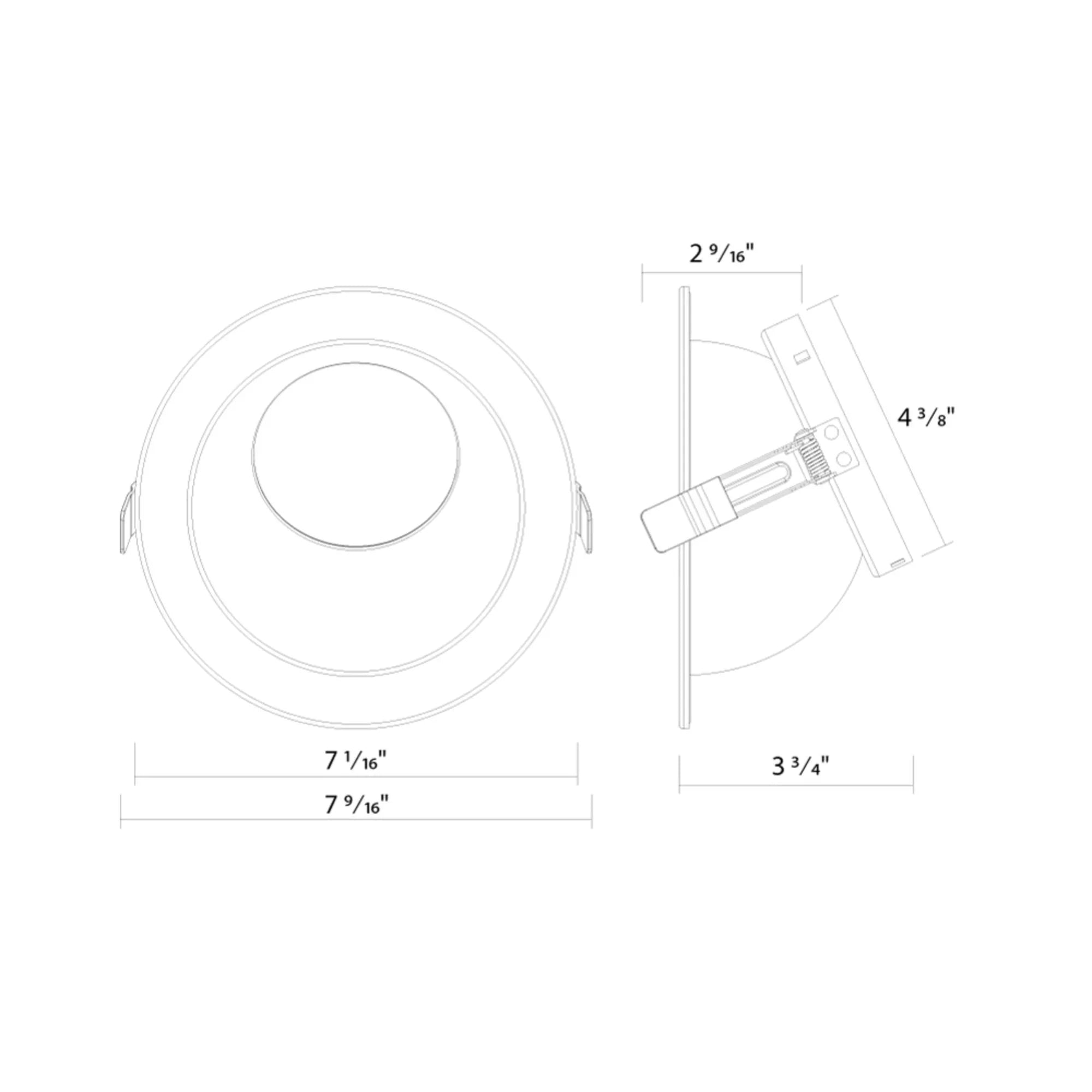

Dimensions
Style & Materials
Characteristics & Features
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the difference between Lumens and Watts?
What is the difference between Lumens and Watts?
Watts measure the amount of electrical energy a fixture consumes, while lumens measure the actual brightness (the amount of visible light produced). In the LED era, wattage is no longer a reliable indicator of brightness. When replacing old fixtures or comparing new ones, always look at the lumen output to determine how bright the light will be.
What is Color Rendering Index (CRI) and why does it matter?
What is Color Rendering Index (CRI) and why does it matter?
CRI is a scale from 0 to 100 that measures how accurately a light source reveals the true colors of objects compared to natural sunlight. A higher CRI (90+) ensures colors look vibrant and accurate, which is critical for retail displays, kitchen countertops, and bathroom vanities. A lower CRI (under 80) can make colors look washed out or dull, regardless of the color temperature.
How do I know if my light fixture is dimmable?
How do I know if my light fixture is dimmable?
For traditional incandescent fixtures, dimmability depended purely on the bulb. For modern LED lighting, dimmability depends on the internal LED driver or the specific LED bulb used. A fixture is only dimmable if its driver is explicitly rated for it. Furthermore, the fixture must be paired with a compatible dimmer switch (such as a standard TRIAC/Phase-cut dimmer or a 0-10V commercial dimmer) to prevent flickering and buzzing.
What does "Integrated LED" mean compared to a standard fixture?
What does "Integrated LED" mean compared to a standard fixture?
An integrated LED fixture has the LED diodes and driver built directly into the housing, meaning there are no traditional bulbs to screw in or replace. This allows for sleeker, lower-profile designs and better heat dissipation. However, if an integrated fixture fails after its warranty period, you typically have to replace the entire unit or the internal driver, rather than just swapping out a bulb.
What does the "L70" lifespan rating mean on LED fixtures?
What does the "L70" lifespan rating mean on LED fixtures?
Unlike traditional bulbs that simply burn out and go dark, LEDs gradually lose their brightness over time (lumen depreciation). The L70 rating indicates the number of operating hours it takes for the LED fixture to degrade to 70% of its original brightness. For example, a fixture rated for "50,000 hours L70" will still work after 50,000 hours, but it will be noticeably dimmer than when it was first installed.
