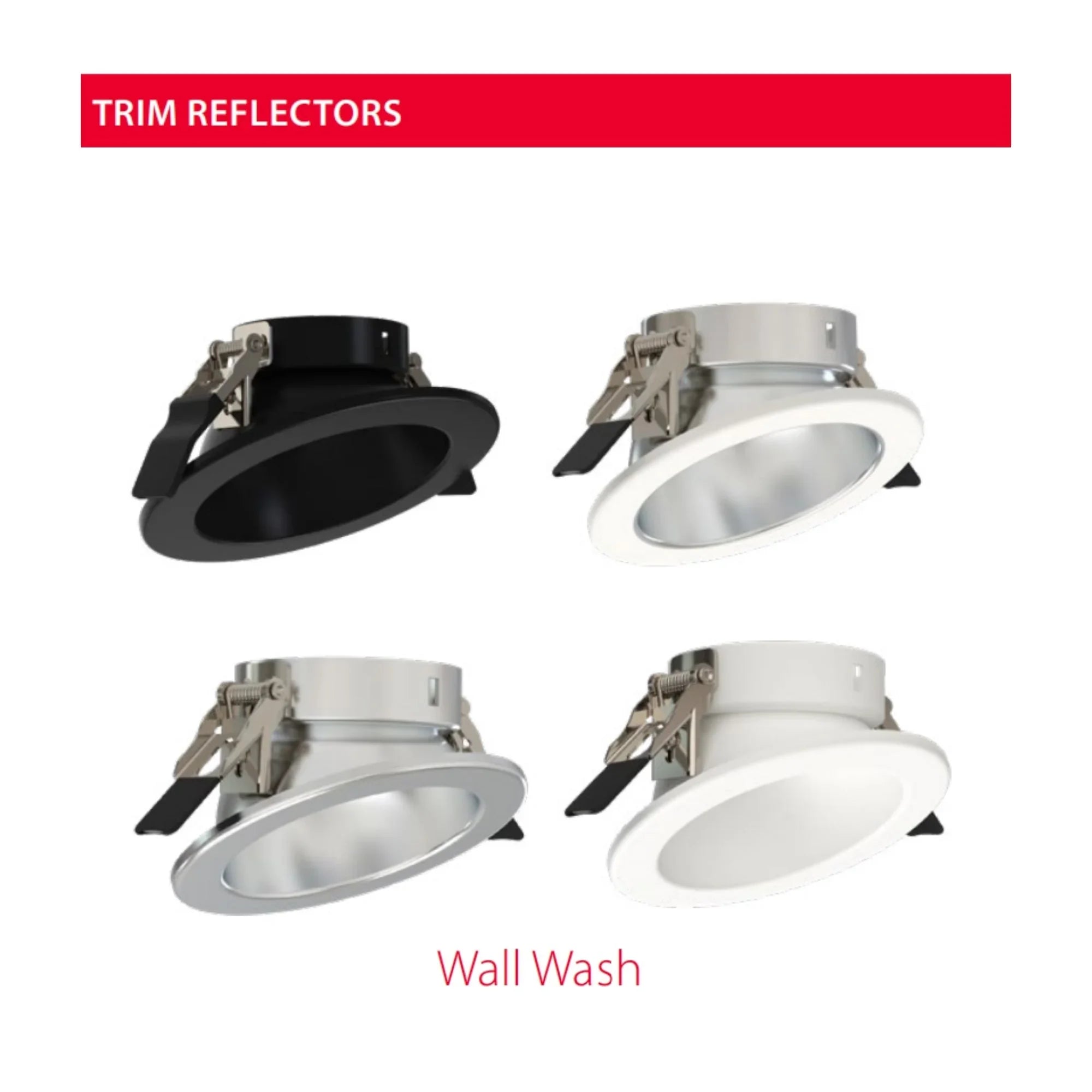

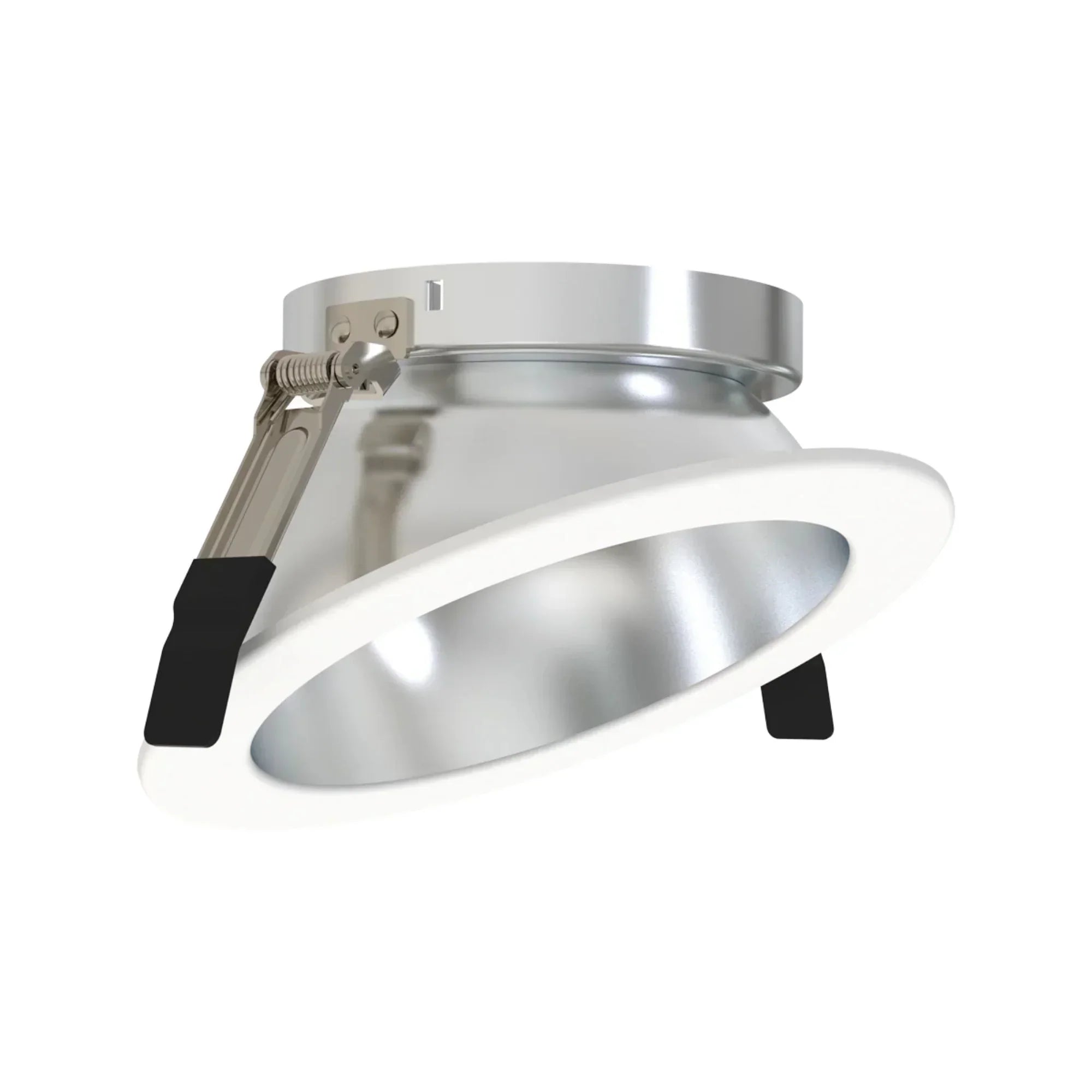

ND22 6" Round Wall Wash Trim Haze Reflector and White Flange for ND22-20, ND22-30 and ND22-50
Available in stock (200)
About this item
About this item
- Controlled Wall Wash Performance:The ND22T-6HRHW-WW's haze reflector and asymmetric optics work together to deliver powerful, glare-controlled vertical surface illumination with outputs up to 4,700 lumens.
- Refined Dual-Finish Design:Haze reflector reduces brightness and glare while white flange integrates seamlessly with ceiling finishes, balancing visual comfort with clean architectural aesthetics.
- Large-Scale Wall Illumination:6" aperture and high-output module compatibility provide the coverage and power needed for tall feature walls, large retail displays, and hospitality applications.
- Professional Glare Management:Haze finish diffuses light output from high-wattage modules, creating comfortable viewing angles in retail and hospitality environments where visual comfort is critical.
- Modular Customization:Full compatibility with ND22's field-adjustable platform enables on-site selection of wattage, color temperature, and beam angle to match specific wall washing requirements.
We process payments securely and do not store credit card information.
Description
Description
Dual-Finish Wall Wash Excellence
The RAB Lighting ND22T-6HRHW-WW combines sophisticated two-tone aesthetics with specialized wall wash optics in a 6" round trim for ND22-20, ND22-30, and ND22-50 modules. SKU ND22T-6HRHW-WW features a haze reflector for glare control paired with a white flange for ceiling integration, delivering powerful asymmetric beam control for vertical surface illumination in high-output commercial applications where both performance and aesthetics matter.
Architectural Wall Washing
This 6" round wall wash trim from RAB Lighting transforms high-output downlights into precision accent fixtures, perfect for highlighting large feature walls, retail displays, and architectural elements. The haze reflector reduces glare while specialized optics ensure even light distribution across vertical surfaces, and the white flange maintains clean ceiling aesthetics in professional commercial environments.
High-Performance Accent Lighting
- 6" round wall wash trim with haze reflector and white flange
- Asymmetric optics engineered for uniform vertical surface coverage
- Compatible with ND22-20 (1,850lm), ND22-30 (2,800lm), and ND22-50 (4,700lm) modules
- Glare-controlled haze finish with ceiling-integrated white flange
- Perfect for retail displays, feature walls, hospitality lobbies, and architectural accent applications
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the difference between Lumens and Watts?
What is the difference between Lumens and Watts?
Watts measure the amount of electrical energy a fixture consumes, while lumens measure the actual brightness (the amount of visible light produced). In the LED era, wattage is no longer a reliable indicator of brightness. When replacing old fixtures or comparing new ones, always look at the lumen output to determine how bright the light will be.
What is Color Rendering Index (CRI) and why does it matter?
What is Color Rendering Index (CRI) and why does it matter?
CRI is a scale from 0 to 100 that measures how accurately a light source reveals the true colors of objects compared to natural sunlight. A higher CRI (90+) ensures colors look vibrant and accurate, which is critical for retail displays, kitchen countertops, and bathroom vanities. A lower CRI (under 80) can make colors look washed out or dull, regardless of the color temperature.
How do I know if my light fixture is dimmable?
How do I know if my light fixture is dimmable?
For traditional incandescent fixtures, dimmability depended purely on the bulb. For modern LED lighting, dimmability depends on the internal LED driver or the specific LED bulb used. A fixture is only dimmable if its driver is explicitly rated for it. Furthermore, the fixture must be paired with a compatible dimmer switch (such as a standard TRIAC/Phase-cut dimmer or a 0-10V commercial dimmer) to prevent flickering and buzzing.
What does "Integrated LED" mean compared to a standard fixture?
What does "Integrated LED" mean compared to a standard fixture?
An integrated LED fixture has the LED diodes and driver built directly into the housing, meaning there are no traditional bulbs to screw in or replace. This allows for sleeker, lower-profile designs and better heat dissipation. However, if an integrated fixture fails after its warranty period, you typically have to replace the entire unit or the internal driver, rather than just swapping out a bulb.
What does the "L70" lifespan rating mean on LED fixtures?
What does the "L70" lifespan rating mean on LED fixtures?
Unlike traditional bulbs that simply burn out and go dark, LEDs gradually lose their brightness over time (lumen depreciation). The L70 rating indicates the number of operating hours it takes for the LED fixture to degrade to 70% of its original brightness. For example, a fixture rated for "50,000 hours L70" will still work after 50,000 hours, but it will be noticeably dimmer than when it was first installed.
