ND22 3" Round Wall Wash Trim Haze Reflector and White Flange for ND22-12
Available in stock (200)
About this item
About this item
- Soft Diffused Wall Washing: The 3" round wall wash trim with haze reflector delivers soft, diffused vertical surface illumination with superior glare control.
- Asymmetric Optics with Glare Control: Specialized asymmetric optics direct light toward walls with superior glare control for comfortable display and accent lighting.
- Clean Professional Integration: The haze reflective surface and white flange provide comfortable wall grazing with clean ceiling integration.
- Tool-Free Field Swapping: The twist-lock design enables tool-free field swapping without disturbing ceiling finishes or wiring for easy changes.
- Refined Accent Lighting: Compatible with the ND22-12 modular engine delivering 1000 lumens at 12W for refined accent wall washing applications.
We process payments securely and do not store credit card information.
Description
Description
Comfortable Wall Grazing with Glare Control
The RAB Lighting ND22T-3RHW-WW is a 3" round wall wash trim featuring a haze reflector and white flange designed for the ND22-12 modular engine. This specialized twist-lock trim delivers soft, diffused wall grazing with superior glare control through its haze reflective surface and asymmetric optics that direct light toward vertical surfaces.

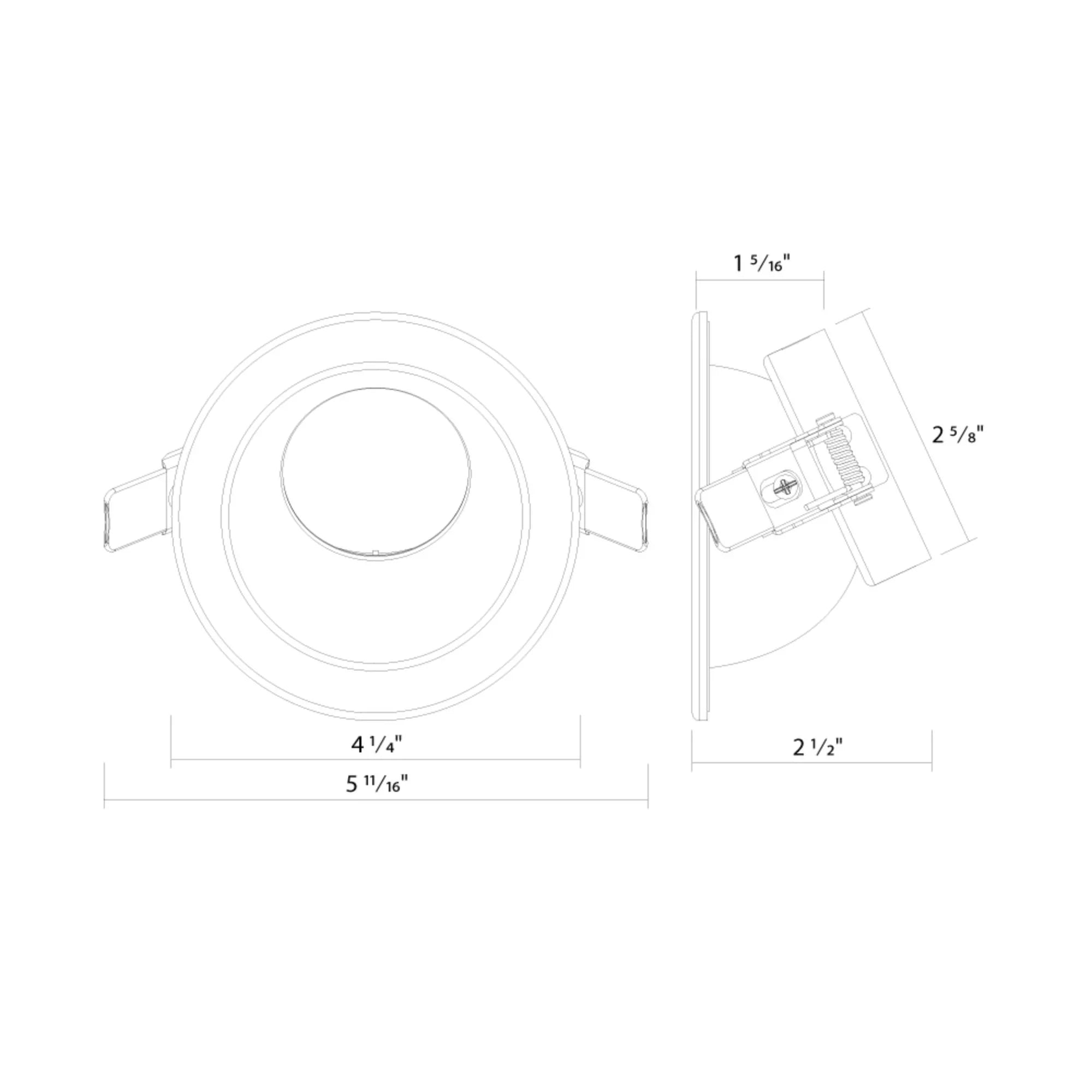

- 3" round wall wash aperture
- Haze reflector with white flange
- Asymmetric wall wash optics
- Compatible with ND22-12 engine only
Refined Wall Washing for Sensitive Environments
Compatible exclusively with the ND22-12 engine (1000 lumens, 12W), the ND22T-3RHW-WW by RAB Lighting provides refined wall washing ideal for retail displays, art galleries, hospitality, and commercial applications requiring comfortable vertical surface illumination with glare control.
Modular Flexibility

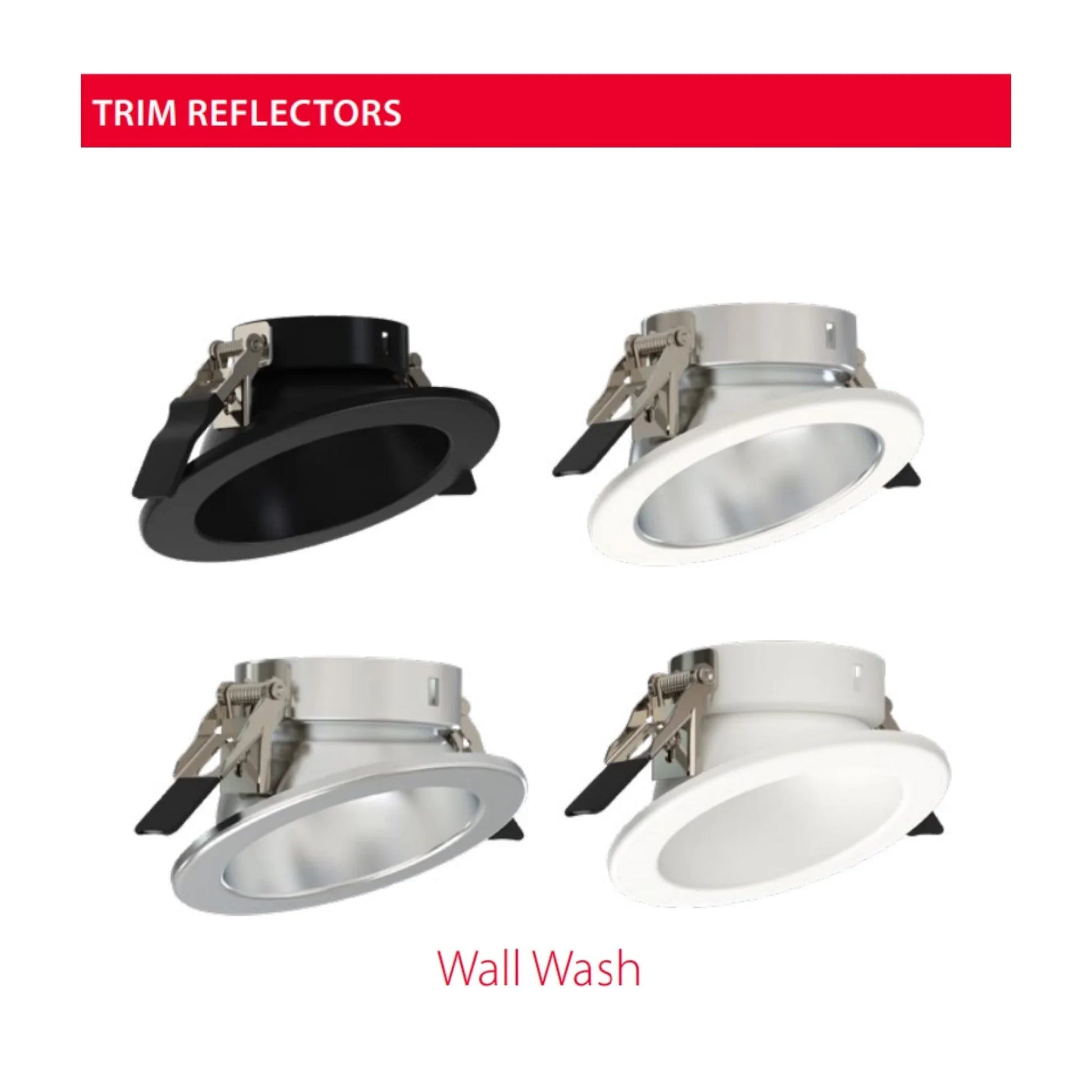

Part of the comprehensive ND22 trim ecosystem offering unlimited customization possibilities. Twist-lock design enables tool-free field swapping for aesthetic updates without ceiling or wiring disturbance.
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the difference between Lumens and Watts?
What is the difference between Lumens and Watts?
Watts measure the amount of electrical energy a fixture consumes, while lumens measure the actual brightness (the amount of visible light produced). In the LED era, wattage is no longer a reliable indicator of brightness. When replacing old fixtures or comparing new ones, always look at the lumen output to determine how bright the light will be.
What is Color Rendering Index (CRI) and why does it matter?
What is Color Rendering Index (CRI) and why does it matter?
CRI is a scale from 0 to 100 that measures how accurately a light source reveals the true colors of objects compared to natural sunlight. A higher CRI (90+) ensures colors look vibrant and accurate, which is critical for retail displays, kitchen countertops, and bathroom vanities. A lower CRI (under 80) can make colors look washed out or dull, regardless of the color temperature.
How do I know if my light fixture is dimmable?
How do I know if my light fixture is dimmable?
For traditional incandescent fixtures, dimmability depended purely on the bulb. For modern LED lighting, dimmability depends on the internal LED driver or the specific LED bulb used. A fixture is only dimmable if its driver is explicitly rated for it. Furthermore, the fixture must be paired with a compatible dimmer switch (such as a standard TRIAC/Phase-cut dimmer or a 0-10V commercial dimmer) to prevent flickering and buzzing.
What does "Integrated LED" mean compared to a standard fixture?
What does "Integrated LED" mean compared to a standard fixture?
An integrated LED fixture has the LED diodes and driver built directly into the housing, meaning there are no traditional bulbs to screw in or replace. This allows for sleeker, lower-profile designs and better heat dissipation. However, if an integrated fixture fails after its warranty period, you typically have to replace the entire unit or the internal driver, rather than just swapping out a bulb.
What does the "L70" lifespan rating mean on LED fixtures?
What does the "L70" lifespan rating mean on LED fixtures?
Unlike traditional bulbs that simply burn out and go dark, LEDs gradually lose their brightness over time (lumen depreciation). The L70 rating indicates the number of operating hours it takes for the LED fixture to degrade to 70% of its original brightness. For example, a fixture rated for "50,000 hours L70" will still work after 50,000 hours, but it will be noticeably dimmer than when it was first installed.
