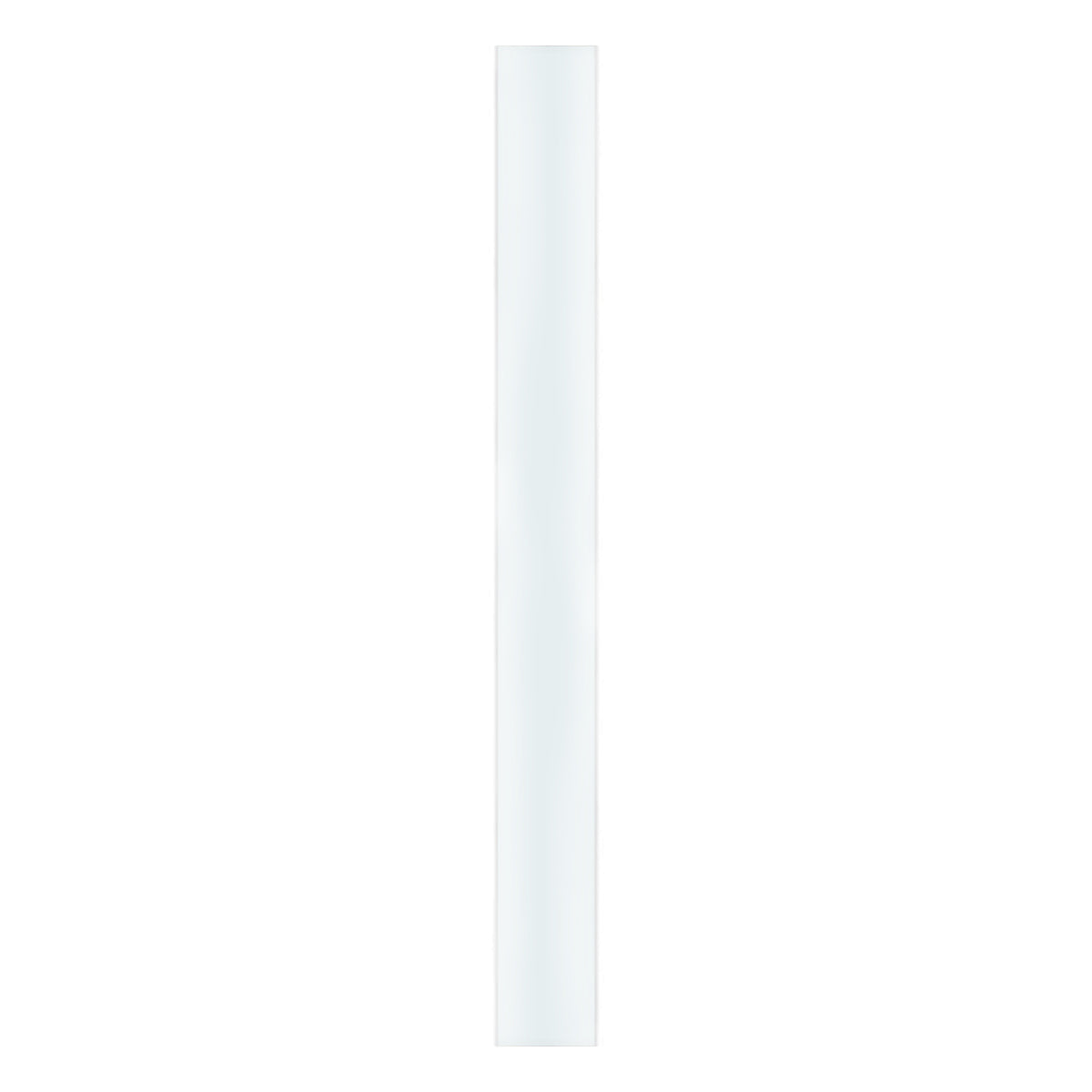

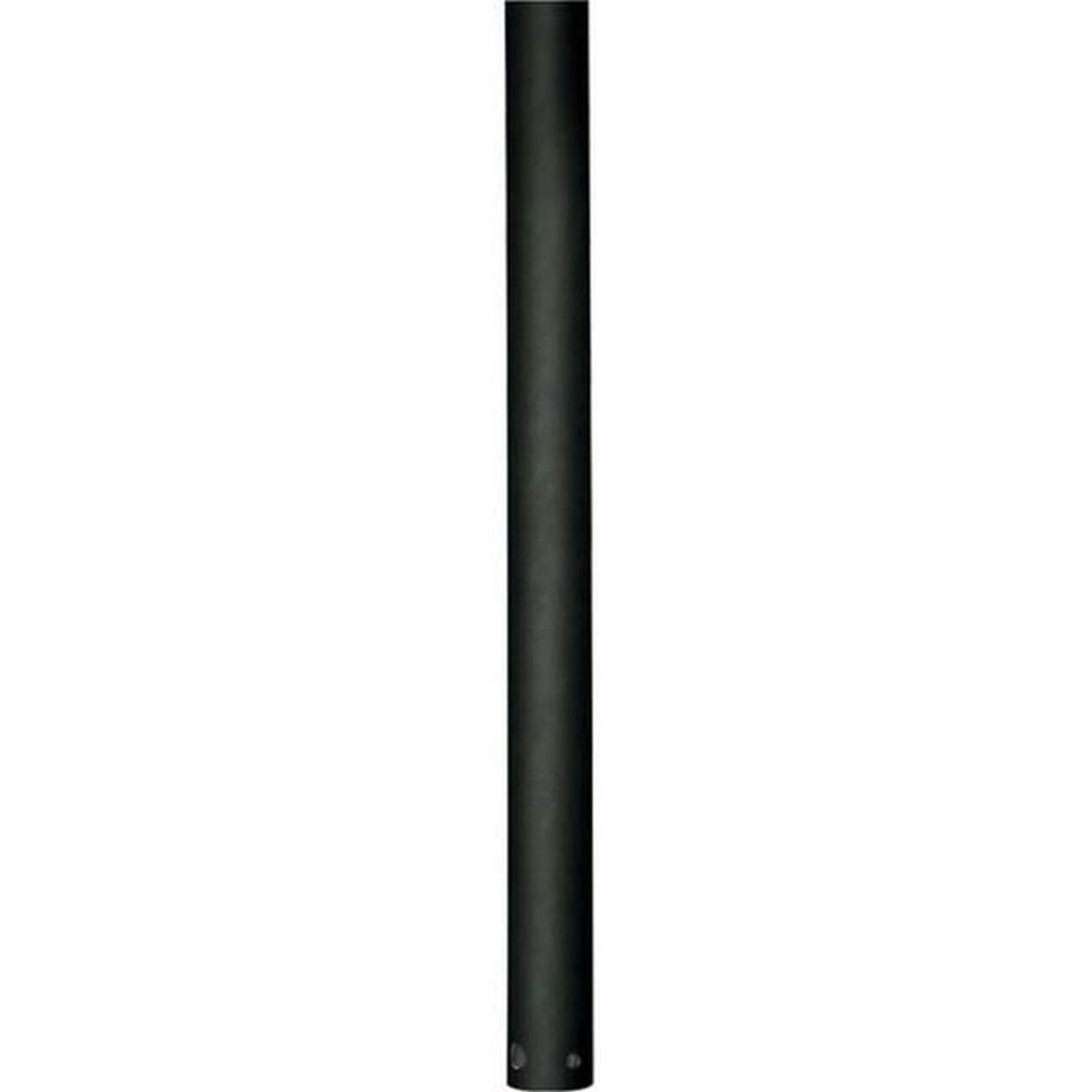

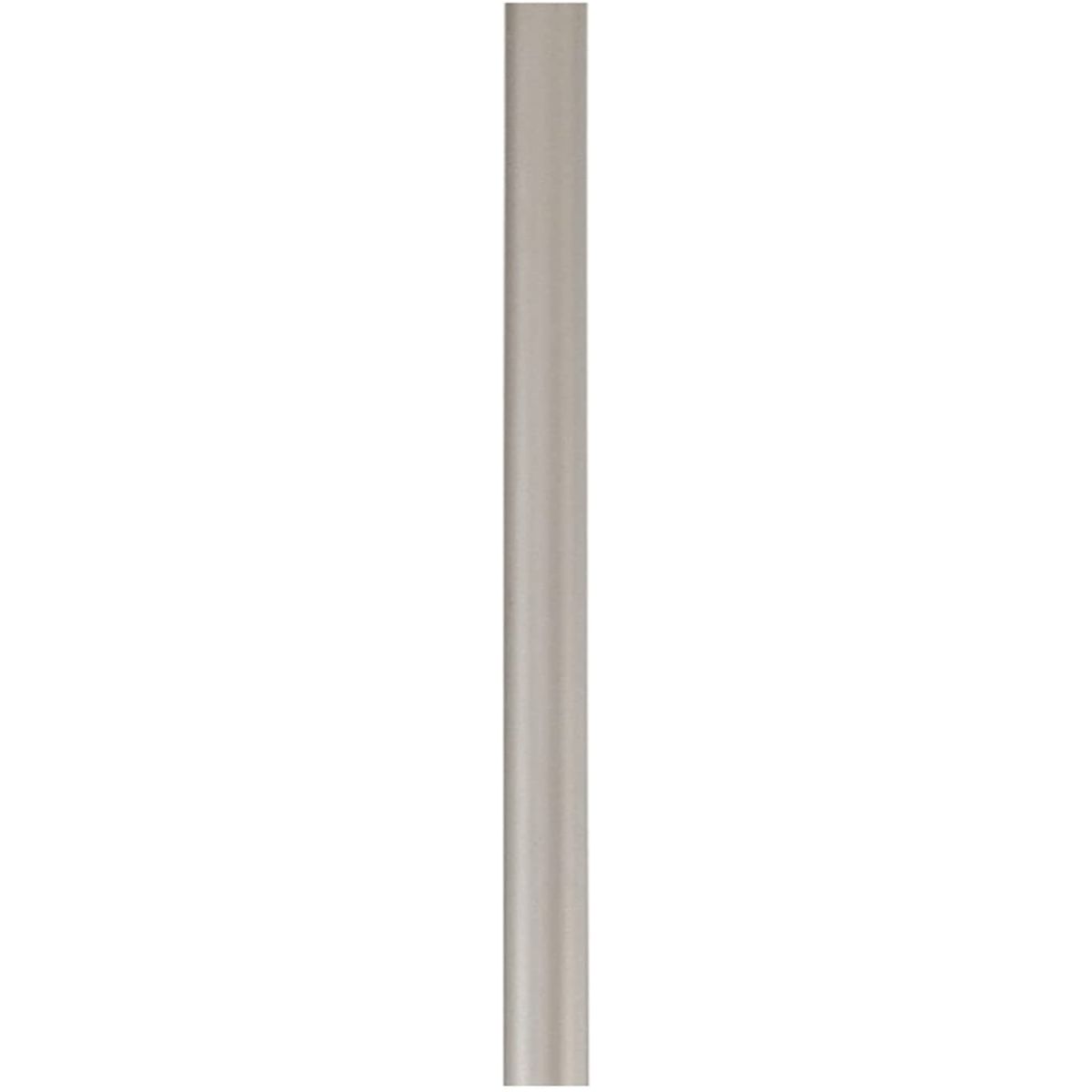

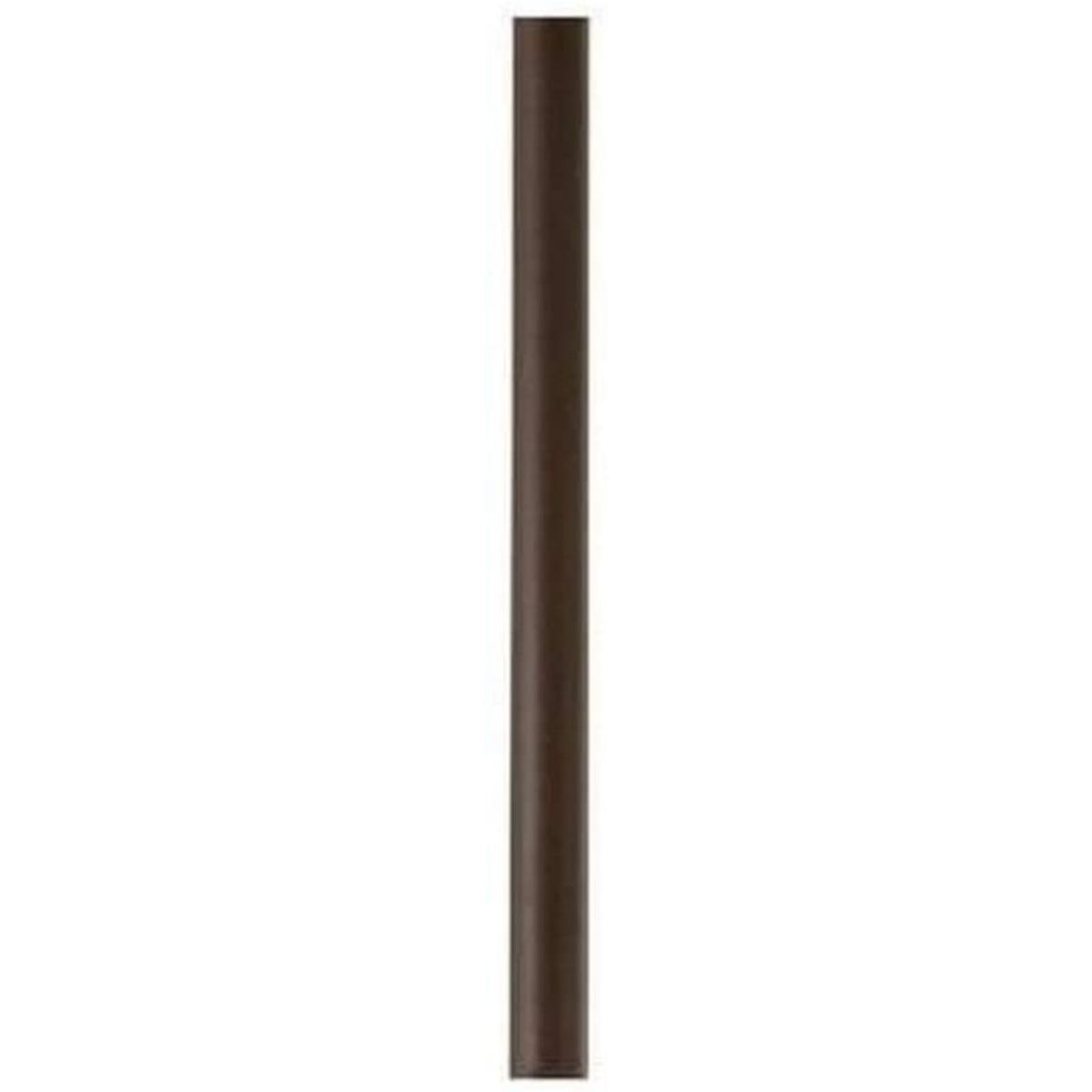

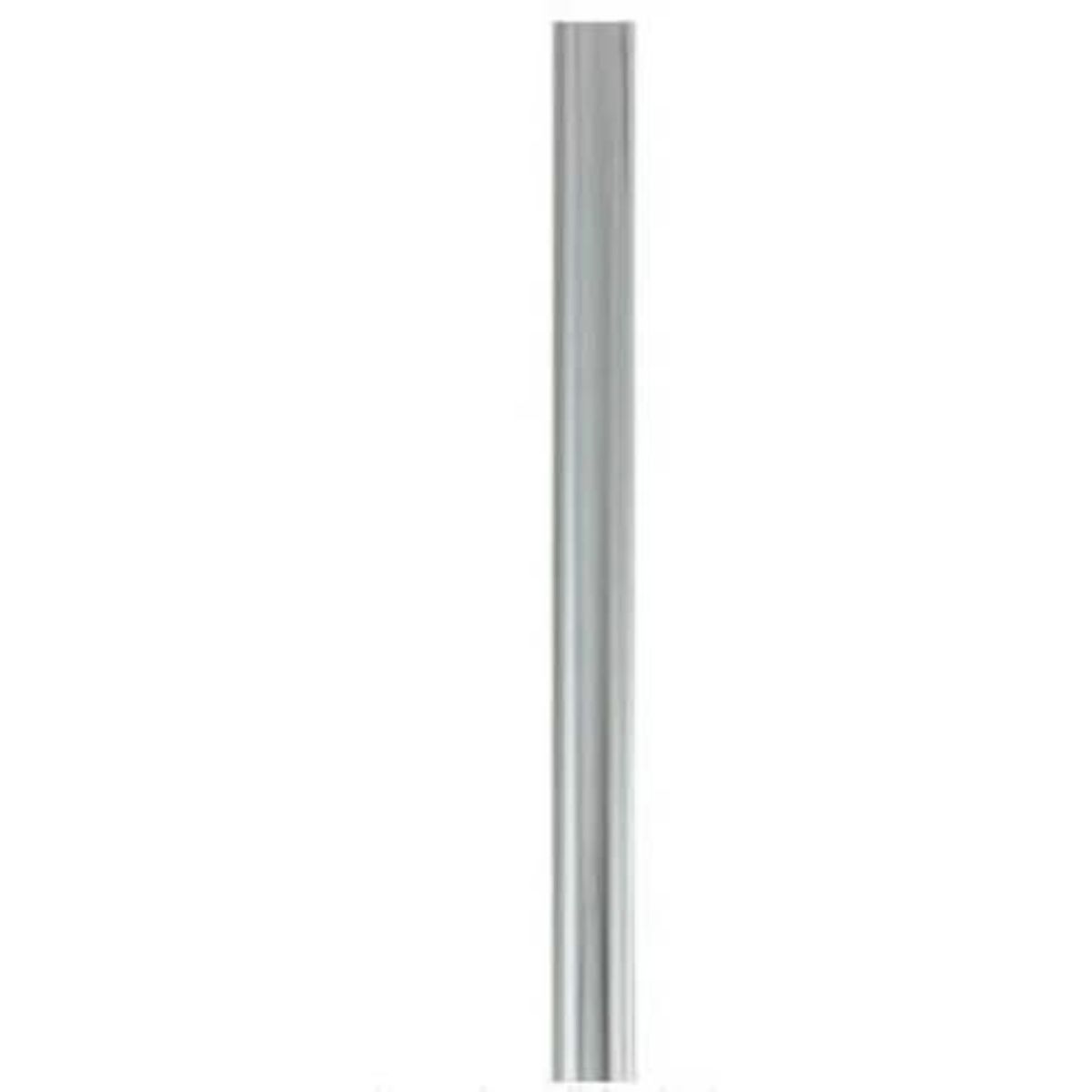

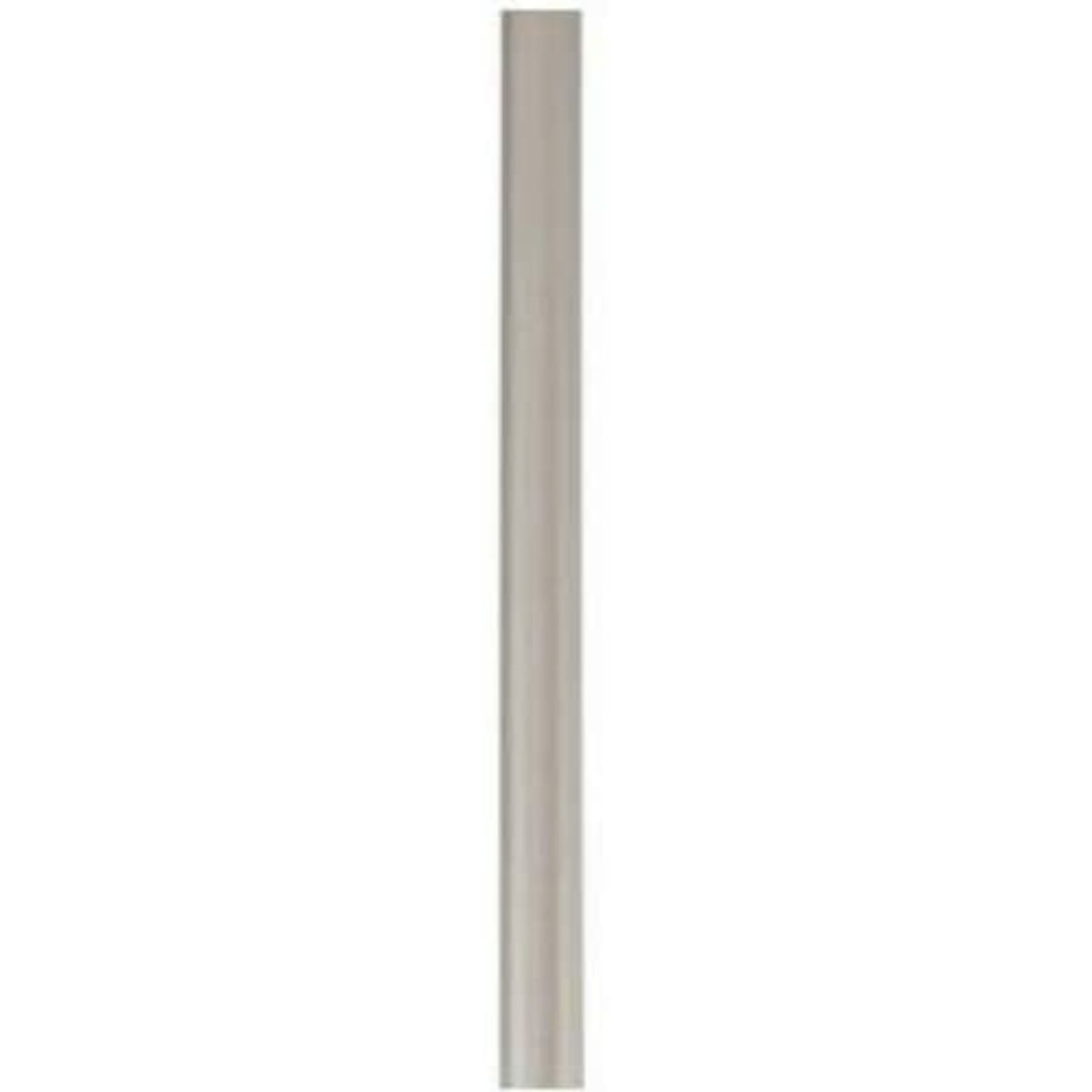

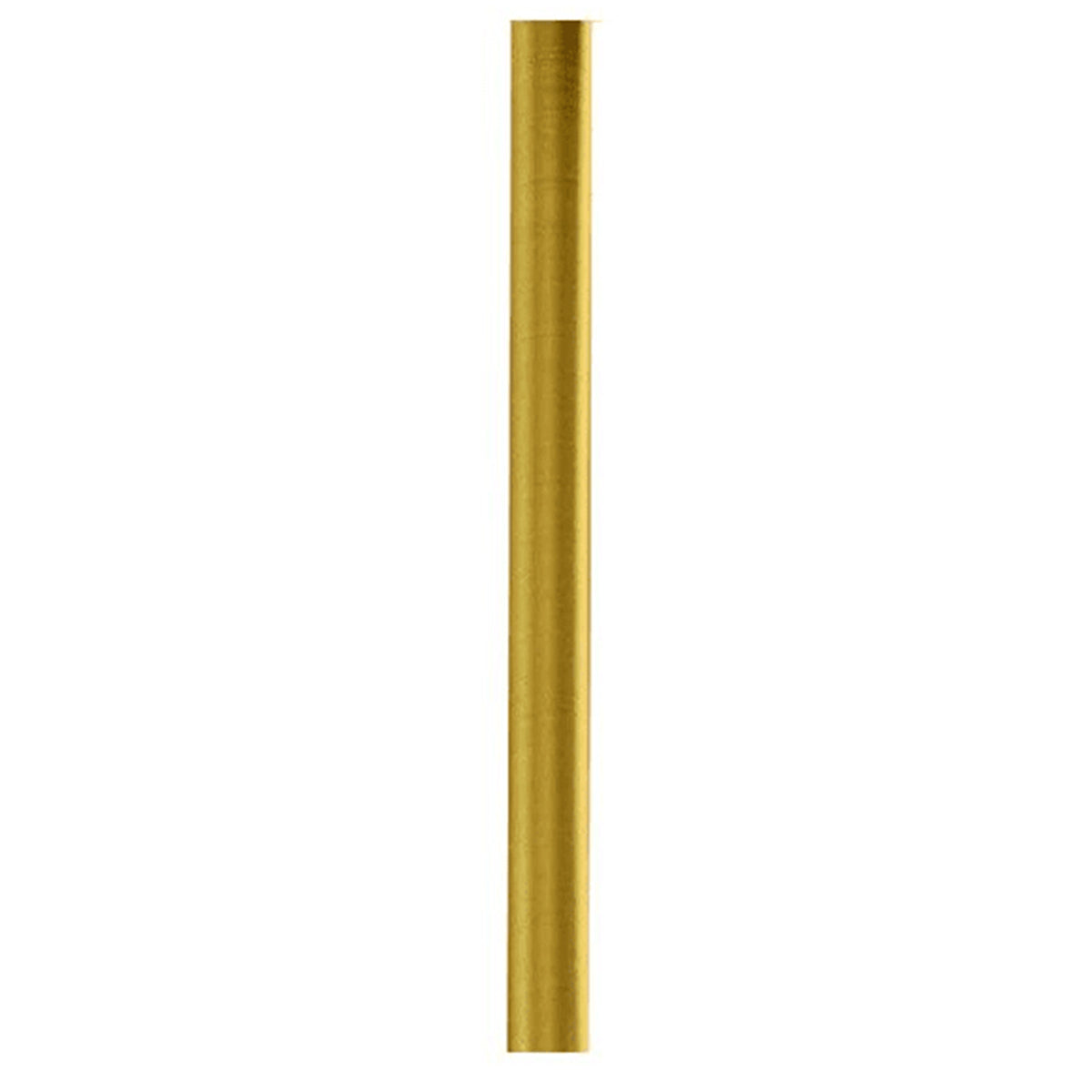

Matthews Atlas Ceiling Fan Downrod
Available in stock (32)
About this item
About this item
- 1 in Outer Diameter: Specified for compatible Atlas downrod connections.
- Selectable Length: Choose 5, 10, 20, 30, 48 or 72 in to suit the installation.
- Field-Cuttable Design: Shorten the rod according to the compatible fan's installation instructions.
- Non-Threaded Connection: Double-pinned design; match the fan's attachment requirements.
- Coordinated Finishes: Choose from the available metallic, bronze, black and white finishes.
We process payments securely and do not store credit card information.
Description
Description
Matthews Atlas Ceiling Fan Downrods, AT Series
Set the hanging height of your compatible ceiling fan while maintaining a coordinated finish from canopy to motor. Atlas downrods have a 1 in outer diameter and a field-cuttable, non-threaded, double-pinned design. This listing offers 5, 10, 20, 30, 48 and 72 in lengths in the available finish selections.
Key Features
- Outer diameter: 1 in.
- Length selection: 5, 10, 20, 30, 48 or 72 in.
- Field-cuttable: Can be shortened for the installation according to the compatible fan's instructions.
- Connection: Non-threaded, double-pinned design.
- Finish coordination: Matte Black, Brushed Bronze, Gloss White, Textured Bronze, Polished Chrome, Brushed Brass or Brushed Nickel.
Construction & Finish
Steel construction provides the downrod body. Choose the finish that coordinates with the fan and canopy. The selected length determines the downrod dimension; it is not the complete fan assembly's overall drop.
Compatibility & Installation
Select this accessory for a fan installation requiring an Atlas 1 in outer-diameter, non-threaded, double-pinned downrod. Match the connection requirements in the fan's installation instructions before fitting or cutting the rod. A matching diameter alone does not establish universal compatibility. Final fan height also depends on the canopy, motor housing and blade position.
Suggested Downrod by Ceiling Height
The supplied manufacturer chart provides the following selection guidance. Account for the specific fan's dimensions and installation clearances.
- 10 ft or less ceiling → 5 in downrod; use safety cages if applicable.
- 10 to 12 ft ceiling → 10 in downrod.
- 13 ft ceiling → 20 in downrod.
- 14 ft ceiling → 30 in downrod.
- 15 ft ceiling → 48 in downrod.
- 16 ft or higher ceiling → 72 in downrod.
Part Number Guide
The AT prefix identifies Atlas and DR identifies downrod. The number before DR identifies length in inches; the final suffix identifies finish. For example, AT-10DR-BK is the 10 in Matte Black downrod.
What's Included
Atlas ceiling fan downrod in the selected length and finish.
