Lutron Maestro Sensor Switch — White & Vacancy Mode

The Lutron MSCL-VP153M-WH is a white Maestro sensor switch featuring manual-on/auto-off vacancy mode. This sensor switch is designed to control up to 150W LED/CFL and 600W incandescent/halogen loads. It operates at 120V and offers single-pole and multi-location capabilities.

Key Features

• Voltage: Operates at 120V~ 60 Hz for standard residential applications.
• Load Ratings: Supports 150W LED/CFL and 600W incandescent/halogen loads.
• Pole Configuration: Single-pole and multi-location with up to 9 companion dimmers.
• Sensor Technology: Passive infrared with Lutron XCT Technology for enhanced motion detection.
• Timeout Options: Adjustable from 1 to 30 minutes for customized control.
• Neutral Wire: Not required, simplifying installation in existing setups.
• Advanced Dimming: Features include fade-to-on, fade-to-off, and locked preset levels.
• Dimensions: Measures 4.70 in. height, 2.90 in. width, and 1.60 in. depth.
• Certifications: UL Listed, Title 20/24 compliant, NOM Certified.
• Special Features: Includes ambient light detection and off while occupied settings.

Construction & Interface

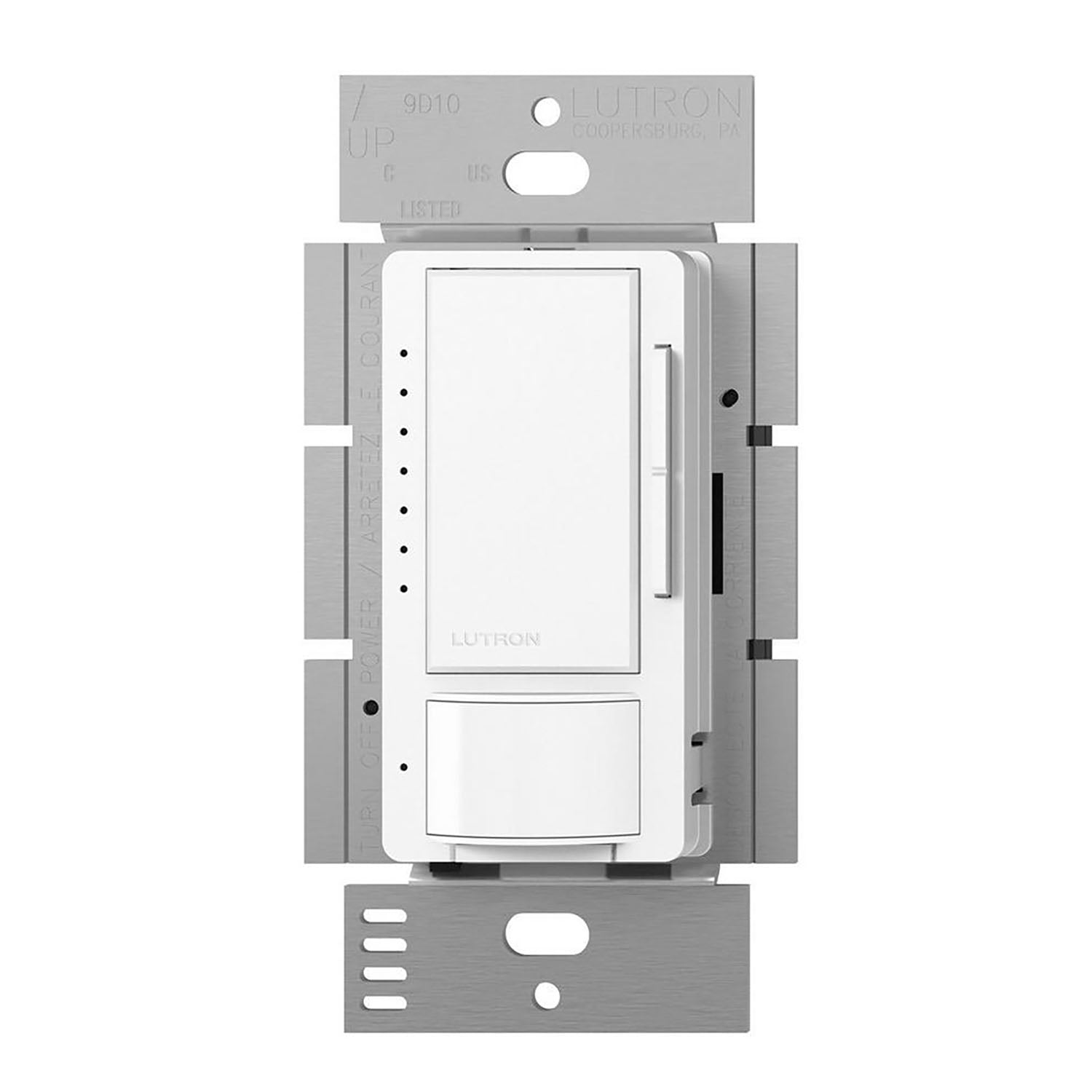

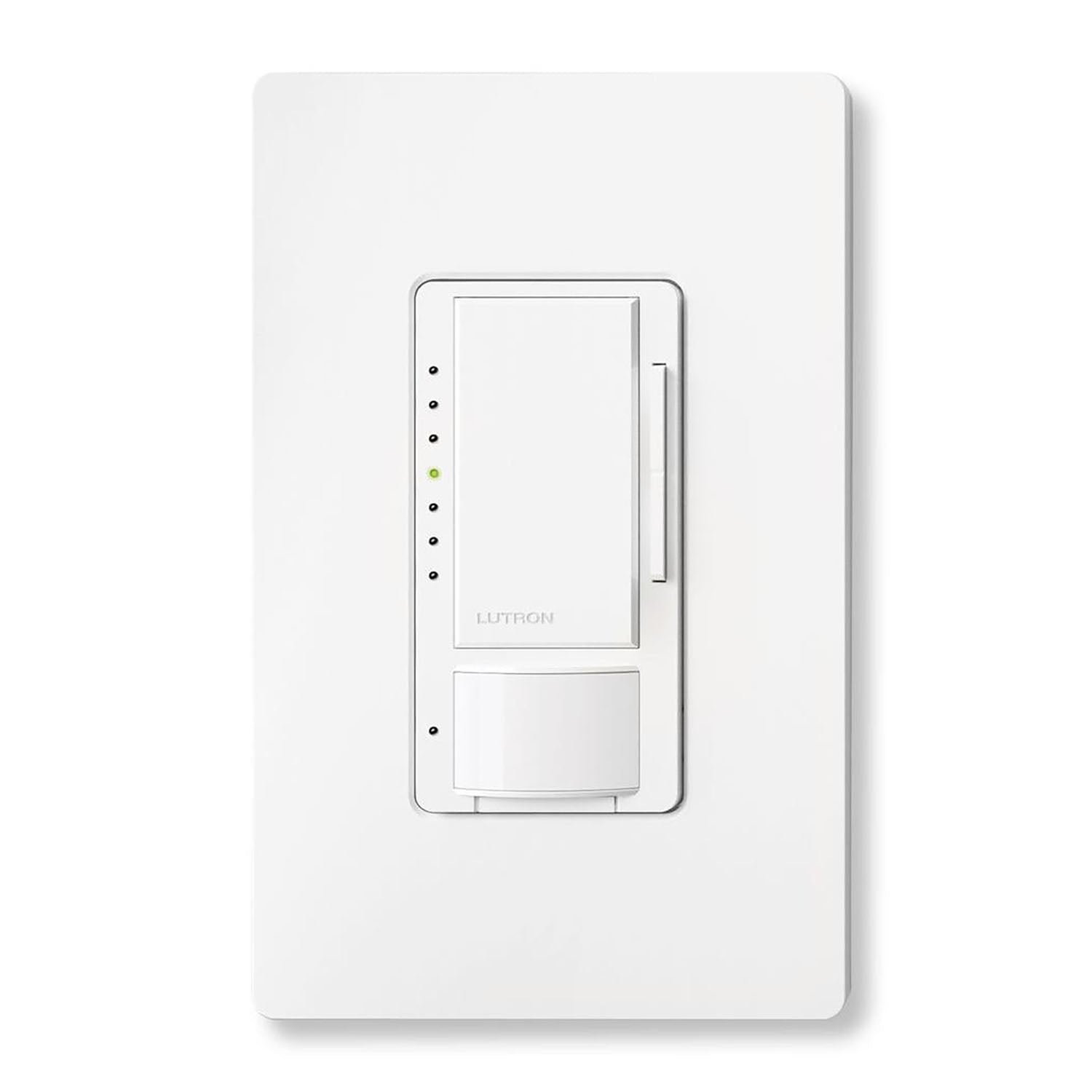

The sensor switch features a sleek white finish with a user-friendly interface including a dimming rocker and tapswitch for easy operation. Status LEDs indicate light levels and serve as a night light when off. Note that the wallplate is sold separately.

Sensor, Smart & Timer Capabilities

This sensor switch utilizes passive infrared technology with a 180-degree field-of-view, providing major motion coverage up to 900 sq ft. It supports manual-on/auto-off vacancy mode, ideal for energy savings and compliance with CA Title 24 requirements.

Wiring & Installation

The MSCL-VP153M-WH does not require a neutral wire, facilitating straightforward installation. It supports single-pole and multi-location setups with screw terminals, accommodating up to 9 companion dimmers for versatile lighting control.
