Lutron MSCL-OP153M Maestro Occupancy/Vacancy Sensor Switch, 150W LED, Single-Pole/Multi-Location, White
Available in stock (59)
About this item
About this item
- Sensor Technology: Utilizes passive infrared motion detection with Lutron XCT Technology for fine motion detection.
- Load Compatibility: Supports LED, CFL, incandescent, and halogen loads up to 150W LED/CFL and 600W incandescent/halogen.
- Operation Modes: Offers auto-on/auto-off and manual-on/auto-off settings for occupancy and vacancy modes.
- Coverage Area: Provides 180-degree field-of-view with up to 900 sq ft major motion coverage.
- Wiring Configuration: Compatible with single-pole and multi-location setups, no neutral wire required.
We process payments securely and do not store credit card information.
Description
Description

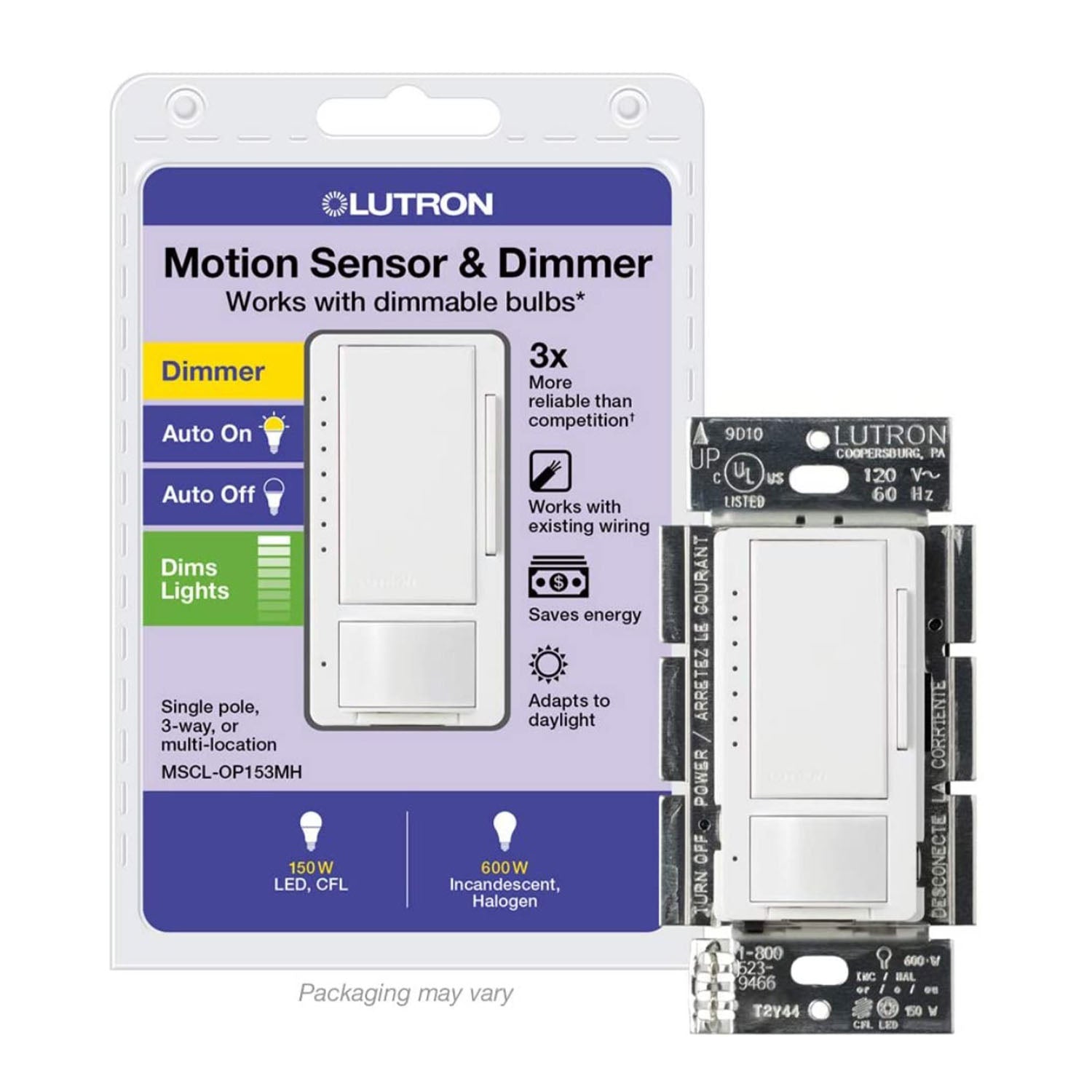

Lutron Maestro Occupancy/Vacancy Sensor Switch — White & Occupancy/Vacancy Modes

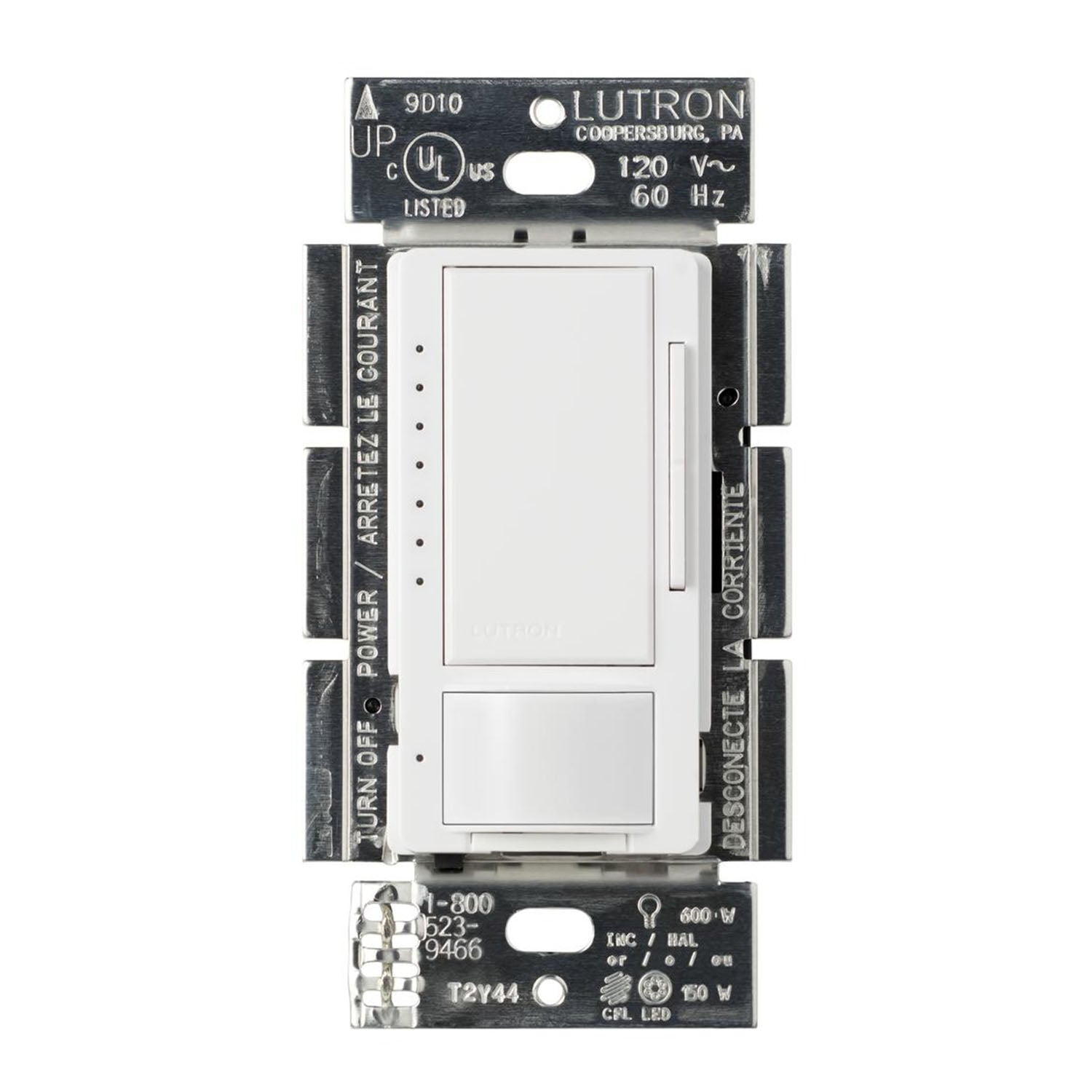

The Lutron MSCL-OP153M-WH is a Maestro occupancy/vacancy sensor switch in a white finish. This sensor switch combines a Maestro LED+ dimmer with occupancy or vacancy sensor capabilities, supporting 150W LED/CFL and 600W incandescent/halogen loads. It features single-pole and multi-location configurations, utilizing passive infrared motion detection with Lutron XCT Technology.
Key Features
- Voltage: Operates at 120V~ 60Hz.
- Load Ratings: 150W LED/CFL and 600W incandescent/halogen.
- Pole Configuration: Single-pole and multi-location capability.
- Sensor Modes: Auto-on/auto-off and manual-on/auto-off settings.
- Timeout Options: Adjustable timeout settings of 1, 3, 5, 15, or 30 minutes.
- Neutral Wire: No neutral wire required.

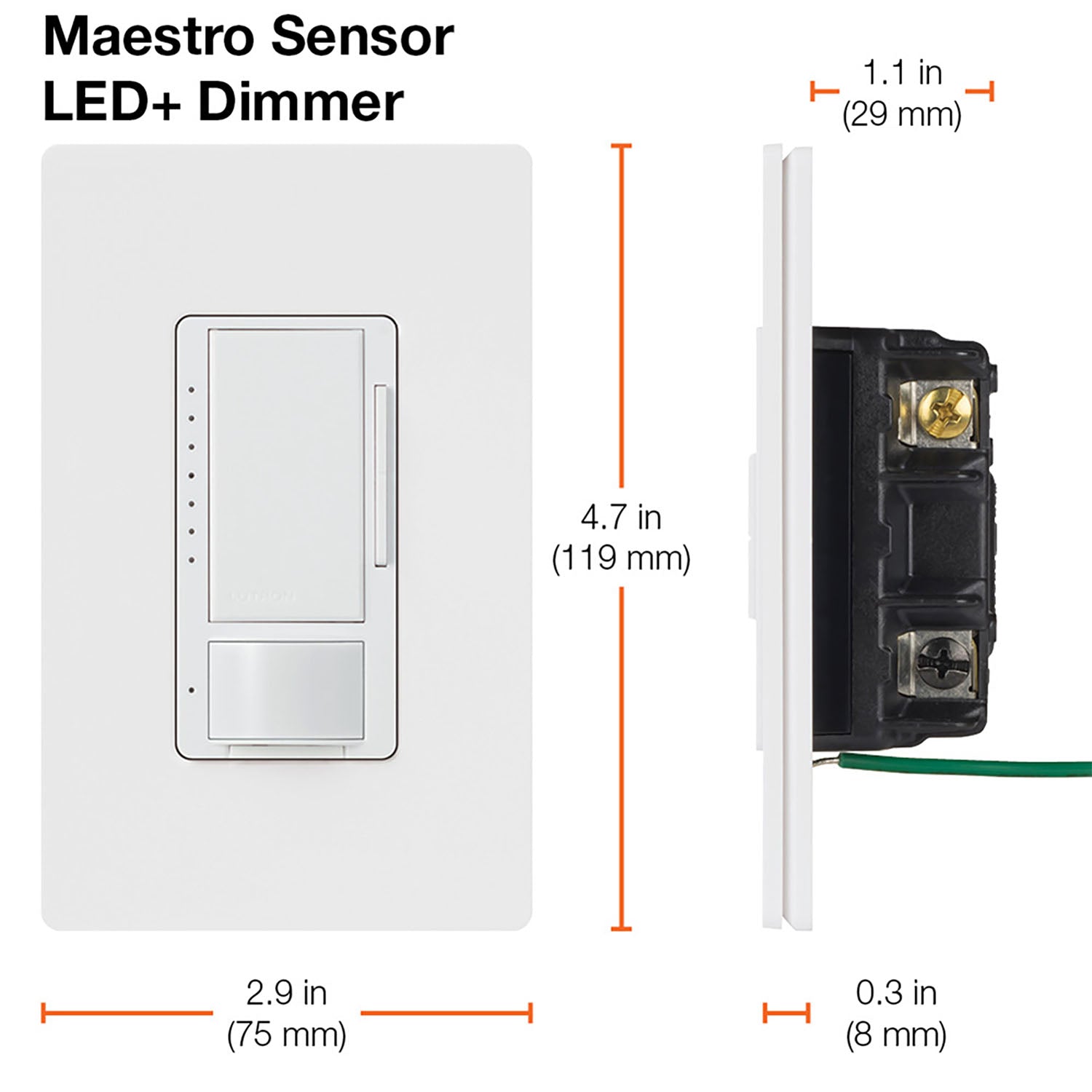

- Dimensions: 4.70 in. height x 2.90 in. width x 1.60 in. length.
- Certifications: UL Listed, Title 20/24 certified, NOM Certified.
- Special Features: Includes ambient light detection and off warning feature.
- Multi-Gang Derating: Derating required when installed adjacent to other dimmers.
Construction & Interface

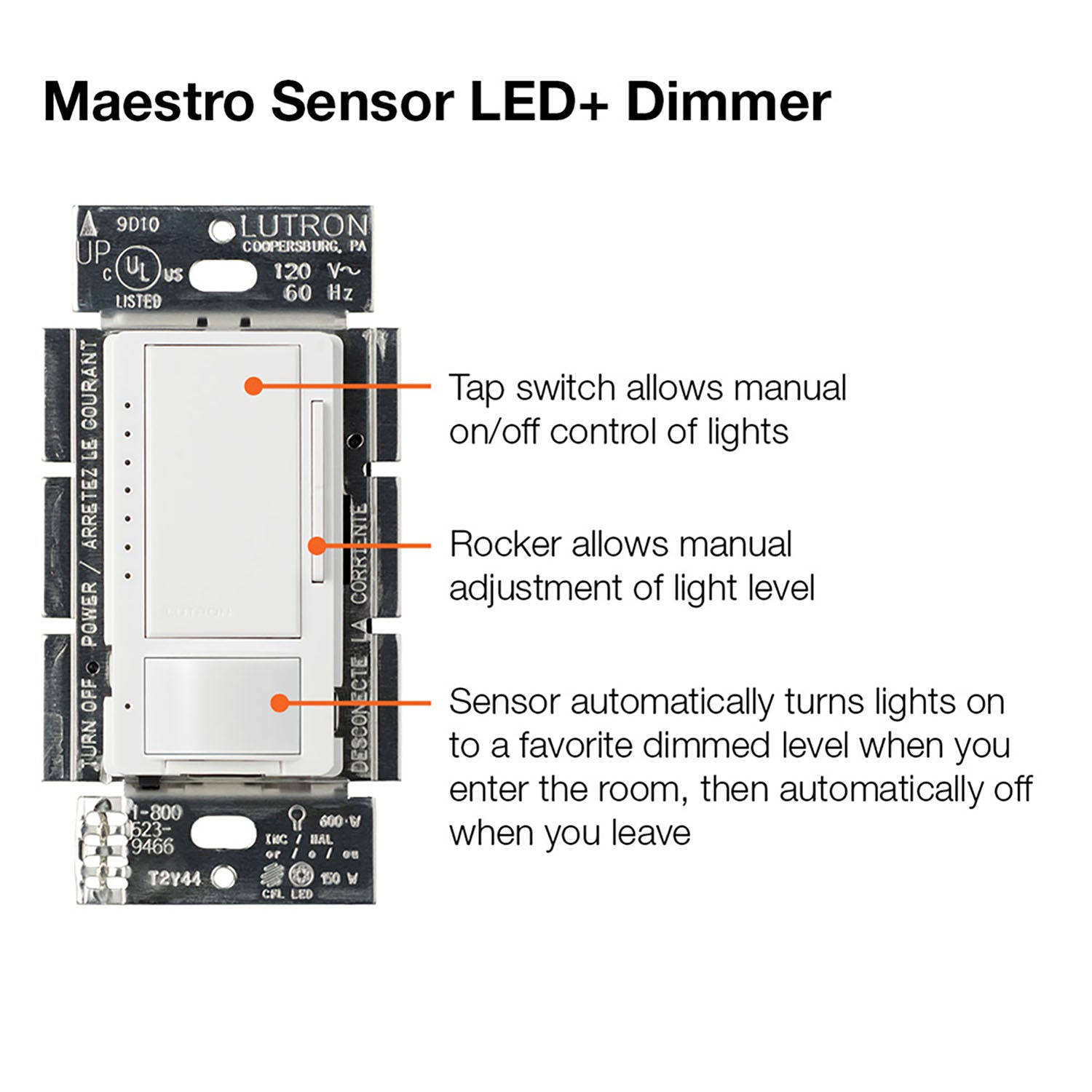

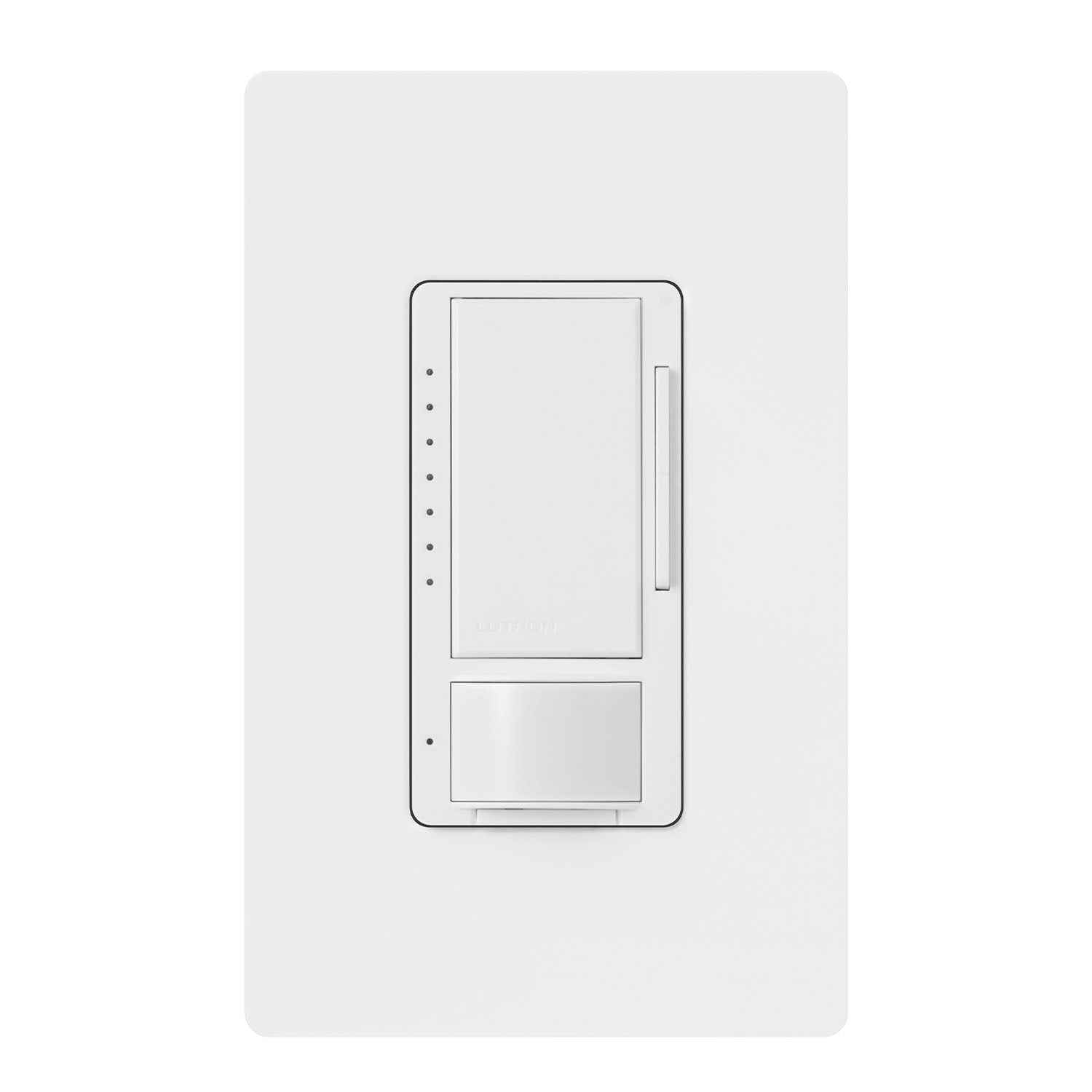

The sensor switch features a sleek white finish and includes a dimming rocker for brightness adjustment. It has status LEDs that indicate light levels and glow softly as a night light when off. The wallplate is sold separately.
Sensor, Smart & Timer Capabilities
This sensor switch offers advanced occupancy and vacancy modes with adjustable sensitivity and timeout settings. It includes ambient light detection to prevent unnecessary lighting when natural light is sufficient.
Wiring & Installation
The Lutron MSCL-OP153M-WH does not require a neutral wire, simplifying installation. It supports single-pole and multi-location configurations with screw terminals for secure connections.
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What type of loads can the Lutron MSCL-OP153M-WH control?
What type of loads can the Lutron MSCL-OP153M-WH control?
Does the Lutron MSCL-OP153M-WH require a neutral wire?
Does the Lutron MSCL-OP153M-WH require a neutral wire?
What are the sensor coverage capabilities of the MSCL-OP153M-WH?
What are the sensor coverage capabilities of the MSCL-OP153M-WH?
Can the MSCL-OP153M-WH be used in multi-location setups?
Can the MSCL-OP153M-WH be used in multi-location setups?
What timeout settings are available for the MSCL-OP153M-WH?
What timeout settings are available for the MSCL-OP153M-WH?
