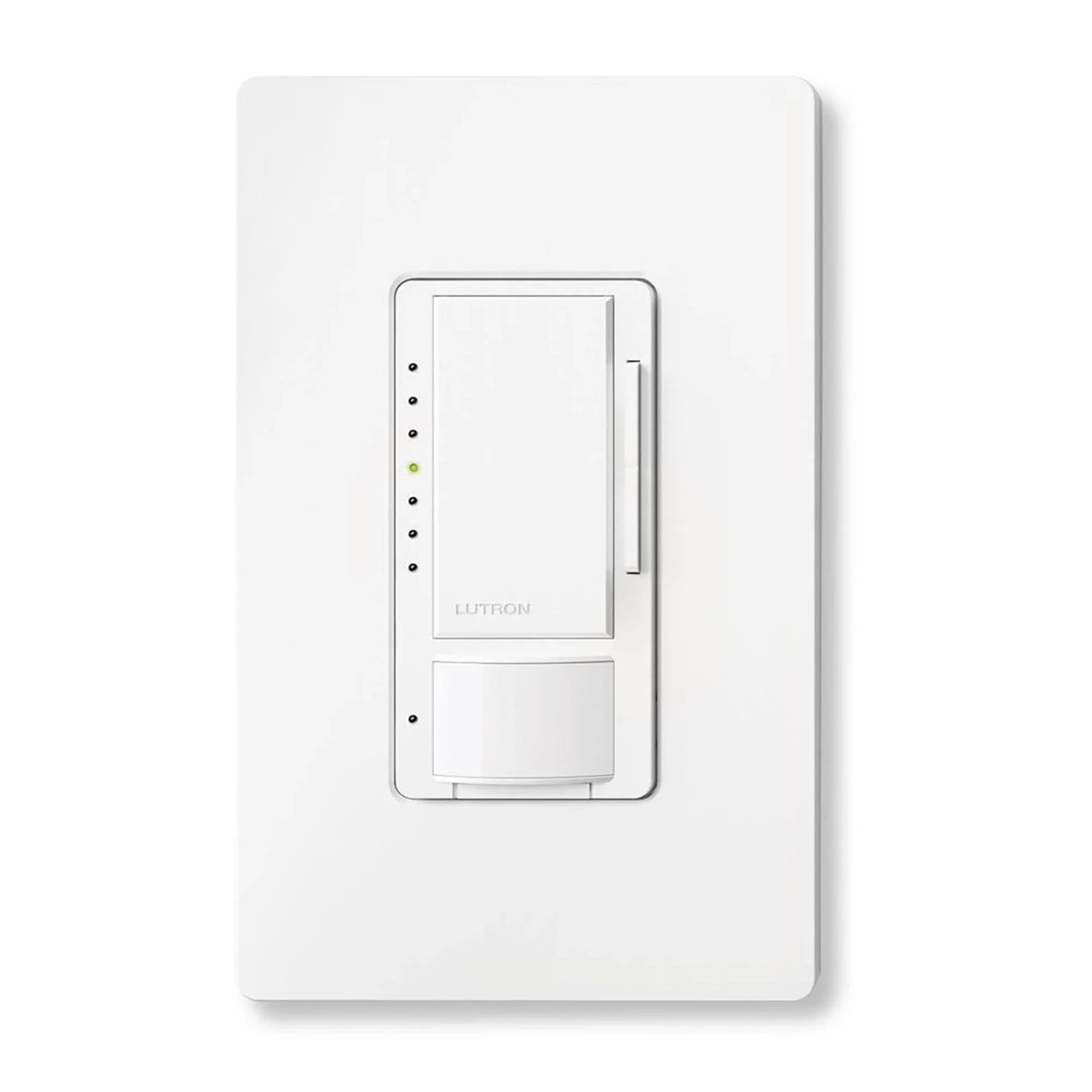

Lutron MS-Z101-WH Maestro Sensor Switch, 8A, Single-Pole/Multi-Location, PIR, White
Available in stock (59)
About this item
About this item
- Sensor Type: Passive infrared (PIR) with Lutron XCT Technology for fine motion detection.
- Load Compatibility: Controls 8A electronic fluorescent ballasts or LED drivers, suitable for 0-10V systems.
- Voltage Range: Operates at 120-277V, 50/60 Hz, accommodating various installation environments.
- Sensor Modes: Offers occupancy (auto-on/auto-off) and vacancy (manual-on/auto-off) modes.
- Neutral Wire Requirement: Requires connection to either neutral or ground for operation.
We process payments securely and do not store credit card information.
Description
Description
Lutron Maestro Sensor Switch — White & PIR Occupancy/Vacancy
The Lutron MS-Z101-WH is a Maestro sensor switch in a white finish, designed for efficient lighting control. This sensor switch integrates a passive infrared (PIR) sensor with occupancy and vacancy modes, allowing for automatic or manual control of lighting. It supports 120-277V systems and can handle up to 8A of electronic fluorescent ballasts or LED drivers.
Key Features
- Voltage Compatibility: Operates within a range of 120-277V, suitable for diverse electrical systems.
- Load Capacity: Supports up to 8A for electronic fluorescent ballasts or LED drivers.
- Sensor Technology: Utilizes passive infrared (PIR) with Lutron XCT Technology for precise motion detection.
- Field of View: 180-degree sensor field-of-view with major motion coverage up to 900 sq ft.
- Timeout Settings: Adjustable timeout options of 1, 5, 15, or 30 minutes.
- Auto-On Light Level: Configurable to 100%, 50%, last light level, or locked preset.
- Multi-Location Capability: Compatible with single-pole and multi-location setups using companion switches.
- Neutral Wire Requirement: Requires a neutral or ground connection for operation.
- Environmental Rating: Indoor use only, with an operating temperature range of 32°F to 104°F.
- Certifications: UL Listed, Title 20/24 certified.
Construction & Interface

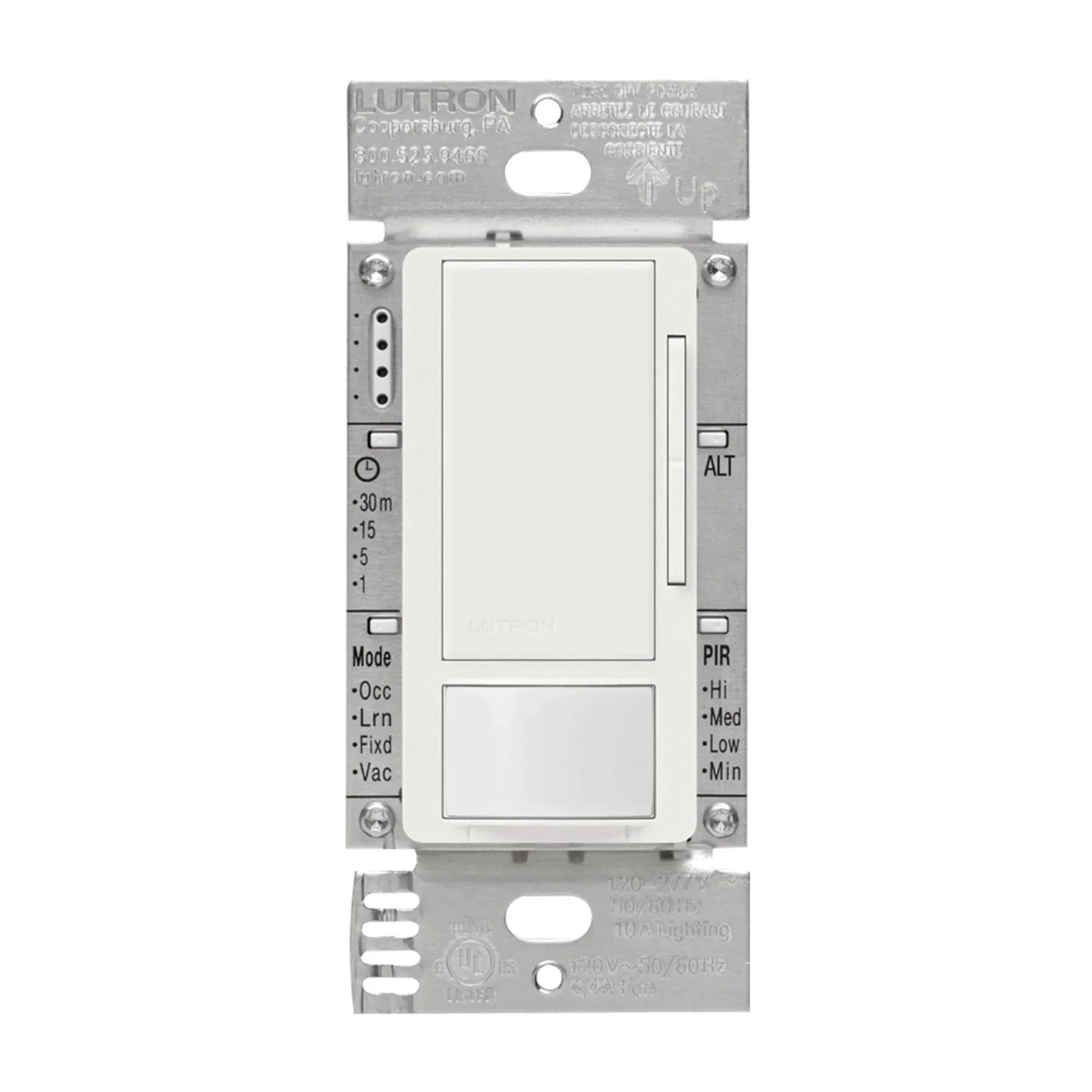

The sensor switch features a sleek white finish and is designed for indoor use. It includes a tap button for manual control and programming LEDs for easy setup. The wallplate is sold separately.
Sensor, Smart & Timer Capabilities
This sensor switch offers both occupancy and vacancy modes, providing flexibility in lighting control. The PIR sensor ensures reliable detection with adjustable sensitivity levels. The device supports advanced dimming features like fade-to-on and fade-to-off.
Wiring & Installation
The MS-Z101-WH requires a neutral wire for installation. It supports single-pole and multi-location configurations and can be used with standard mechanical 3-way switches or up to 9 companion switches. Ensure proper wiring connections for optimal performance.
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What type of sensor technology does the Lutron MS-Z101-WH use?
What type of sensor technology does the Lutron MS-Z101-WH use?
What is the load capacity of the Lutron MS-Z101-WH sensor switch?
What is the load capacity of the Lutron MS-Z101-WH sensor switch?
Does the Lutron MS-Z101-WH require a neutral wire for installation?
Does the Lutron MS-Z101-WH require a neutral wire for installation?
What are the timeout settings available on the Lutron MS-Z101-WH?
What are the timeout settings available on the Lutron MS-Z101-WH?
Can the Lutron MS-Z101-WH be used in multi-location setups?
Can the Lutron MS-Z101-WH be used in multi-location setups?
