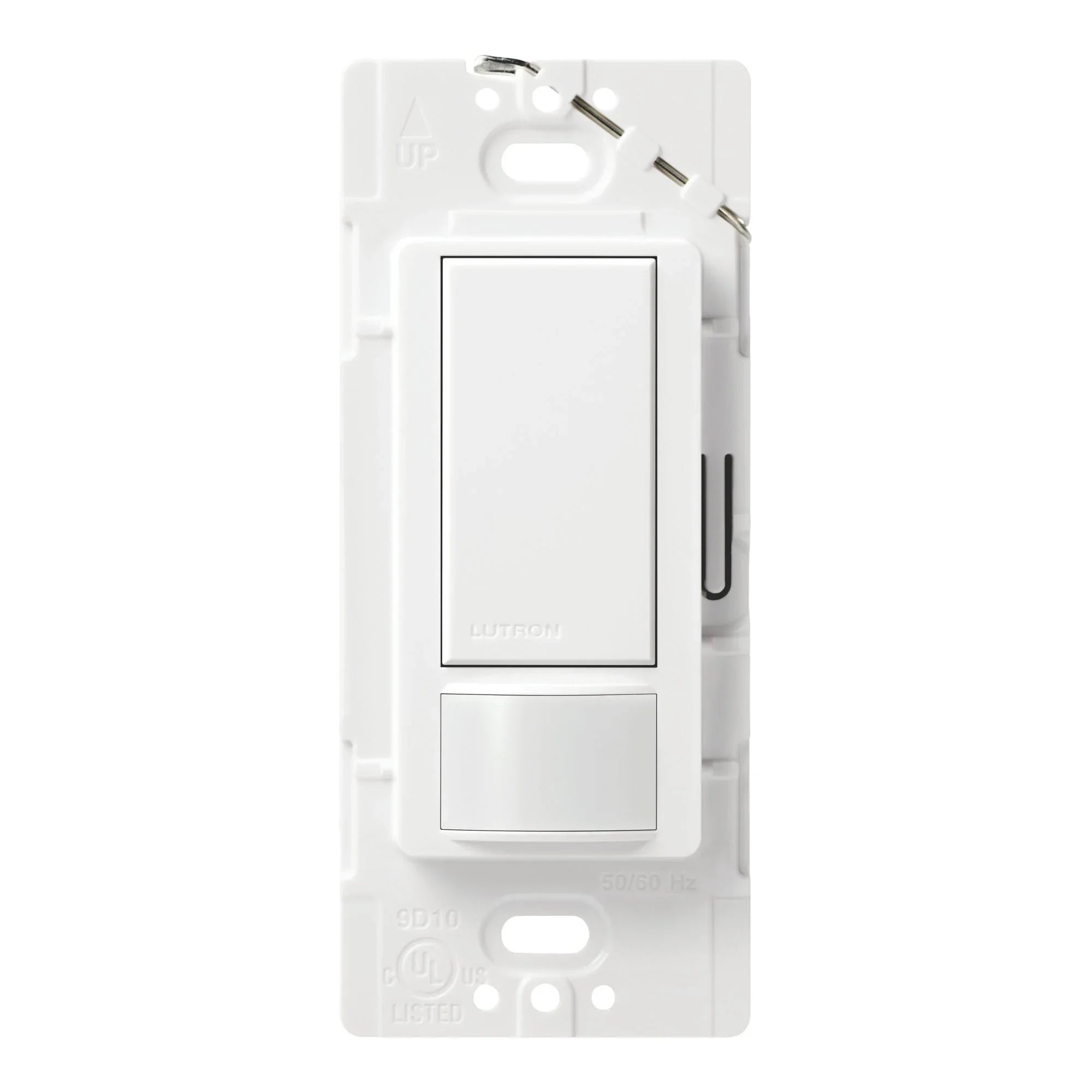

Lutron Maestro Sensor Switch — White & PIR Occupancy/Vacancy

The Lutron MS-OPS5M-WH is a white Maestro sensor switch that combines advanced passive infrared (PIR) technology with occupancy and vacancy sensing capabilities. This sensor switch is designed to detect fine motion within a 180-degree field-of-view, providing up to 900 ft2 of major motion coverage and 400 ft2 of minor motion coverage. It operates at 120 V~ 50/60 Hz and supports a wide range of load types including incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent, and fan loads. The switch is capable of single-pole and 3-way configurations.

Key Features

• Voltage: Operates at 120 V~ 50/60 Hz for reliable performance.
• Load Rating: Supports up to 5A for various lighting and fan loads.
• Pole Configuration: Compatible with single-pole and 3-way installations.
• Sensor Technology: Features Lutron XCT Technology for precise motion detection.
• Timeout Options: Adjustable timeout settings of 1, 5, 15, or 30 minutes.
• Neutral Wire: Optional; can connect to ground if neutral is unavailable.
• Adaptive Switching: Includes adaptive zero cross for extended relay life.
• Ambient Light Detection: Smart ambient light detection adjusts to user preferences.

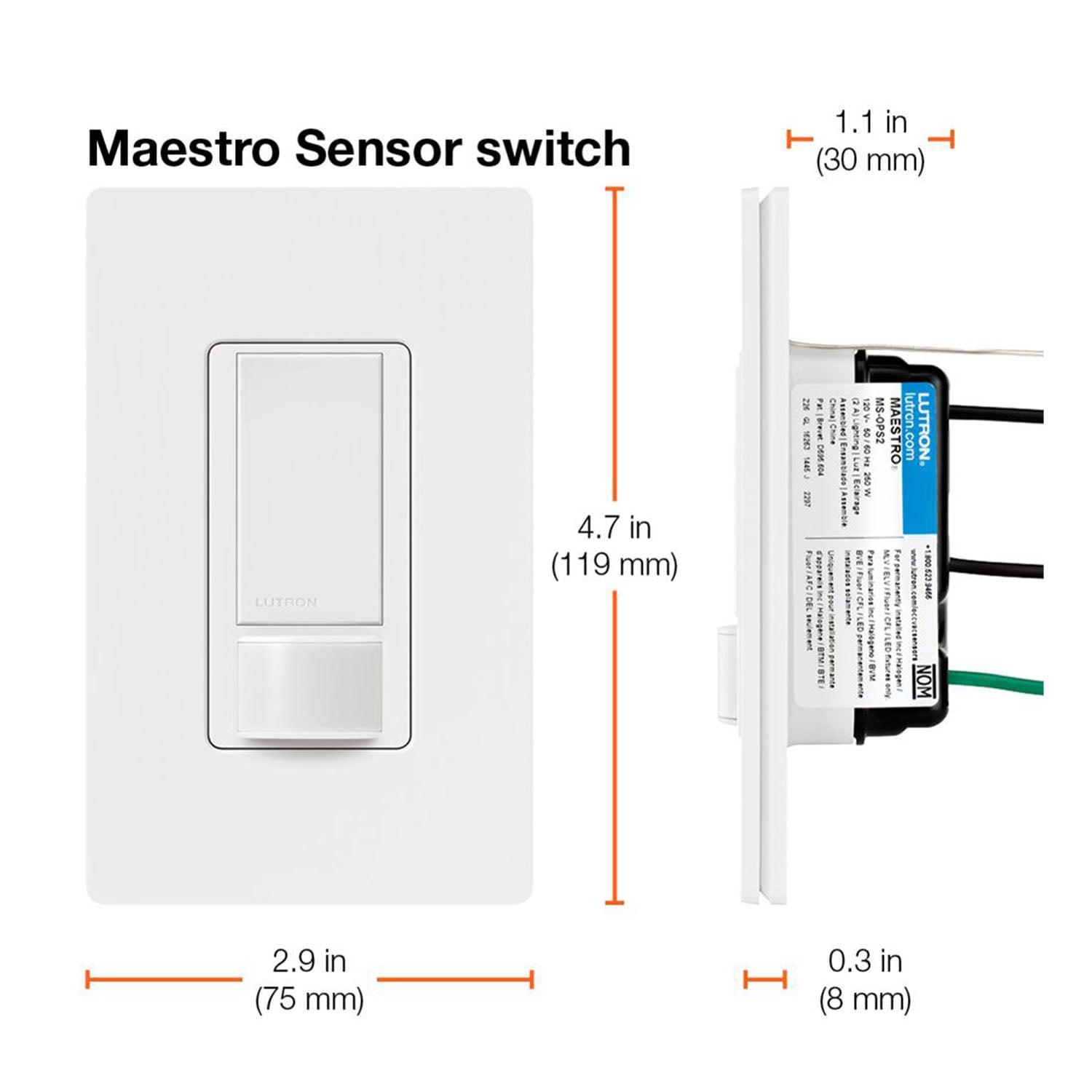

• Dimensions: Measures 2.94 in. width, 4.69 in. height, and 1.50 in. length.
• Certifications: UL Listed and NOM Certified for safety compliance.

Construction & Interface

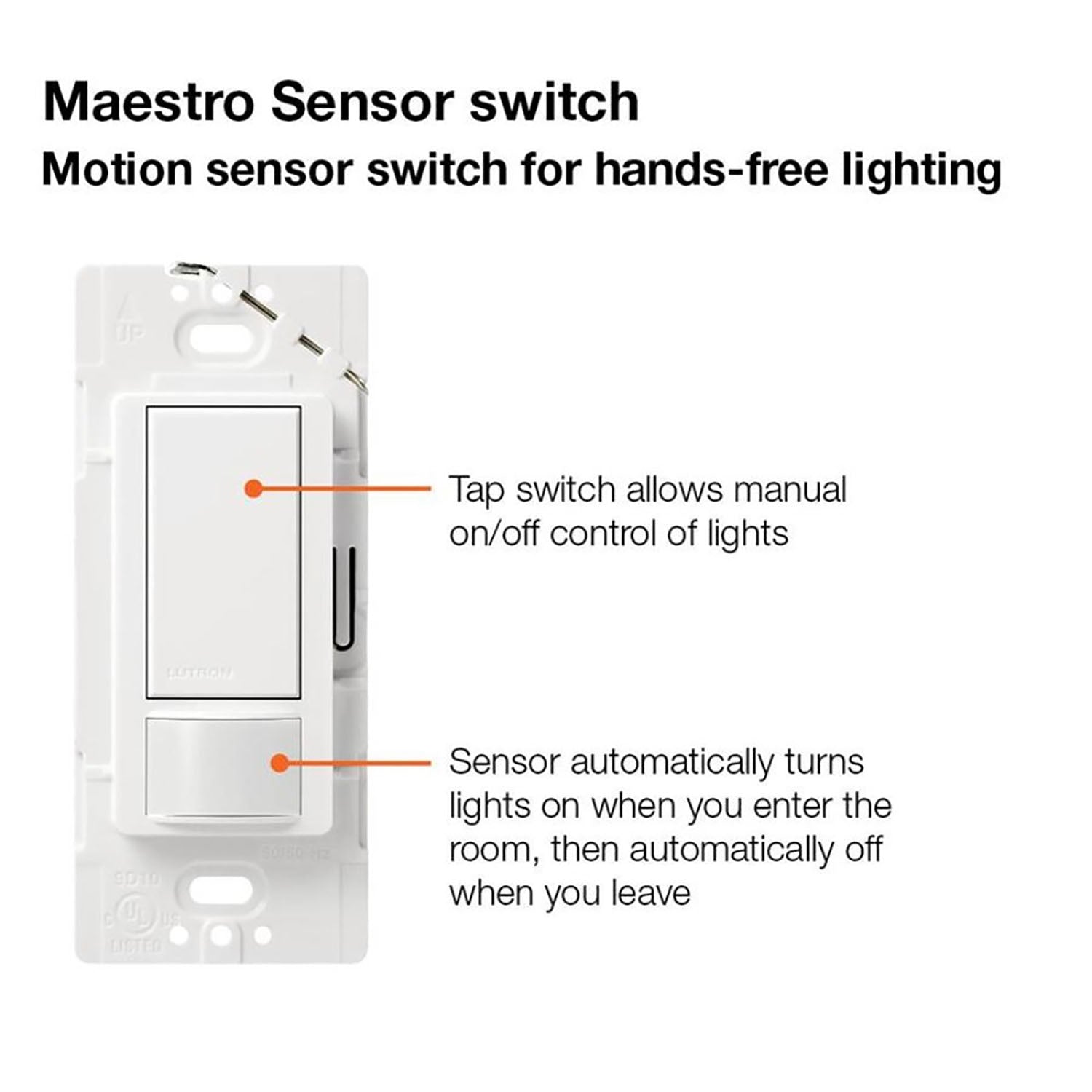

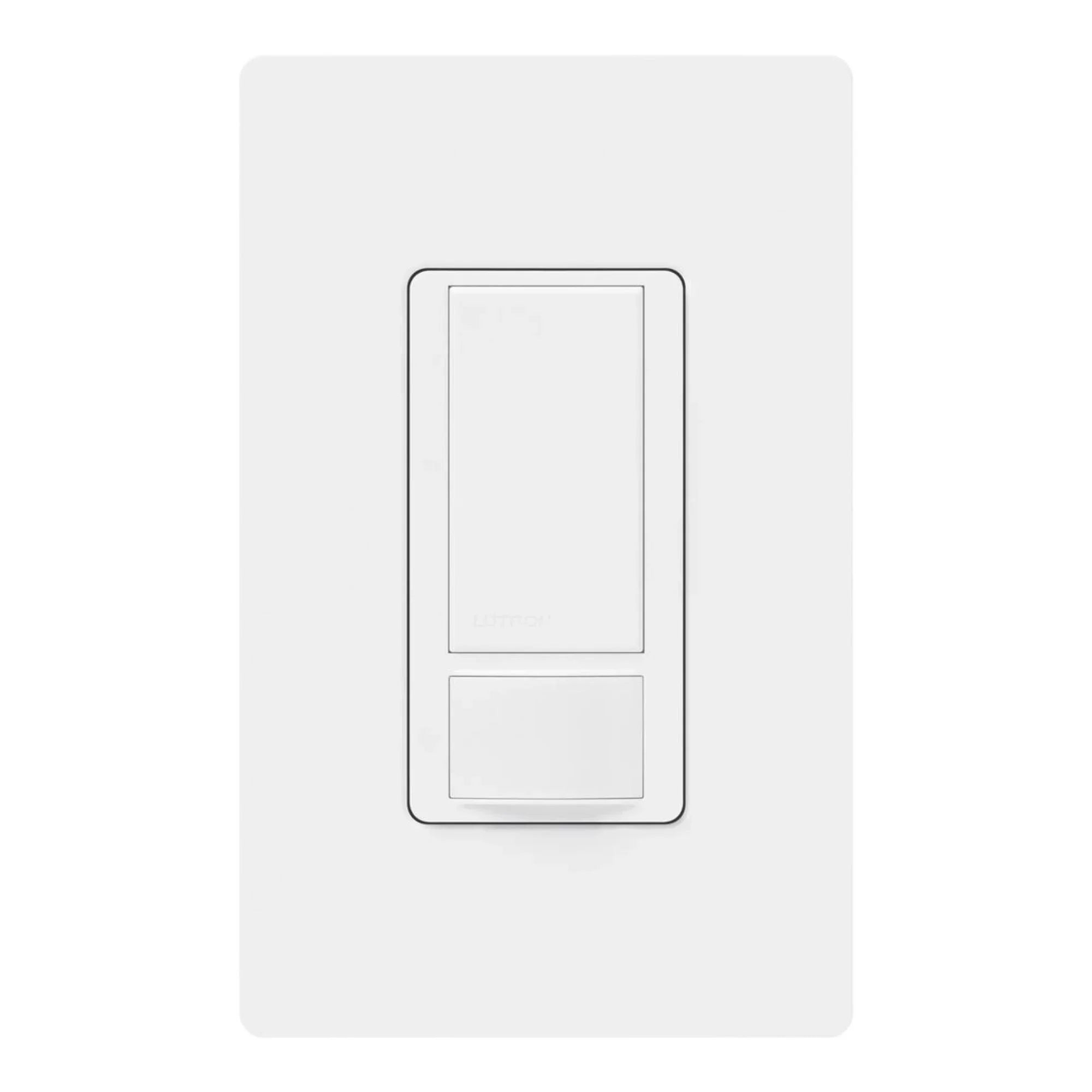

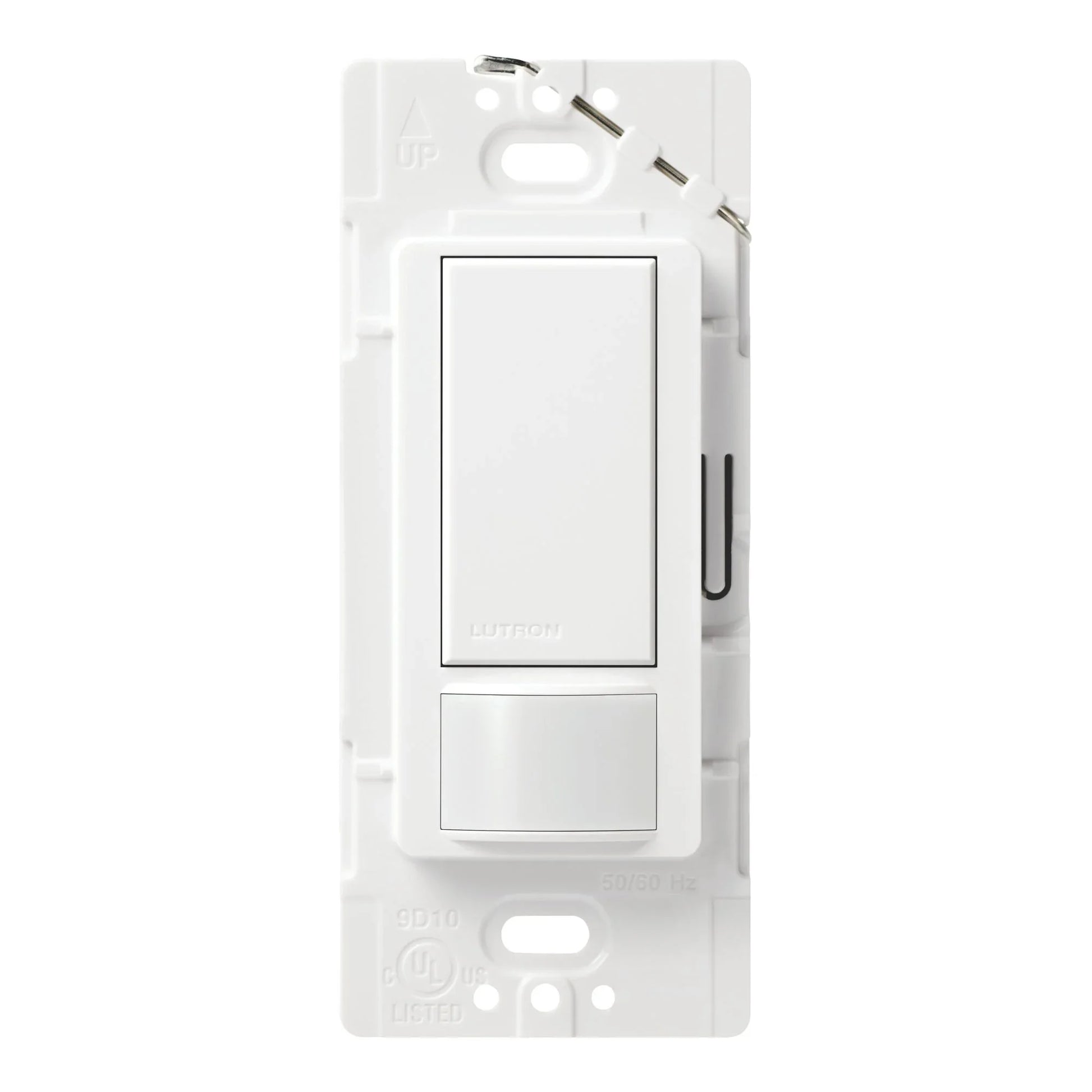

The MS-OPS5M-WH features a crush/tamper-resistant lens and a sleek white finish suitable for indoor use. The sensor switch includes a tap switch for manual on/off control and a sensor LED for configuration feedback. Note that the wallplate is sold separately.

Sensor, Smart & Timer Capabilities

This sensor switch offers advanced occupancy and vacancy sensing with customizable auto-on and auto-off settings. The XCT Technology ensures accurate detection of fine motion, preventing false activations. The switch also provides adjustable sensitivity and timeout options for tailored operation.

Wiring & Installation

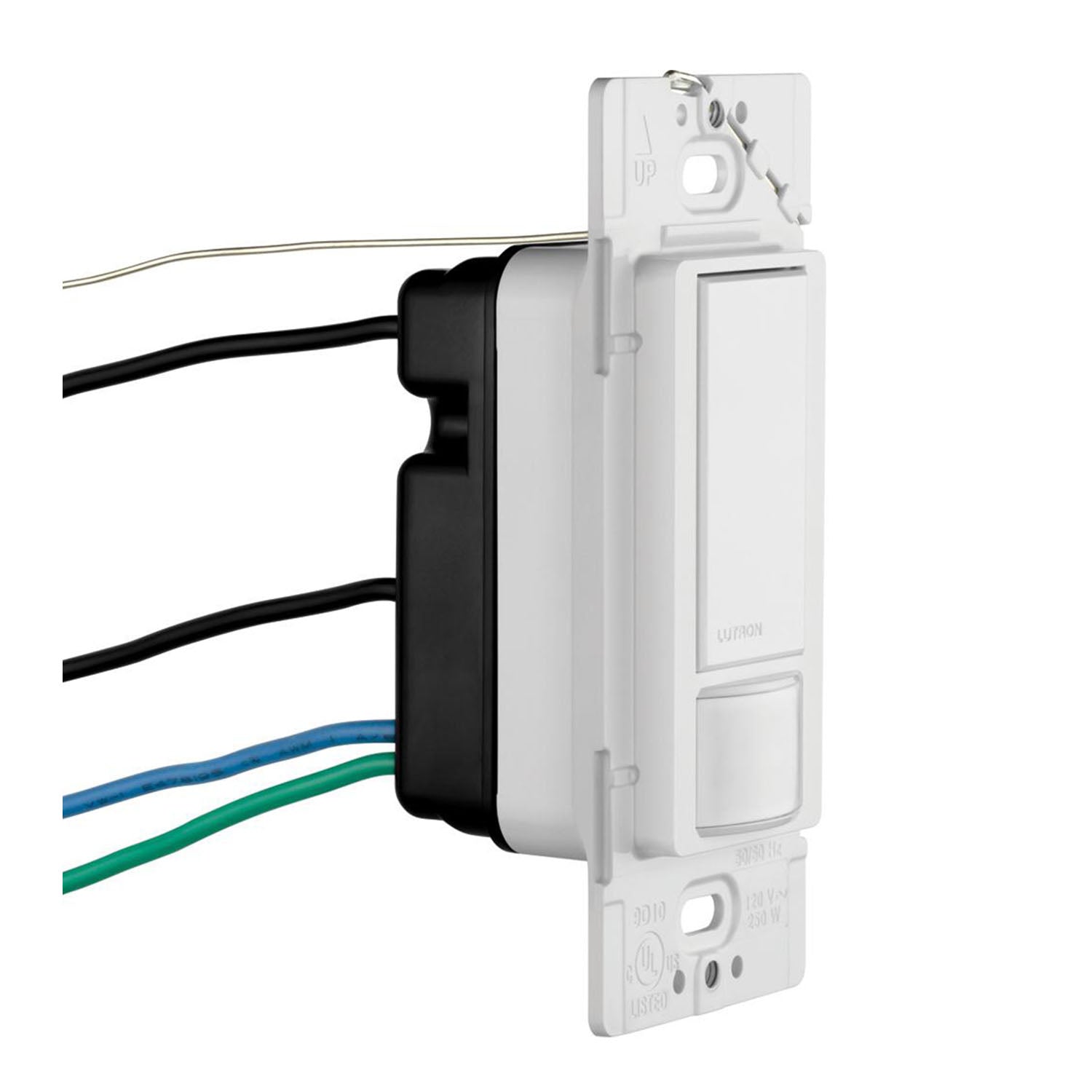

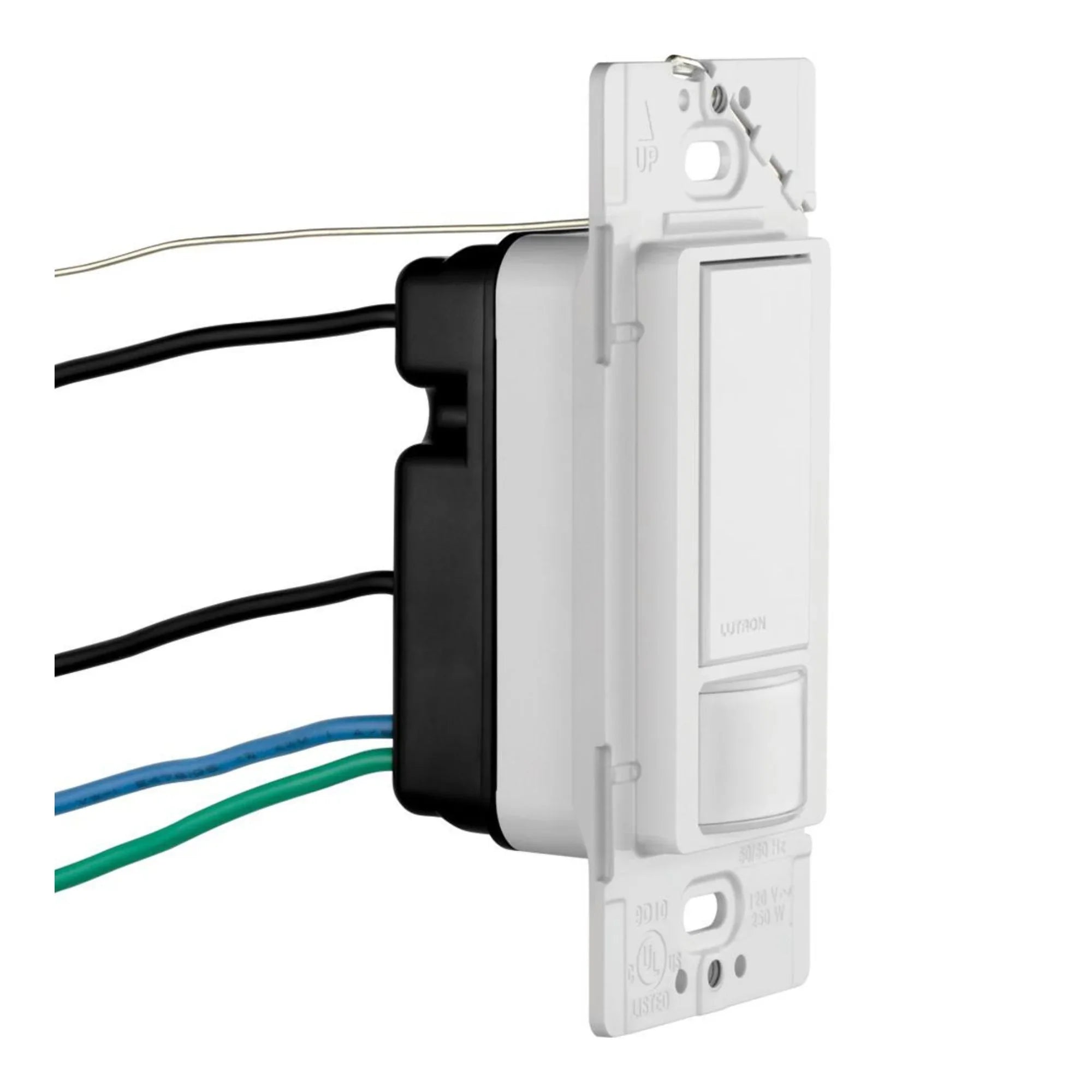

The MS-OPS5M-WH can be installed in single-pole or 3-way configurations. It offers optional neutral wire connection, allowing flexibility in retrofit or replacement applications. The switch uses wire leads for easy installation.
