Lutron MS-OPS2-LA Maestro Sensor Switch, 2A, Single-Pole, Passive Infrared, Light Almond
Available in stock (91)
About this item
About this item
- Sensor Type: Passive infrared with Lutron XCT Technology for fine motion detection.
- Coverage Area: 180-degree field-of-view with 900 ft2 major motion and 400 ft2 minor motion coverage.
- Operation Modes: Configurable for Auto-ON/Auto-OFF or Manual-ON/Auto-OFF.
- Load Compatibility: Supports incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent, and fan loads.
- Neutral Wire: Optional; can be connected to ground if neutral is unavailable.
We process payments securely and do not store credit card information.
Description
Description

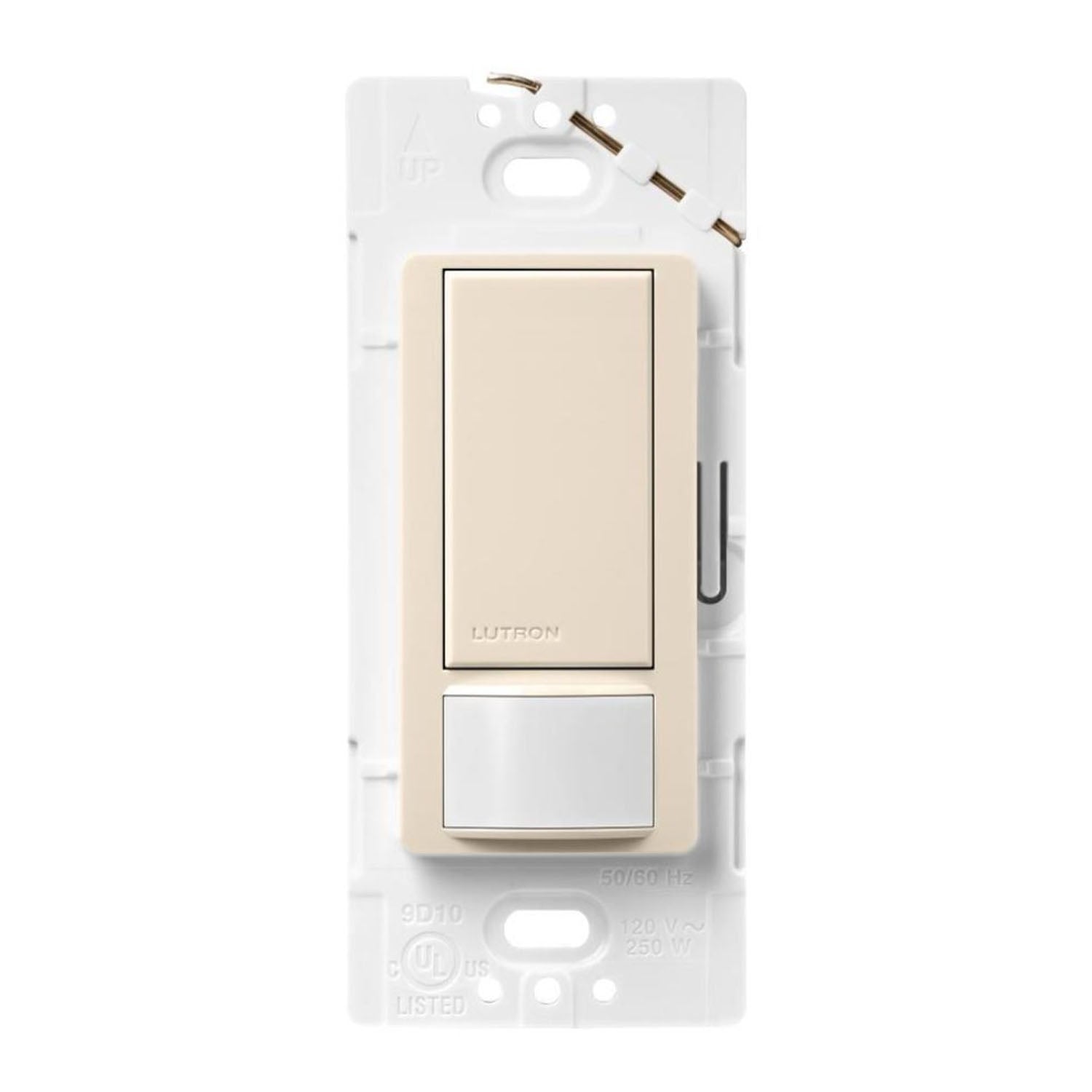

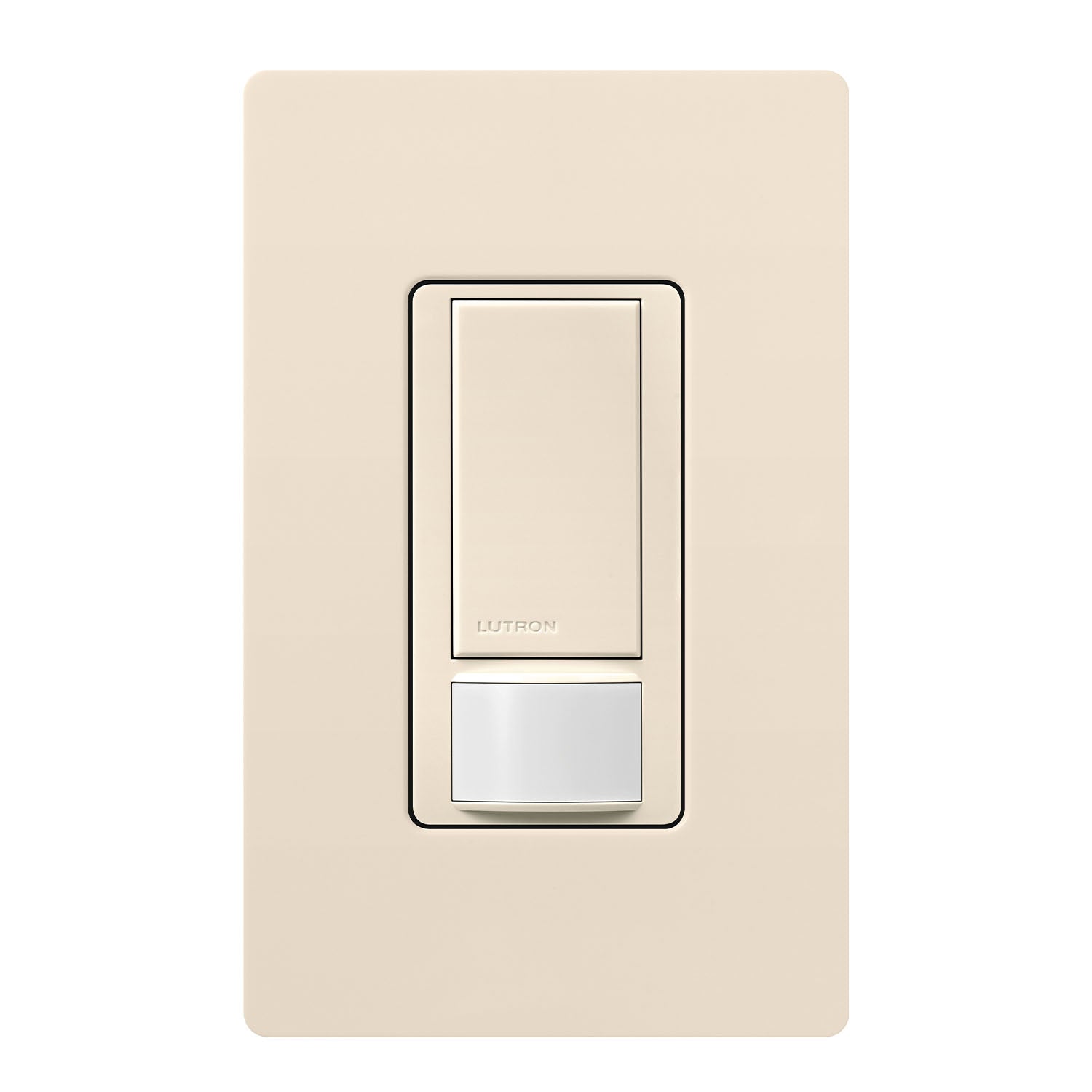

Lutron Maestro Sensor Switch — Light Almond & PIR Occupancy/Vacancy
The Lutron MS-OPS2-LA is a light almond sensor switch that combines a Maestro switch with a passive infrared occupancy or vacancy sensor. It operates at 120V and supports a 2A load, making it suitable for various lighting types. The switch can be configured for single-pole installations and features a 180-degree sensor field-of-view.
Key Features
- Voltage: Operates at 120V, 50/60 Hz.
- Load Rating: Supports up to 2A for all lighting loads.
- Pole Configuration: Single-pole only.
- Sensor Technology: Passive infrared with XCT Technology for enhanced motion detection.
- Operation Modes: Auto-ON/Auto-OFF or Manual-ON/Auto-OFF.
- Timeout Options: Adjustable timeout settings of 1, 5, 15, or 30 minutes.
- Neutral Wire: Optional; can connect to ground if neutral is unavailable.
- Ambient Light Detection: Smart ambient light detection adjusts to user preferences.
- Dimensions: 2.94 in. width x 4.69 in. height x 1.50 in. length.
- Certifications: UL Listed and NOM Certified.
Construction & Interface
The sensor switch features a crush/tamper-resistant lens and a smart ambient light detection system. It is designed for indoor use only, with a light almond finish. Please note that the wallplate is sold separately.
Sensor, Smart & Timer Capabilities
The MS-OPS2-LA utilizes passive infrared technology with XCT for precise motion detection, ensuring lights remain on when the room is occupied. It offers configurable occupancy and vacancy modes for energy-efficient operation.
Wiring & Installation
This sensor switch does not require a neutral wire, making it ideal for retrofit applications. It supports single-pole installations and uses standard wiring connections. For installations without a neutral, connect the green-sleeved wire to ground.
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What type of sensor technology does the Lutron MS-OPS2-LA use?
What type of sensor technology does the Lutron MS-OPS2-LA use?
Is a neutral wire required for the MS-OPS2-LA sensor switch?
Is a neutral wire required for the MS-OPS2-LA sensor switch?
What are the timeout options available for this sensor switch?
What are the timeout options available for this sensor switch?
Can the MS-OPS2-LA be used in multi-location installations?
Can the MS-OPS2-LA be used in multi-location installations?
What is the coverage area for the MS-OPS2-LA sensor switch?
What is the coverage area for the MS-OPS2-LA sensor switch?
