Legrand WS301W WS PIR Wall Switch Occupancy Sensor, 1200W, Single Pole, White
Available in stock (49)
About this item
About this item
- Sensor Type: Passive Infrared (PIR) technology for occupancy detection.
- Voltage Compatibility: Operates on 120/277V systems for versatile installation.
- Load Capacity: Supports up to 1200W, suitable for lighting and fan loads.
- Coverage Area: Provides 180-degree coverage with a maximum range of 900 sq ft.
- Neutral Wire: Optional connection with break-off tab for neutral terminals.
We process payments securely and do not store credit card information.
Description
Description

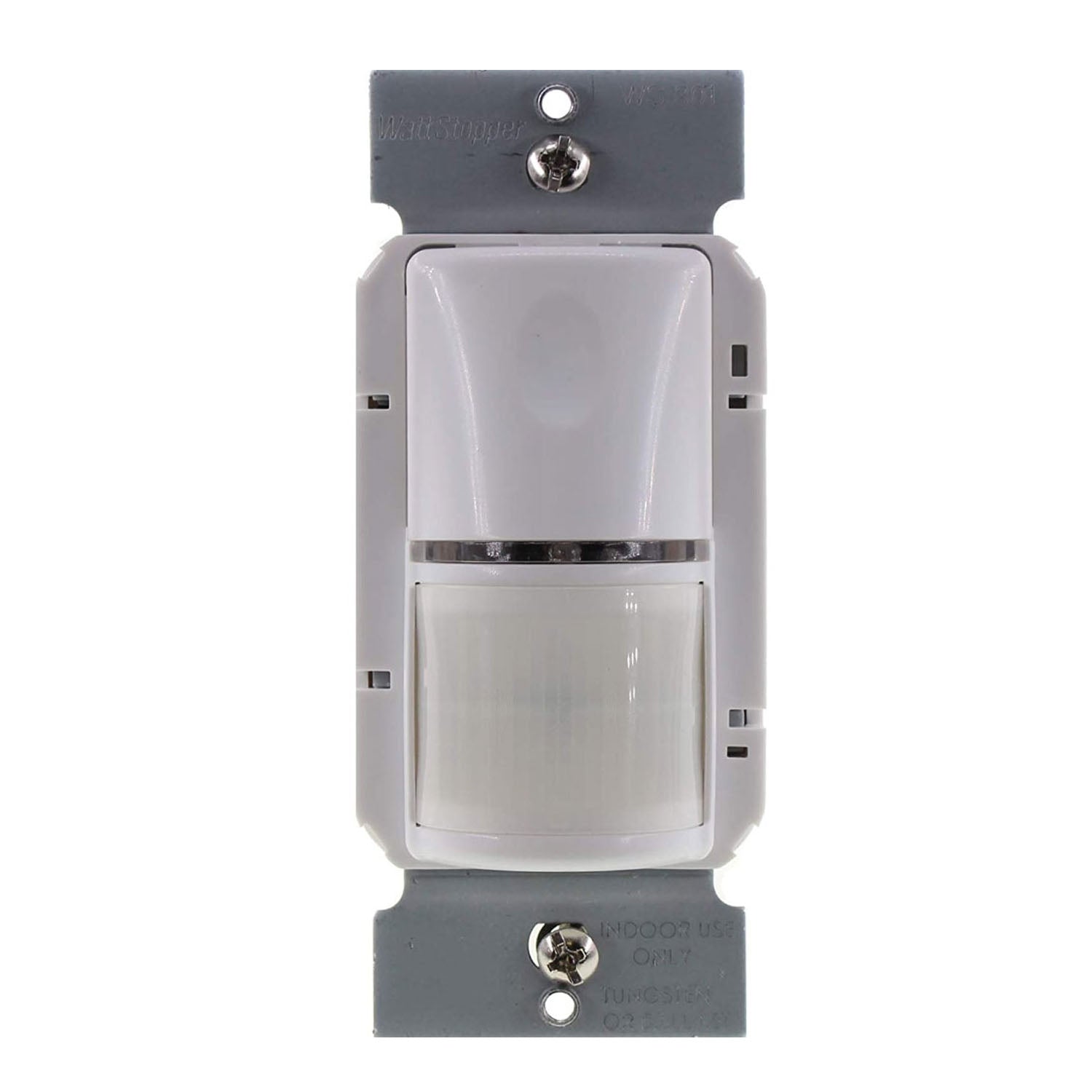

Legrand WS PIR Wall Switch Sensor — White & Occupancy Detection
The Legrand WS301W is a white PIR wall switch sensor designed for occupancy detection. This sensor switch, identified by MPN WS301W, operates on 120/277V and supports a load capacity of up to 1200W. It features a single-pole configuration, making it ideal for replacing existing wall switches in commercial settings.
Key Features
- Zero Crossing Circuitry: Reduces stress on the relay, enhancing sensor life.

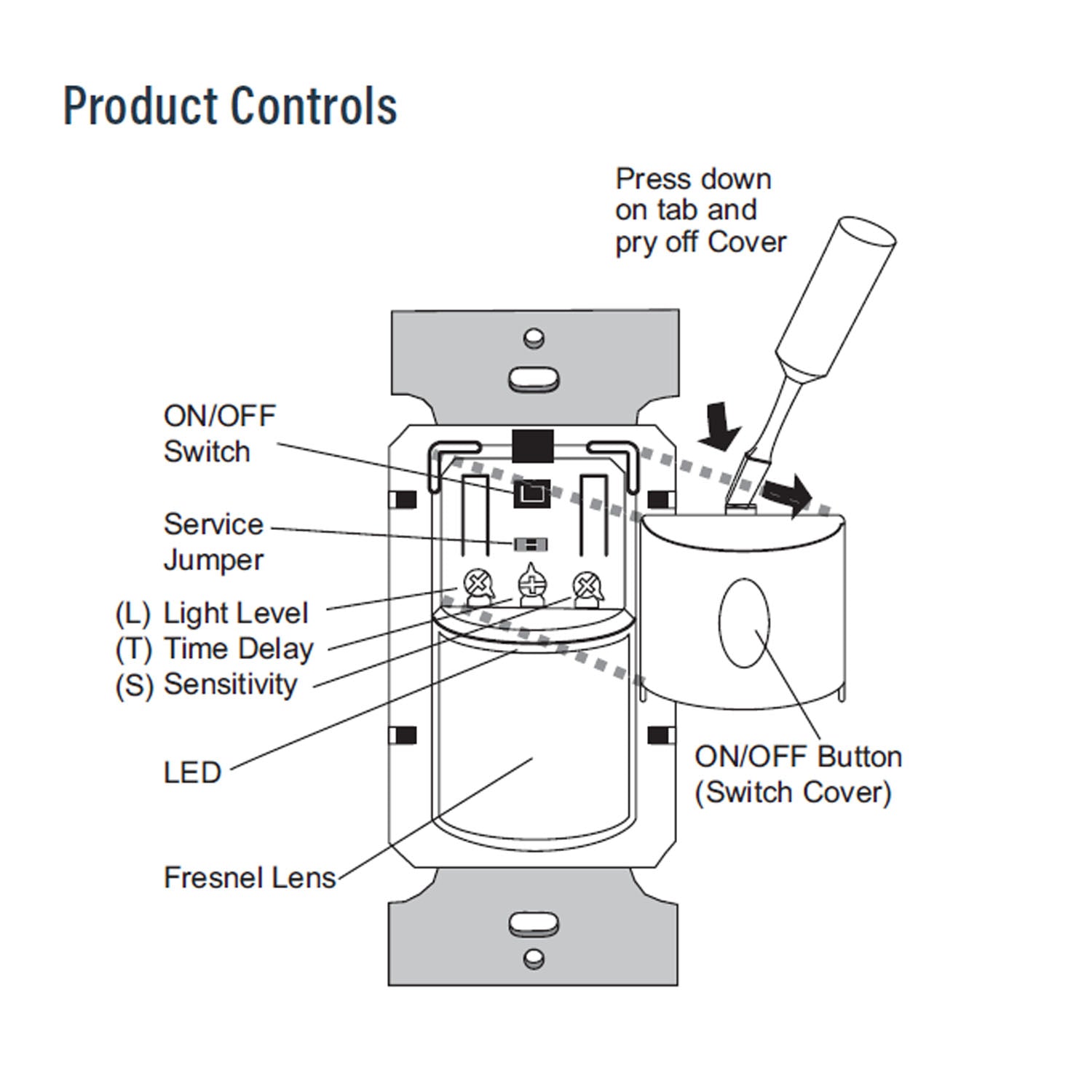

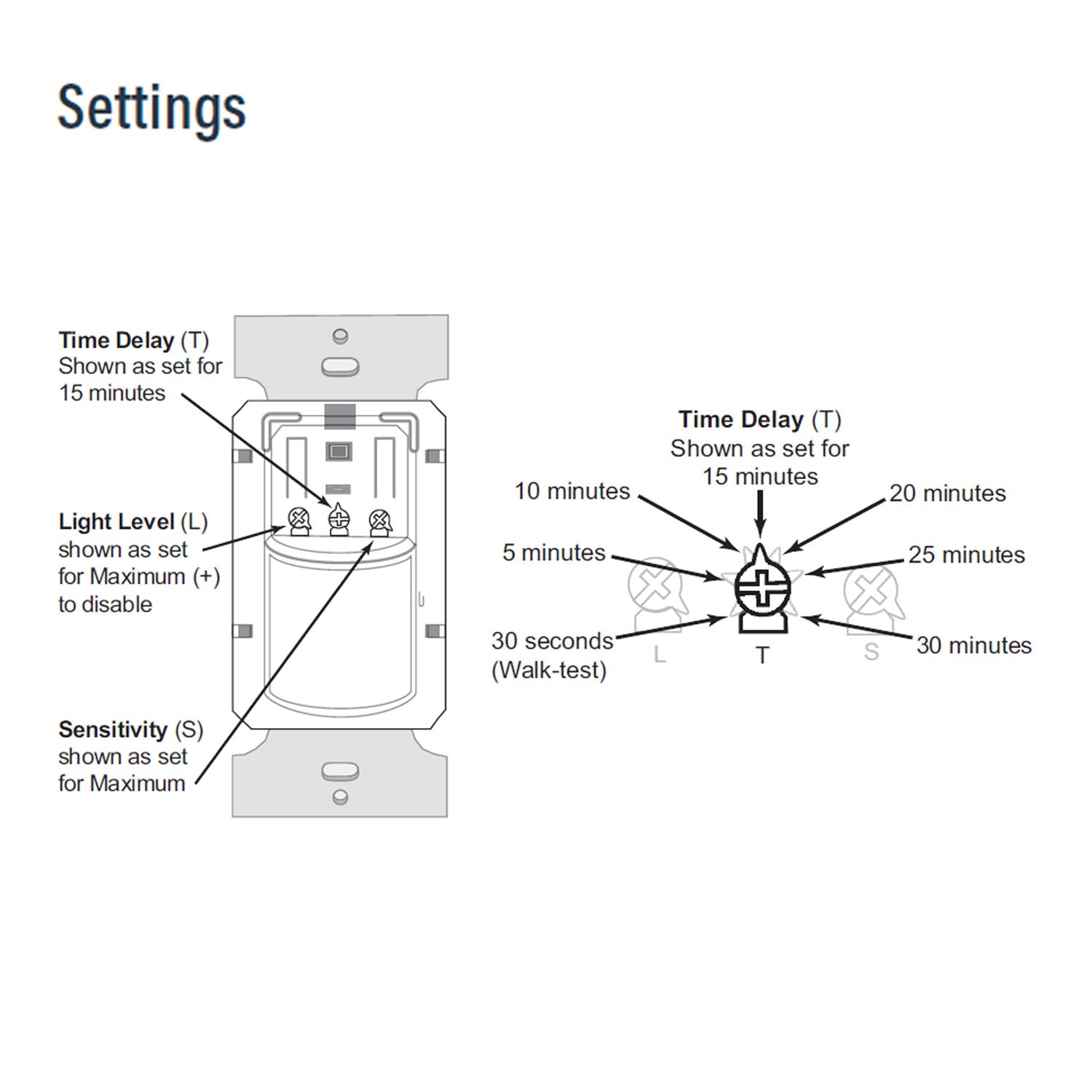

- Adjustable Settings: Time delay and sensitivity can be customized for optimal performance.
- Fresnel Lens: Two-tier lens enhances detection at the desktop level.
- Light Level Sensor: Prevents lights from turning on when ambient light is sufficient.
- Voltage Drop Protection: Patented feature ensures reliable operation.
- Manual-ON Default: Maximizes energy savings by defaulting to manual-on operation.

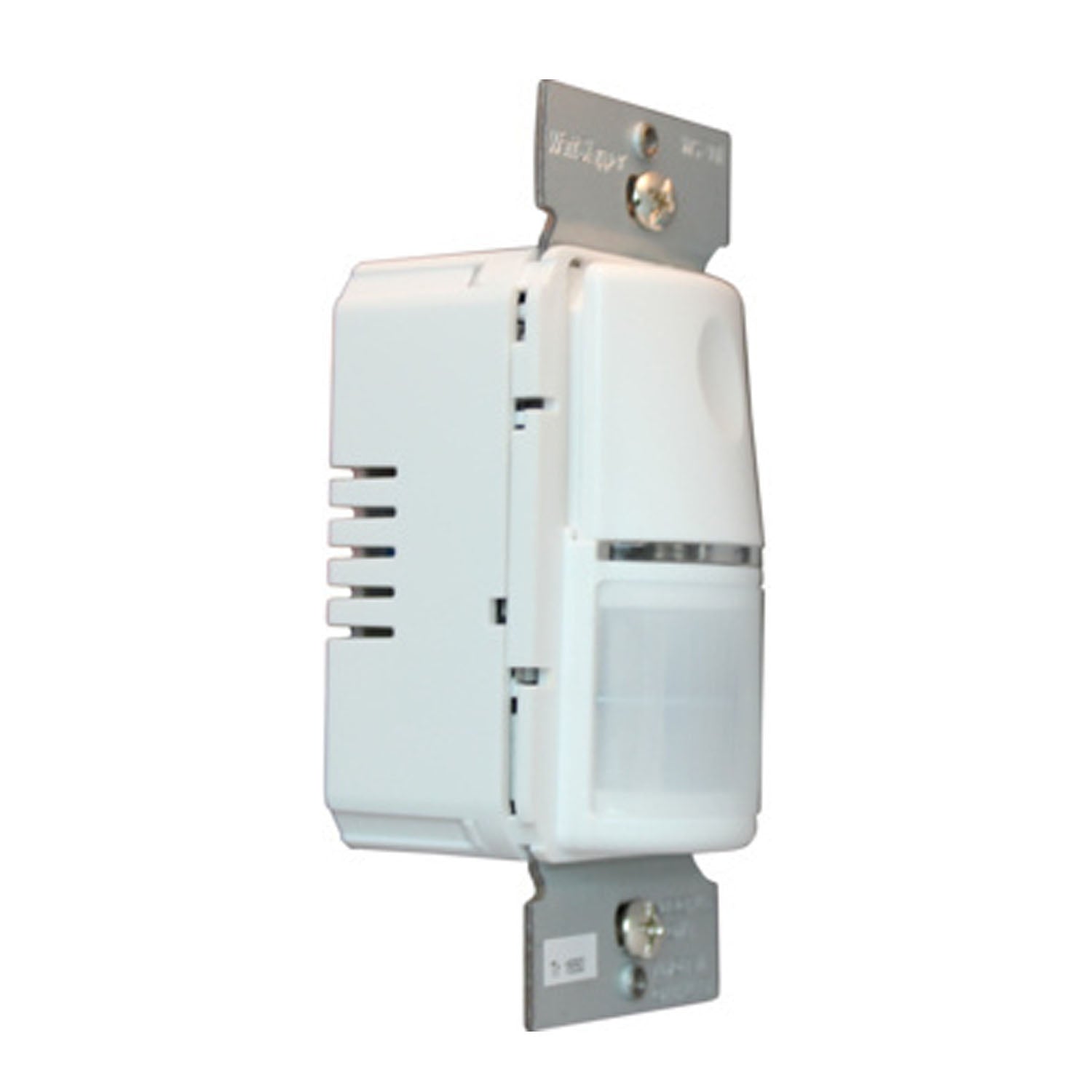

- Compact Design: Shallow back housing with flying leads for easy installation.
- Optional Neutral Connection: Break-off tab allows for neutral terminal exposure.
- Button Feedback: Provides positive tactile feedback for user assurance.
- RoHS Conformant: Meets environmental and safety standards.
Construction & Interface

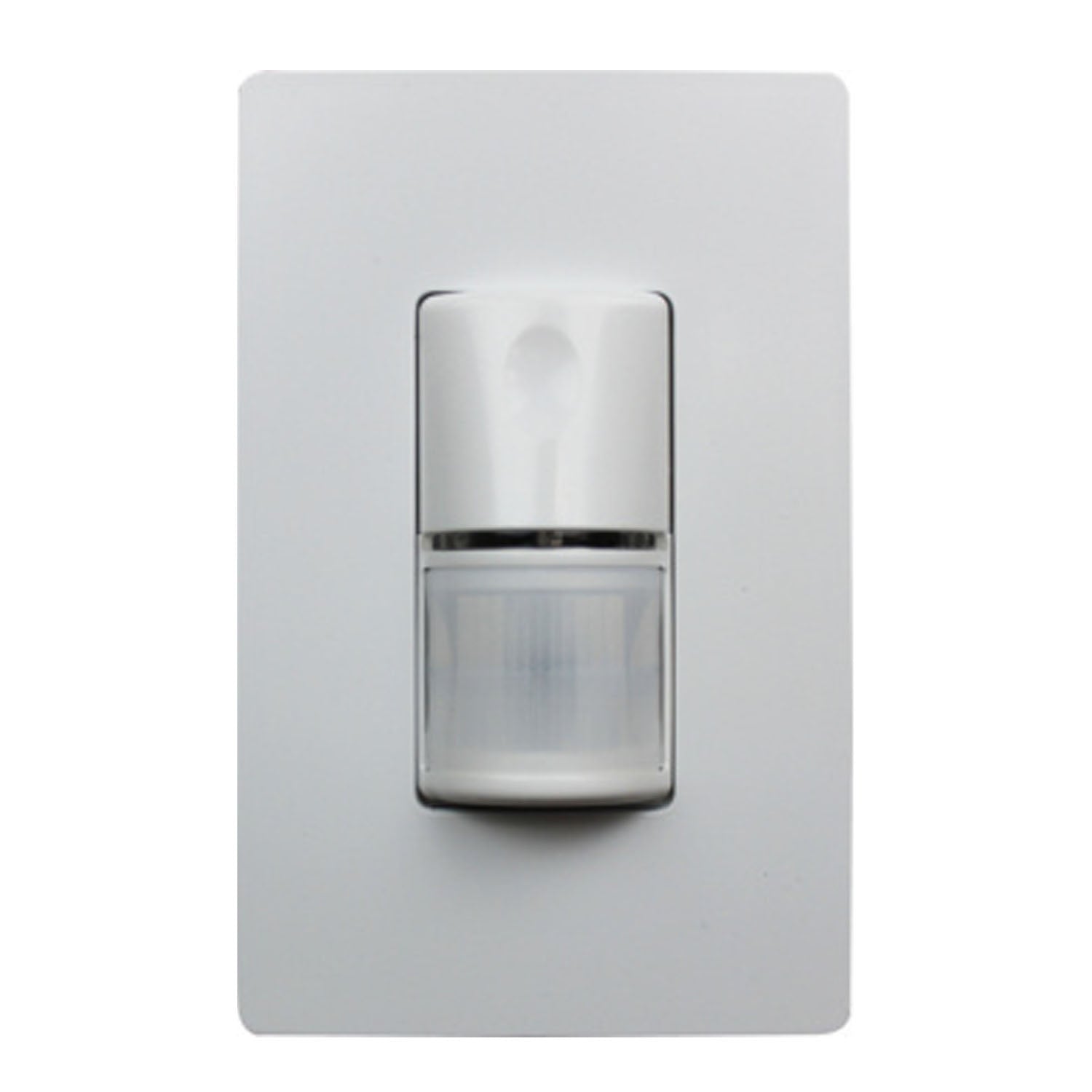

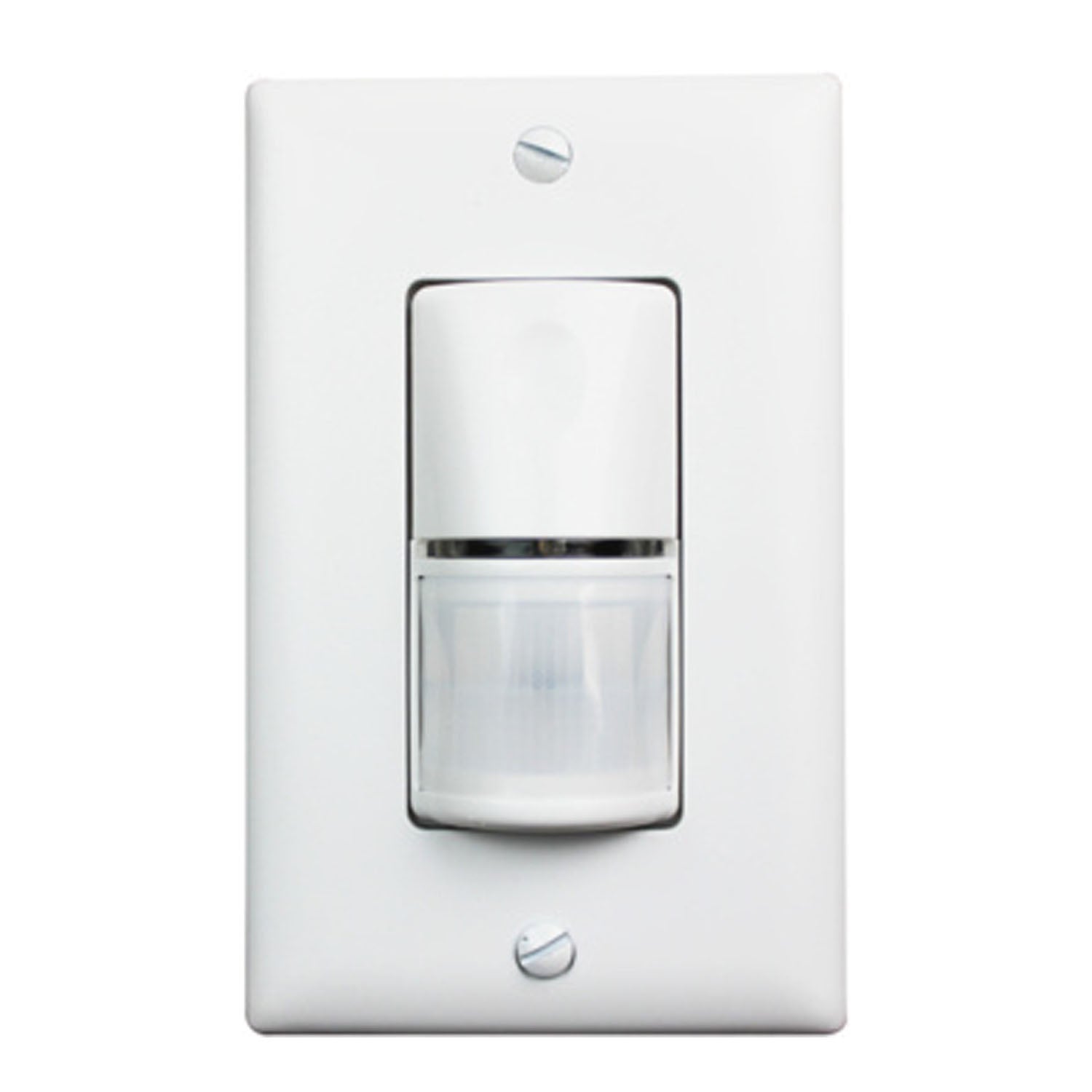

The sensor features a white finish and fits behind a standard decorator wall plate, which is sold separately. It includes a built-in light level sensor and provides a tactile feedback button for ease of use.
Sensor, Smart & Timer Capabilities

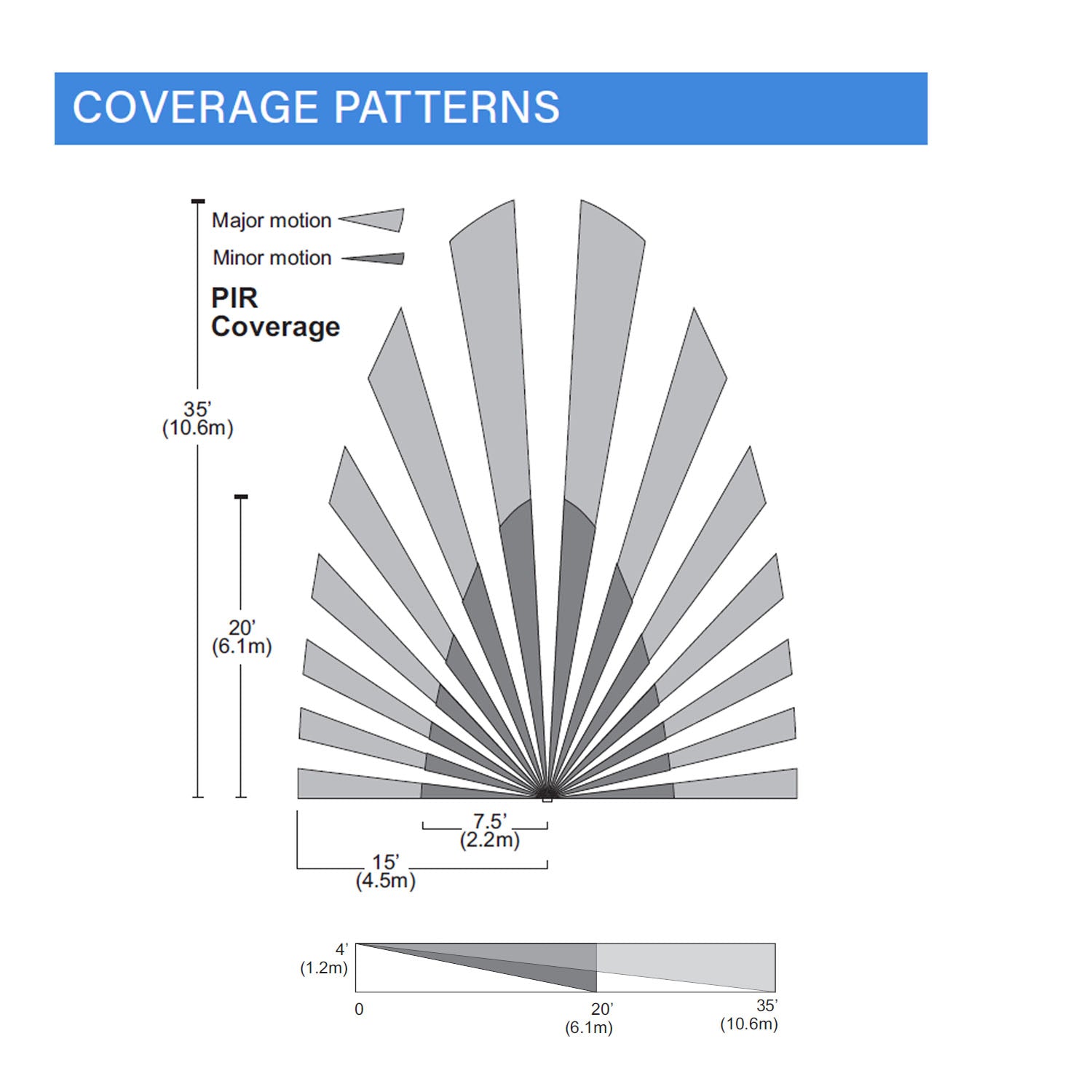

The WS301W utilizes PIR technology for occupancy detection, offering a 180-degree sensing range and covering up to 900 sq ft. It defaults to manual-on operation, promoting energy efficiency.
Wiring & Installation

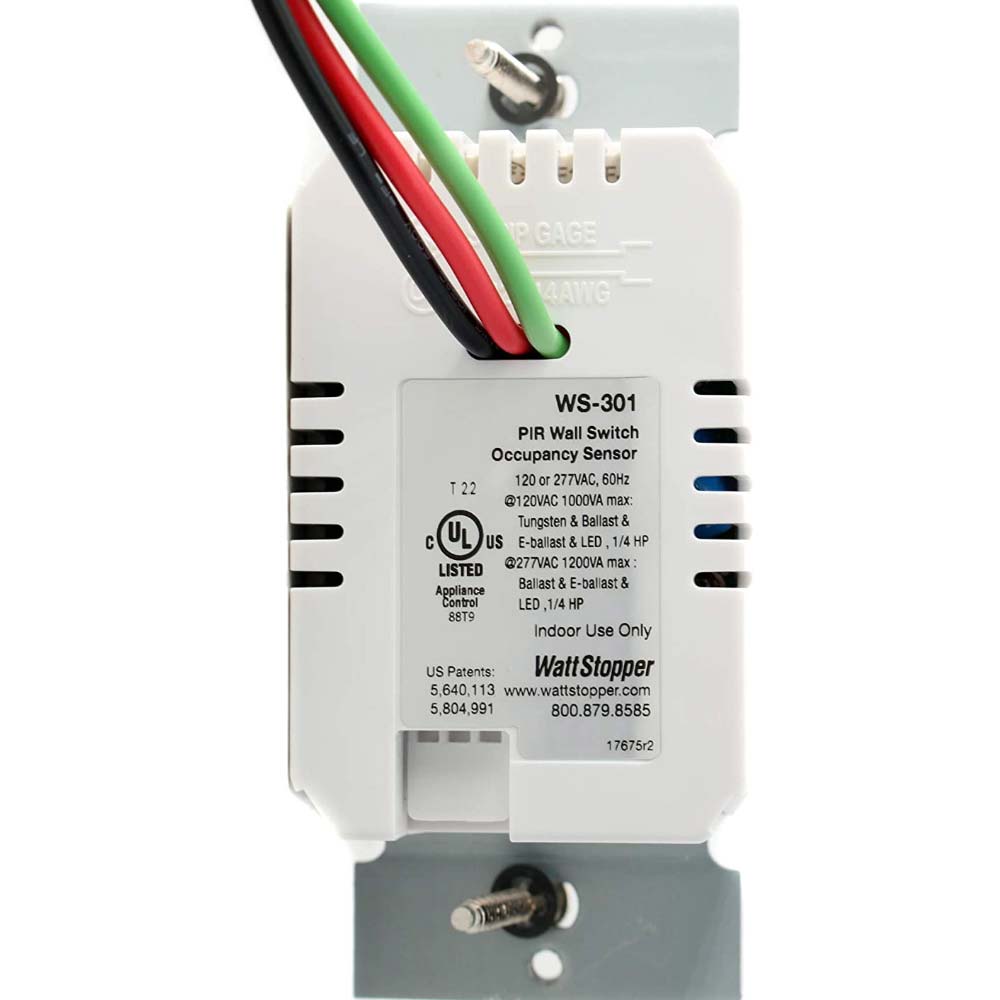

This sensor does not require a neutral wire, simplifying installation. It is designed for single-pole applications and includes flying leads for straightforward wiring.
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What type of sensor technology does the Legrand WS301W use?
What type of sensor technology does the Legrand WS301W use?
Is a neutral wire required for the WS301W sensor switch?
Is a neutral wire required for the WS301W sensor switch?
What is the coverage area of the WS301W sensor?
What is the coverage area of the WS301W sensor?
Can the time delay and sensitivity be adjusted on the WS301W?
Can the time delay and sensitivity be adjusted on the WS301W?
What is the load capacity of the Legrand WS301W sensor switch?
What is the load capacity of the Legrand WS301W sensor switch?
