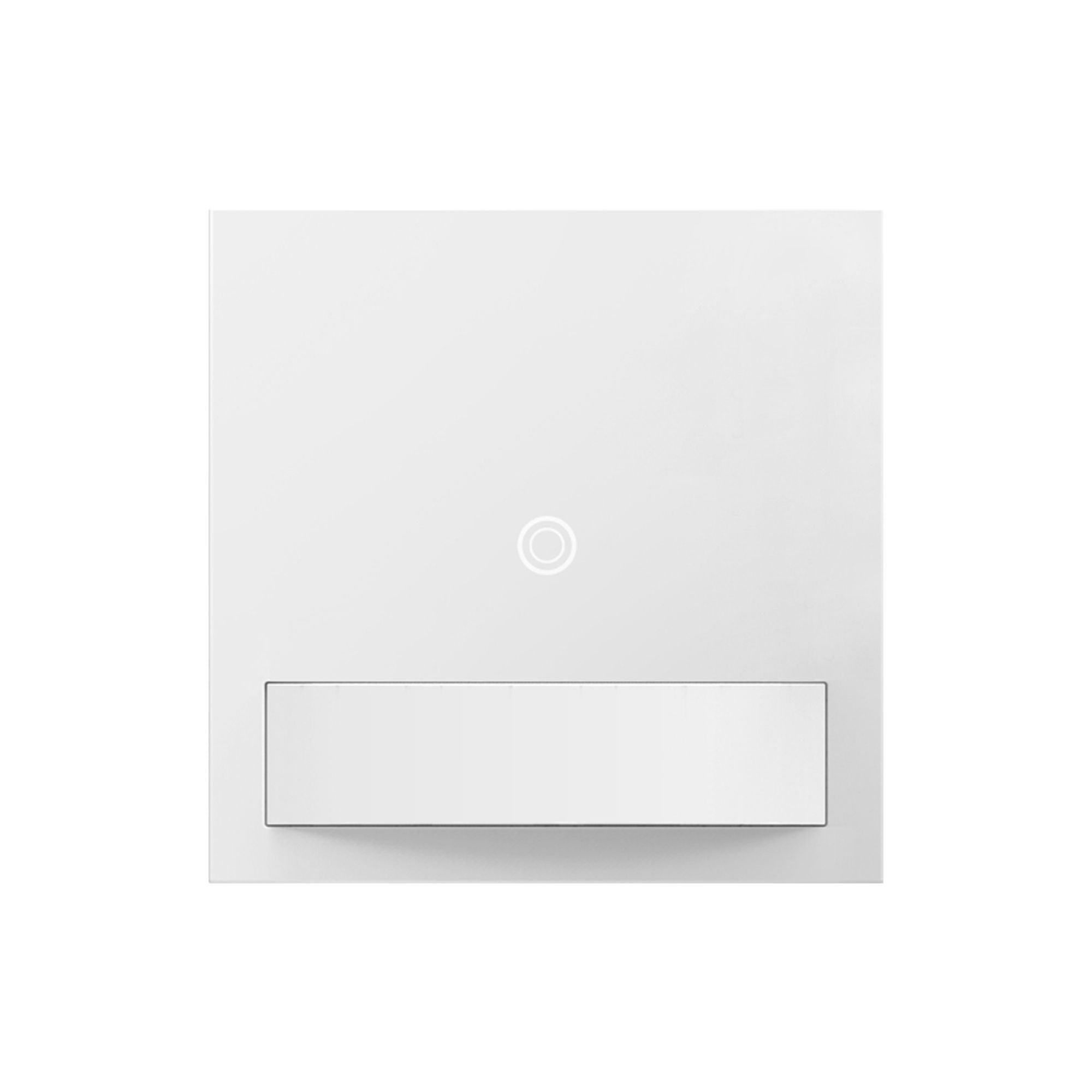

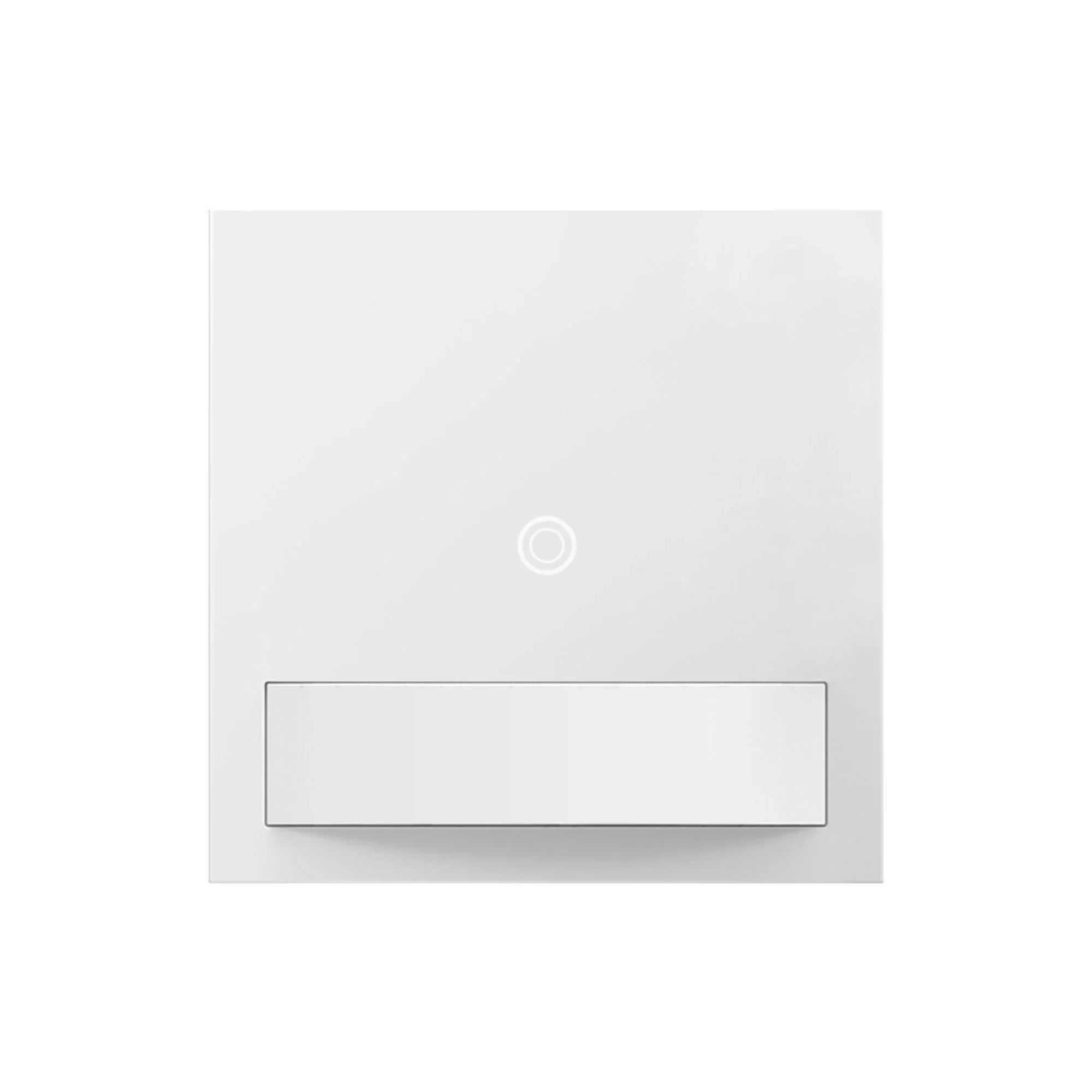

Legrand Adorne Motion Sensor Switch — White & Manual On/Auto Off

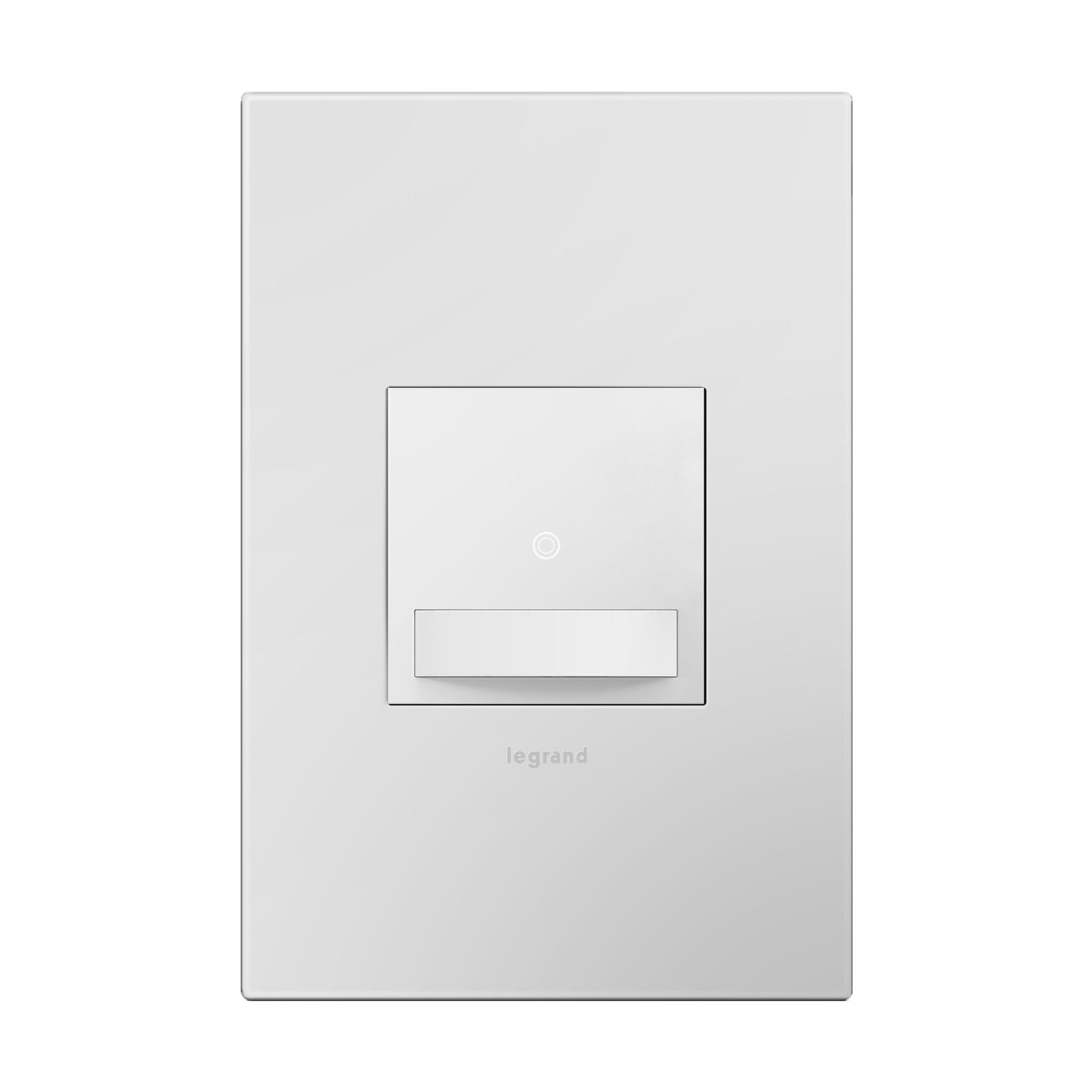

The Legrand ASVS12W4 is a white motion sensor switch from the Adorne Collection, featuring a manual on and auto off function. This switch operates at 120V and supports loads up to 600W, including CFL, LED, Halogen, Incandescent, and Fluorescent. It is designed for single-pole or 3-way applications, making it versatile for various installations.

Key Features

• Voltage: Operates at 120 VAC with a frequency of 60 Hz.
• Load Rating: Supports up to 600W for various load types including CFL, LED, and more.
• Pole Configuration: Compatible with single-pole and 3-way setups.
• Sensor Technology: Utilizes Passive Infrared (PIR) for effective vacancy detection.
• Timer Duration: Adjustable from 30 seconds to 30 minutes for auto shut-off.
• Neutral Wire: Does not require a neutral wire for installation.

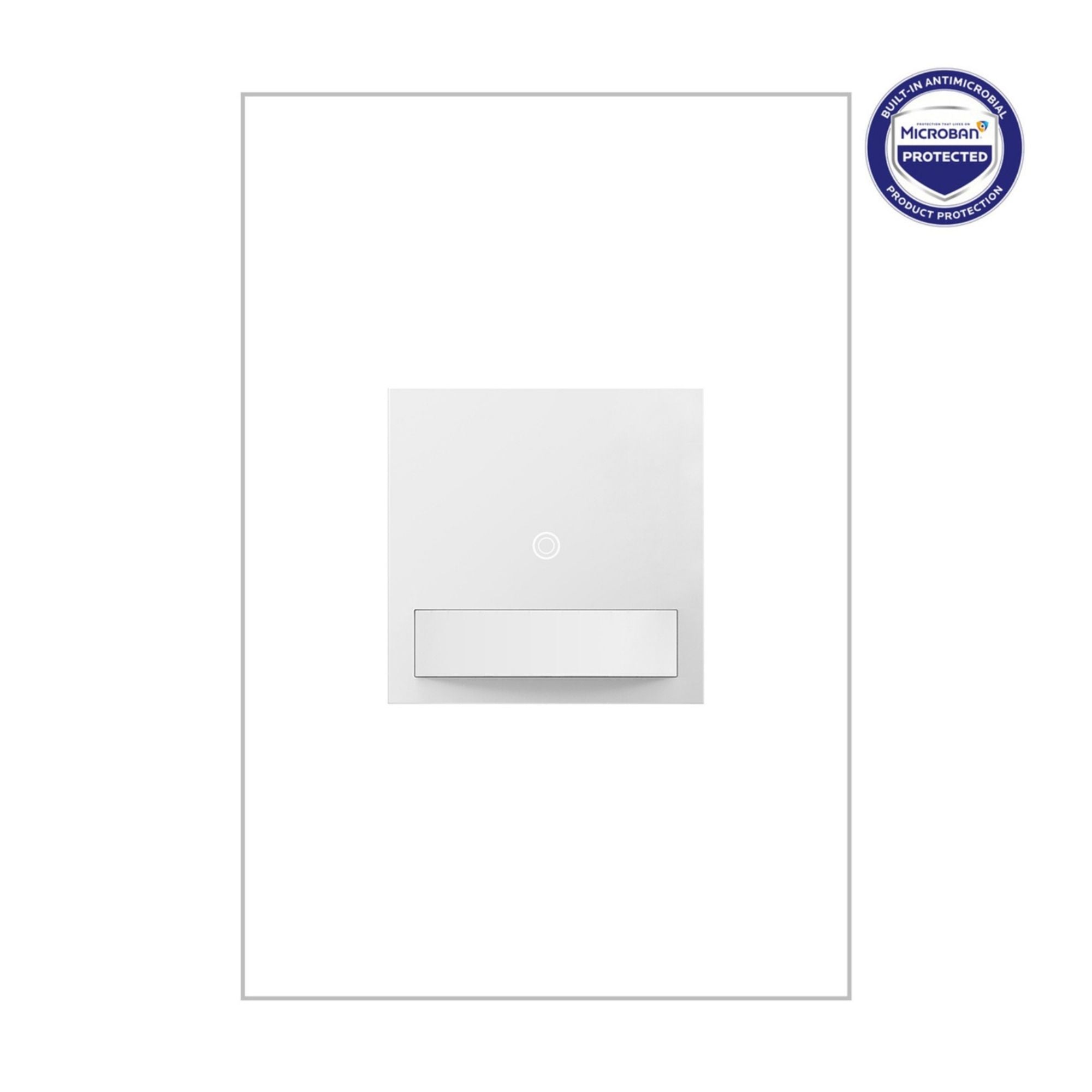

• Microban Protection: Features antimicrobial technology for added hygiene.
• Dimensions: Measures 1.77 in. width, 2.66 in. height, and 1.85 in. depth.
• Certifications: cULus listed for safety and performance.

Construction & Interface

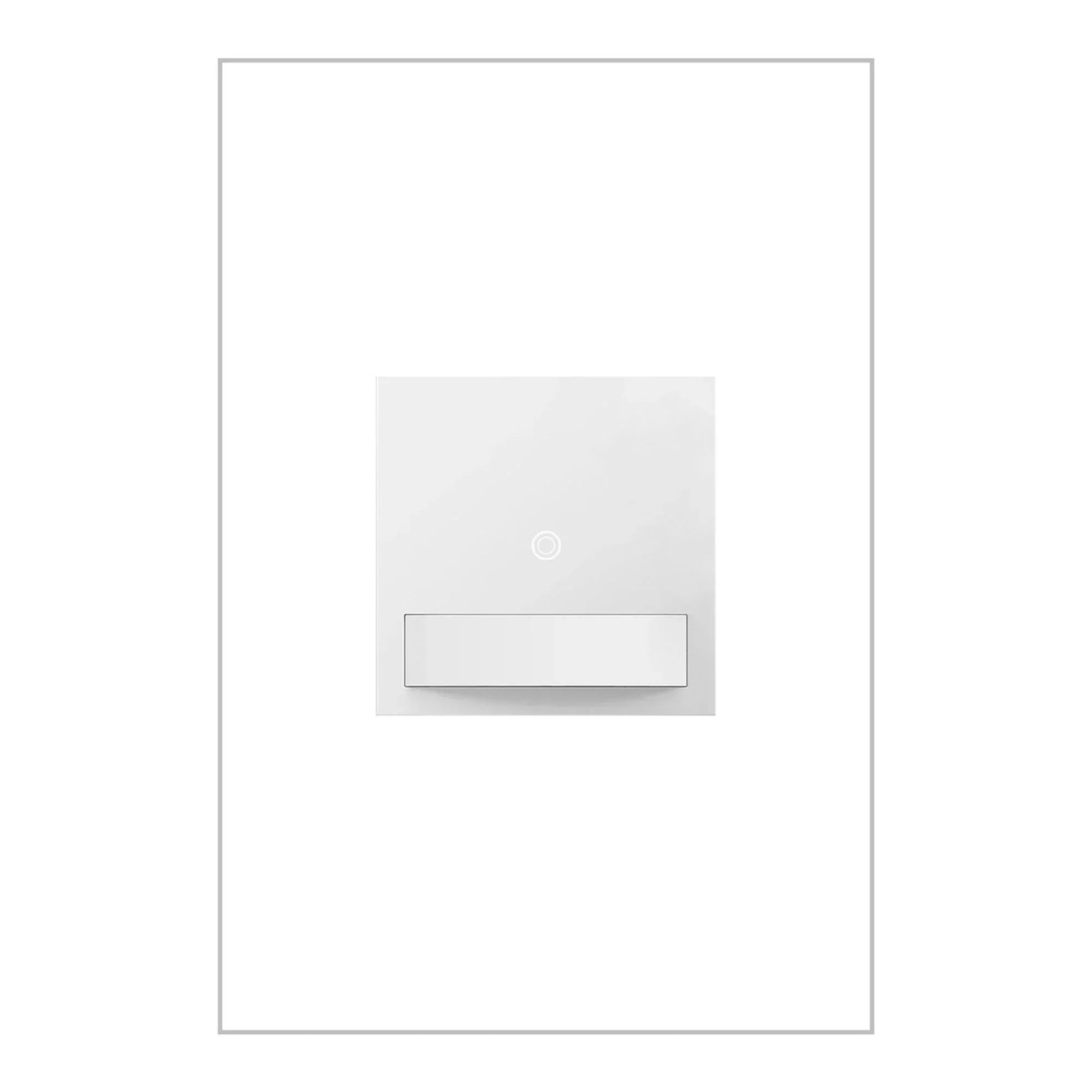

This motion sensor switch features a sleek matte white finish and is designed for indoor use. It includes a manual on function and requires a screwless wall plate from the Adorne Collection, which is sold separately.

Sensor, Smart & Timer Capabilities

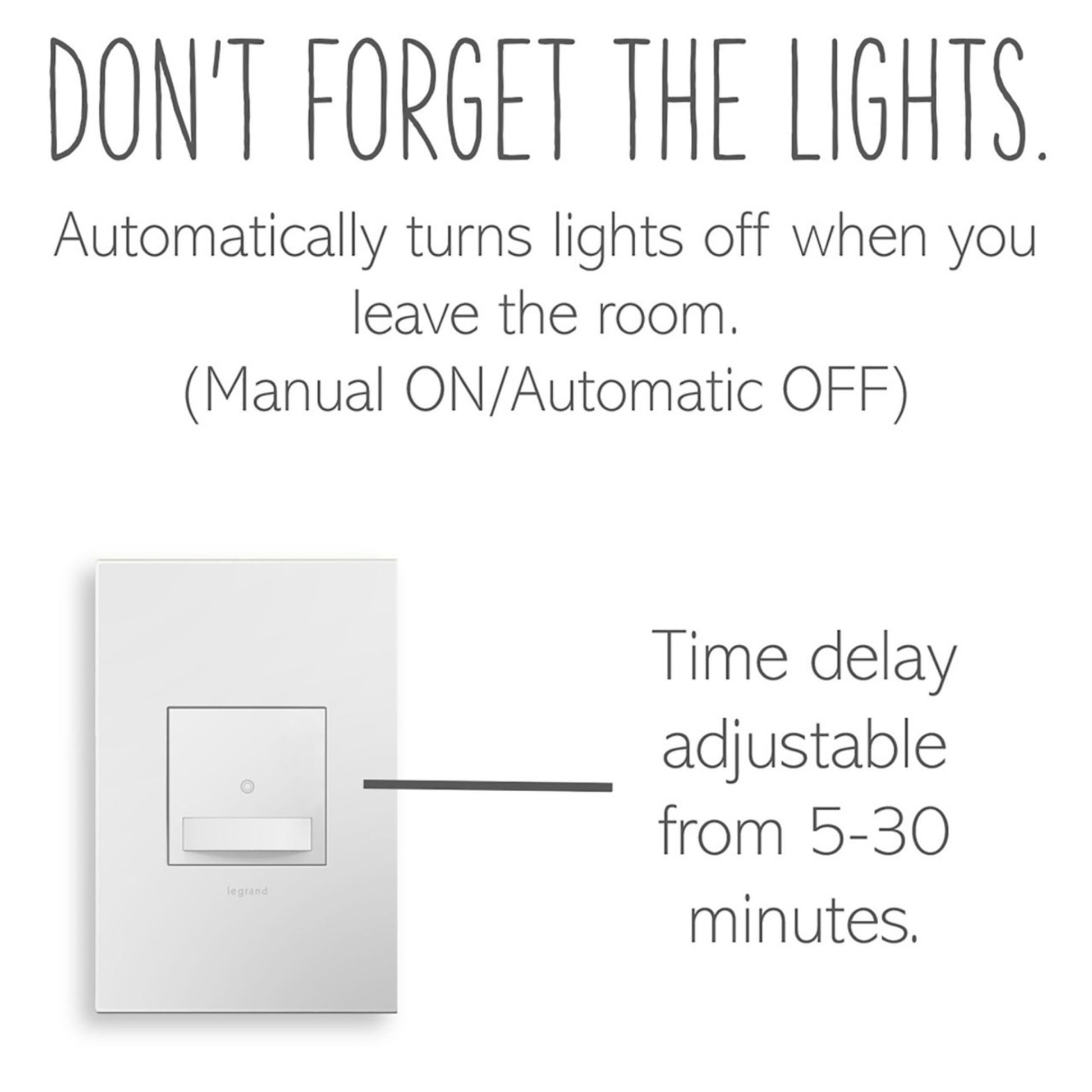

The ASVS12W4 offers manual on and automatic off capabilities, with adjustable time delay settings ranging from 30 seconds to 30 minutes. It uses PIR technology to detect vacancy and ensure energy efficiency.

Wiring & Installation

Installation is straightforward, fitting into an existing electrical box without the need for new wiring. The switch connects via screw terminals and does not require a neutral wire, making it suitable for various residential and commercial applications.
