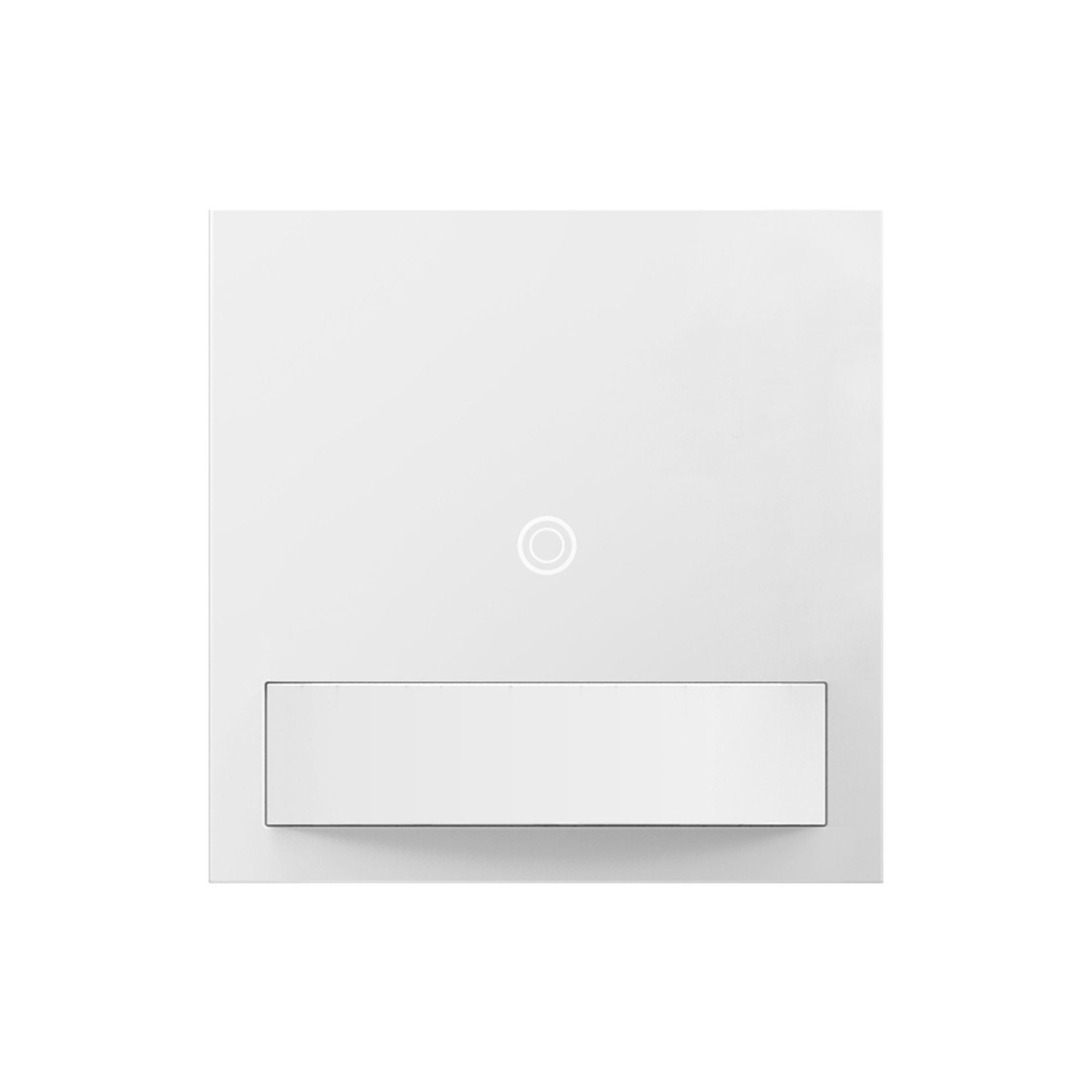

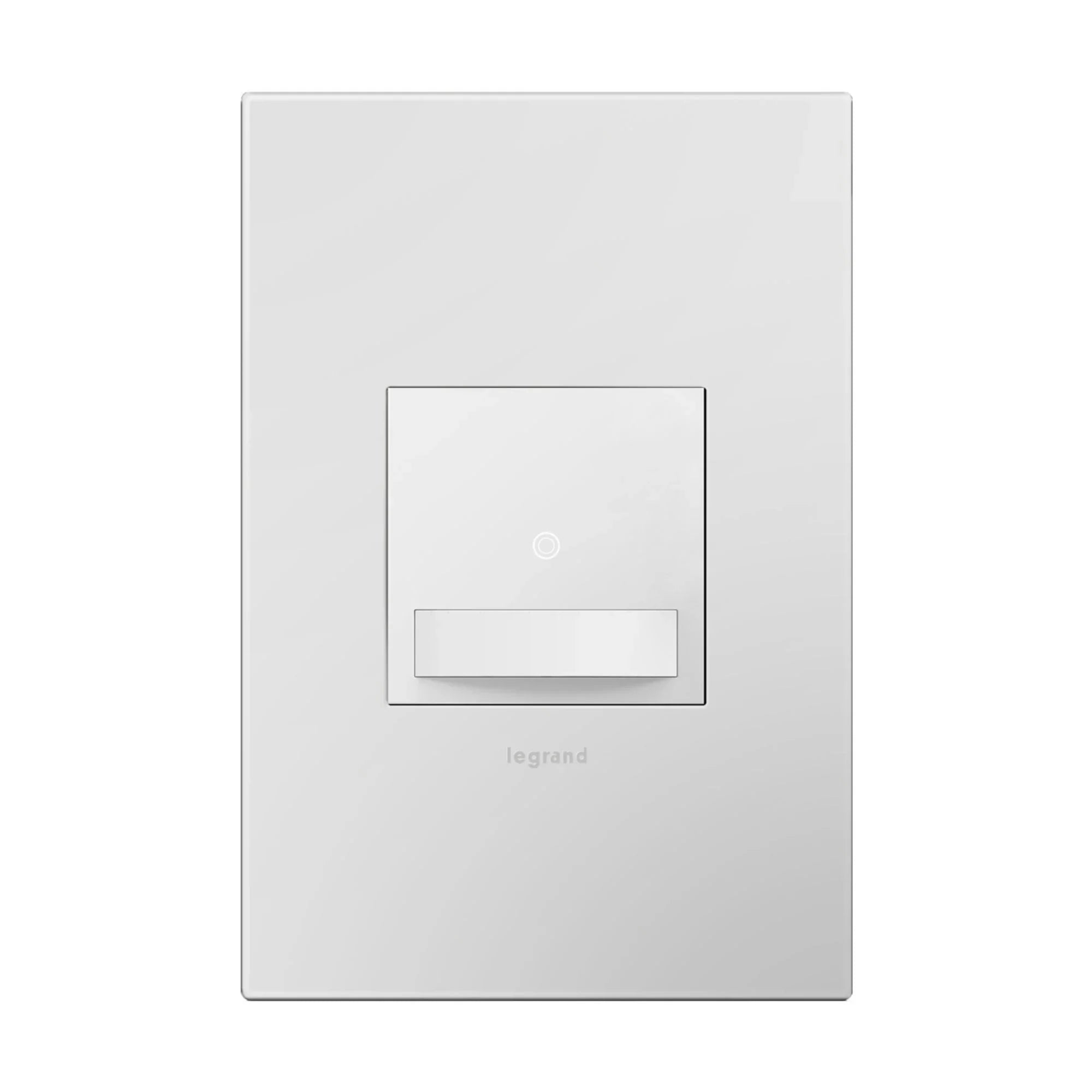

Legrand Adorne Motion Sensor Switch — White & PIR Technology

The Legrand ASOS32W4 is a white motion sensor switch from the Adorne Collection, featuring Passive Infrared (PIR) technology for automatic lighting control. This switch supports a load rating of up to 600W for CFL, LED, Halogen, Incandescent, and Fluorescent loads. It is designed for single-pole and 3-way applications, providing flexible installation options.

Key Features

• Voltage: Operates at 120 VAC with a line frequency of 60 Hz.
• Load Rating: Supports 120V 5A (ELV), 120V 5A 600W (CFL), 120V 5A 600W (LED), 120V 600VA (Fluorescent), 120V 600VA (MLV), 120V 600W (Halogen), 120V 600W (Incandescent).
• Sensor Coverage: Covers up to 600 sq ft with a sensing range of 35 ft for major motion and 20 ft for minor motion.
• Timer Duration: Adjustable from 30 seconds to 30 minutes.
• Neutral Wire: Not required for installation.
• Installation: Fits into a standard wall box with screw terminals for secure connections.

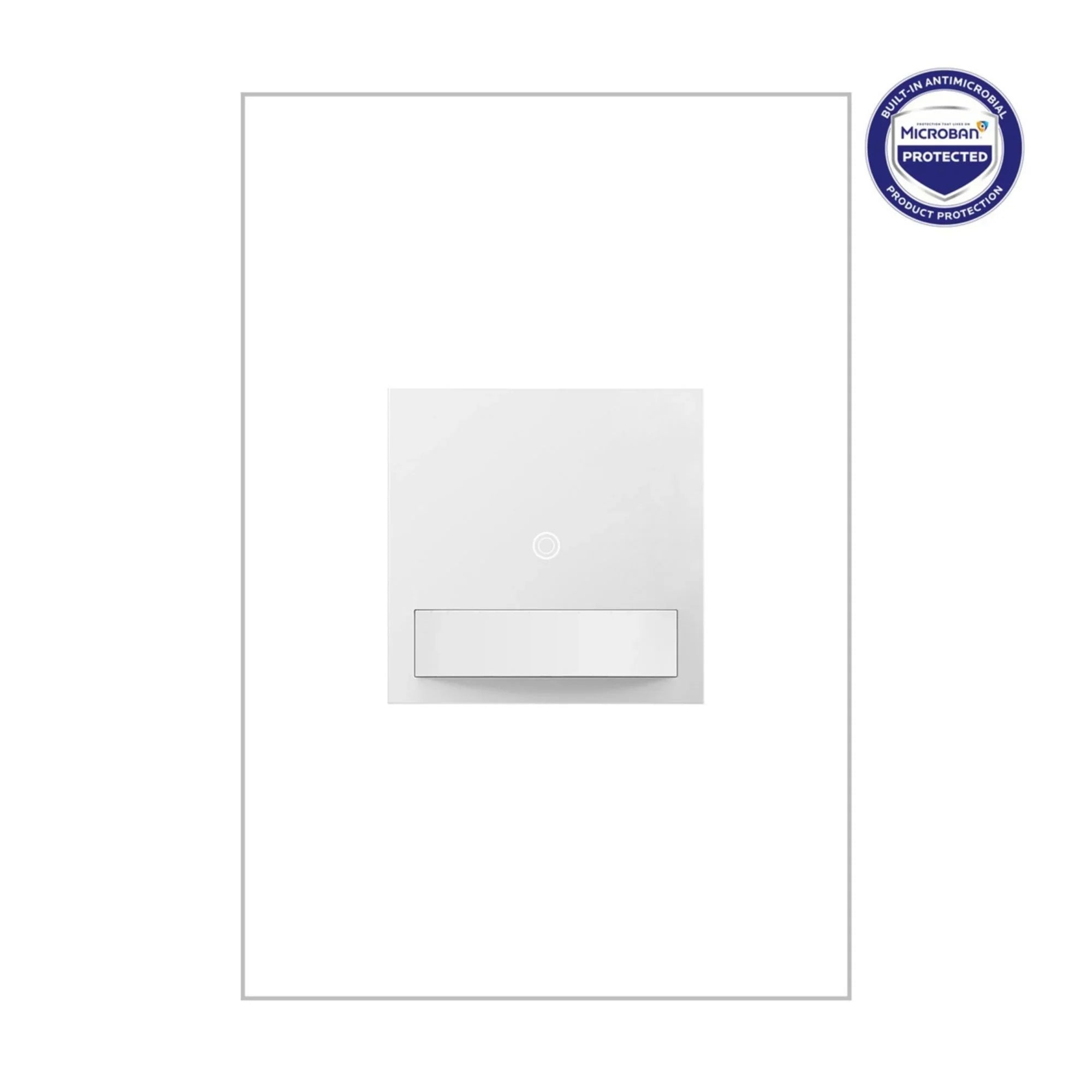

• Microban Technology: Provides antimicrobial protection to reduce bacteria growth.
• Dimensions: Measures 1.85 in width, 2.66 in height, and 1.77 in depth.
• Certifications: cULus listed for safety and performance.

Construction & Interface

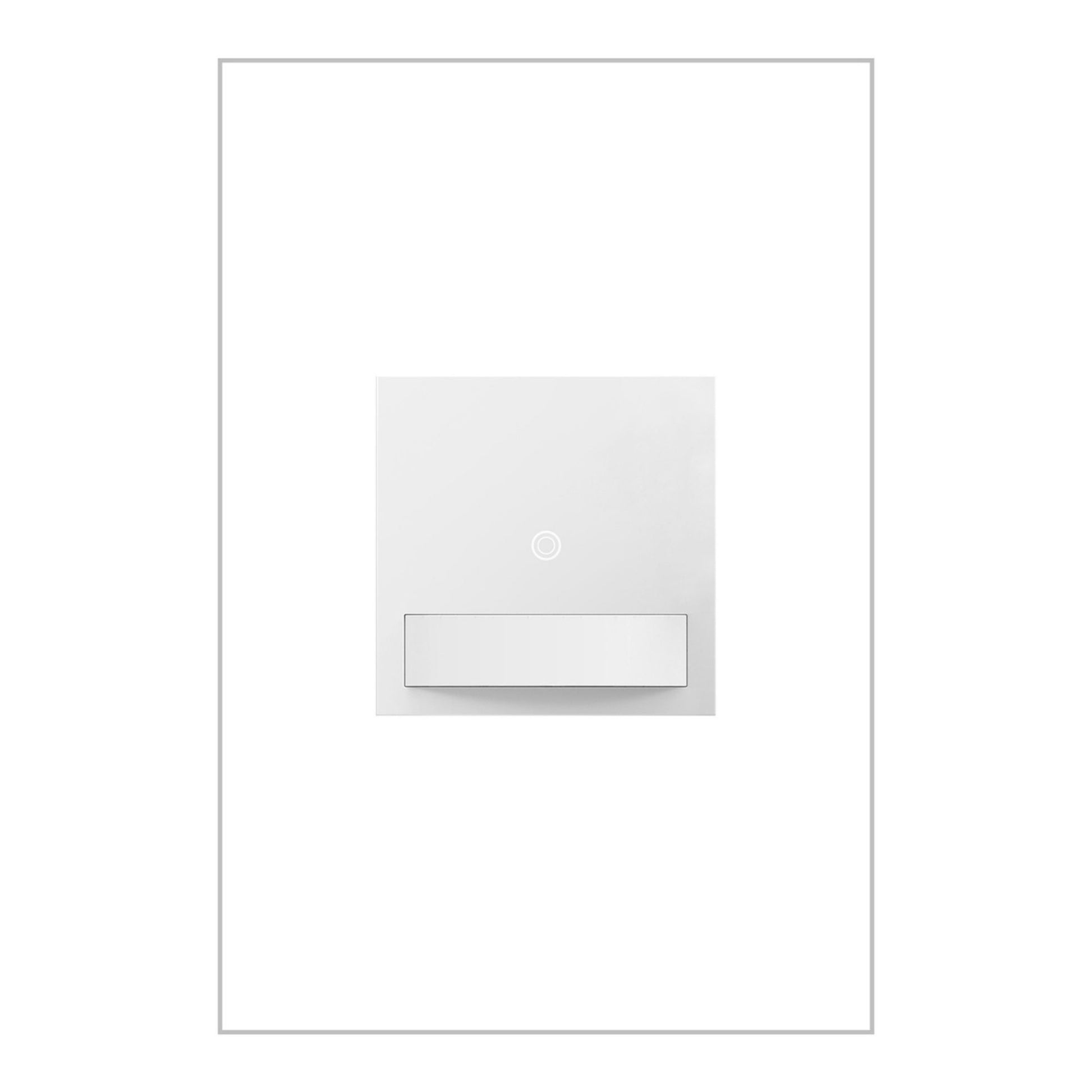

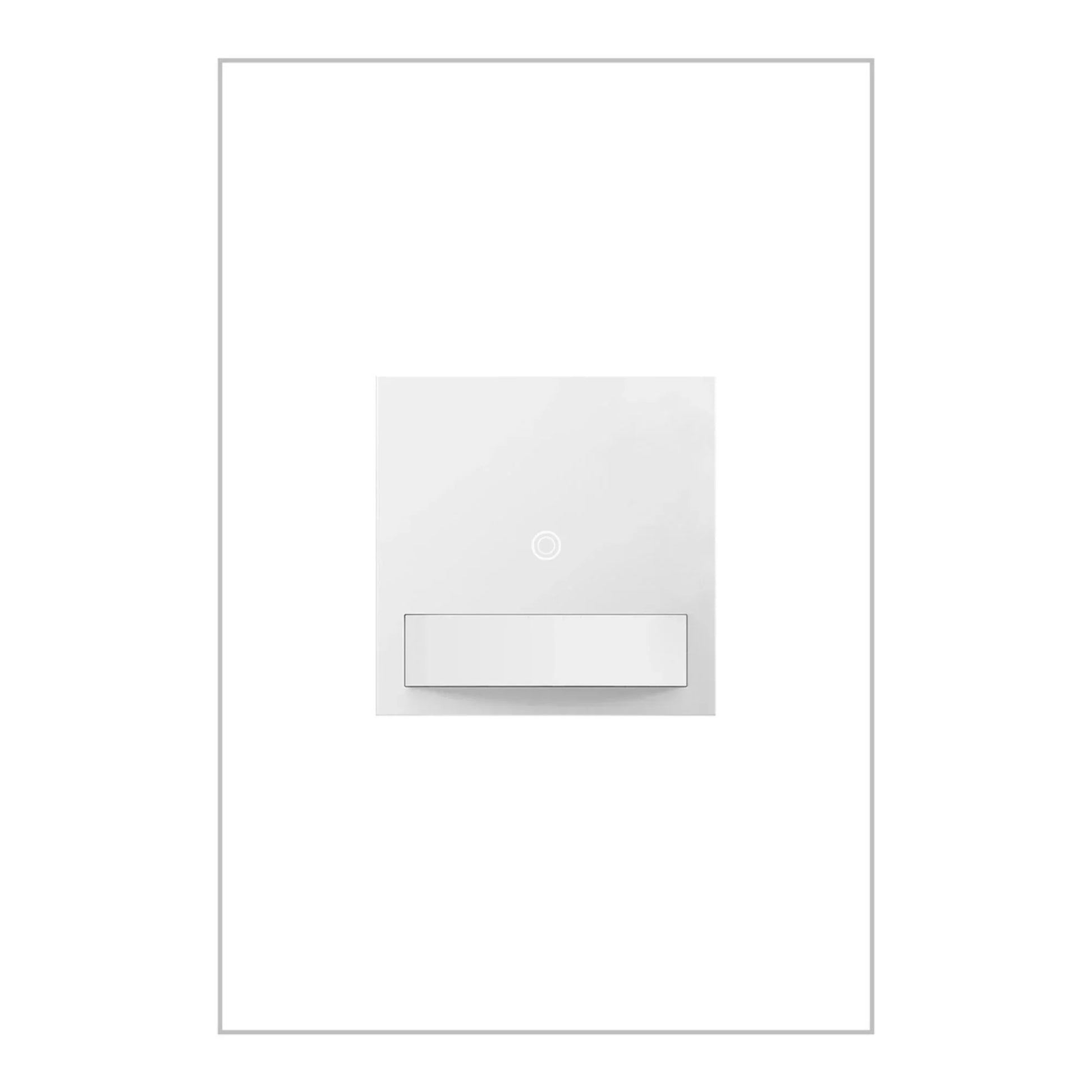

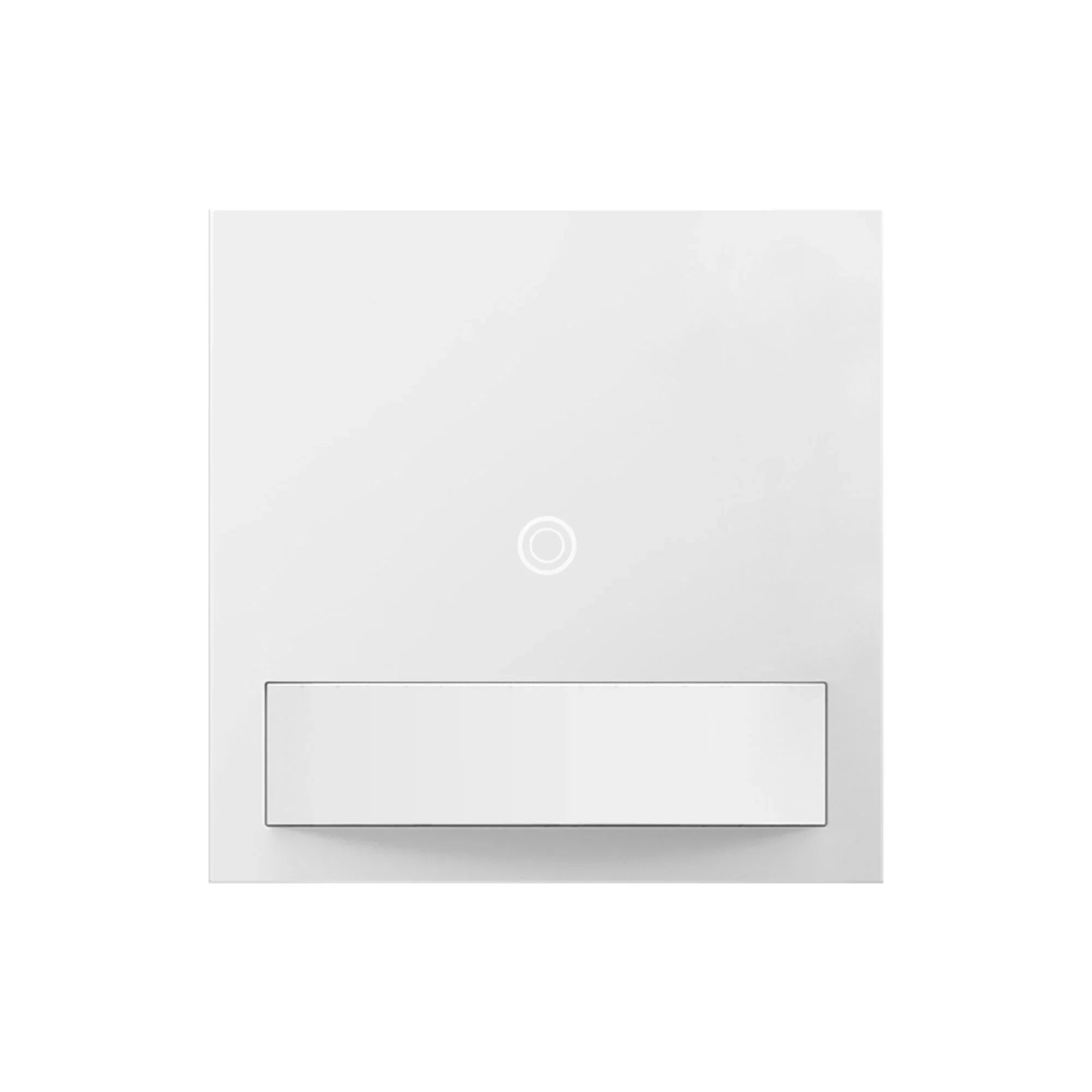

The switch features a matte white finish and is designed for indoor use only. It includes a sofTap interface for easy operation. The wallplate is sold separately and must be purchased from the Adorne Collection for a complete installation.

Sensor, Smart & Timer Capabilities

This sensor switch offers both occupancy and vacancy modes, allowing for automatic or manual on/off functionality. The PIR technology ensures efficient detection and lighting control, with adjustable timer settings for convenience.

Wiring & Installation

The Legrand ASOS32W4 does not require a neutral wire, simplifying installation. It supports single-pole and 3-way configurations and connects via screw terminals. The switch is designed for use in standard wall boxes.
