Legrand Adorne Motion Sensor Switch — Graphite & Auto On/Off

The Legrand ASOS32G4 in Graphite is a motion sensor switch designed for automatic lighting control. This switch features a 600W load rating and supports various load types including CFL, LED, and incandescent. It operates on 120 VAC and can be used in single-pole or 3-way applications without requiring a neutral wire.

Key Features

• Voltage: Operates at 120 VAC with a 60 Hz line frequency.
• Load Rating: Supports up to 600W for CFL, LED, Halogen, and Incandescent loads.
• Pole Configuration: Suitable for single-pole and 3-way applications.
• Sensor Technology: Passive Infrared (PIR) for occupancy and vacancy modes.
• Timer Duration: Adjustable from 30 seconds to 30 minutes.
• Neutral Wire: No neutral wire required for installation.

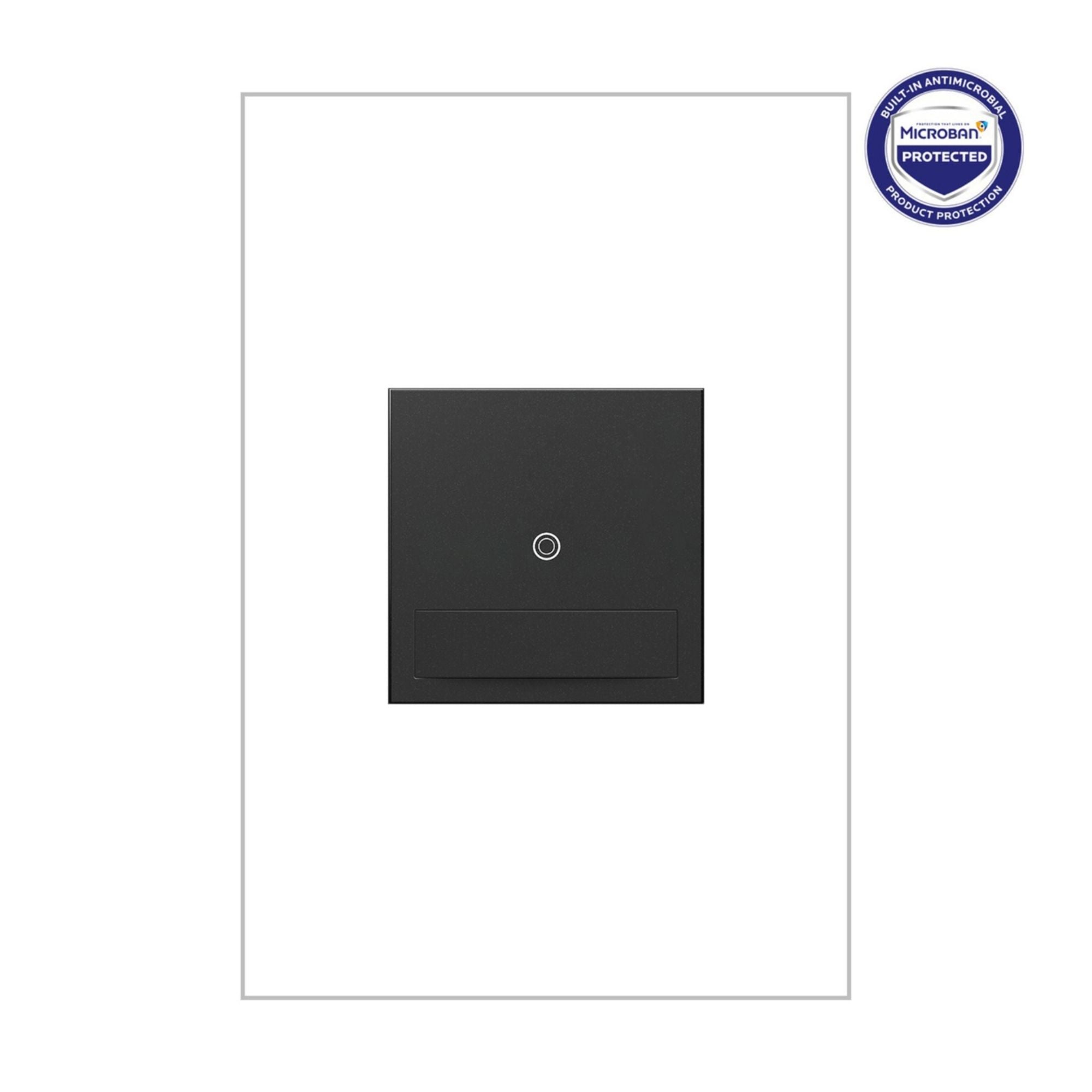

• Microban Protection: Antimicrobial technology for reduced bacterial growth.
• Dimensions: Measures 1.85 in width, 2.66 in height, and 1.77 in depth.
• Certifications: Complies with applicable standards for residential and commercial use.

Construction & Interface

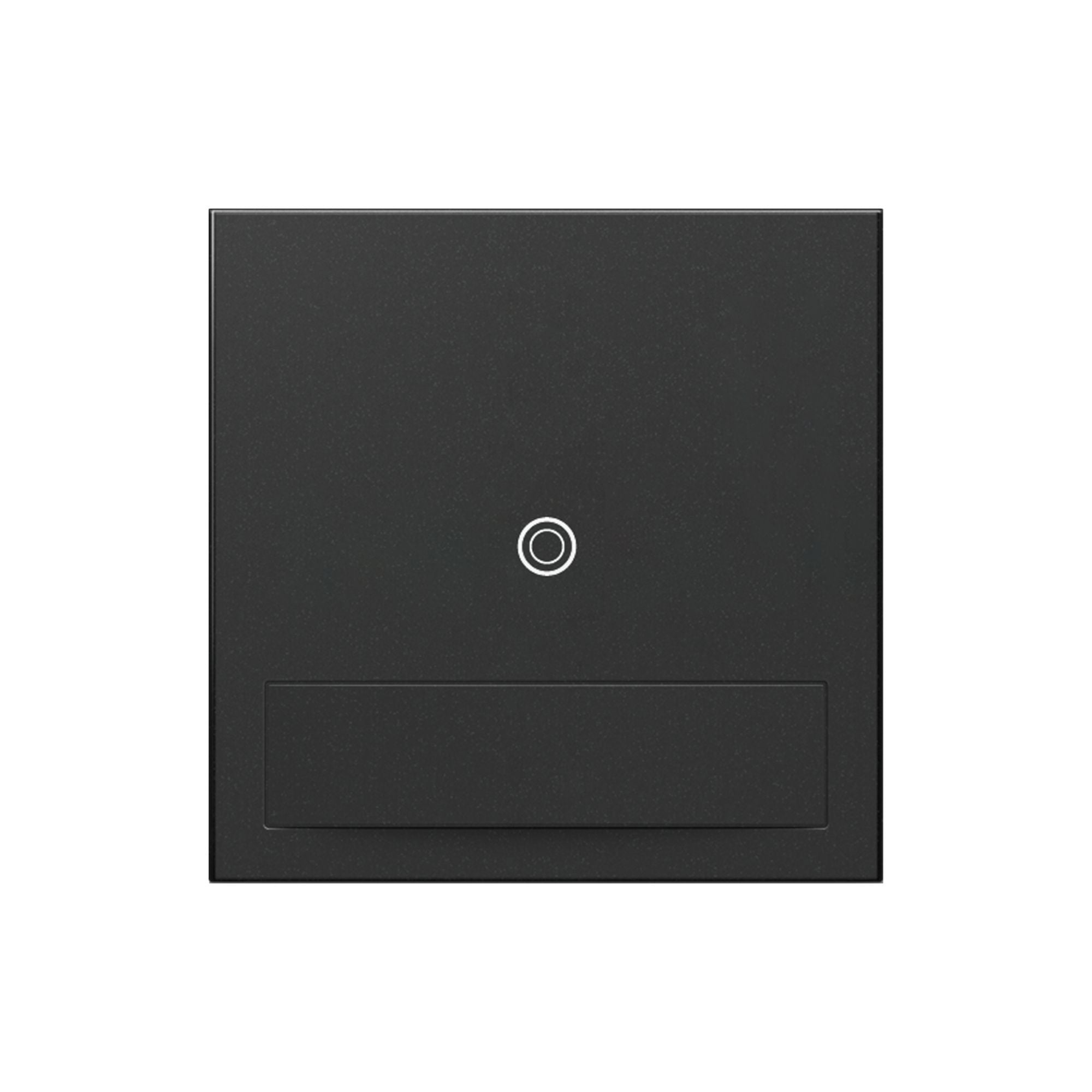

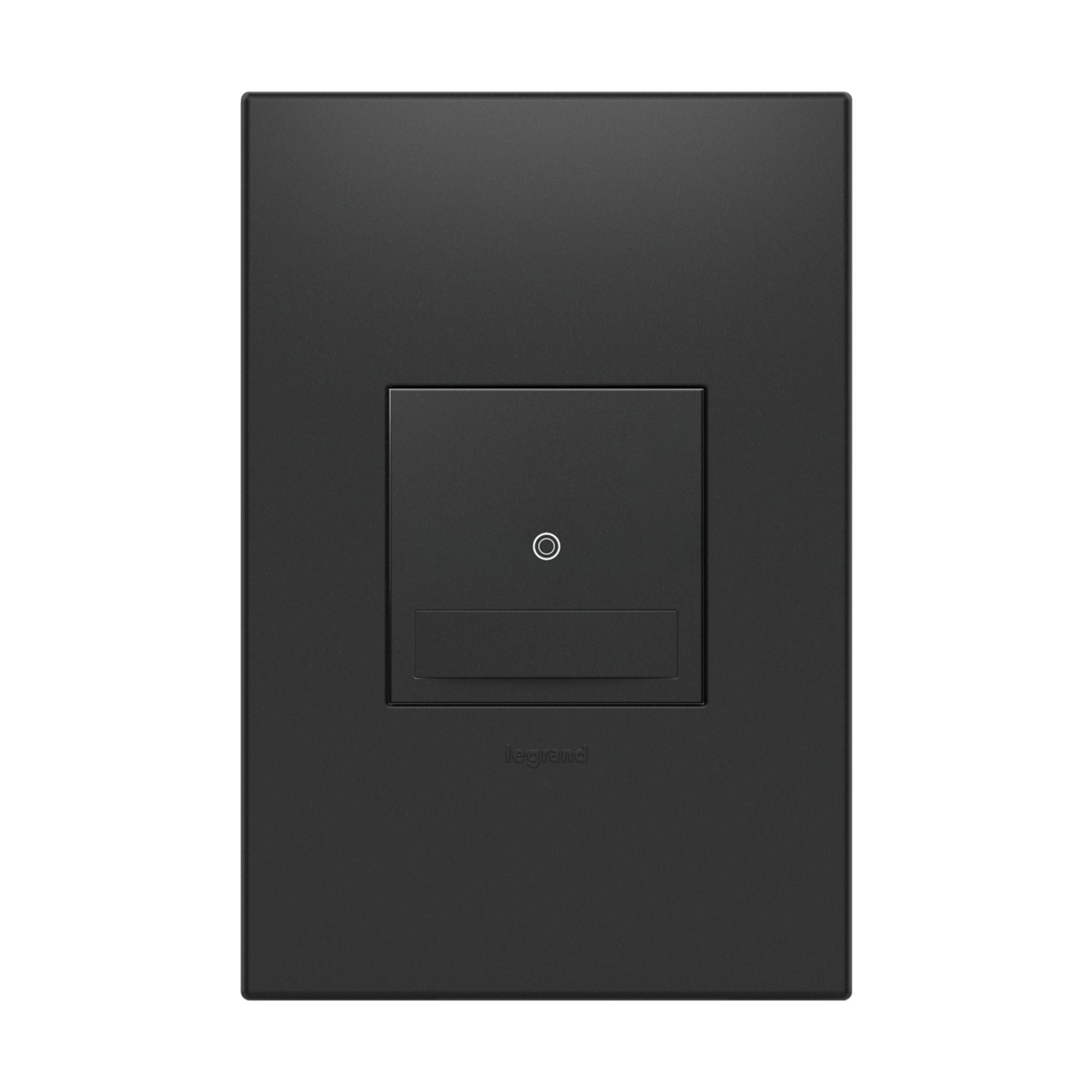

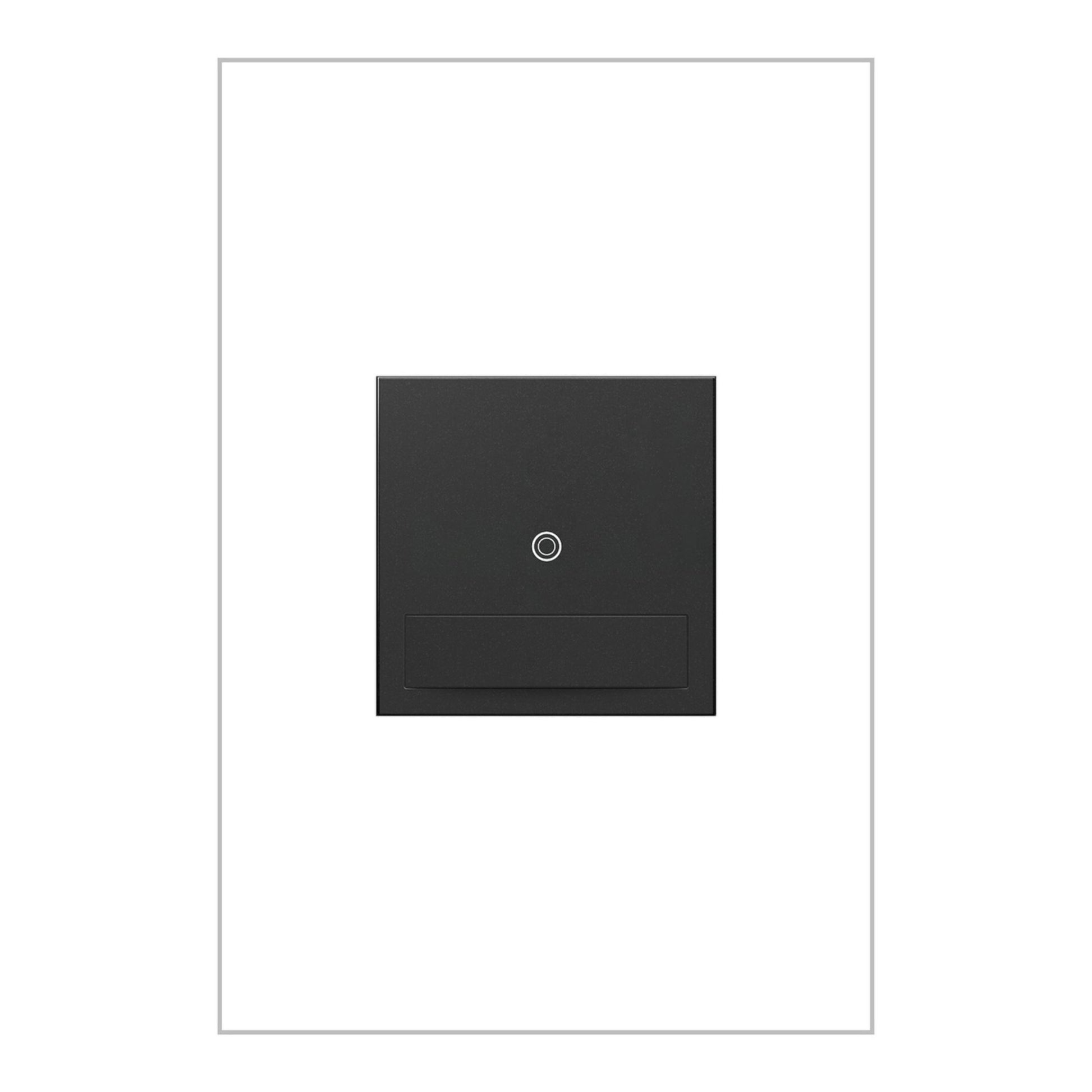

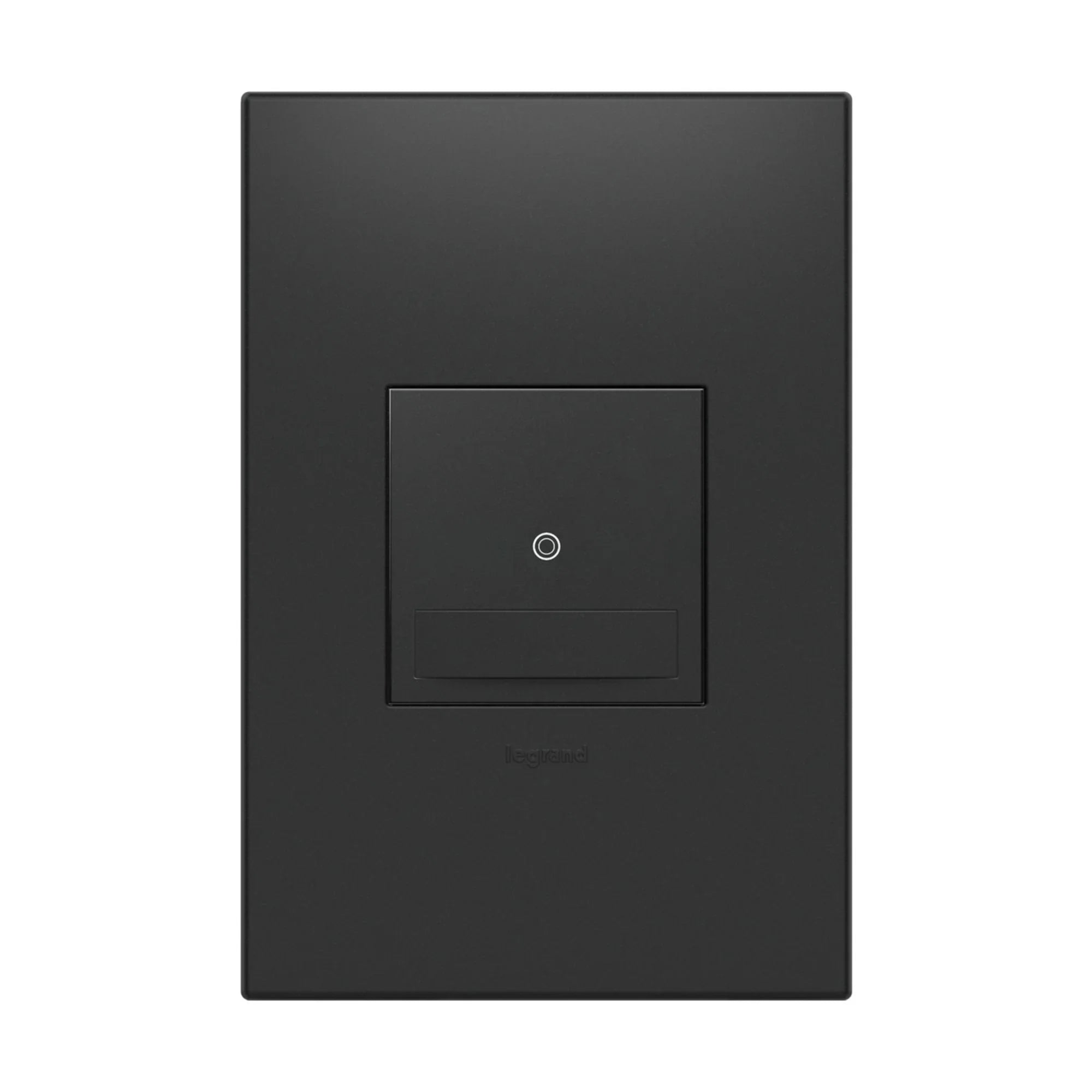

This sensor switch features a sleek Graphite finish and is designed for indoor use. It includes a sofTap interface for manual control. The wallplate is sold separately and must be from the adorne Collection.

Sensor, Smart & Timer Capabilities

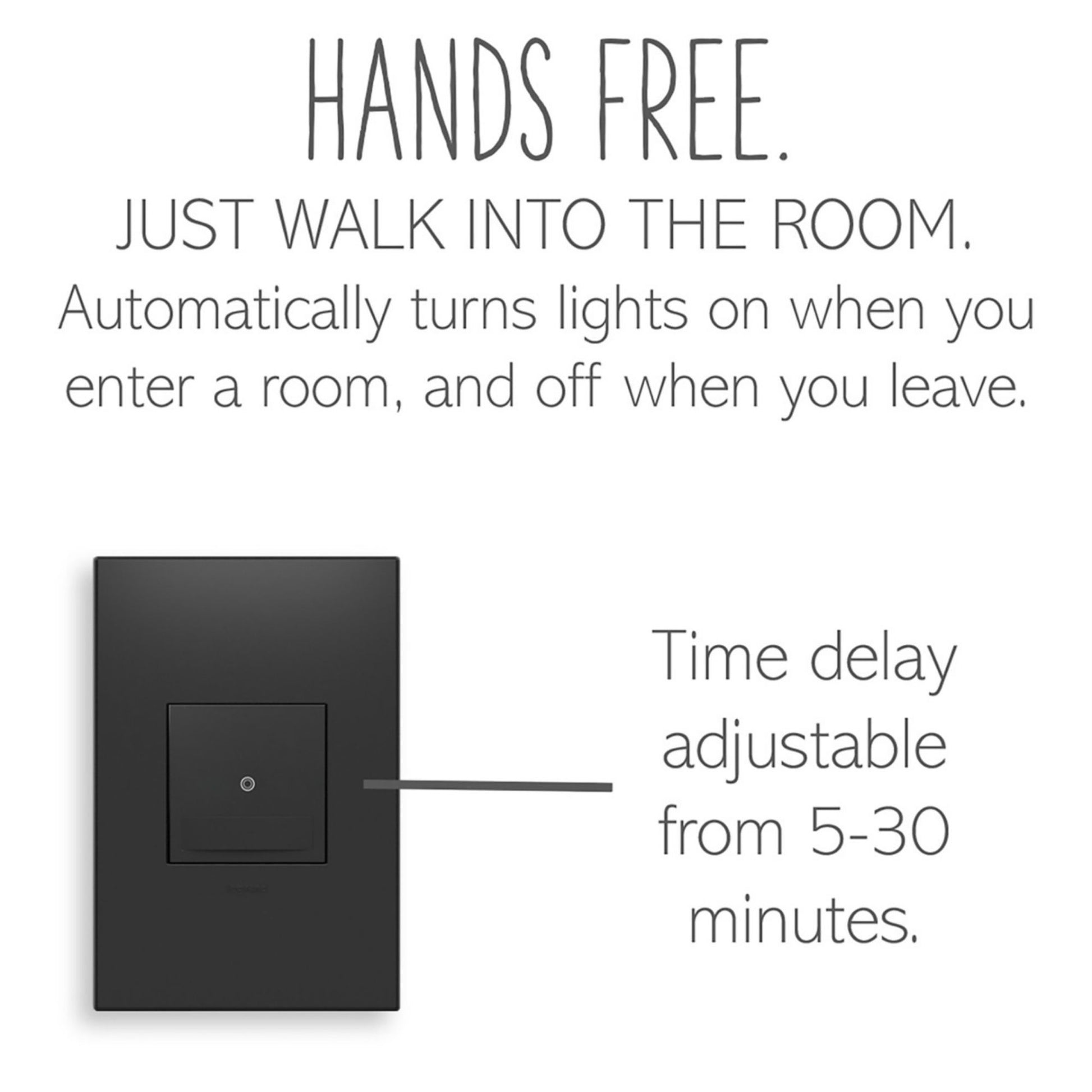

The ASOS32G4 offers both occupancy and vacancy modes with a 180° coverage pattern and a sensing range of up to 35 ft for major motion. The auto shut-off timer can be set between 30 seconds and 30 minutes.

Wiring & Installation

Installation is straightforward with screw terminals and no new wiring required. The switch does not require a neutral wire, making it suitable for retrofit applications. It fits standard wall boxes and is compatible with adorne screwless wallplates, sold separately.
