Enerlites MPC-50HD Commercial PIR 360° High Bay Occupancy Sensor + 0-10V Dimmer | 2800 sq ft | 8A 120-277V | White
Enerlites MPC-50HD Commercial PIR 360° High Bay Occupancy Sensor + 0-10V Dimmer | 2800 sq ft | 8A 120-277V | White
Available in stock (52)
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- 360° Coverage with 0-10V Dimming: Interchangeable fresnel lenses provide up to 2800 sq. ft. coverage—dimmable 0-10V bi-level from 10 to 50 percent compliant with CA Title 24
- Four Occupancy Logic Options: Customize control with four distinct modes including Always On mode—42" wire lead with 18" 0-10V dimmable wire lead
- Adjustable Settings: Time delay from 15 seconds to 30 minutes—adjustable PIR sensitivity and ambient light level for optimal performance
- Convertible Mounting: Flexible high bay to ceiling mount conversion—dual voltage 120-277VAC controls up to 10A resistive, 800W tungsten, 800VA/1385VA electronic ballast/LED
- Title 24 Compliant: UL Listed and California Title 24 compliant—zero-crossing function extends relay life, backed by 2-year warranty
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
Enerlites MPC-50HD-W PIR High Bay Occupancy Sensor with 0-10V Dimming
The MPC-50HD-W is an Enerlites PIR high bay occupancy sensor with 0-10V dimming in white designed for commercial-grade automated lighting control in high ceiling applications. Experience superior energy savings with intelligent passive infrared detection combined with 0-10V dimming capability. This commercial-grade high bay sensor features interchangeable 360° fresnel lenses, four occupancy logic modes, and dimmable 0-10V bi-level operation—ideal for warehouses, large storages, high ceilings, and commercial applications requiring comprehensive automated lighting control with dimming for maximum energy efficiency.
Enerlites MPC-50HD-W Features

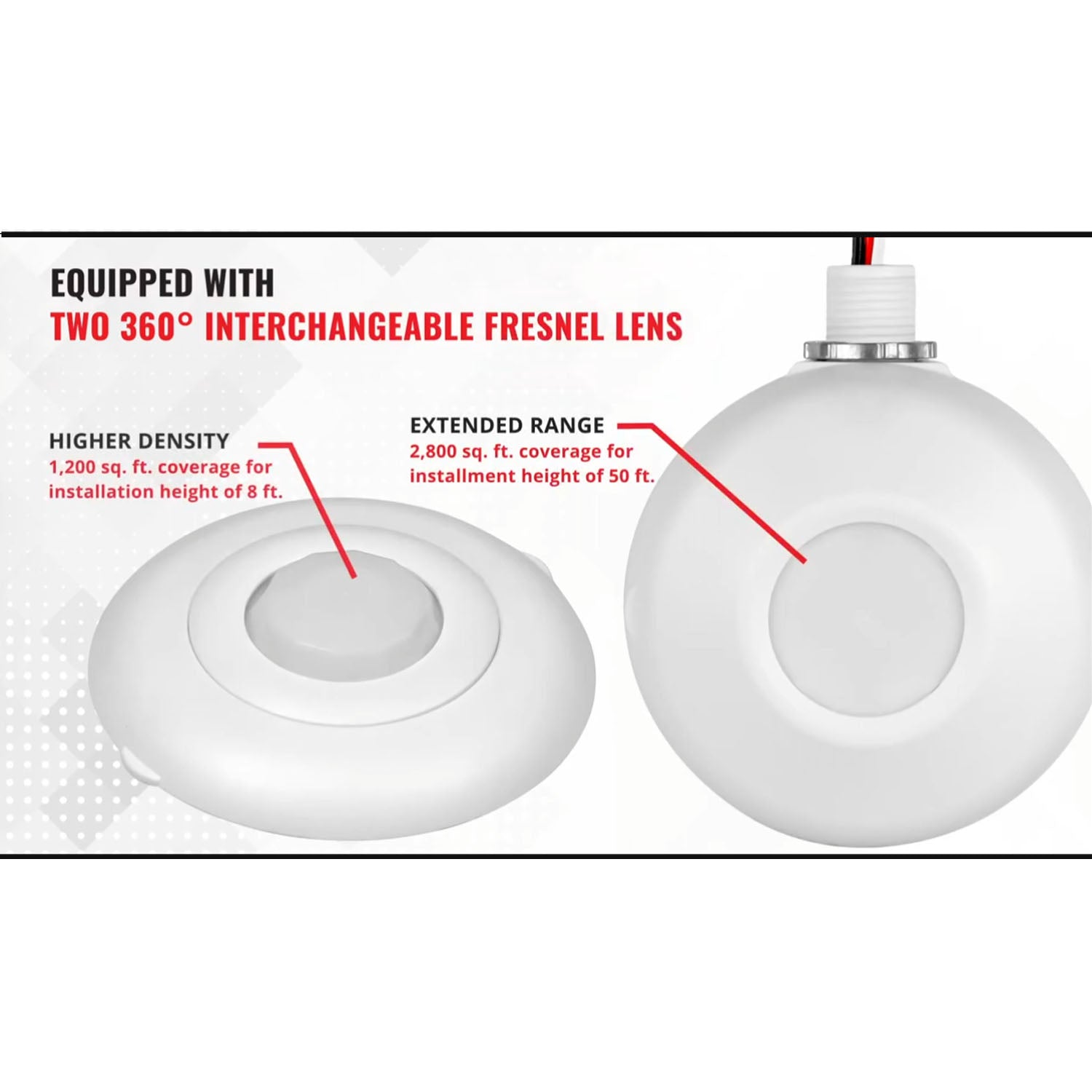

- 360° Field of View: Interchangeable fresnel lenses provide up to 2800 sq. ft. coverage area for comprehensive space monitoring
- 0-10V Dimmable Bi-Level Operation: Dimmable 0-10V bi-level from 10 to 50 percent compliant with CA Title 24 for maximum energy savings
- 42" Wire Lead: 18" 0-10V dimmable wire lead for flexible installation in high ceiling applications

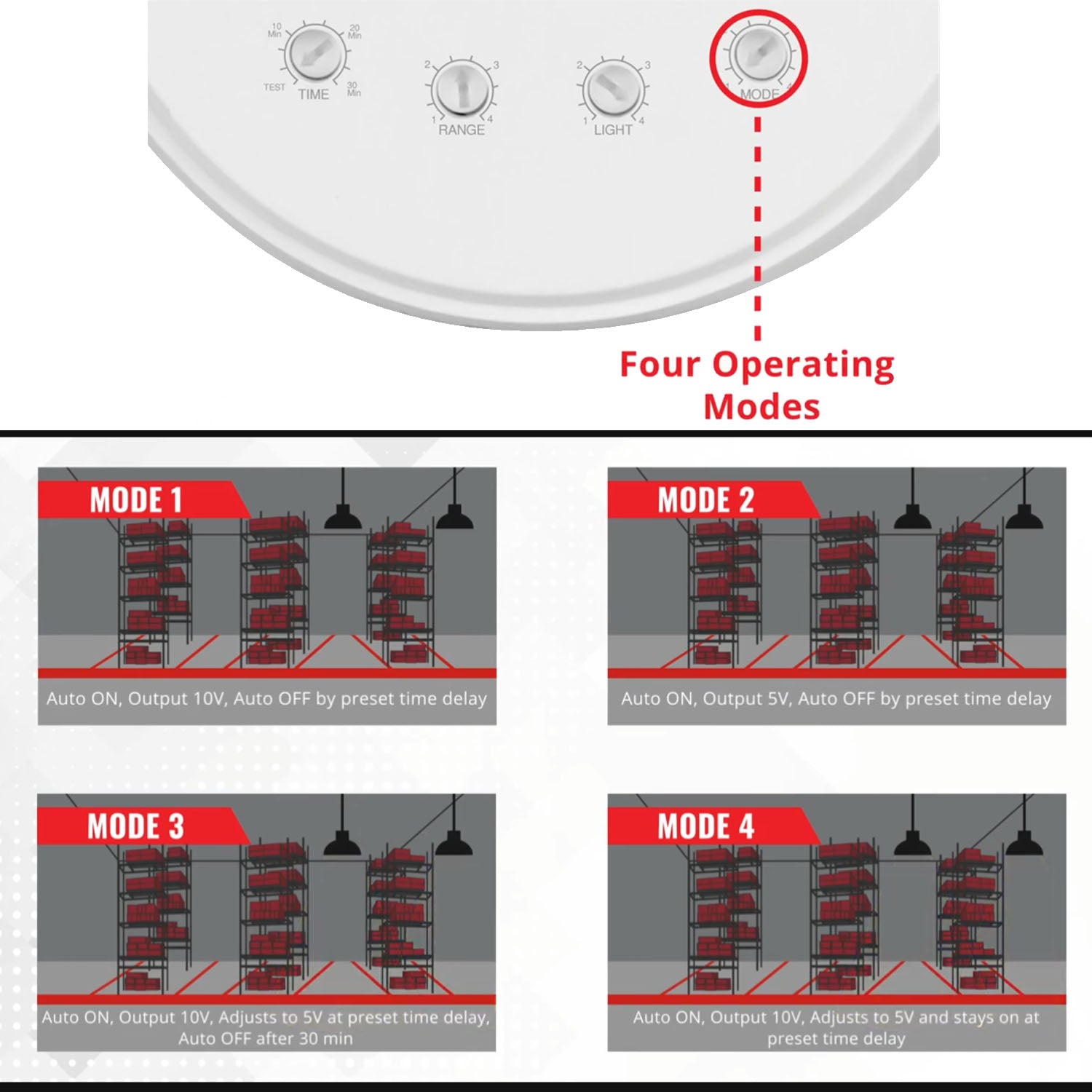

- Four Occupancy Logic Options: Customize control to meet specific needs with four distinct occupancy modes
- Always On Mode Available: Provides continuous lighting when occupancy detection is not required
- Adjustable Time Delay: Customize time delay from 15 seconds to 30 minutes to match your specific application needs
- Adjustable PIR Sensitivity Setting: Fine-tune detection sensitivity for optimal performance in various environments
- Adjustable Ambient Light Level: Set the light level threshold to keep load off when sufficient natural light is available
- LED Indicator: Light flashes when sensor detects motion to verify detection is active
- Convertible from High Bay to Ceiling Mount: Flexible mounting options for various installation scenarios
- Zero-Crossing Function: Extends relay life and reduces electrical noise for improved performance
- Dual Voltage Operation: 120VAC / 277VAC, 50/60 Hz for flexible installation in commercial applications
- High Capacity Loads: Controls up to 10A resistive, 800W tungsten, 800VA @ 120VAC / 1385VA @ 277VAC electronic ballast/LED, or 1/4 HP motor
- UL Listed & Title 24 Compliant: Meets California Title 24 energy code requirements and UL safety standards
- 2-Year Warranty: Backed by Enerlites' 2-year manufacturer warranty
High Bay Occupancy Sensor Applications
- Warehouses and distribution centers
- Large storage facilities
- High ceiling manufacturing areas
- Gymnasiums and sports facilities
- Retail big box stores
- Industrial facilities
- Aircraft hangars
- Convention centers
- Large assembly areas
- High bay storage areas
Installation & Operation
The Enerlites MPC-50HD-W installs easily in high bay or ceiling mount configurations and operates on 120-277VAC. The sensor features interchangeable 360° fresnel lenses that provide up to 2800 sq. ft. coverage area for comprehensive space monitoring. The 42" wire lead with 18" 0-10V dimmable wire lead provides flexible installation in high ceiling applications. Choose between four occupancy logic options to customize control to meet specific needs, including Always On mode for continuous lighting when occupancy detection is not required. The dimmable 0-10V bi-level operation allows dimming from 10 to 50 percent, compliant with CA Title 24 for maximum energy savings. The adjustable time delay ranges from 15 seconds to 30 minutes. The adjustable PIR sensitivity setting allows fine-tuning for optimal performance, while the adjustable ambient light level prevents the sensor from turning lights ON when sufficient natural light is available. The LED indicator flashes when motion is detected. The zero-crossing function extends relay life and reduces electrical noise. Convertible from high bay to ceiling mount for installation flexibility.
Compatible Loads & Systems
- Incandescent/Tungsten: Up to 800W @ 120VAC
- LED Lighting: Compatible with 0-10V dimmable LED fixtures
- Fluorescent/Electronic Ballast: Up to 800VA @ 120VAC / 1385VA @ 277VAC
- Resistive Loads: 10A @ 120-277VAC
- Motor Loads: Up to 1/4 HP
- Dimming Range: 0-10V bi-level from 10 to 50 percent

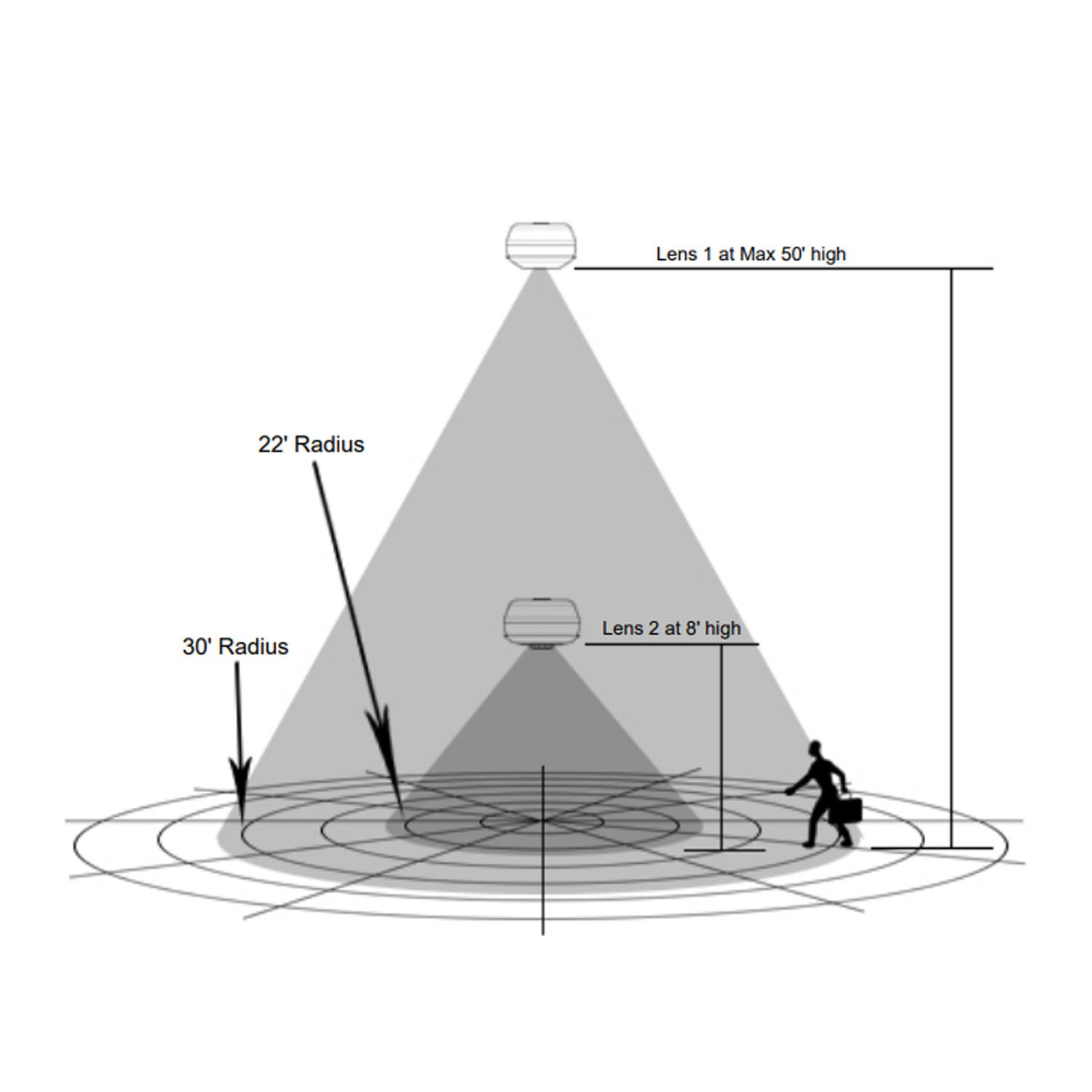

- Coverage: Up to 2800 sq. ft. with 360° field of view
Why Choose Enerlites High Bay Occupancy Sensors
Enerlites is a trusted manufacturer of premium electrical devices with a focus on energy efficiency, reliability, and code compliance. The MPC-50HD series represents commercial-grade high bay sensing technology specifically engineered to provide exceptional performance and energy savings in demanding high ceiling commercial environments. The 360° field of view with interchangeable fresnel lenses provides up to 2800 sq. ft. coverage, ensuring comprehensive detection across large spaces. The 0-10V dimmable bi-level operation from 10 to 50 percent provides maximum energy savings and CA Title 24 compliance. The four occupancy logic options provide maximum flexibility, including Always On mode for continuous lighting. The convertible mounting from high bay to ceiling mount adds installation versatility. With dual voltage capability (120-277VAC), high-capacity load ratings, zero-crossing function, UL listing, California Title 24 compliance, and a 2-year warranty, the MPC-50HD-W delivers professional-grade automated lighting control with dimming for demanding high ceiling commercial applications.
Why Buy From Us: As an authorized Enerlites dealer, we guarantee 100% genuine products with full manufacturer warranty and expert customer support.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What is the difference between an occupancy sensor and a vacancy sensor?
What is the difference between an occupancy sensor and a vacancy sensor?
Motion sensor switches utilize infrared radiation to monitor their surroundings. They emit energy forms such as light, microwaves, or sound to detect changes caused by movement. Most systems used in lighting and security are passive, meaning they primarily detect the infrared energy emitted by warm objects like human bodies.
Are occupancy sensors compatible with LED bulbs?
Are occupancy sensors compatible with LED bulbs?
Occupancy sensors and vacancy sensors are both used for detecting presence in a room, but they operate differently. Occupancy sensors automatically turn on the lights when someone enters a room and turn them off when no presence is detected after a set period. In contrast, vacancy sensors require someone to manually turn on the lights, but will automatically turn them off when the room is empty.
Do these sensors require a neutral wire?
Do these sensors require a neutral wire?
The primary distinction between a motion sensor light switch and a traditional light switch lies in their methods of activation. A traditional light switch requires manual operation to turn the lights on or off. Conversely, an occupancy sensor automatically activates the lights when someone enters the room and turns them off when it no longer detects any presence.
Can an occupancy sensor be used in a bathroom?
Can an occupancy sensor be used in a bathroom?
Occupancy sensors are designed to detect the presence of individuals or animals in a space and activate the lights accordingly, which can be combined with daylight sensors to enhance energy efficiency. On the other hand, daylight sensors adjust the lighting based on the natural light available, reducing the use of artificial lighting when not necessary.
Why do the lights turn off while I’m still in the room?
Why do the lights turn off while I’m still in the room?
Yes! Most motion sensors have adjustable sensitivity settings. This allows you to fine-tune the device to prevent false triggers or increase responsiveness in larger spaces.
