Enerlites MPC PIR Occupancy Sensor — Indoor & High Bay Coverage

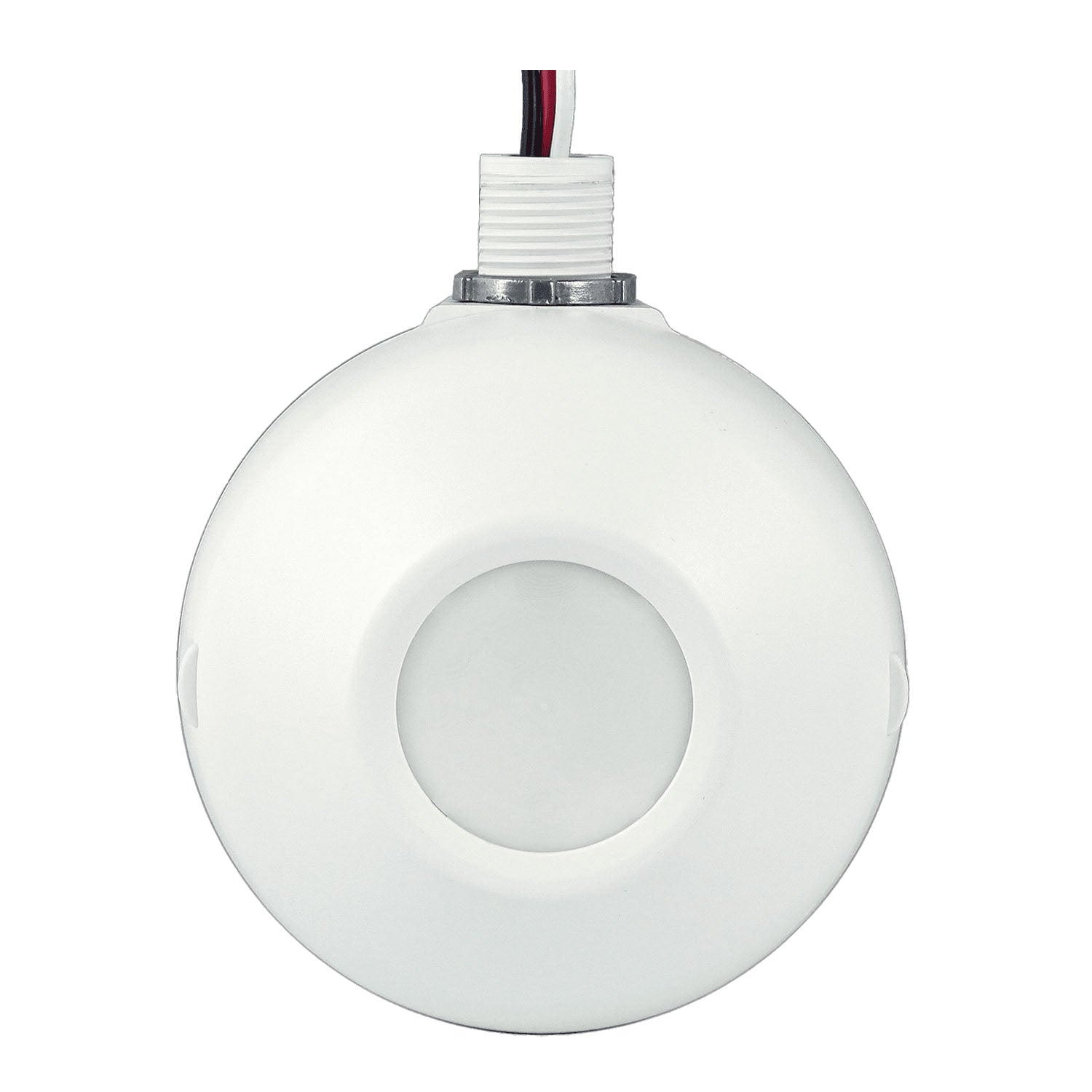

The Enerlites MPC-50H-W is a high-performance PIR occupancy sensor switch designed for high bay and fixture-mounted applications. This sensor, finished in an indoor color, is ideal for commercial environments such as warehouses and large storage areas. The MPC-50H-W offers a comprehensive 360° coverage pattern, capable of detecting motion up to 2800 sq. ft. It operates on 120-277V and supports a load rating of 800W for resistive loads.

Key Features

• Voltage: Compatible with 120VAC/277VAC, 50/60 Hz for flexible installation.
• Load Capacity: Supports 800W resistive and 1200VA at 277VAC.

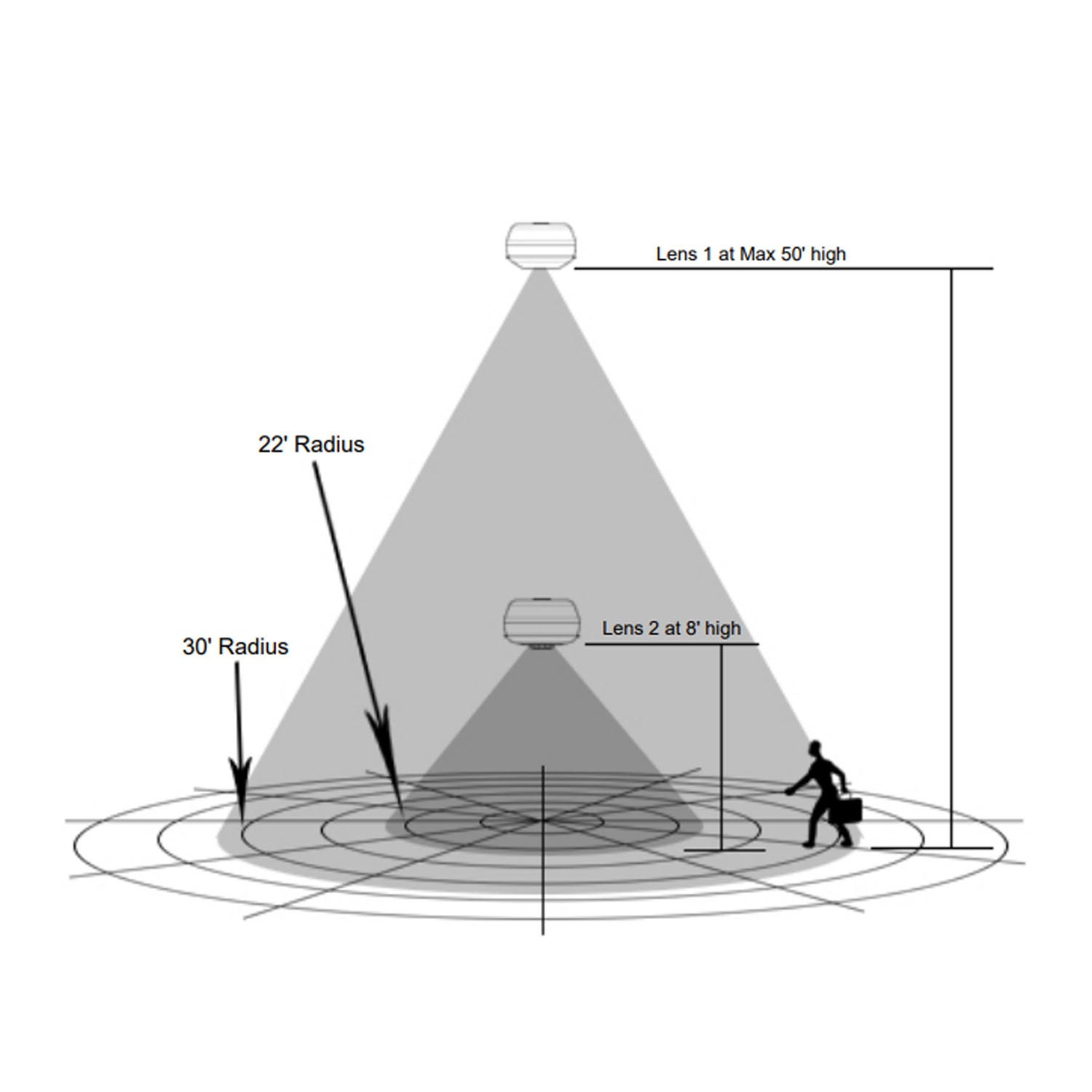

• Coverage Area: Provides up to 2800 sq. ft. of coverage with a 360° field of view.
• Time Delay: Adjustable from 15 seconds to 30 minutes for customized operation.
• PIR Sensitivity: Adjustable to suit specific environmental needs.
• Ambient Light Adjustment: Prevents load activation in bright conditions.
• LED Indicator: Flashes to verify motion detection is active.
• Mounting Options: Convertible from high bay to ceiling mount.
• Relay Life: Zero-crossing technology extends relay life.
• Wire Leads: 42-inch wire leads for easy installation.
• Compliance: Sensor coverage tested to NEMA WD7-2000 standards.

Construction & Interface

This sensor features a durable construction suitable for indoor use, with a 360° field of view. It includes an LED indicator for motion detection verification. The wallplate is sold separately.

Sensor, Smart & Timer Capabilities

The Enerlites MPC-50H-W sensor offers adjustable PIR sensitivity and time delay settings, making it adaptable for various high bay applications. It is designed to detect occupancy efficiently with a 360° coverage pattern.

Wiring & Installation

The sensor requires a neutral wire for operation. It is compatible with single-pole configurations and includes black, white, and red wire leads for line input, neutral, and load output connections.
