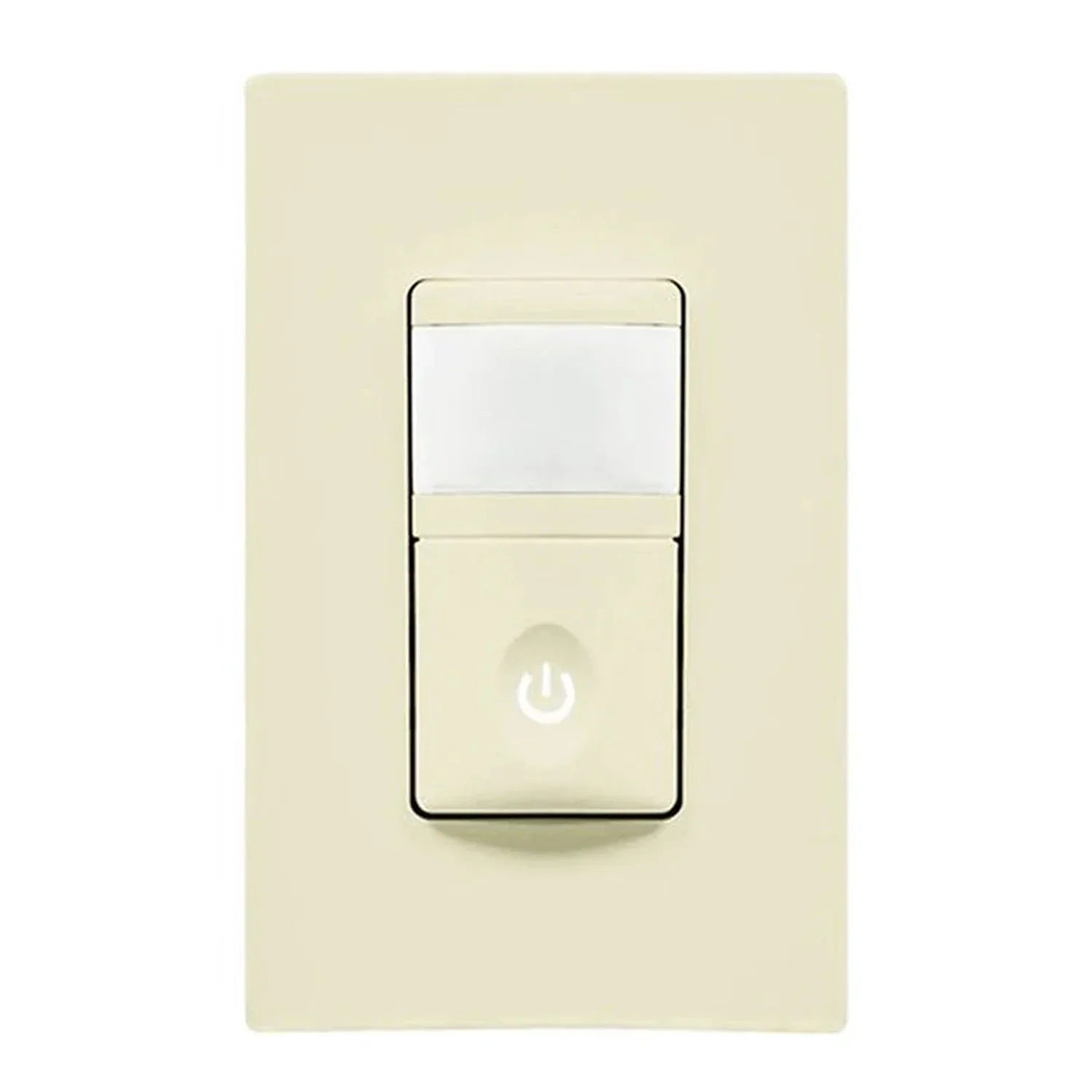

Enerlites HMVS-LA PIR 180° Vacancy Motion Sensor Wall Switch, Neutral Wire Required, Single Pole, 120V, Light Almond
Enerlites HMVS-LA PIR 180° Vacancy Motion Sensor Wall Switch, Neutral Wire Required, Single Pole, 120V, Light Almond
Available in stock (28)
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Vacancy Mode PIR Sensing: Manual ON / automatic OFF operation with 180° coverage and 700 sq. ft. detection for energy code compliance
- High Sensitivity Coverage: Exceptional PIR sensor performance with adjustable time delay from 15 seconds to 20 minutes
- Residential-Grade Capacity: 120VAC operation controls up to 5A resistive, 500W incandescent, 500VA electronic ballast, or 1/8 HP motor
- Interchangeable Face Covers: Customizable appearance with alternative color options—LED motion indicator included
- Title 24 Compliant: UL Listed and California Title 24 compliant—backed by 2-year manufacturer warranty
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
Enerlites HMVS-LA PIR Vacancy Motion Sensor
The HMVS-LA is an Enerlites PIR vacancy motion sensor in light almond designed for residential-grade automated lighting control with manual-on operation. Experience superior energy savings and code compliance with intelligent passive infrared detection that requires manual activation. This residential-grade vacancy sensor combines 180° PIR technology with manual-on/auto-off operation, high sensitivity, and interchangeable face covers—ideal for bathrooms, kitchens, garages, offices, and residential applications requiring energy code-compliant automated lighting control with exceptional performance.
Enerlites HMVS-LA Features
- Vacancy Mode PIR Sensing: Manual ON / automatic OFF operation with 180° field of view and 700 sq. ft. coverage for energy code compliance
- High Sensitivity and Dense Coverage: Exceptional performance with high sensitivity PIR sensor for reliable detection in residential applications
- Adjustable Time Delay: Customize time delay from 15 seconds to 20 minutes to match your specific application needs
- Manual ON Control: Lights must be turned ON manually, then will turn OFF automatically after no motion is detected
- LED Motion Indicator: Indicator light flashes when sensor detects motion to verify active detection is working properly
- 120VAC Operation: Standard 120VAC, 60 Hz for residential applications
- Residential-Grade Capacity: Controls up to 5A resistive, 500W incandescent, 500VA electronic ballast, or 1/8 HP motor
- Universal Load Compatibility: Works with incandescent, fluorescent, CFL, and LED lighting systems
- Interchangeable Face Covers: Includes interchangeable face covers for customizable appearance in alternative colors
- Single Pole Configuration: Single-pole only installation in a standard single-gang wallbox
- Neutral Wire Required: Requires neutral connection for reliable operation
- UL Listed & Title 24 Compliant: Meets California Title 24 energy code requirements and UL safety standards
- 2-Year Warranty: Backed by Enerlites' 2-year manufacturer warranty
PIR Vacancy Sensor Applications
- Bathrooms and powder rooms
- Kitchens and pantries
- Garages and workshops
- Home offices and study areas
- Meeting rooms and conference spaces
- Utility rooms and laundry areas
- Laboratories and workspaces
- Restaurants and hospitality areas
- Hotels and guest rooms
- Basements and storage areas
Installation & Operation
The Enerlites HMVS-LA installs easily in a standard single-gang wallbox and requires a neutral wire connection for proper operation. The sensor is configured as a single-pole switch only and works with incandescent, fluorescent, CFL, and LED lighting systems. Vacancy mode operation requires manual ON activation—lights must be turned ON manually, then will automatically turn OFF after no motion is detected for the preset time delay. This manual-on requirement ensures compliance with energy codes that mandate user control of lighting activation. The adjustable time delay ranges from 15 seconds to 20 minutes, allowing you to customize how long lights remain on after the last detected motion. The high sensitivity PIR sensor with 180° field of view provides exceptional performance and dense coverage up to 700 sq. ft. The LED indicator flashes each time motion is detected, providing visual confirmation that the sensor is actively monitoring the space. The interchangeable face covers allow you to customize the appearance to match your décor.
Compatible Loads & Systems
- Incandescent/Tungsten: Up to 500W @ 120VAC
- LED Lighting: Compatible with LED bulbs and fixtures
- CFL Lighting: Compatible with CFL bulbs
- Fluorescent/Electronic Ballast: Up to 500VA @ 120VAC
- Resistive Loads: 5A @ 120VAC
- Motor Loads: Up to 1/8 HP
Why Choose Enerlites PIR Vacancy Sensors
Enerlites is a trusted manufacturer of premium electrical devices with a focus on energy efficiency, reliability, and code compliance. The HMVS series represents residential-grade vacancy sensing technology specifically engineered to provide exceptional performance, energy savings, and energy code compliance in residential applications. The 180° PIR sensor with high sensitivity and 700 sq. ft. coverage ensures reliable detection and dense coverage, while the adjustable time delay provides maximum energy savings. The vacancy mode operation with manual-on requirement ensures compliance with energy codes that mandate user control of lighting activation, making it ideal for jurisdictions with strict energy regulations. The interchangeable face covers add customization options to match your home décor. With UL listing, California Title 24 compliance, and a 2-year warranty, the HMVS-LA delivers reliable automated lighting control for residential applications requiring energy code compliance.
Why Buy From Us: As an authorized Enerlites dealer, we guarantee 100% genuine products with full manufacturer warranty and expert customer support.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
What is the difference between an occupancy sensor and a vacancy sensor?
What is the difference between an occupancy sensor and a vacancy sensor?
Motion sensor switches utilize infrared radiation to monitor their surroundings. They emit energy forms such as light, microwaves, or sound to detect changes caused by movement. Most systems used in lighting and security are passive, meaning they primarily detect the infrared energy emitted by warm objects like human bodies.
Are occupancy sensors compatible with LED bulbs?
Are occupancy sensors compatible with LED bulbs?
Occupancy sensors and vacancy sensors are both used for detecting presence in a room, but they operate differently. Occupancy sensors automatically turn on the lights when someone enters a room and turn them off when no presence is detected after a set period. In contrast, vacancy sensors require someone to manually turn on the lights, but will automatically turn them off when the room is empty.
Do these sensors require a neutral wire?
Do these sensors require a neutral wire?
The primary distinction between a motion sensor light switch and a traditional light switch lies in their methods of activation. A traditional light switch requires manual operation to turn the lights on or off. Conversely, an occupancy sensor automatically activates the lights when someone enters the room and turns them off when it no longer detects any presence.
Can an occupancy sensor be used in a bathroom?
Can an occupancy sensor be used in a bathroom?
Occupancy sensors are designed to detect the presence of individuals or animals in a space and activate the lights accordingly, which can be combined with daylight sensors to enhance energy efficiency. On the other hand, daylight sensors adjust the lighting based on the natural light available, reducing the use of artificial lighting when not necessary.
Why do the lights turn off while I’m still in the room?
Why do the lights turn off while I’m still in the room?
Yes! Most motion sensors have adjustable sensitivity settings. This allows you to fine-tune the device to prevent false triggers or increase responsiveness in larger spaces.
