Enerlites HMOS-J-W PIR 180° Occupancy/Vacancy Motion Sensor Wall Switch, Ground Wire Required, Single Pole, 120-277V, White
Enerlites HMOS-J-W PIR 180° Occupancy/Vacancy Motion Sensor Wall Switch, Ground Wire Required, Single Pole, 120-277V, White
Available in stock (133)
Highlights
Highlights
- Passive Infrared Technology (PIR)
- 180 deg. field of view, up to 700 sq. ft.
- High sensitivity and dense coverage for exceptional performance
- Convenient push-button provides manual ON/OFF at any time
- Ground Wire Required
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Overview
Overview
Overview

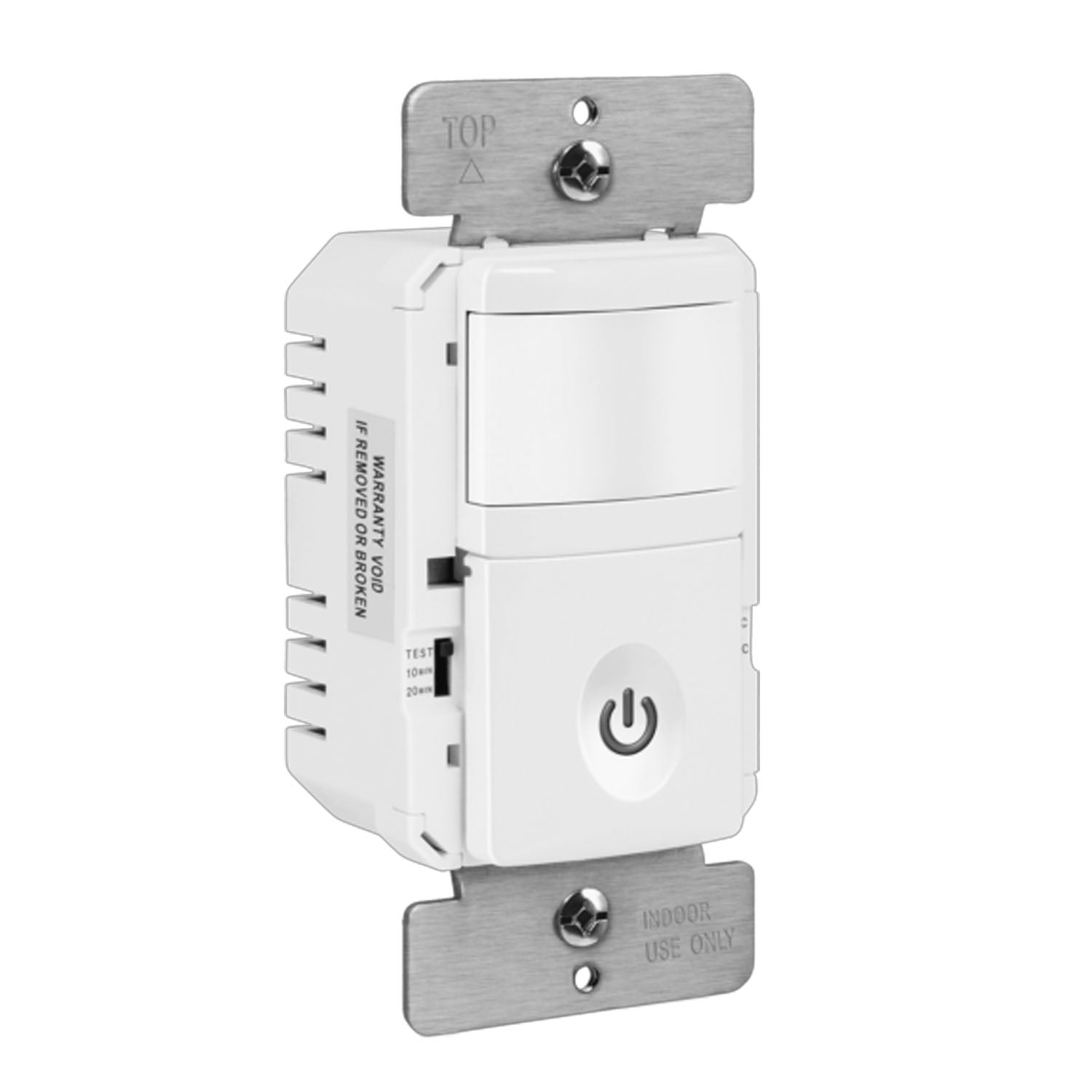

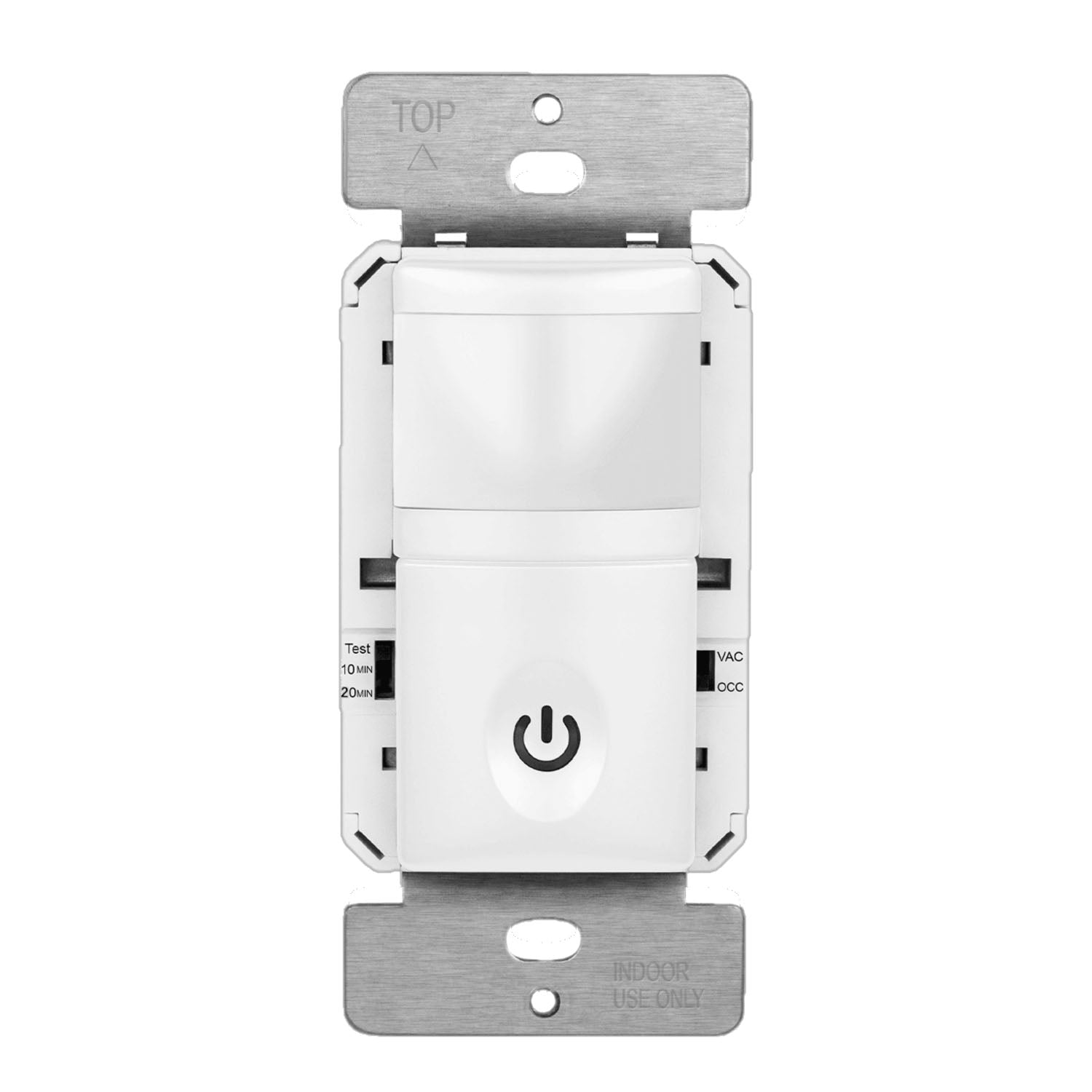

The ENERLITES HMOS-J is a motion sensor wall switch that operates lights using passive infrared (PIR) technology. The motion sensor features a 180° field of view to provide up to 700 sq.ft. of coverage area. The sensor has 2 modes and operates lights ON/OFF based on occupancy or vacancy in the area. In occupancy mode, lights turn ON automatically when motion is detected and turn OFF after no motion has been detected for the pre-selected time delay. In vacancy mode, lights must be turned ON manually and then will turn OFF automatically after no motion has been detected for the pre-selected time delay. A smart LED backlight turns on when motion is detected in vacancy mode for easy location in the dark. This switch is compatible with incandescent, fluorescent, and LED lights.
Features & Benefits
- Dual-Mode Operation: Choose between occupancy mode (auto-on/auto-off) or vacancy mode (manual-on/auto-off) for flexible control
- Multi-Voltage Capability: Compatible with 120-277VAC for versatile installation in residential and commercial applications
- Adjustable Time Delay: Easily set from 15 seconds to 20 minutes to match your space requirements
- Smart LED Backlight: Illuminates when motion is detected in vacancy mode, making the switch easy to locate in the dark
- High Sensitivity PIR Sensor: Dense coverage for exceptional performance in various applications
- Wide Coverage Area: 180° field of view with up to 700 sq.ft. of PIR coverage
- Manual Override: Convenient push-button provides manual ON/OFF control at any time
- LED Indicator Light: Flashes when sensor detects motion to verify active detection
- Interchangeable Face Cover: Can be replaced with alternative colors to match your décor
- Ground Wire Installation: Requires secured ground wire (no neutral required) for simplified wiring
- Energy Code Compliant: Meets California Title 24 and energy efficiency requirements
Specifications
- Model: HMOS-J
- Technology: Passive Infrared (PIR)
- Operating Modes: Occupancy (auto-on/auto-off) or Vacancy (manual-on/auto-off)
- Voltage: 120-277VAC, 60 Hz
- Resistive Load: 5A
- Incandescent Load: 500W
- Electronic Ballast: 500VA
- Motor Load: 1/8 HP
- PIR Coverage: 700 sq. ft.
- Field of View: 180°
- Time Delay: Adjustable 15 seconds to 20 minutes
- Configuration: Single pole
- Installation: Ground wire required, interchangeable face cover
- Compatible Lighting: Incandescent, CFL, and LED
- Certifications: UL Listed, California Title 24 compliant
- Warranty: 2 Years
Applications
Ideal for residential and commercial spaces including bathrooms, kitchens, garages, offices, meeting rooms, utility rooms, laboratories, restaurants, hotels, and basements. The 120-277V capability makes it perfect for commercial installations. Choose occupancy mode for hands-free convenience or vacancy mode for manual control with automatic shutoff. Meets energy code requirements for both residential and commercial applications.
- Passive Infrared Technology (PIR)
- 180 deg. field of view, up to 700 sq. ft.
- High sensitivity and dense coverage for exceptional performance
- Convenient push-button provides manual ON/OFF at any time
- Ground Wire Required
