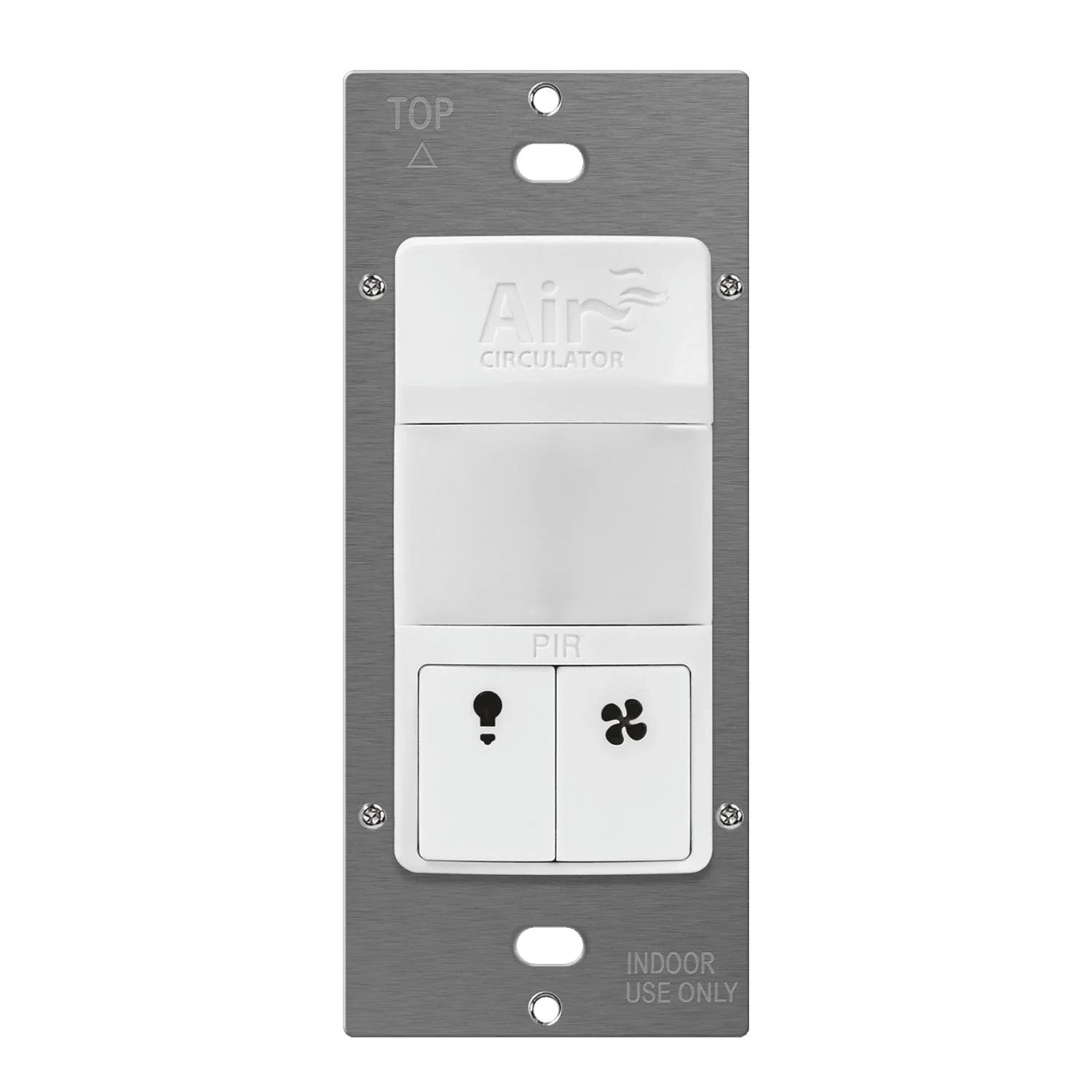

Enerlites DWTOS-W PIR 180° Occupancy/Vacancy Motion Sensor Wall Switch with Air Circulator Fan Timer, 120V, White
Enerlites DWTOS-W PIR 180° Occupancy/Vacancy Motion Sensor Wall Switch with Air Circulator Fan Timer, 120V, White
Available in stock (54)
Highlights
Highlights
- Passive Infrared (PIR) and Fresh Air Circulator Technology
- 180 deg. field of view, up to 600 sq. ft.
- Separate light and fan loads required
- The sensor has 2 modes and operates lights ON/OFF based on occupancy or vacancy in the area
- The fresh air fan control offers both a countdown timer and a minutes per hour (MPH) timer
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Overview
Overview
Overview
The ENERLITES DWTOS is a combination device that includes an automated timer switch for an air-circulating fan and a passive infrared (PIR) motion sensor for lighting control. The PIR motion sensor features a 180° field of view to provide up to 600 sq.ft. of coverage area. The fresh air fan control offers both a countdown timer and a minutes per hour (MPH) timer. Automating the fresh air fan hourly helps to expel stale air and maintain good indoor air quality. This switch is compatible with incandescent, CFL, and LED lighting.
Features & Benefits
- Dual-Function Control: Combines PIR motion sensor for lighting with automated timer control for air-circulating fans in a single device
- Two Lighting Modes: Occupancy mode (auto-on/auto-off) or vacancy mode (manual-on/auto-off) for flexible lighting control

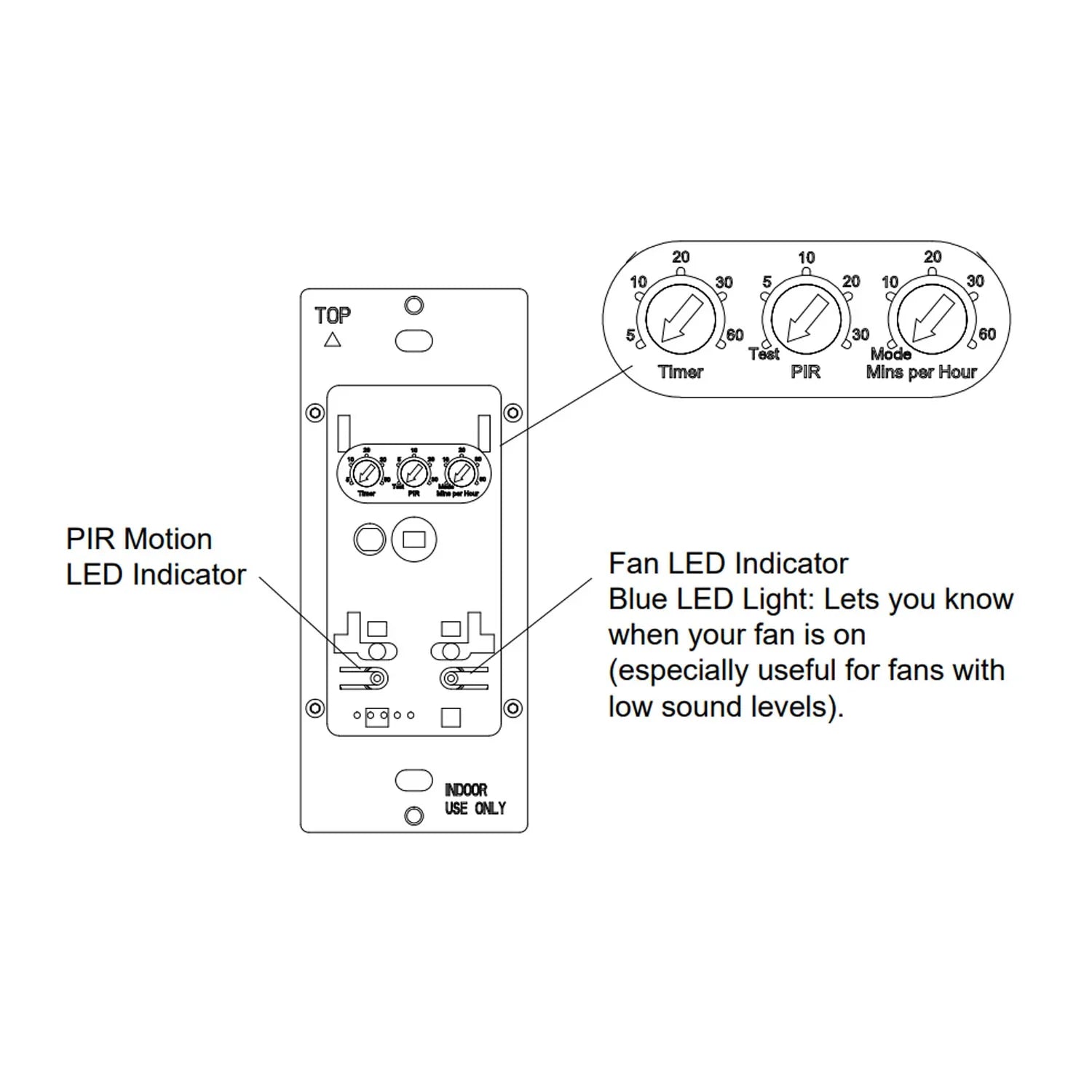

- Adjustable Light Time Delay: Easily set from 5-30 minutes to match your space requirements
- Countdown Fan Timer: Set anywhere from 5-60 minutes; activates when the fan is manually turned ON
- Minutes Per Hour (MPH) Timer: Automates fan operation for a pre-selected duration after each hour the fan is OFF, maintaining optimal air quality
- Independent Manual Controls: Separate ON/OFF buttons for both lights and fan provide complete manual override capability
- Wide PIR Coverage: 180° field of view with up to 600 sq.ft. of coverage area for reliable motion detection
- Automated Air Quality Management: MPH timer recognizes when the fan was last used and automates hourly fresh air circulation to expel stale air
- Energy Efficient: Motion-activated lighting reduces energy waste in unoccupied spaces
- Separate Light and Fan Loads: Requires separate wiring for light and fan circuits
Specifications
- Model: DWTOS
- Technology: Passive Infrared (PIR) + Fresh Air Circulator
- Voltage: 120VAC, 60 Hz
- Resistive Load: 3A
- Tungsten Load: 500W
- Electronic Ballast/LED: 400VA/400W
- Fan Time Delay: 5-60 Minutes (Countdown and MPH modes)
- Fan Auto Mode: 10-60 Minutes
- Light Time Delay: 5-30 Minutes
- Motor Load: 1/4 HP (3 Amp) fan
- PIR Coverage: 600 sq. ft.
- Field of View: 180°
- Compatible Lighting: Incandescent, CFL, and LED

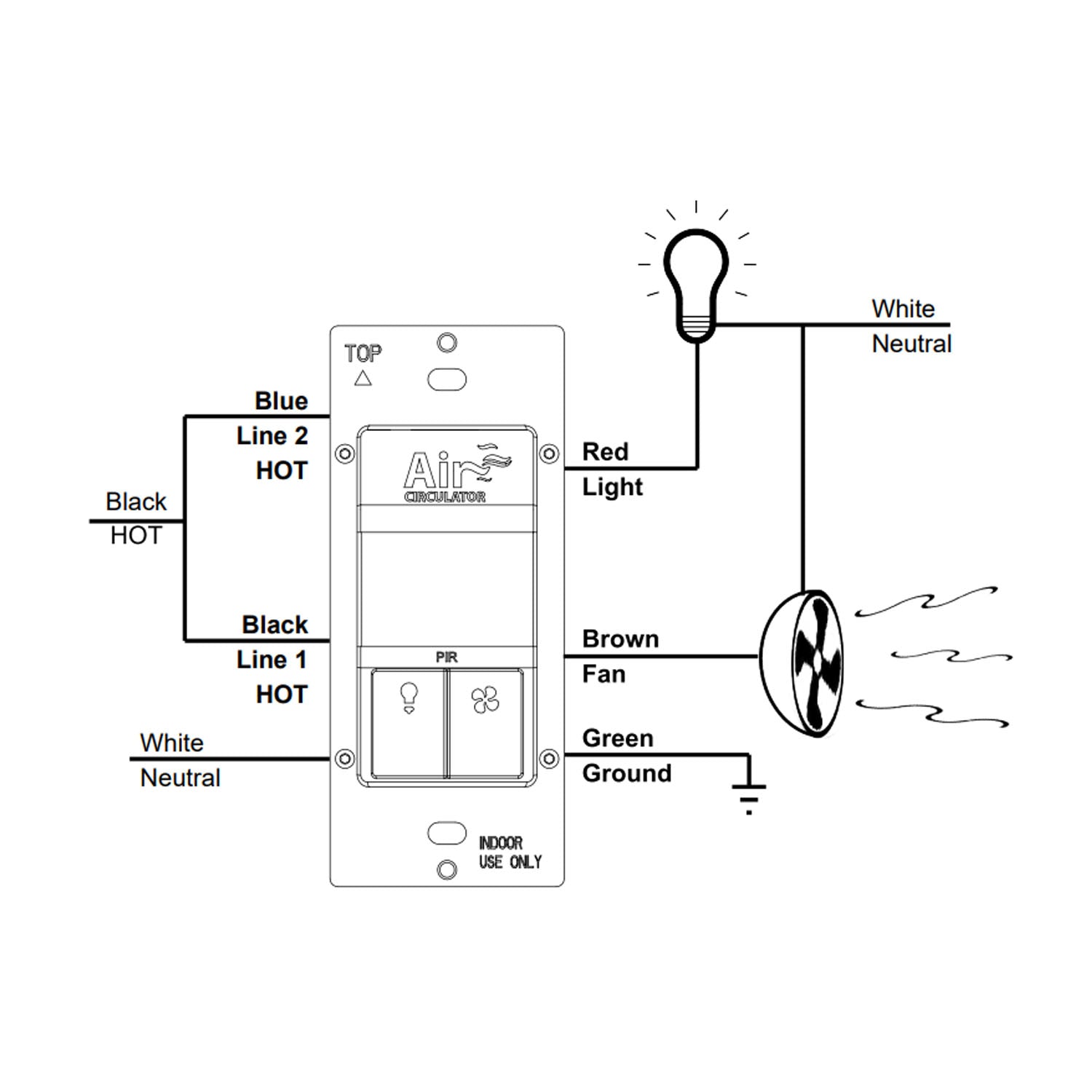

- Installation: Neutral wire required, interchangeable face cover
- Certifications: UL Listed, California Title 24 compliant
- Warranty: 2 Years
Applications

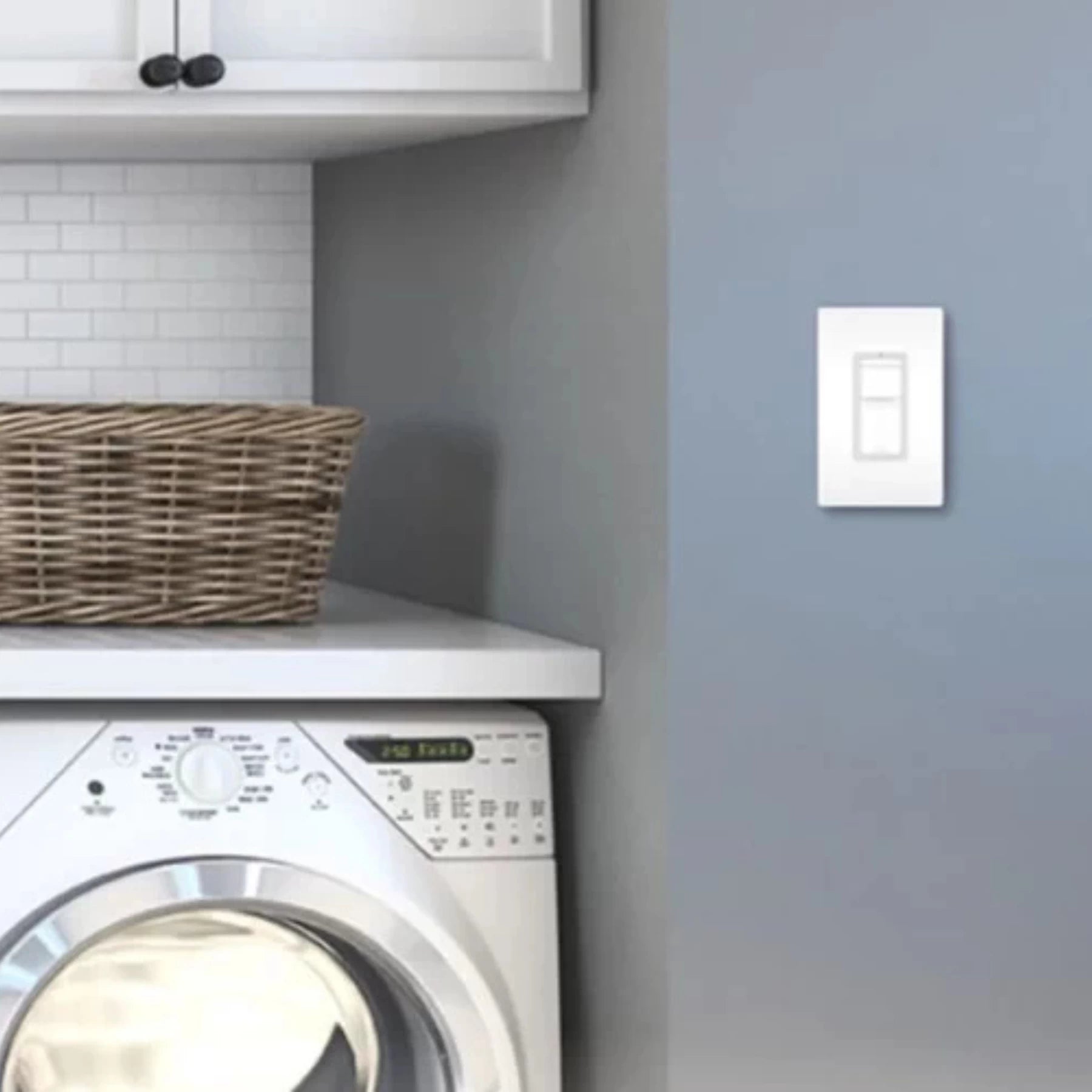

Ideal for bathrooms, basements, laundry rooms, and home spas where both automated lighting control and fresh air circulation are essential. Perfect for maintaining indoor air quality while maximizing energy efficiency through intelligent motion-activated lighting and scheduled ventilation.
