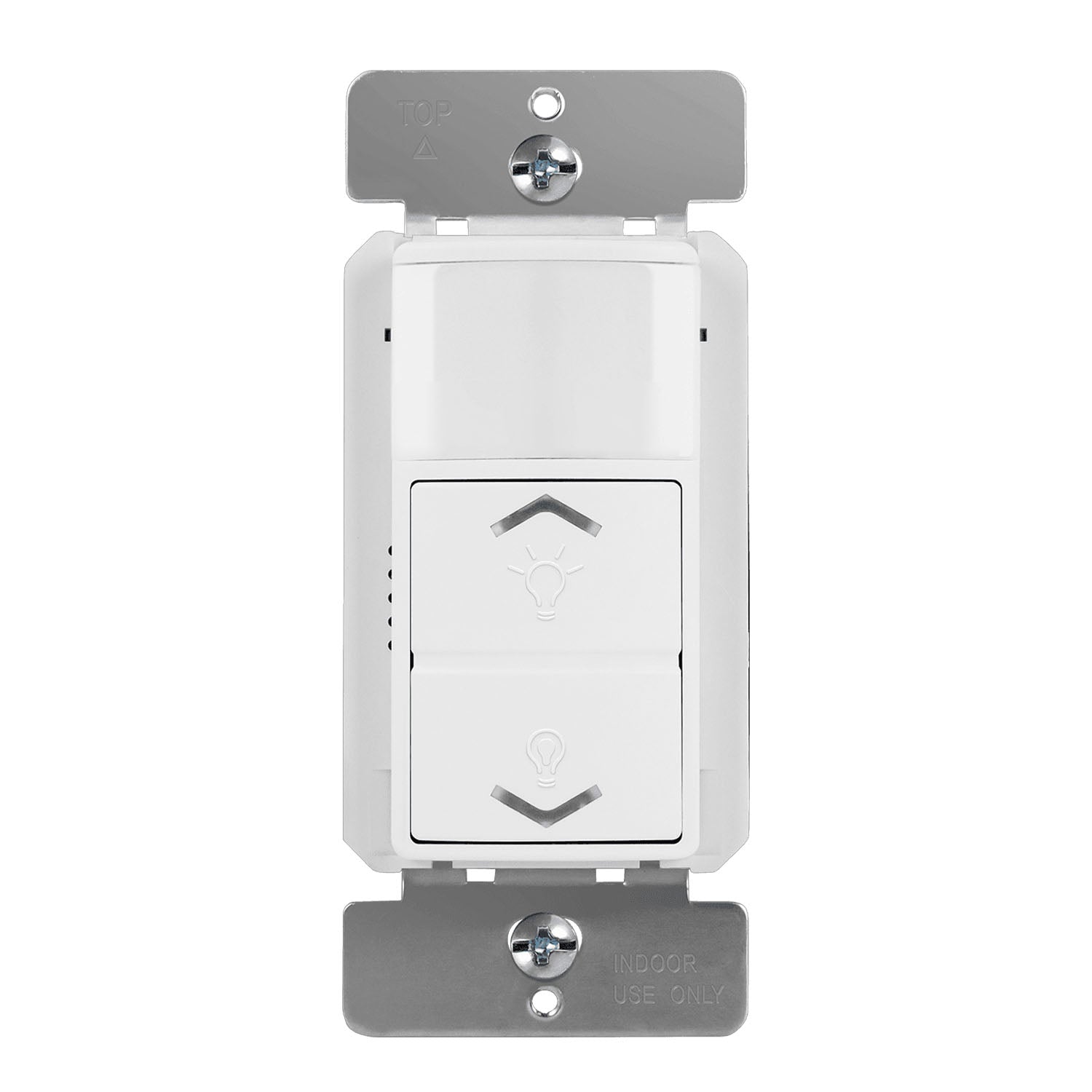

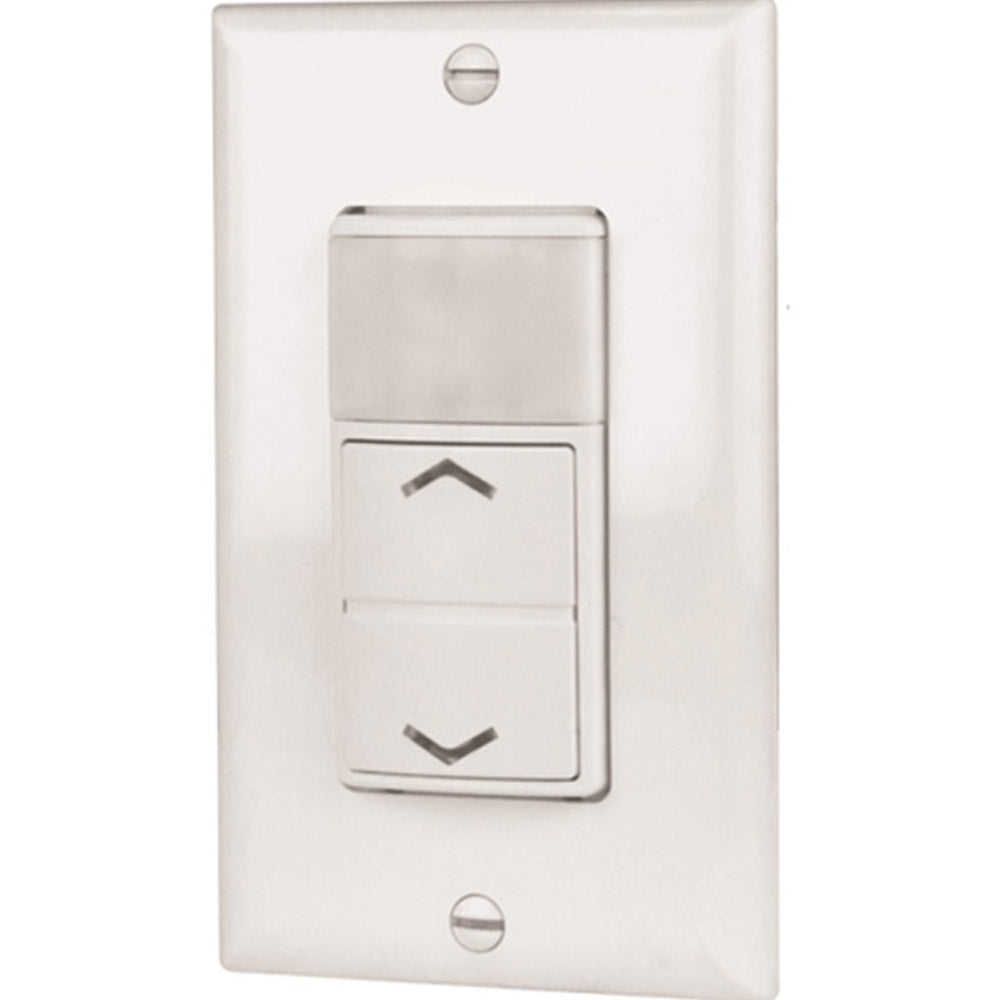

Enerlites DWODS-010-W Occupancy/Vacancy Motion Sensor with 0-10V Dimmer Switch, 1200 sq.ft. PIR Coverage, 800VA, 120-277VAC, White
Enerlites DWODS-010-W Occupancy/Vacancy Motion Sensor with 0-10V Dimmer Switch, 1200 sq.ft. PIR Coverage, 800VA, 120-277VAC, White
Available in stock (55)
Highlights
Highlights
- Combines Passive Infrared Technology and dimming
- Features a 180° field of view to provide up to 1200 sq.ft. of coverage area
- Occupancy Mode: Turn lights ON/OFF automatically
- Vacancy Mode: Manual ON / automatically OFF
- Adjustable time delay 15 seconds to 30 minutes
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Overview
Overview
The Enerlites DWODS-010 combines passive infrared (PIR) motion detection with 0-10V dimming control in a single-pole wall switch. Featuring a 180° field of view with 1200 sq. ft. coverage, this sensor automatically controls lighting based on occupancy or vacancy mode. Two press-buttons provide manual ON/OFF control and dimming adjustment. UL Listed and California Title 24 compliant for commercial and residential applications.
Key Features
- Dual-mode operation: occupancy or vacancy sensing with PIR technology
- 0-10V dimming compatible with dimmable electronic fluorescent ballasts and LED drivers
- 1200 sq. ft. PIR coverage area with 180° field of view
- Adjustable time delay (15 seconds to 30 minutes), light level, and PIR sensitivity
- Manual dimming via push-button controls; retains brightness setting when lights turn back on
- LED indicator flashes when motion detected to verify active detection
- Single pole configuration, interchangeable face covers included
- 120VAC / 277VAC, 60 Hz dual voltage operation
- Neutral Required
Technical Specifications
- Voltage: 120VAC / 277VAC, 60 Hz
- Resistive Load: 6A @ 120VAC; 3A @ 277VAC
- Electronic Ballast/LED: 800VA
- Loading Rate: 2mA - 30mA
- Motor: 1/8 HP
- PIR Coverage: 1200 sq. ft.
- Time Delay: Adjustable 15 seconds to 30 minutes
- Warranty: 5 Years
- Certifications: UL Listed, California Title 24 compliant
Applications
Ideal for offices, classrooms, conference rooms, medical facilities, laboratories, restaurants, hotels, and basements where automated lighting control and energy savings are required. Works exclusively with dimmable LED bulbs and 0-10V dimming systems.
- Combines Passive Infrared Technology and dimming
- Features a 180° field of view to provide up to 1200 sq.ft. of coverage area
- Occupancy Mode: Turn lights ON/OFF automatically
- Vacancy Mode: Manual ON / automatically OFF
- Adjustable time delay 15 seconds to 30 minutes
