WAC Lighting Led100 5 in. Step Light, Stainless Steel, Amber LED
Available in stock (1310)
About this item
About this item
- Finish: The step light features a durable stainless steel finish, ideal for contemporary and transitional styles.
- Light Source: Integrated LED module provides 68 lumens of amber light, ensuring energy efficiency and longevity.
- Dimensions: Measures 5 in. wide, 3 in. high, and extends 1.5 in. from the wall, fitting seamlessly into compact spaces.
- Dimming Capability: Compatible with electronic low voltage dimmers, allowing for adjustable lighting levels.
- Material: Constructed from cast 316 marine grade stainless steel, offering excellent corrosion resistance.
We process payments securely and do not store credit card information.
Description
Description

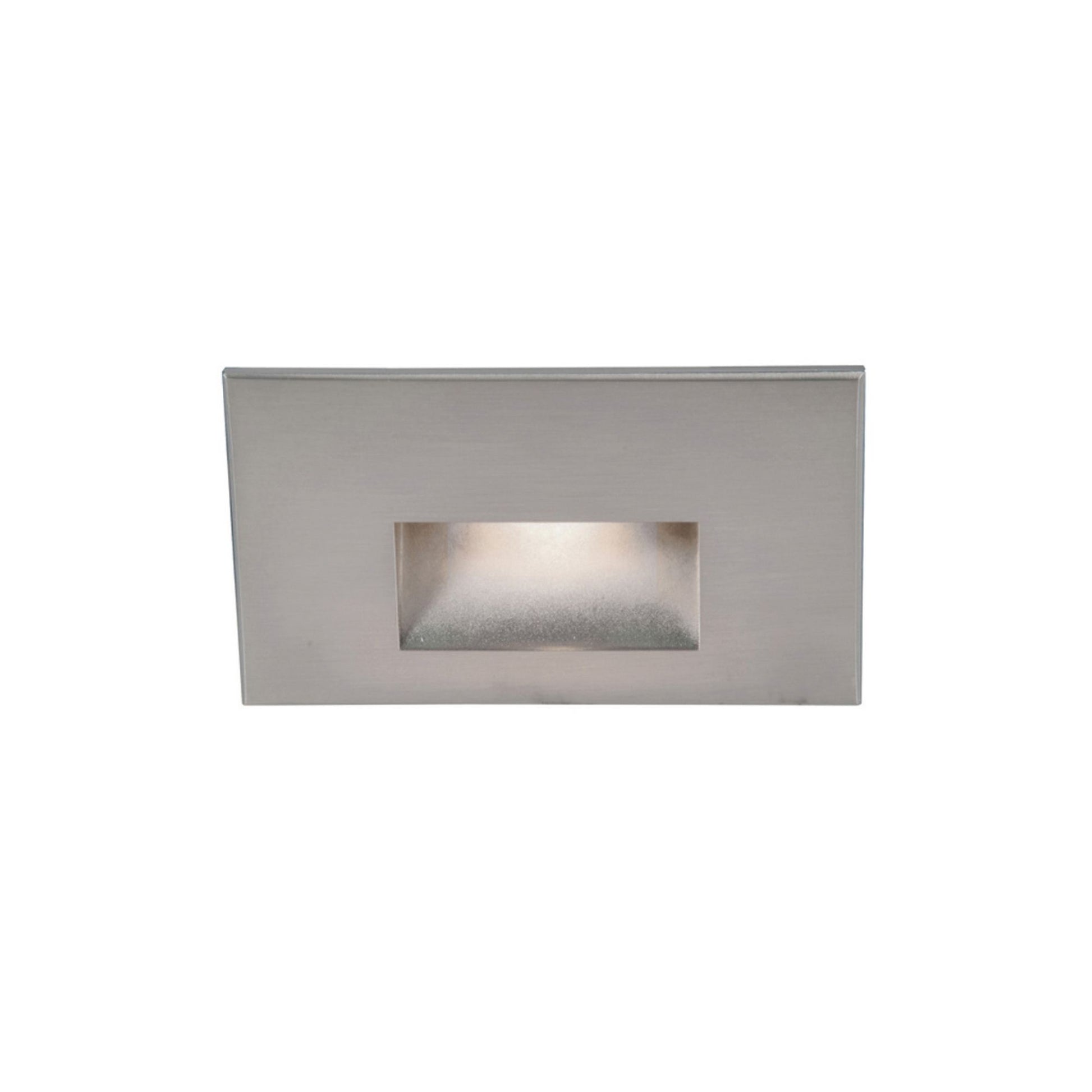

WAC Lighting Led100 Step Light — Stainless Steel & Amber LED
The WL-LED100-AM-SS step light from WAC Lighting's Led100 collection embodies a contemporary modern and transitional style with its sleek stainless steel finish. This fixture is crafted from cast 316 marine grade stainless steel, ensuring durability and resistance to corrosion. Designed for both indoor and outdoor use, it measures 5 in. in width and 3 in. in height, making it an ideal choice for stairways, patios, and walkways. The integrated LED module emits 68 lumens of amber light, providing a warm and inviting ambiance.
Key Features
- Construction: Made from die-cast aluminum or 316 marine grade cast stainless steel for durability.
- Power: Direct wiring with no remote driver needed, operating at 120V.
- Light Source: Integrated LED with 68 lumens and amber color temperature.
- Dimming: Compatible with electronic low voltage dimmers, dimmable to 10%.
- Dimensions: 5 in. width, 3 in. height, and 1.5 in. extension from the wall.
- Finish: Stainless steel finish complements modern and transitional decor.
- Mounting: Fits into a 2' x 4' J-Box with a minimum inside dimension of 3'L x 2'W x 2'H.
- Standards: IP66 rated for wet locations, UL & cUL listed.
- Warranty: Backed by a 5-year product warranty and lifetime finish warranty.
Core Design & Aesthetic

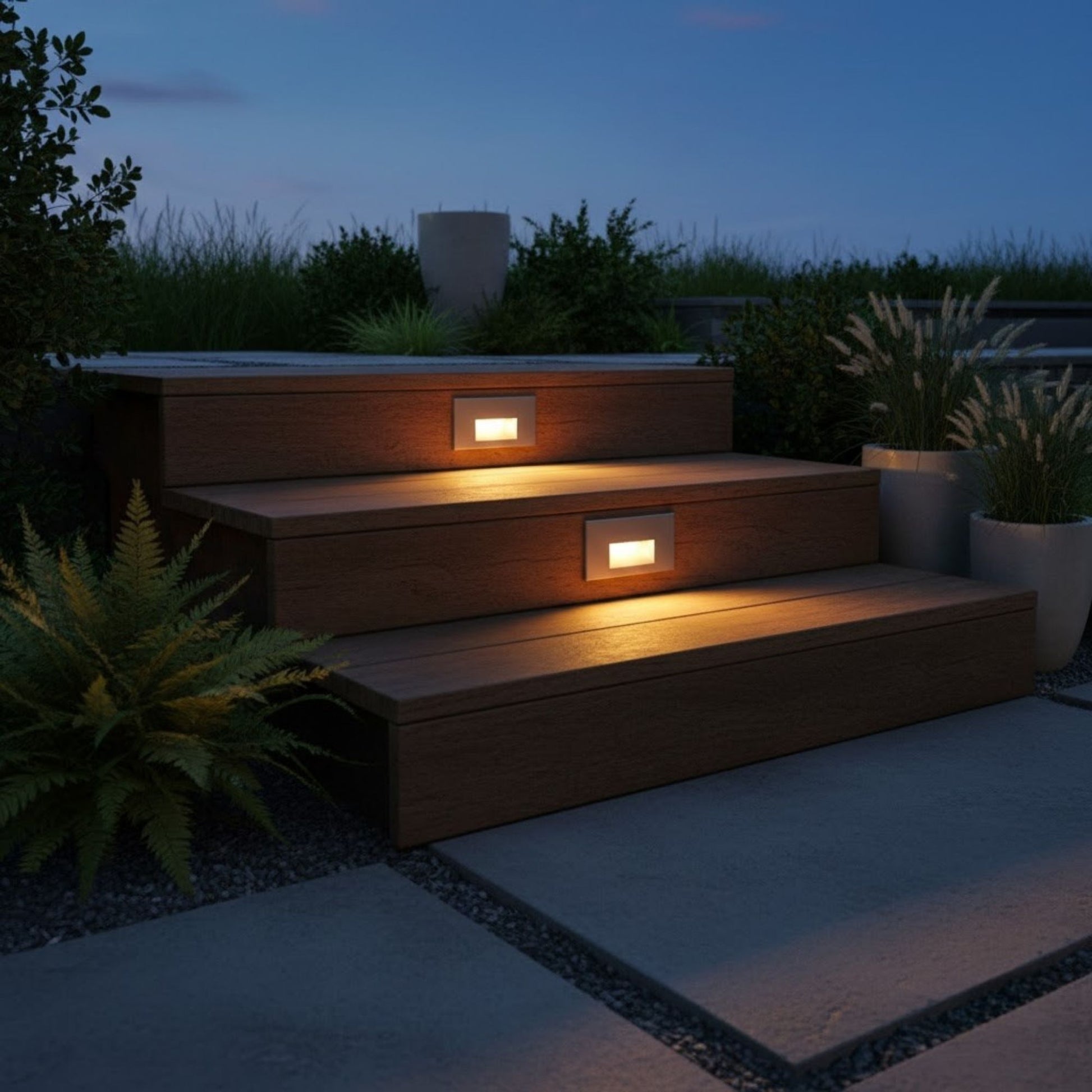

This step light features a horizontal rectangular design, perfect for enhancing safety and style on stairways, patios, decks, and building perimeters. The stainless steel finish offers a sleek, modern look, while the amber LED provides a soft, inviting glow. Rated for wet locations, it is suitable for both indoor and outdoor applications.
Integrated LED Illumination
The fixture includes an integrated LED module that delivers 68 lumens of amber light with a maximum wattage of 3.9W. The LED is energy-efficient and long-lasting, eliminating the need for bulb replacements.
Dimensions & Adjustability

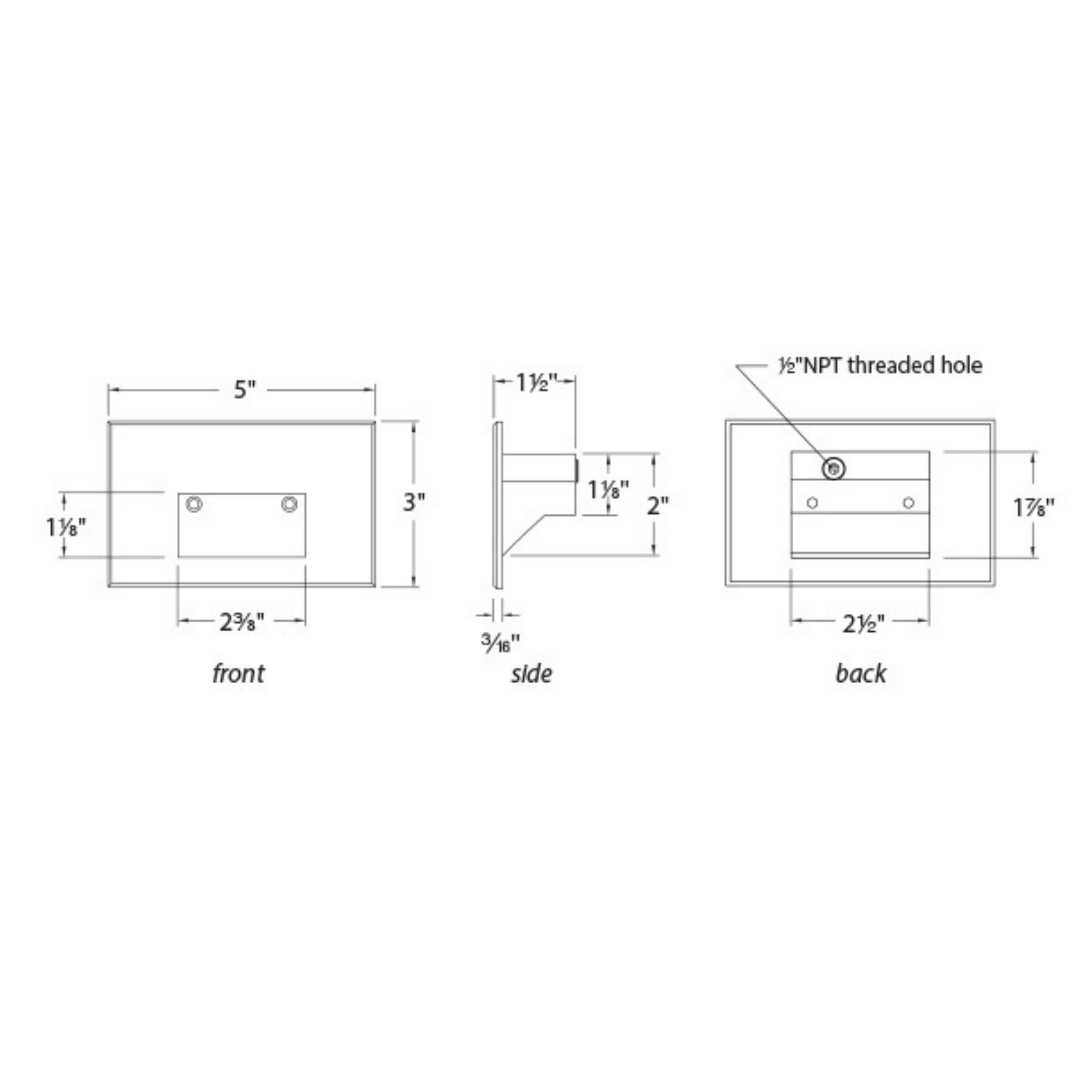

The step light measures 5 in. wide, 3 in. high, and extends 1.5 in. from the wall. It is designed to fit into a standard 2' x 4' J-Box, ensuring easy installation.
Installation & Electrical
This fixture is hardwired and operates at 120V. It is compatible with electronic low voltage dimmers, allowing for adjustable lighting levels to suit your needs.
Where This Fixture Works Best
- Stairways
- Patios
- Decks
- Walkways
- Building perimeters
What's Included
- Integrated LED module
- Mounting bracket for J-Box
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the difference between Lumens and Watts?
What is the difference between Lumens and Watts?
Watts measure the amount of electrical energy a fixture consumes, while lumens measure the actual brightness (the amount of visible light produced). In the LED era, wattage is no longer a reliable indicator of brightness. When replacing old fixtures or comparing new ones, always look at the lumen output to determine how bright the light will be.
What is Color Rendering Index (CRI) and why does it matter?
What is Color Rendering Index (CRI) and why does it matter?
CRI is a scale from 0 to 100 that measures how accurately a light source reveals the true colors of objects compared to natural sunlight. A higher CRI (90+) ensures colors look vibrant and accurate, which is critical for retail displays, kitchen countertops, and bathroom vanities. A lower CRI (under 80) can make colors look washed out or dull, regardless of the color temperature.
How do I know if my light fixture is dimmable?
How do I know if my light fixture is dimmable?
For traditional incandescent fixtures, dimmability depended purely on the bulb. For modern LED lighting, dimmability depends on the internal LED driver or the specific LED bulb used. A fixture is only dimmable if its driver is explicitly rated for it. Furthermore, the fixture must be paired with a compatible dimmer switch (such as a standard TRIAC/Phase-cut dimmer or a 0-10V commercial dimmer) to prevent flickering and buzzing.
What does "Integrated LED" mean compared to a standard fixture?
What does "Integrated LED" mean compared to a standard fixture?
An integrated LED fixture has the LED diodes and driver built directly into the housing, meaning there are no traditional bulbs to screw in or replace. This allows for sleeker, lower-profile designs and better heat dissipation. However, if an integrated fixture fails after its warranty period, you typically have to replace the entire unit or the internal driver, rather than just swapping out a bulb.
What does the "L70" lifespan rating mean on LED fixtures?
What does the "L70" lifespan rating mean on LED fixtures?
Unlike traditional bulbs that simply burn out and go dark, LEDs gradually lose their brightness over time (lumen depreciation). The L70 rating indicates the number of operating hours it takes for the LED fixture to degrade to 70% of its original brightness. For example, a fixture rated for "50,000 hours L70" will still work after 50,000 hours, but it will be noticeably dimmer than when it was first installed.
