WAC 5" Wide LED Step and Wall Light, Stainless Steel Finish, 2700K
Available in stock (241)
About this item
About this item
- Construction: Made from durable cast 316 marine grade stainless steel for long-lasting use.
- Light Source: Integrated 2700K LED provides warm illumination with a CRI of 90.
- Dimming Capability: Compatible with electronic low voltage dimmers for adjustable lighting.
- Dimensions: Measures 5 in. wide, 3 in. high, and extends 1.5 in. from the wall.
- Installation: Fits into a standard 2' x 4' J-Box, includes mounting bracket for easy setup.
We process payments securely and do not store credit card information.
Description
Description

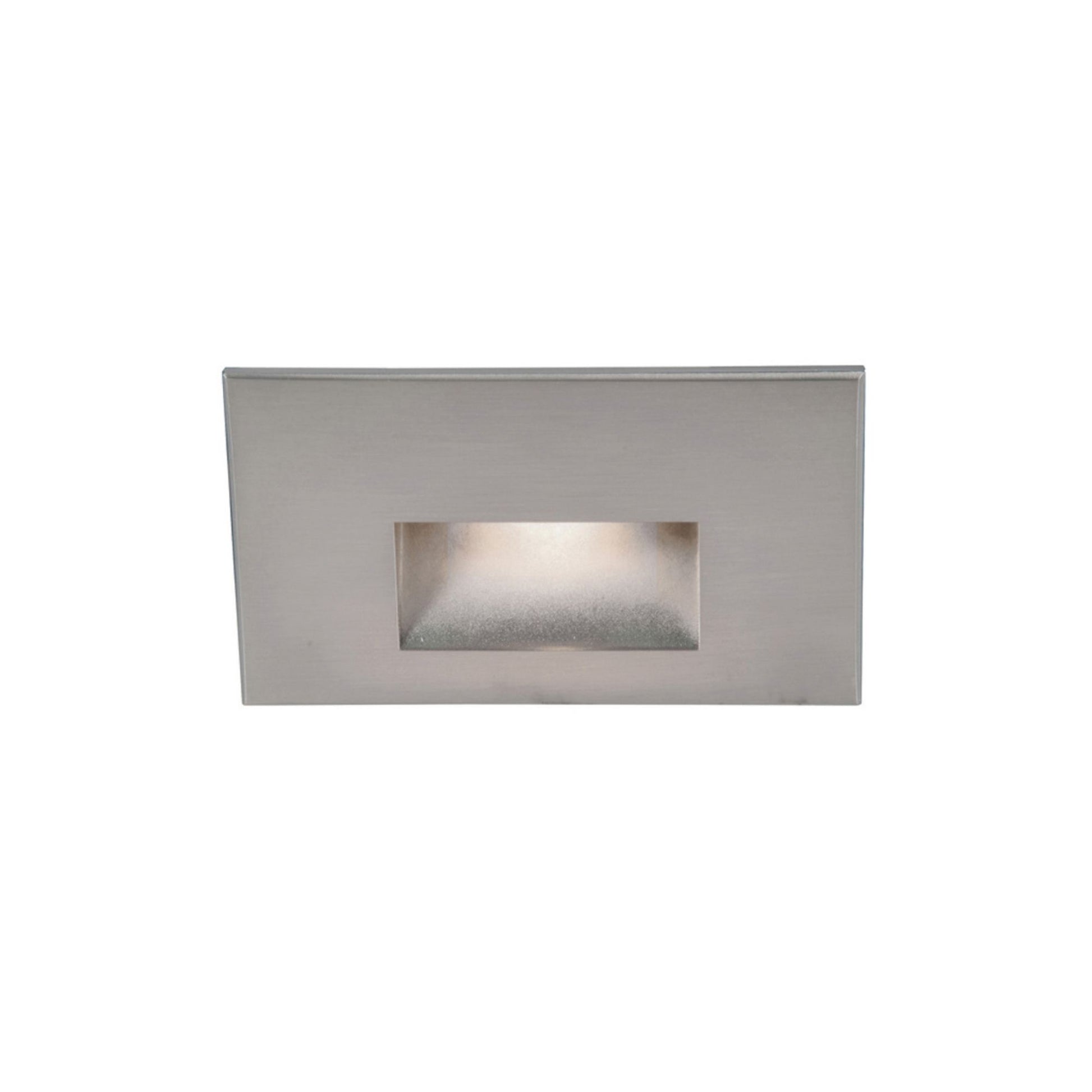

WAC Lighting Led100 Step Light — Stainless Steel
The WAC Lighting Led100 step light, model WL-LED100-27-SS, is a transitional style fixture crafted from cast 316 marine grade stainless steel. This step light measures 5 in. wide and 3 in. high, providing a sleek and functional lighting solution for indoor and outdoor settings. It features an integrated 2700K LED light source, ensuring energy-efficient and warm illumination.
Key Features
- Material: Constructed from corrosion-resistant cast 316 marine grade stainless steel.
- Light Source: Integrated 2700K LED with a CRI of 90 for accurate color rendering.
- Power Consumption: Consumes only 3.5 watts, making it energy-efficient.
- Dimming: Compatible with ELV dimmers, allowing dimming down to 10%.
- Dimensions: Overall dimensions are 5 in. width, 3 in. height, and 1.5 in. extension.
- Mounting: Designed to fit into a 2' x 4' J-Box with included mounting bracket.
- Beam Angle: Provides a 37-degree beam angle for focused lighting.
- IP Rating: IP66 rated for protection against high-pressure water jets.
- Voltage: Operates on standard 120V input.
- Warranty: Backed by a 5-year WAC Lighting product warranty.
Core Design & Aesthetic
This step light features a horizontal rectangular design, ideal for transitional style settings. The stainless steel finish offers a modern and sleek appearance, while the integrated LED provides balanced lighting free of shadows and glare. Rated for wet locations, it is suitable for both indoor and outdoor applications.
Integrated LED Illumination
The fixture includes an integrated LED light source with a color temperature of 2700K, delivering warm and inviting light. It has a CRI of 90, ensuring excellent color accuracy. The LED is energy-efficient, consuming only 3.5 watts, and is designed to last with a rated life of 54,000 hours.
Dimensions & Adjustability

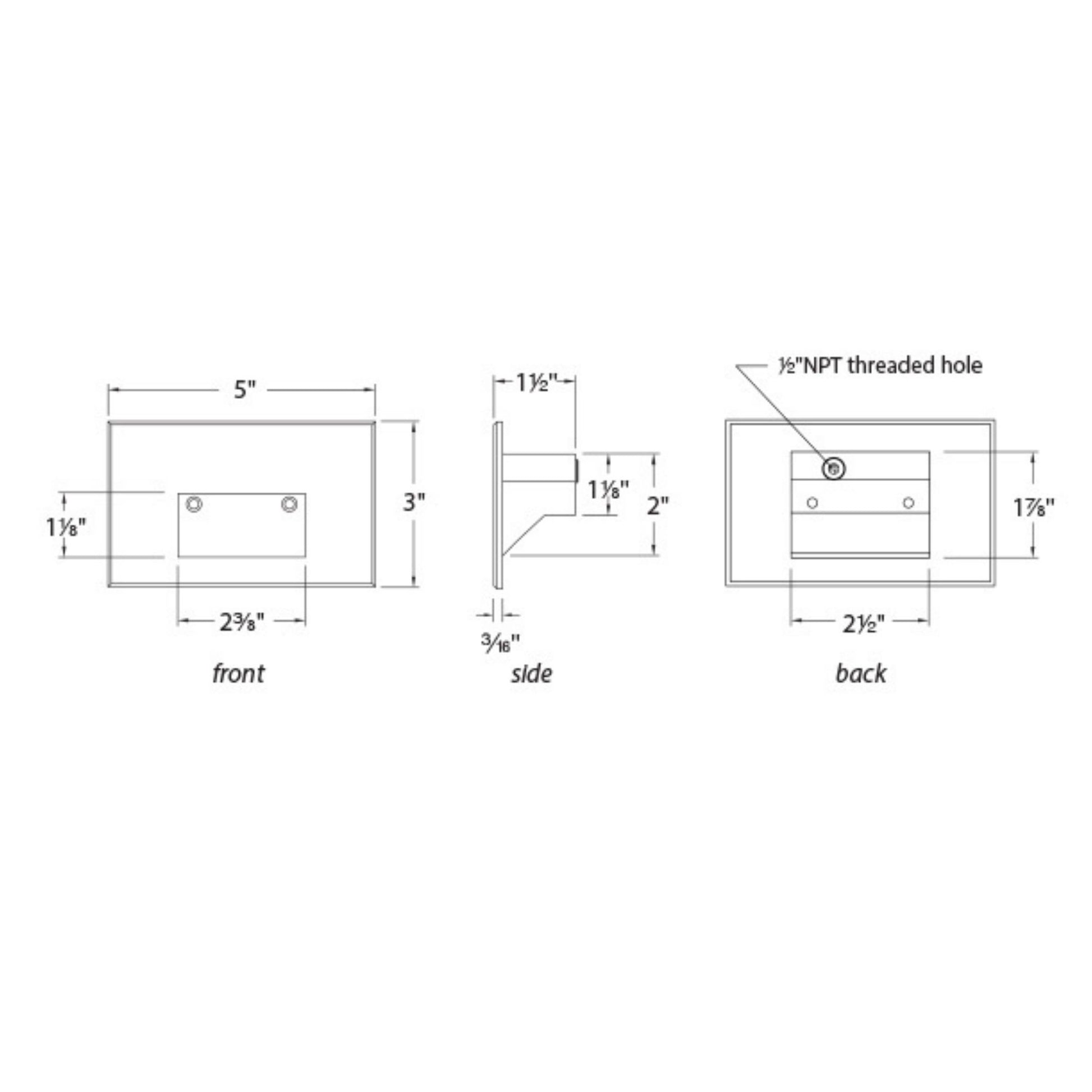

With a width of 5 in. and a height of 3 in., this step light extends 1.5 in. from the wall. It is designed to fit into a standard 2' x 4' J-Box, making installation straightforward.
Installation & Electrical
This step light is hardwired and operates on 120V. It is dimmable with compatible electronic low voltage dimmers, allowing for adjustable lighting levels to suit various needs.

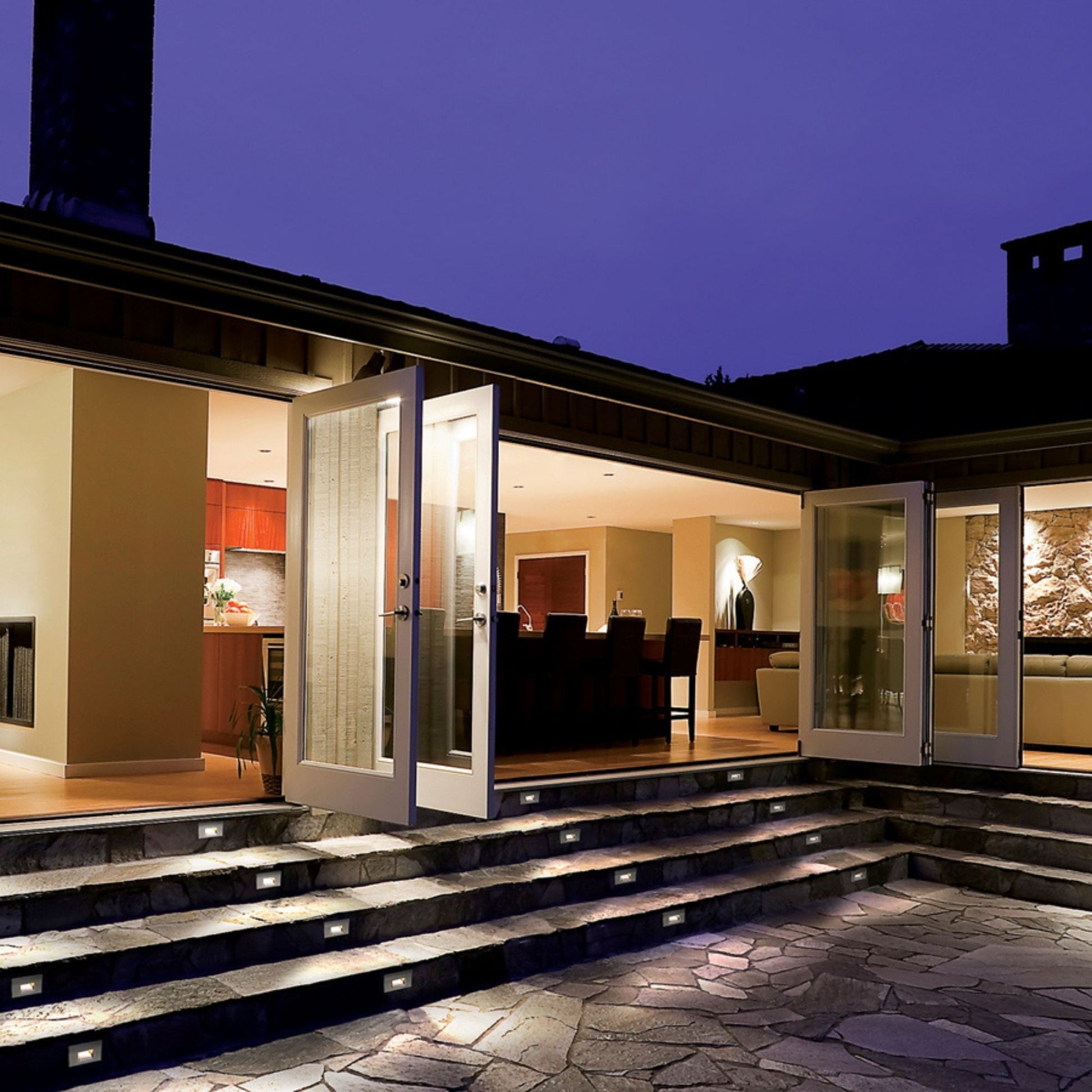

Where This Fixture Works Best
- Stairways
- Patios
- Decks
- Walkways
- Building perimeters
What's Included
- Step light fixture
- Mounting bracket for J-Box
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the difference between Lumens and Watts?
What is the difference between Lumens and Watts?
Watts measure the amount of electrical energy a fixture consumes, while lumens measure the actual brightness (the amount of visible light produced). In the LED era, wattage is no longer a reliable indicator of brightness. When replacing old fixtures or comparing new ones, always look at the lumen output to determine how bright the light will be.
What is Color Rendering Index (CRI) and why does it matter?
What is Color Rendering Index (CRI) and why does it matter?
CRI is a scale from 0 to 100 that measures how accurately a light source reveals the true colors of objects compared to natural sunlight. A higher CRI (90+) ensures colors look vibrant and accurate, which is critical for retail displays, kitchen countertops, and bathroom vanities. A lower CRI (under 80) can make colors look washed out or dull, regardless of the color temperature.
How do I know if my light fixture is dimmable?
How do I know if my light fixture is dimmable?
For traditional incandescent fixtures, dimmability depended purely on the bulb. For modern LED lighting, dimmability depends on the internal LED driver or the specific LED bulb used. A fixture is only dimmable if its driver is explicitly rated for it. Furthermore, the fixture must be paired with a compatible dimmer switch (such as a standard TRIAC/Phase-cut dimmer or a 0-10V commercial dimmer) to prevent flickering and buzzing.
What does "Integrated LED" mean compared to a standard fixture?
What does "Integrated LED" mean compared to a standard fixture?
An integrated LED fixture has the LED diodes and driver built directly into the housing, meaning there are no traditional bulbs to screw in or replace. This allows for sleeker, lower-profile designs and better heat dissipation. However, if an integrated fixture fails after its warranty period, you typically have to replace the entire unit or the internal driver, rather than just swapping out a bulb.
What does the "L70" lifespan rating mean on LED fixtures?
What does the "L70" lifespan rating mean on LED fixtures?
Unlike traditional bulbs that simply burn out and go dark, LEDs gradually lose their brightness over time (lumen depreciation). The L70 rating indicates the number of operating hours it takes for the LED fixture to degrade to 70% of its original brightness. For example, a fixture rated for "50,000 hours L70" will still work after 50,000 hours, but it will be noticeably dimmer than when it was first installed.
