WAC Lighting Led100 5 in. Step Light, Graphite on Aluminum
Available in stock (94)
About this item
About this item
- Finish: The step light features a graphite finish on a die-cast corrosion-resistant aluminum alloy, ensuring durability.
- Dimensions: Compact design with a width of 5 in., height of 3 in., and extension of 1.5 in., perfect for step lighting.
- Light Source: Integrated LED with a color temperature of 2700K, providing warm illumination.
- Dimming: Compatible with electronic low voltage dimmers, allowing dimming down to 10%.
- Installation: Designed for direct wiring with no driver needed, fitting into a 2' x 4' J-Box.
We process payments securely and do not store credit card information.
Description
Description

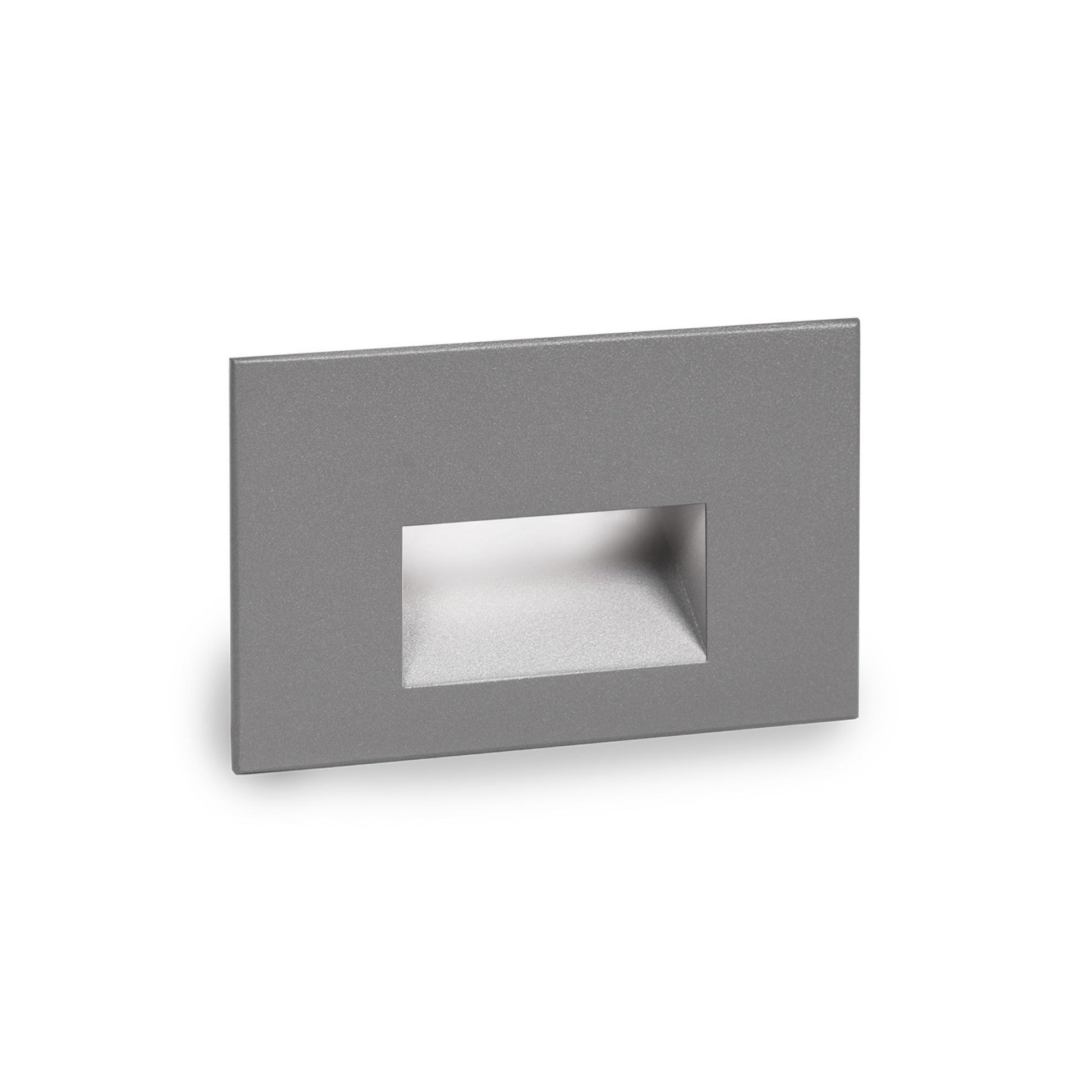

WAC Lighting Led100 Step Light — Graphite on Aluminum
The WAC Lighting Led100 step light, model WL-LED100-27-GH, offers a transitional style with a graphite on aluminum finish. Constructed from die-cast corrosion-resistant aluminum alloy, this step light measures 5 in. in width and 3 in. in height. It features an integrated LED light source, providing efficient illumination for stairways and walkways.
Key Features
- Construction: Made from die-cast corrosion-resistant aluminum alloy for durability.
- Finish: Graphite on aluminum offers a sleek, modern appearance.
- Dimensions: Width of 5 in., height of 3 in., and extension of 1.5 in.
- Light Source: Integrated LED with a color temperature of 2700K and a CRI of 90.
- Power: Direct wiring with 120V input voltage, consuming 3.5W.
- Dimming: Compatible with ELV dimmers, allowing dimming to 10%.
- Mounting: Fits into a 2' x 4' J-Box with included bracket.
- Standards: IP66 rated for wet locations, UL & cUL Listed, and Title 24 JA8-2016 Compliant.
Core Design & Aesthetic
This step light features a horizontal rectangular shape, ideal for enhancing safety and style on stairways, patios, and decks. The graphite finish complements various architectural styles, while the IP66 rating ensures suitability for wet locations.
Integrated LED Illumination
The fixture includes an integrated LED light source with a warm 2700K color temperature, delivering balanced lighting with minimal glare. It operates at 3.5W and is dimmable with compatible ELV dimmers.
Dimensions & Adjustability

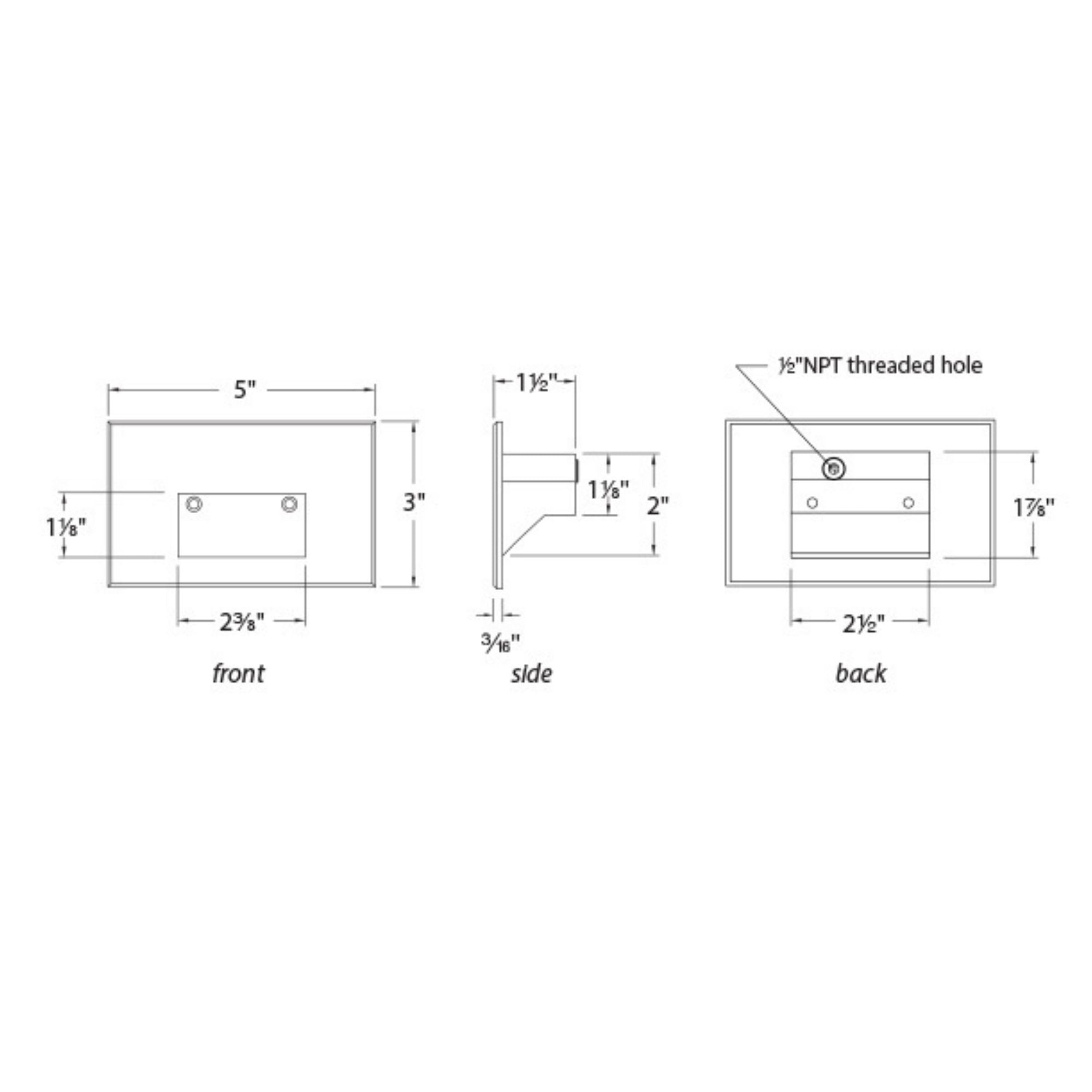

The step light measures 5 in. wide, 3 in. high, and extends 1.5 in. from the wall. It is designed for fixed installation with no adjustability.
Installation & Electrical
This fixture is hardwired, operating at 120V. It fits into a standard 2' x 4' J-Box and includes a bracket for secure mounting. Compatible with ELV dimmers for adjustable lighting.
Where This Fixture Works Best
- Stairways
- Patios
- Decks
- Walkways
- Building perimeters
What's Included
- Step light fixture
- J-Box mounting bracket
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the difference between Lumens and Watts?
What is the difference between Lumens and Watts?
Watts measure the amount of electrical energy a fixture consumes, while lumens measure the actual brightness (the amount of visible light produced). In the LED era, wattage is no longer a reliable indicator of brightness. When replacing old fixtures or comparing new ones, always look at the lumen output to determine how bright the light will be.
What is Color Rendering Index (CRI) and why does it matter?
What is Color Rendering Index (CRI) and why does it matter?
CRI is a scale from 0 to 100 that measures how accurately a light source reveals the true colors of objects compared to natural sunlight. A higher CRI (90+) ensures colors look vibrant and accurate, which is critical for retail displays, kitchen countertops, and bathroom vanities. A lower CRI (under 80) can make colors look washed out or dull, regardless of the color temperature.
How do I know if my light fixture is dimmable?
How do I know if my light fixture is dimmable?
For traditional incandescent fixtures, dimmability depended purely on the bulb. For modern LED lighting, dimmability depends on the internal LED driver or the specific LED bulb used. A fixture is only dimmable if its driver is explicitly rated for it. Furthermore, the fixture must be paired with a compatible dimmer switch (such as a standard TRIAC/Phase-cut dimmer or a 0-10V commercial dimmer) to prevent flickering and buzzing.
What does "Integrated LED" mean compared to a standard fixture?
What does "Integrated LED" mean compared to a standard fixture?
An integrated LED fixture has the LED diodes and driver built directly into the housing, meaning there are no traditional bulbs to screw in or replace. This allows for sleeker, lower-profile designs and better heat dissipation. However, if an integrated fixture fails after its warranty period, you typically have to replace the entire unit or the internal driver, rather than just swapping out a bulb.
What does the "L70" lifespan rating mean on LED fixtures?
What does the "L70" lifespan rating mean on LED fixtures?
Unlike traditional bulbs that simply burn out and go dark, LEDs gradually lose their brightness over time (lumen depreciation). The L70 rating indicates the number of operating hours it takes for the LED fixture to degrade to 70% of its original brightness. For example, a fixture rated for "50,000 hours L70" will still work after 50,000 hours, but it will be noticeably dimmer than when it was first installed.
