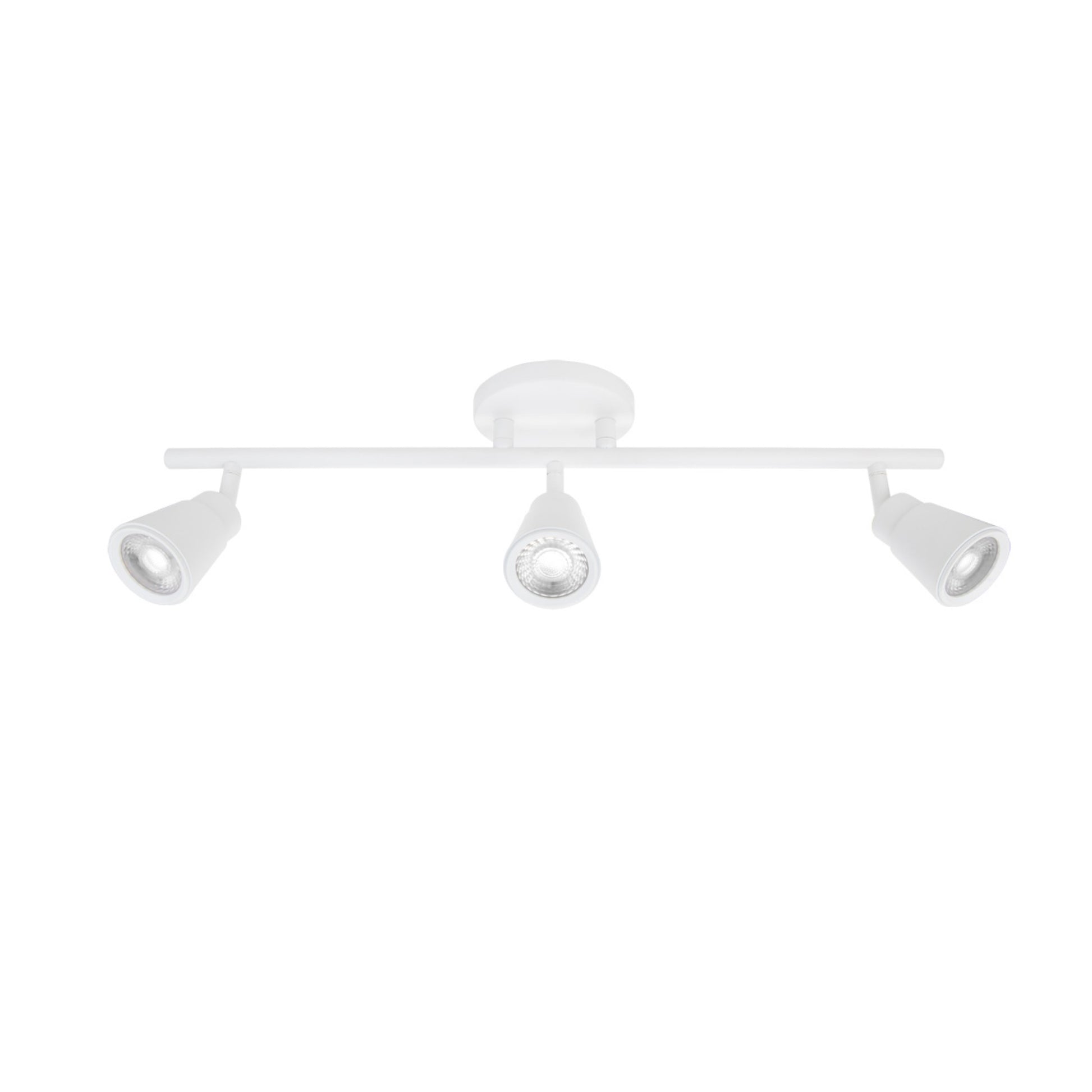

WAC Lighting Solo TK-180503-30-WT LED Fixed Rail Track Light

The WAC Lighting Solo TK-180503-30-WT fixed rail track light combines three integrated LED heads with a 24 in rail and a clean White finish. Its 24W LED system delivers 2400 lumens at 3000K with 90 CRI, bringing warm illumination to work areas, artwork and everyday living spaces. A concealed driver keeps the fixture visually compact, while ceiling or wall mounting in all orientations offers flexibility in placement.

Key Features

• Complete Fixture: Three-light LED fixed rail track light with integrated light sources.
• Size: 24 in rail length, 7 in overall height, 5 in canopy.
• Power & Output: 24W, 2400 delivered lumens.
• Light Color: 3000K warm white, 90 CRI.
• LED Consistency: Integrated LEDs with 3-step MacAdam ellipse color consistency.
• Optics: Frosted TIR lenses and multiple LED arrays for uniform illumination.
• Dimming: Compatible ELV and TRIAC dimmers, 100%–5% range.
• Construction: Die-cast aluminum with an electrostatically powder-coated White finish.
• Driver & Input: Concealed driver, 120 VAC, 50/60Hz.
• Mounting: Ceiling or wall installation in all orientations over a 3 in or 4 in junction box.
• Rated Life: 50,000 hours.
• Listings: ETL and cETL, damp-location listed, ADA and Title 24 JA8 compliant.

Construction & Design

The Solo's die-cast aluminum construction pairs a slim linear rail with three compact heads and a central canopy. The White powder-coated finish creates a coordinated appearance across the fixture, and the driver is concealed within the fixture. Overall dimensions are 24 in long and 7 in high, with a 5 in canopy. The distance from the top of the canopy to the underside of the rail is 2 1/4 in.

Light Output & Performance

The three-head LED system provides 2400 delivered lumens from 24W, with a fixed 3000K color temperature and 90 CRI. Multiple LED arrays and frosted TIR lenses support uniform illumination, while 3-step MacAdam ellipse color consistency helps maintain a coordinated appearance between light sources. Compatible ELV or TRIAC dimming from 100% to 5% adjusts brightness for task lighting or a softer ambient setting. Rated LED life is 50,000 hours.

Electrical & Installation

The WAC Lighting TK-180503-30-WT operates on 120 VAC, 50/60Hz with its concealed driver. This complete fixed rail track light installs over a 3 in or 4 in junction box and can be mounted on a ceiling or wall in all orientations. It is ETL and cETL listed for damp locations, with ADA and Title 24 JA8 compliance. The operating temperature range is -4°F to 104°F (-20°C to 40°C). Use a compatible ELV or TRIAC dimmer for the specified 100%–5% dimming range.

Typical Applications

• Kitchen and home office task areas.
• Living-room artwork and accents.
• Bath vanity lighting in suitable damp locations.
• Interior retail and display areas.

What's Included

• One WAC Lighting Solo TK-180503-30-WT White complete fixed rail fixture with a 24 in rail, three integrated LED heads, frosted TIR lenses, canopy and concealed driver.
