WAC Lighting Pop-In R4DSDR-F9CS-BK 4 in. Square Remodel Downlight — 12W / 5CCT

This square remodel downlight combines selectable white light with a concealed driver and back-mounted electrical box for a neat, straightforward ceiling installation. The black-finish fixture uses a frosted TIR lens and offers five CCT settings with a fixed 45° beam.

Key Features

• Five selectable CCTs: Choose 2700K, 3000K, 3500K, 4000K, or 5000K.
• Color rendering: 90 CRI.
• Manufacturer-listed output: 790 and 1,000 lumens across the selectable CCT configurations; CBCP values listed are 1,207 and 1,256.
• Fixed beam: 45° beam angle.
• Integrated LED: 12W source with 50,000-hour rated life.
• Dimming: ELV or TRIAC dimming, each from 100% to 5%.
• Electrical input: 120–277VAC, 50/60Hz.
• Frosted TIR lens: Provides smooth light diffusion.
• Black finish: Die-cast aluminum with electrostatically powder-coated black finish and 20-gauge cold-rolled-steel junction box.

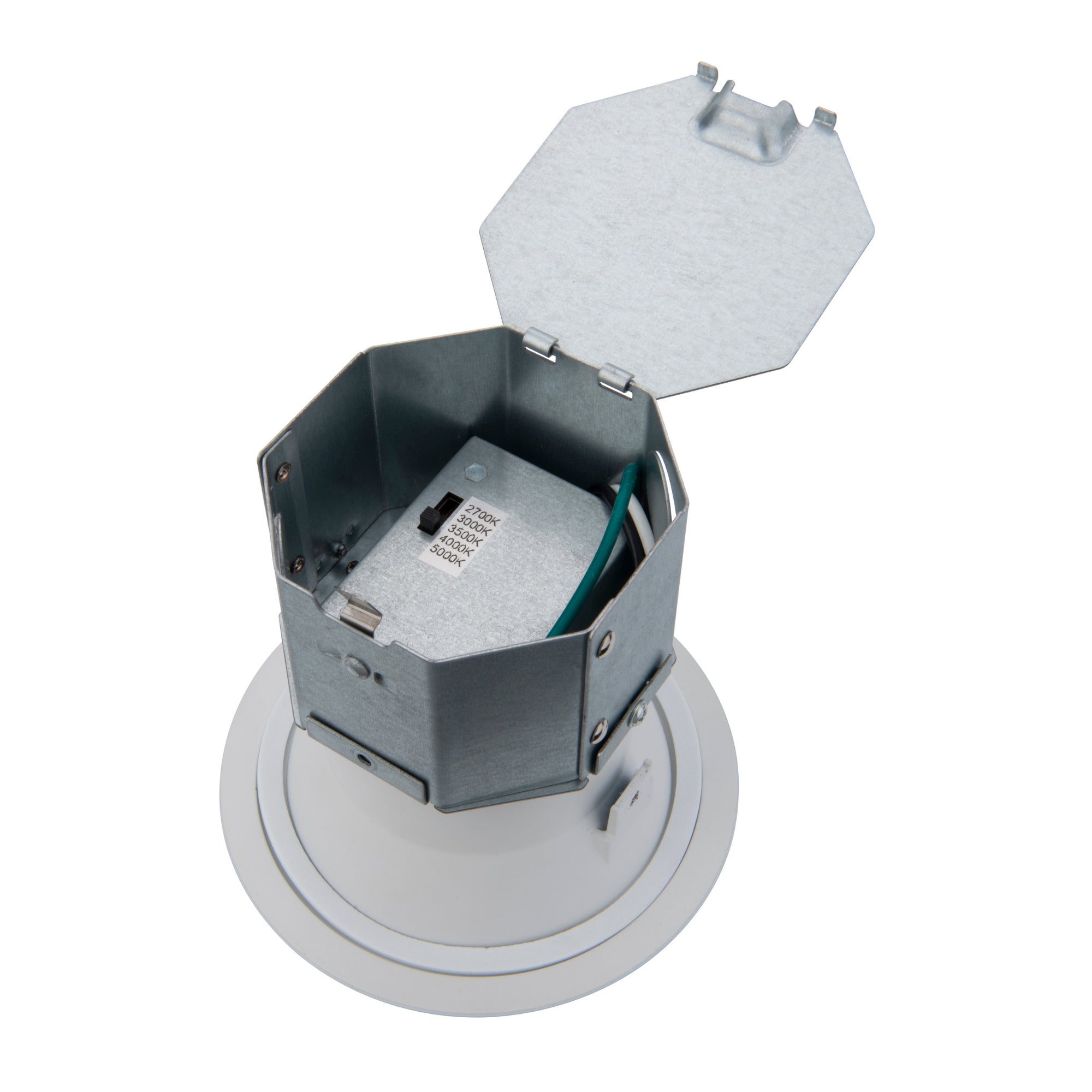

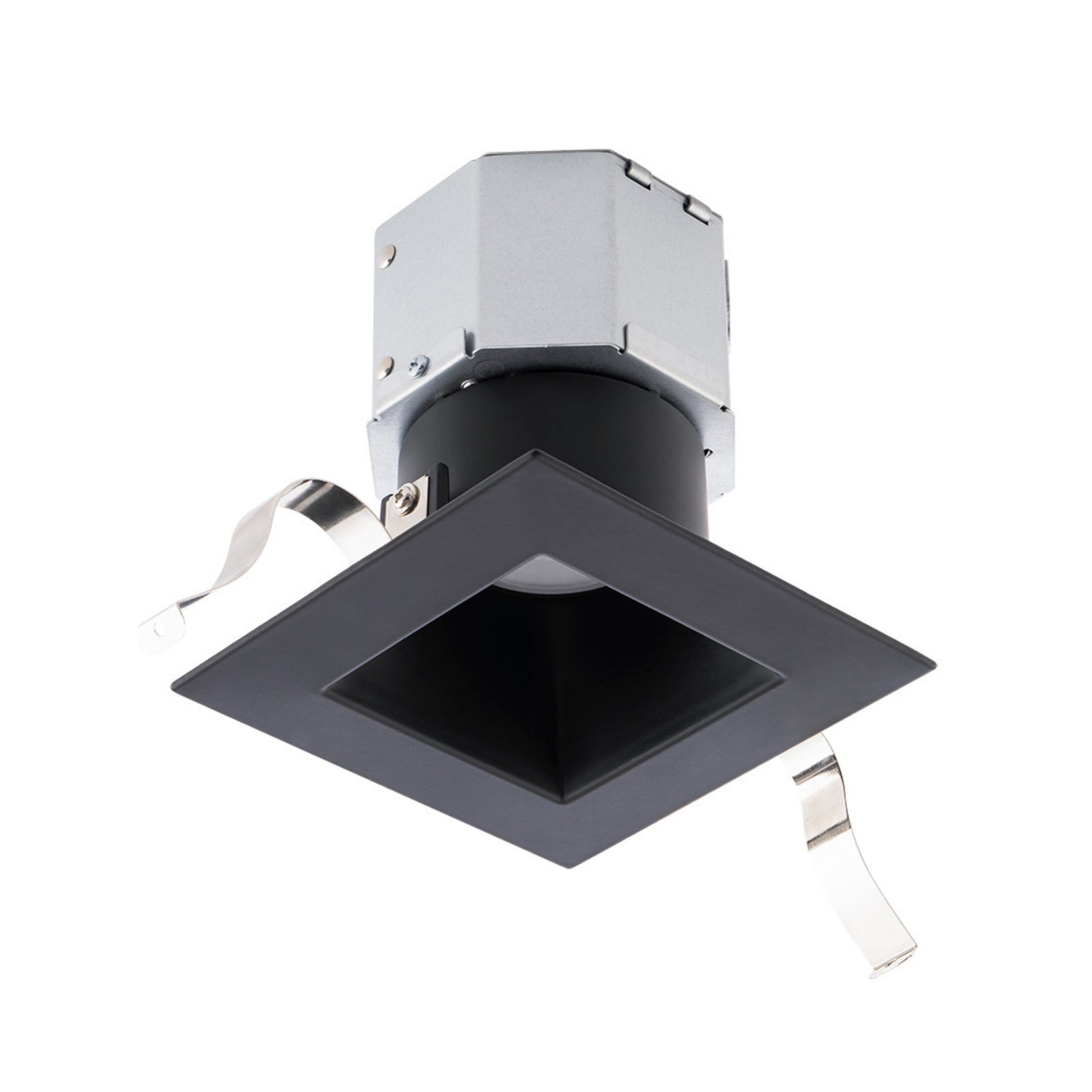

• Remodel mounting: Back-mounted electrical box and heavy-gauge retention clips secure the fixture.

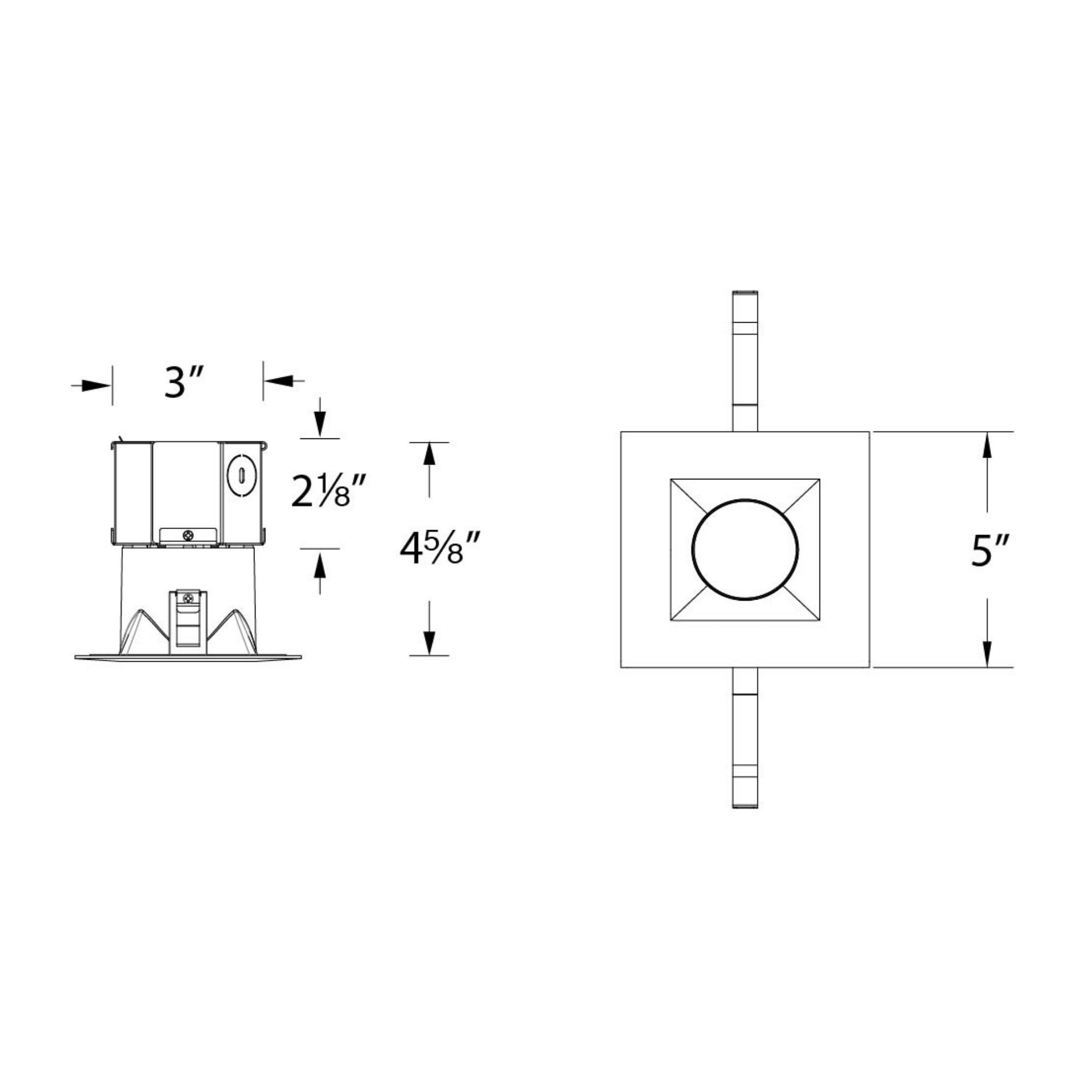

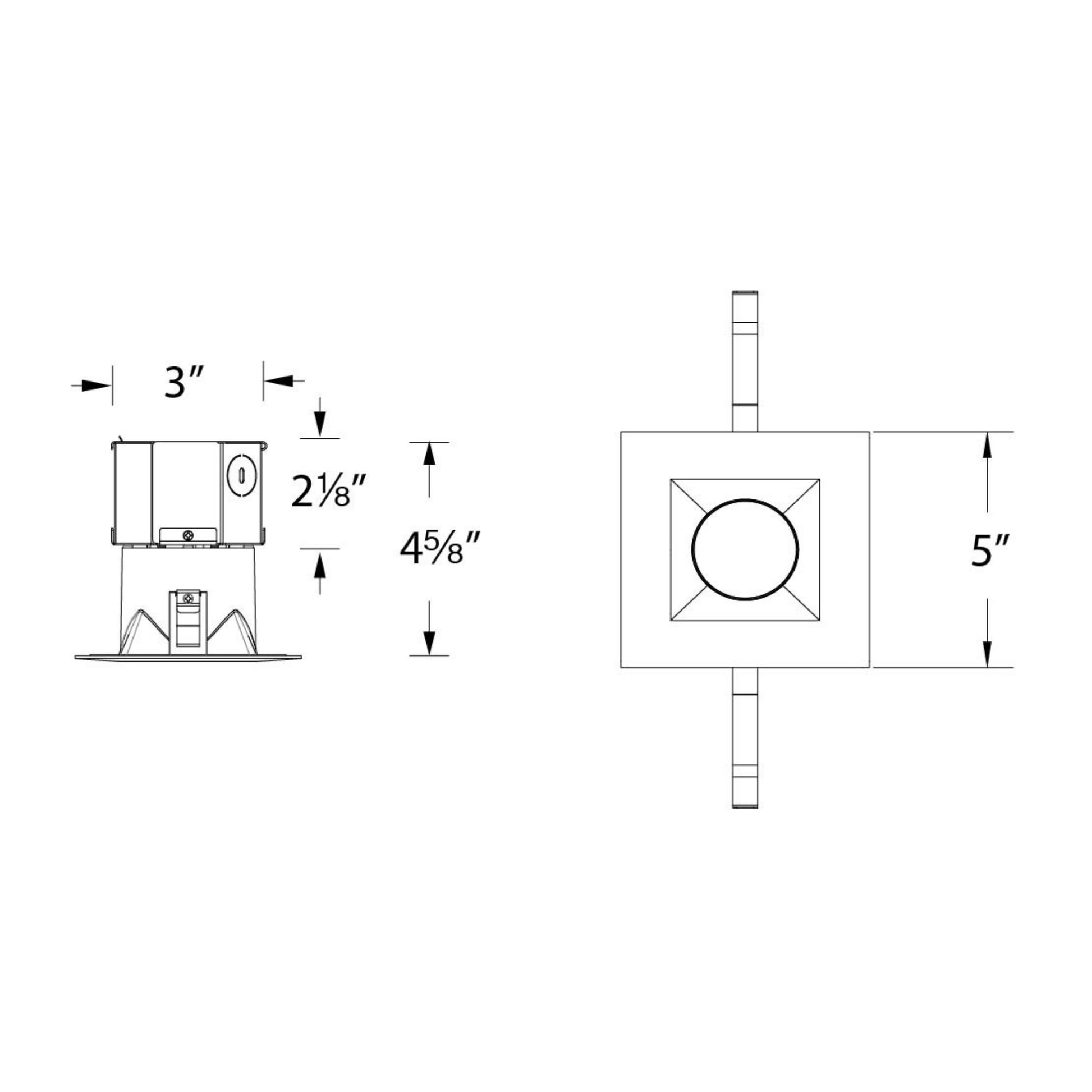

• Ceiling fit: 4 in. cutout and 1/2 in. to 1 1/2 in. ceiling thickness.
• Rated conditions: Operating temperature -4°F to 104°F (-20°C to 40°C); 5-year warranty.
• Listings: ETL and cETL listed, Wet Location Listed, Title 24 JA8 compliant, Airtight, and IC.

Construction & Design

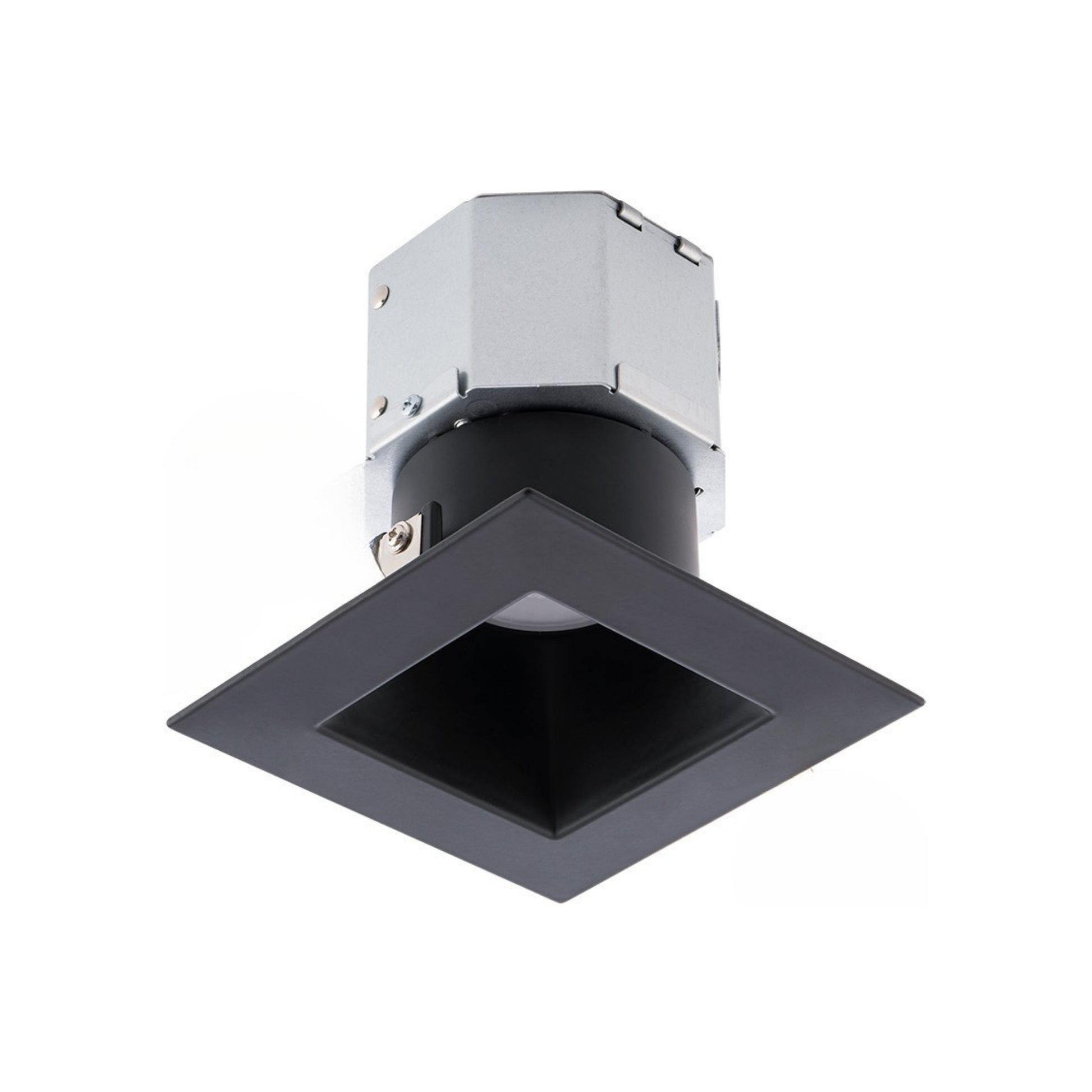

The square downlight combines die-cast aluminum with a 20-gauge cold-rolled-steel junction box and frosted TIR lens. The black electrostatically powder-coated finish gives the recessed fixture a clean, low-profile look, with its driver concealed within the fixture.

Light Output & Performance

The 12W integrated LED offers five selectable CCTs from 2700K to 5000K at 90 CRI. The manufacturer lists 790 and 1,000 lumens and CBCP values of 1,207 and 1,256 across the selectable CCT configurations. The fixed beam angle is 45°, and rated life is 50,000 hours.

Electrical & Installation

Connect to 120–277VAC, 50/60Hz. The fixture supports ELV or TRIAC dimming from 100% to 5%. For remodel installation, the electrical box is mounted on the back of the fixture and heavy-gauge retention clips secure it at the ceiling. Provide a 4 in. cutout and accommodate ceiling thickness from 1/2 in. to 1 1/2 in.

Typical Applications

• Residential kitchens, living areas, and hallways.
• Commercial offices and retail interiors.
• Hospitality spaces.
• Bathrooms and other wet-location installations.
• Remodel projects needing a square recessed downlight with selectable CCT.

What's Included

• One black 4 in. square remodel downlight with integrated LED, concealed driver, back-mounted electrical box, and heavy-gauge retention clips.
